Model Electrolux 790.45069401 Electric Range (Kenmore 79045069401) – Common Parts & Diagrams
BACKGUARD

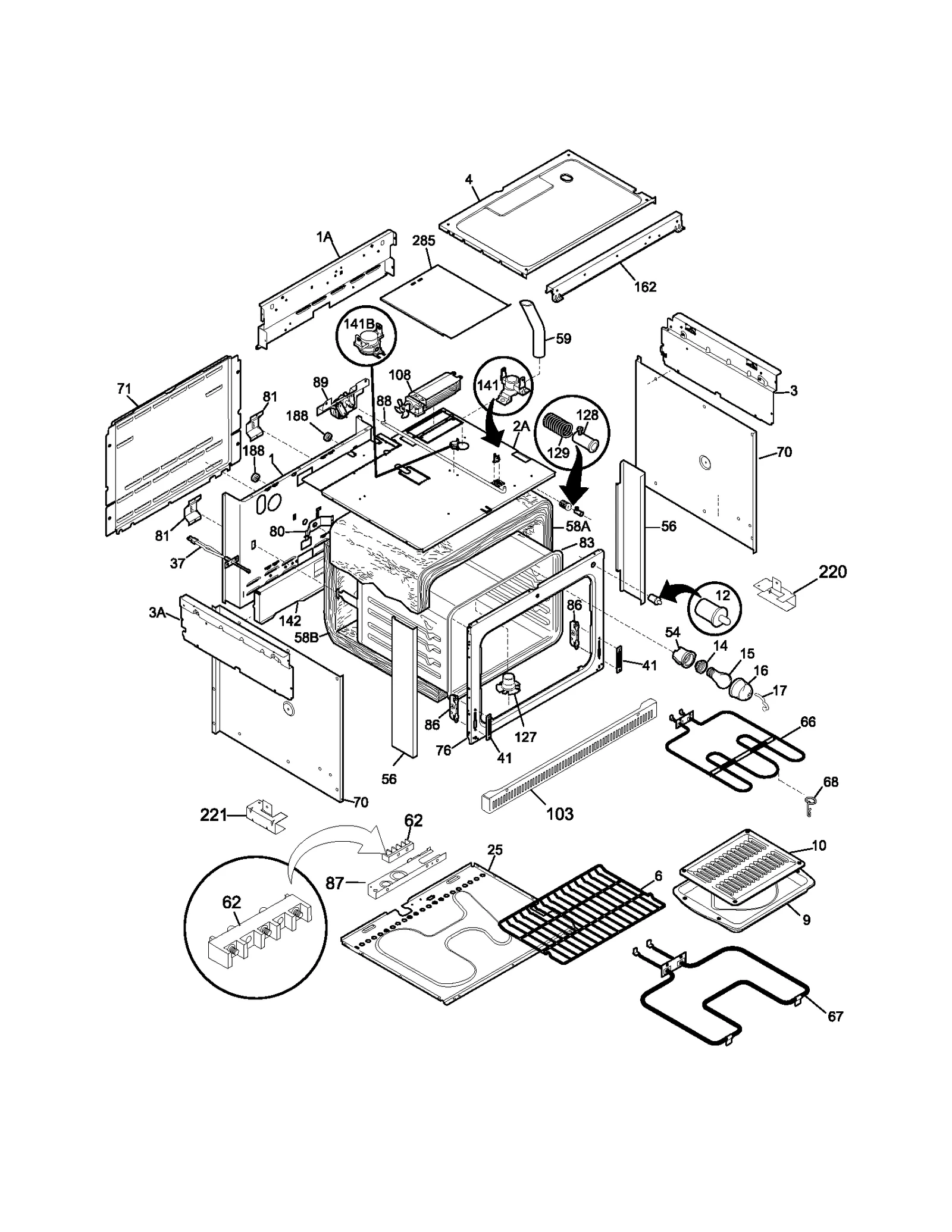

BODY

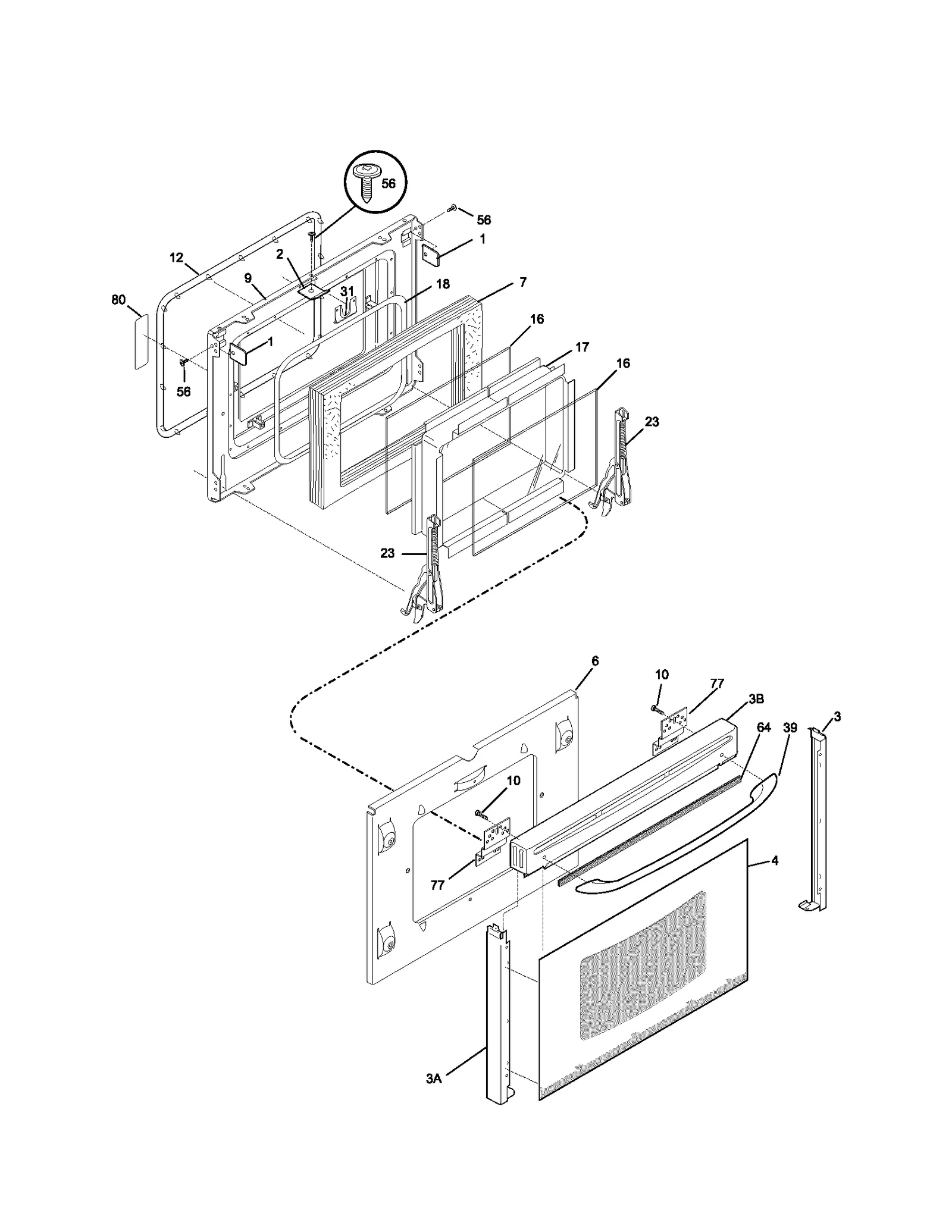

DOOR

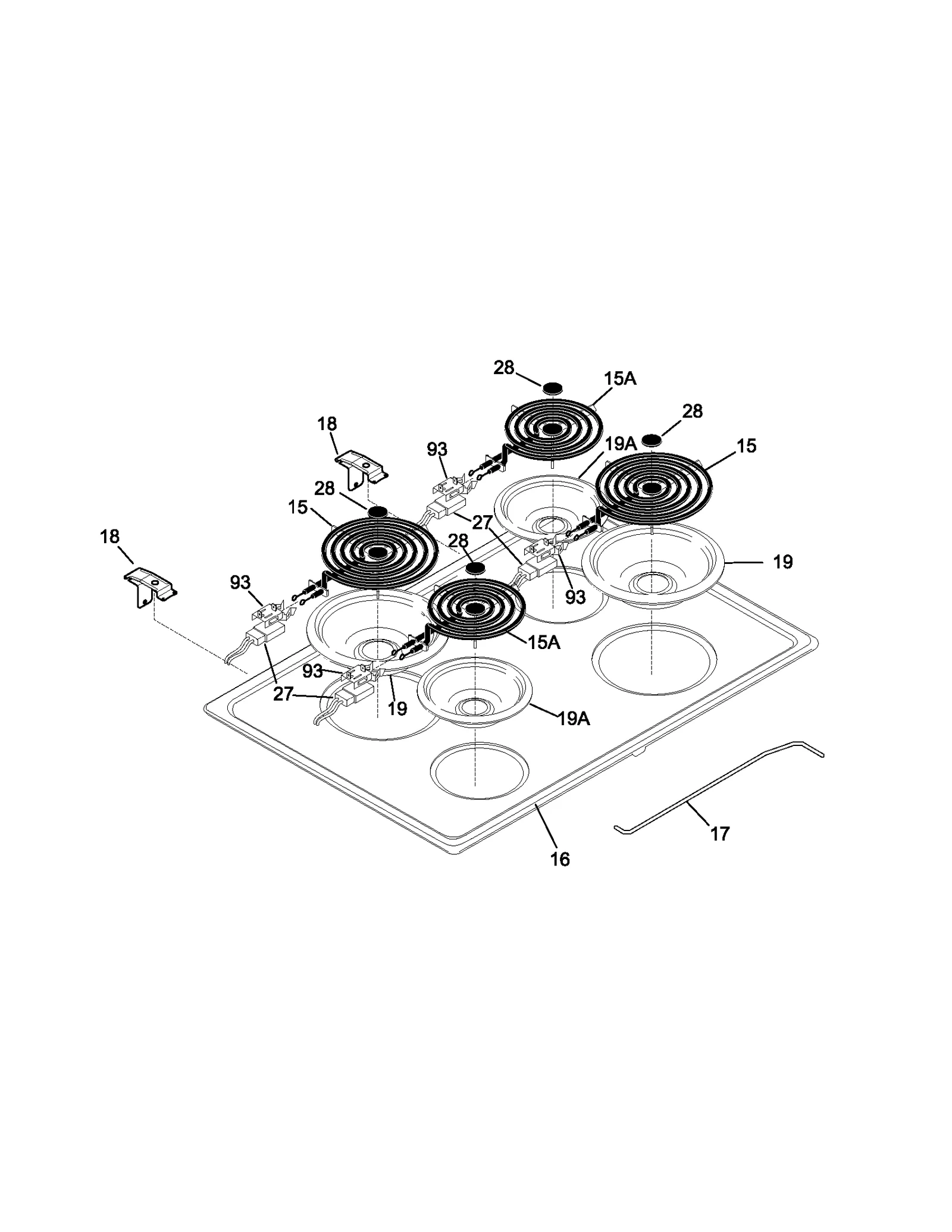

MAINTOP
Common parts from model Electrolux 790.45069401 Electric Range (Kenmore 79045069401)
1
Bracket WCI 318180310 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
3
Oven Trim WCI 318187810 Contact Us For Availability
3
Range Trim WCI 318187814 Contact Us For Availability
3A
Oven Trim WCI 318187811 Contact Us For Availability
3A
Trim, Left WCI 318187815 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176647 Contact Us For Availability
4
Panel WCI 318187721 Contact Us For Availability
4
Range Oven Door Outer Panel (Black) WCI 318187723 Contact Us For Availability
6
Shield WCI 318056802 Contact Us For Availability
7
Insulation WCI 318133781 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
16
Main WCI 318225601 Contact Us For Availability
16
Main WCI 318225602 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
17
Rod WCI 3051554 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
18
Hinge WCI 318227700 Contact Us For Availability
19A
Range Control Panel Support WCI 318224401 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 318185477 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
27
Terminal Block WCI 318223414 Contact Us For Availability
27
Terminal Block WCI 318223413 Contact Us For Availability
27
Terminal Block WCI 318223415 Contact Us For Availability
27
Terminal Block WCI 318223418 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208112 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208113 Contact Us For Availability
39
Oven Handle WCI 316209701 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
58B
Oven Insulation WCI 318133785 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Front WCI 318225302 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
80
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111800 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
93
Support WCI 318122500 Contact Us For Availability
103
Trim (White) WCI 5303300213 Contact Us For Availability
103
Trim WCI 5303300217 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
141
Range Thermal Cut-Off WCI 318005201 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
162
Box,extension WCI 318225800 Contact Us For Availability
188
Spacer WCI 318014110 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
285
Shield WCI 318236200 Contact Us For Availability
NI
Range Surface Burner Knob Support WCI 318183101 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Cooking Appliance Screw, #6-32 x 3/8-in WCI 5303131766 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Box Wire WCI 318078526 Contact Us For Availability
NI
Kit WCI 5303325856 Contact Us For Availability
× ![]()
