Model Kenmore 790.41392400 OVEN – Common Parts & Diagrams

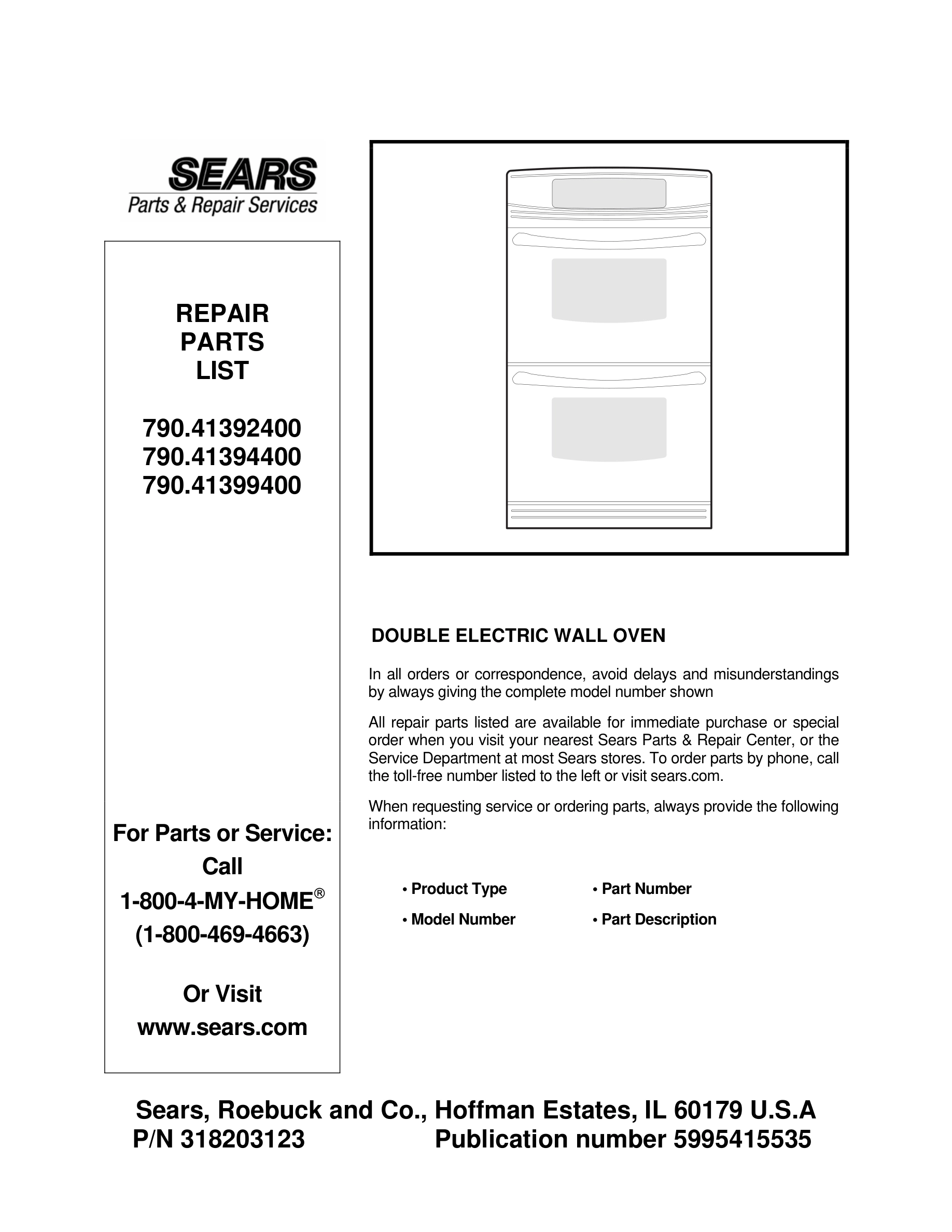

01 - COVER

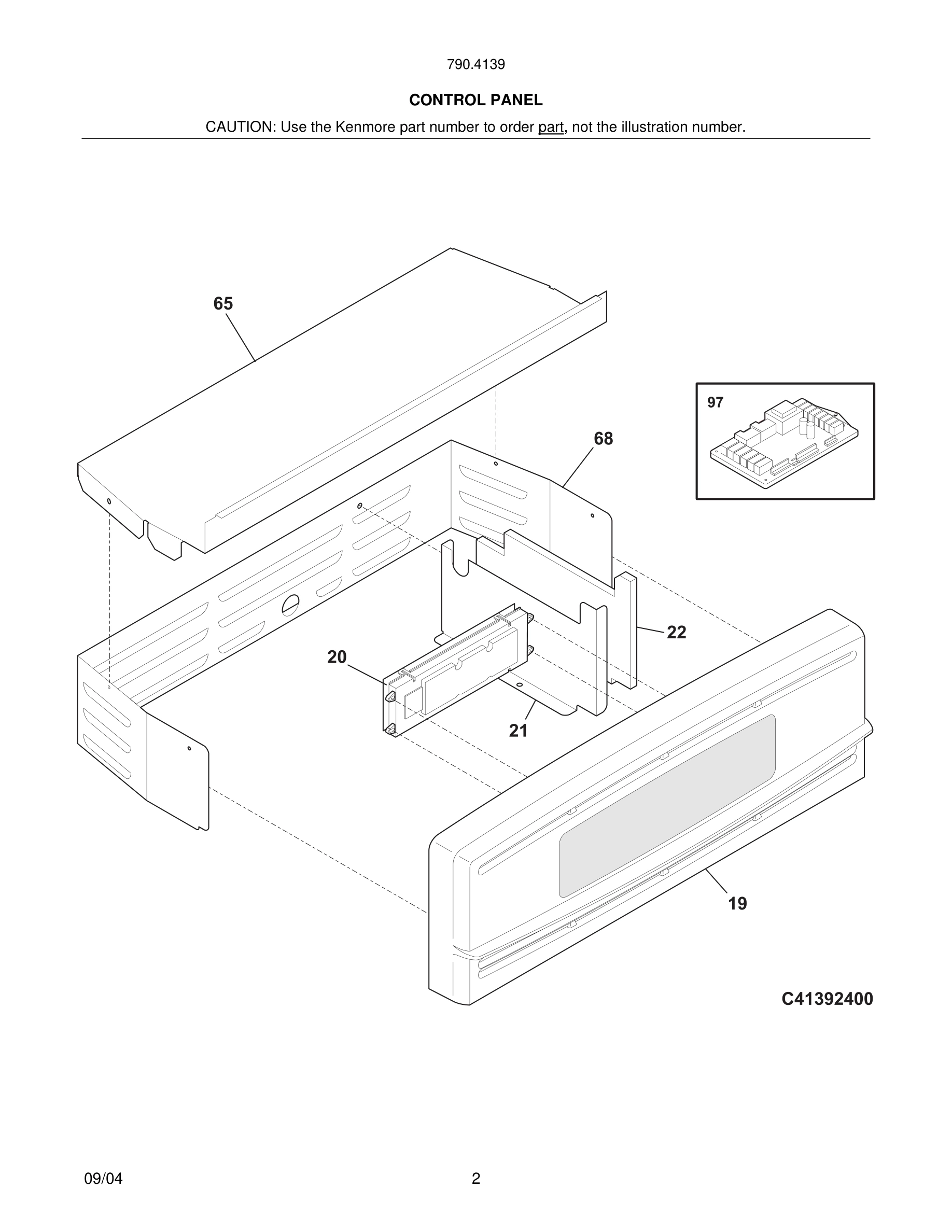

03 - CONTROL PANEL

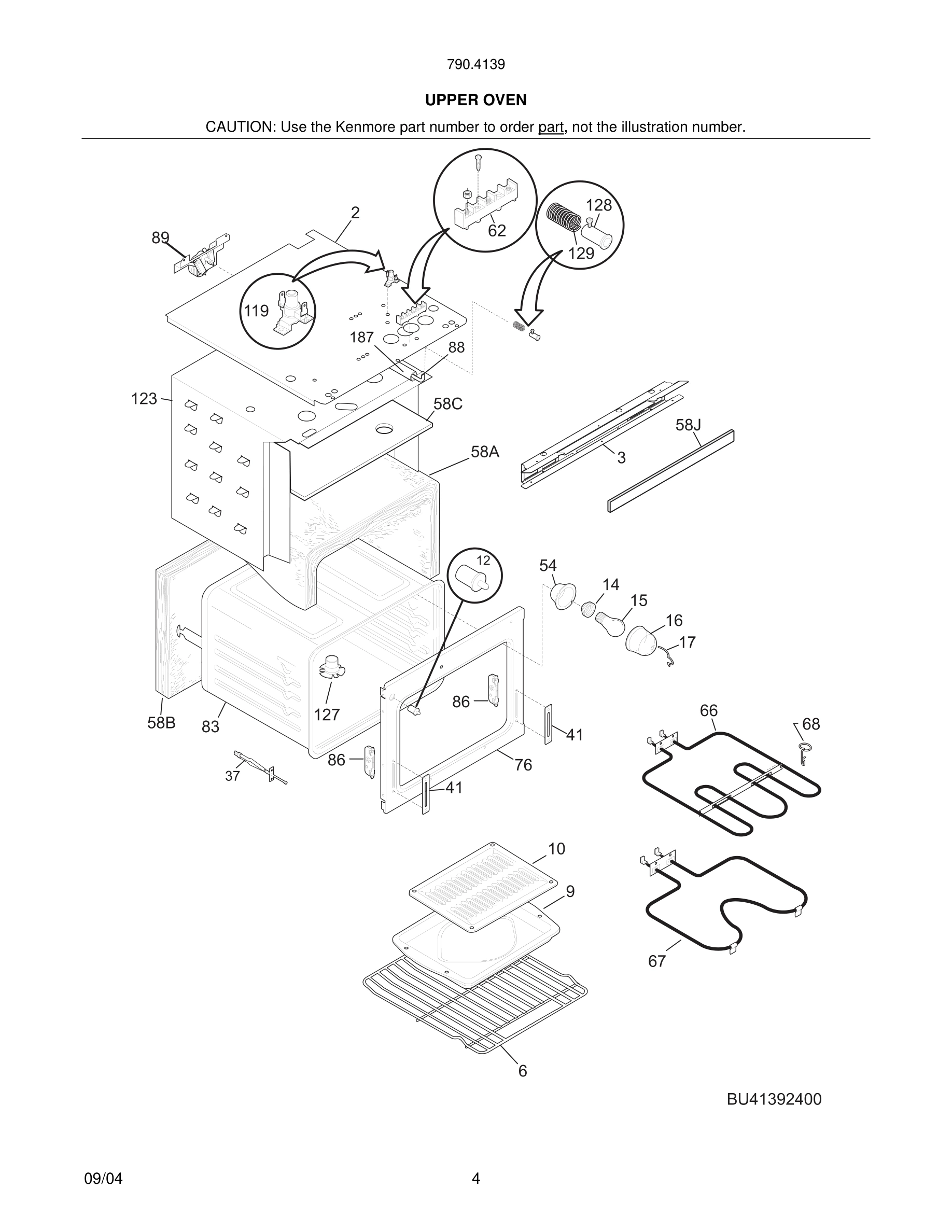

05 - UPPER OVEN

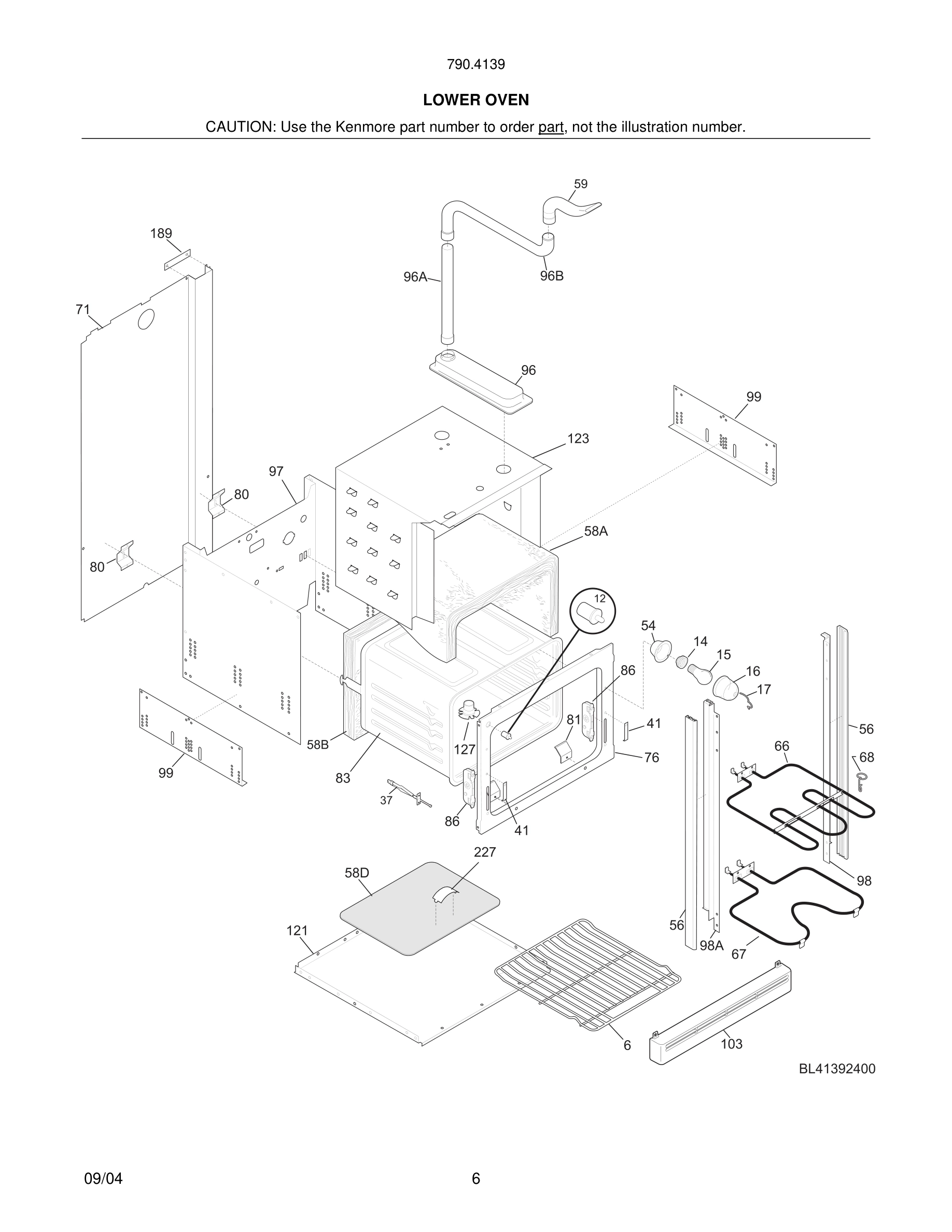

07 - LOWER OVEN

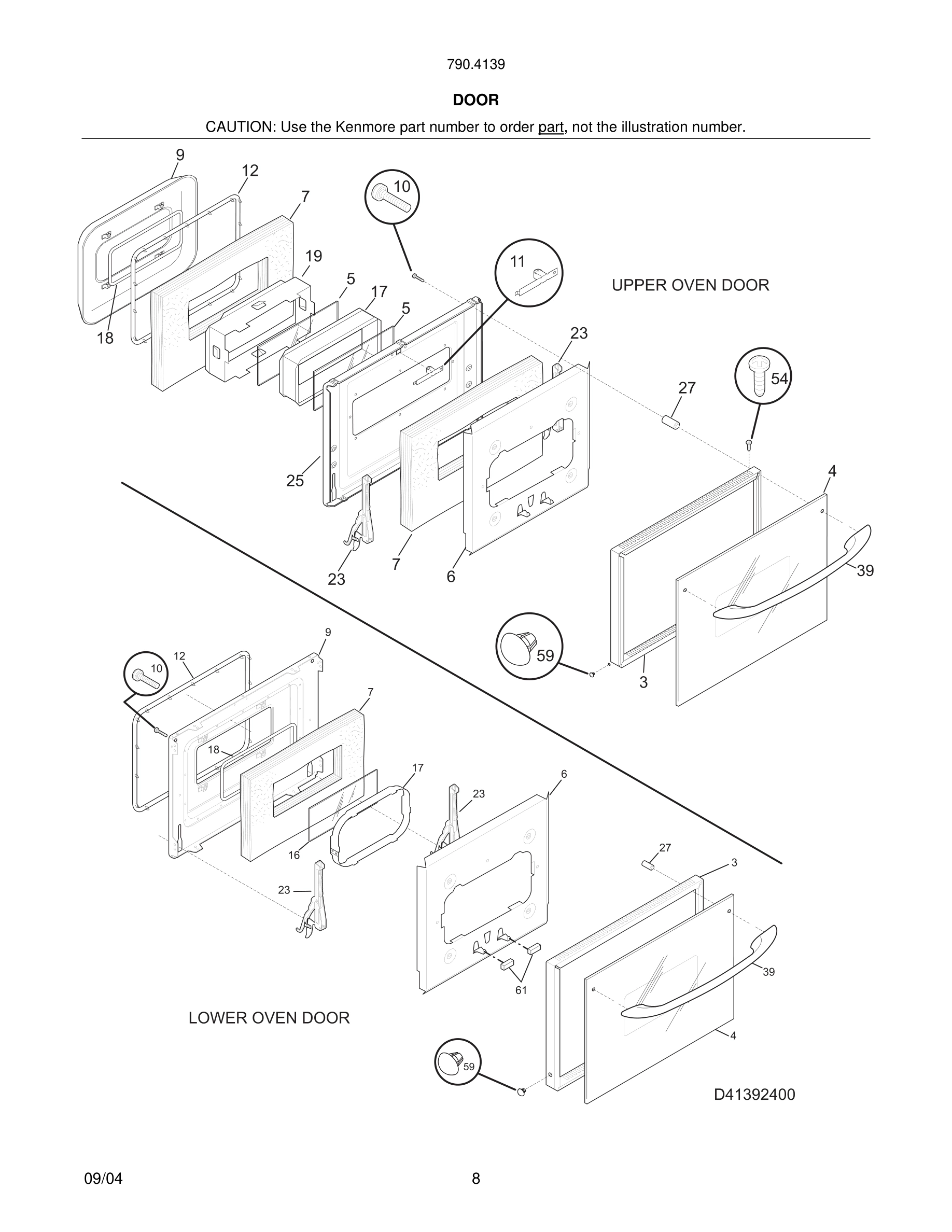

09 - DOOR

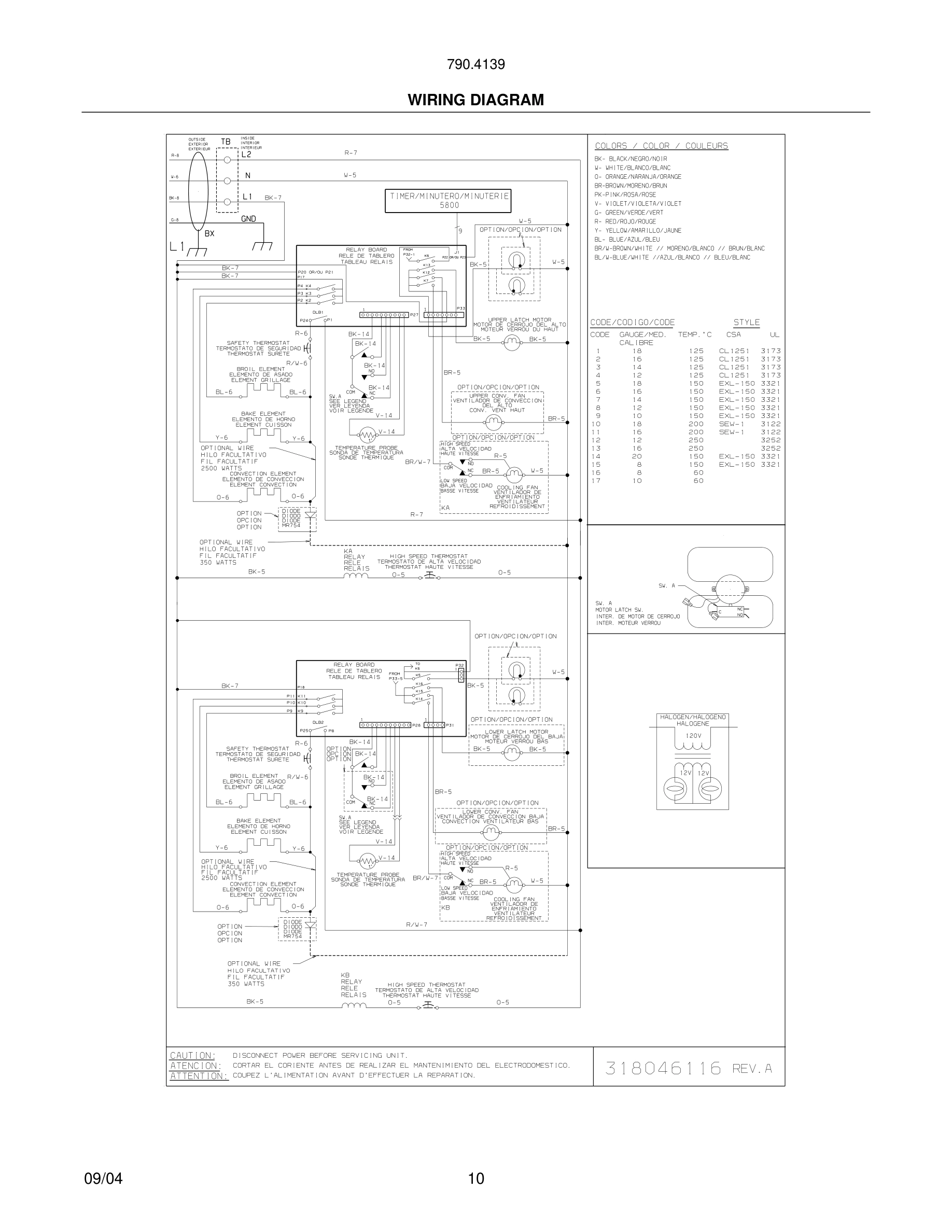

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.41392400 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Clip, wire retainer WCI 3015722 Contact Us For Availability
*
Screw, 6-20 x 5/16, black, (6) WCI 5303320422 Contact Us For Availability
*
Foam seal, (2) WCI 5303316982 Contact Us For Availability
*
Screw, 10-16 x 1 1/2 WCI 5303325981 Contact Us For Availability
3
Trim, frame, black WCI 318287400 Contact Us For Availability
3
Trim, frame, white WCI 318287300 Contact Us For Availability
3
Trim, frame, bisque WCI 318287301 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051525 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051524 Contact Us For Availability
4
Glass, oven door, bisque, outer WCI 318051526 Contact Us For Availability
5
Glass, door, inner, (2) WCI 318212410 Contact Us For Availability
6
Rack, oven WCI 318262700 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318133799 Contact Us For Availability
9
Liner, oven door, lower oven WCI 318156611 Contact Us For Availability
9
Deflector, upper oven WCI 318160503 Contact Us For Availability
10
Screw, handle mtg., 10-24 x 2, (2) WCI 5304441734 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
12#
Seal, oven door, lower oven WCI 5303316768 Contact Us For Availability
16
Glass, door, inner WCI 318212400 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
17
Support, glass, lower oven WCI 318162611 Contact Us For Availability
18
Seal, door, upper oven WCI 318286300 Contact Us For Availability
18
Gasket, door glass seal, inner, lower oven WCI 318053206 Contact Us For Availability
19
Collar, glass mtg WCI 318139203 Contact Us For Availability
23
Hinge, oven door, upper oven WCI 5303310506 Contact Us For Availability
23
Hinge, oven door, lower oven WCI 318024702 Contact Us For Availability
25
Liner, oven door WCI 318048311 Contact Us For Availability
27
Spacer, door WCI 318014400 Contact Us For Availability
39
Handle, door, white, oven WCI 318264411 Contact Us For Availability
39
Handle, door, bisque, oven WCI 318264412 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56
Trim, bodyside, white WCI 318176908 Contact Us For Availability
56
Trim, bodyside, bisque WCI 318176909 Contact Us For Availability
56
Trim, bodyside, black WCI 318176907 Contact Us For Availability
58A
Insulation, oven wrapper WCI 318133758 Contact Us For Availability
58B
Insulation, oven back WCI 318133737 Contact Us For Availability
58D
Insulation, 1/2" thick, 26.75 x 19 WCI 318133789 Contact Us For Availability
59
Tube, vent, oven WCI 318072569 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
61
Spacer, cork & rubber WCI 5303300414 Contact Us For Availability
71
Shield, rear wall WCI 318071140 Contact Us For Availability
76
Front, oven WCI 318056124 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
83
Liner, oven WCI 318089520 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
96
Duct, oven vent WCI 318294600 Contact Us For Availability
96A
Duct, oven vent WCI 318072571 Contact Us For Availability
96B
Duct, oven pipe WCI 318072570 Contact Us For Availability
97
Board, relay, dual oven WCI 316429800 Contact Us For Availability
97
Wrapper, back & sides WCI 318066605 Contact Us For Availability
98
Trim, side, inner, RH WCI 318029367 Contact Us For Availability
98A
Trim, side, inner, LH WCI 318029368 Contact Us For Availability
99
Panel, adjustable, side, (2) WCI 318284200 Contact Us For Availability
103
Trim, base, white WCI 318283201 Contact Us For Availability
103
Trim, base, bisque WCI 318283202 Contact Us For Availability
103
Trim, base, black WCI 318283200 Contact Us For Availability
121
Wrapper, bottom WCI 318145004 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071444 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
187
Tube, latch rod WCI 318013501 Contact Us For Availability
189
Plate, retainer WCI 318042500 Contact Us For Availability
227
Clip, retainer WCI 5303323955 Contact Us For Availability
× ![]()
