Model Electrolux 790.40529402 Electric Oven (Kenmore 79040529402) – Common Parts & Diagrams

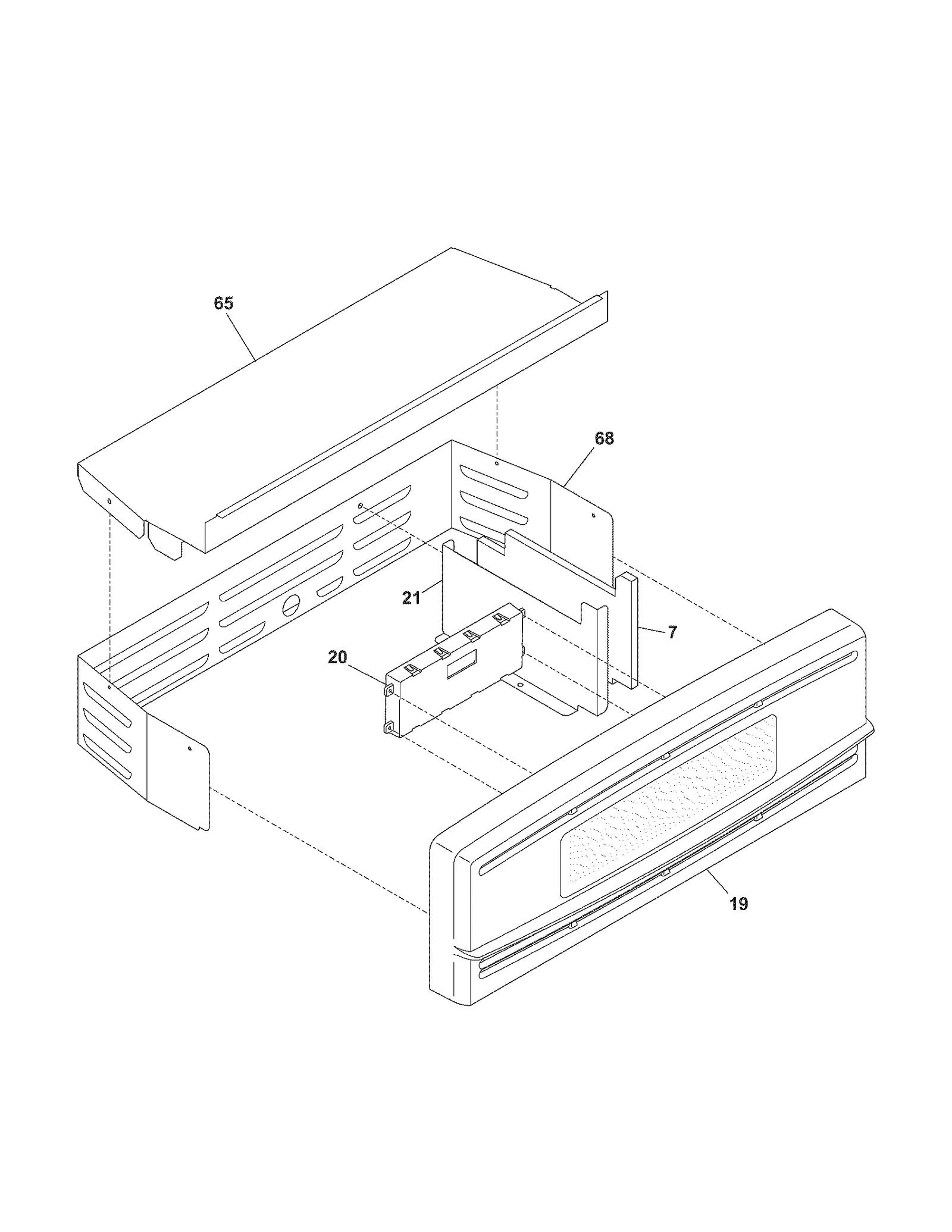

CONTROL PANEL
DOOR
BODY
Common parts from model Electrolux 790.40529402 Electric Oven (Kenmore 79040529402)
2
Wrapper WCI 318195901 Contact Us For Availability
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
3
Bracket,control panel ,black ,mounting WCI 318293600 Contact Us For Availability
3A
Plate WCI 318300701 Contact Us For Availability
4
Frigidaire Wall Oven Door Outer Panel (Black) WCI 318051525 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 318212410 Contact Us For Availability
6
Rack WCI 318262701 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Wall Oven Door Handle Screw, #10-24 x 2-3/16- WCI 5303311217 Contact Us For Availability
11
Wall Oven Door Catch WCI 318065102 Contact Us For Availability
12
Wall Oven Door Inner Heat Seal WCI 318178801 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
20
Wall Oven Control Board WCI 316418550 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318176911 Contact Us For Availability
56
Trim WCI 318176912 Contact Us For Availability
56
Trim WCI 318176913 Contact Us For Availability
58A
Oven Insulation WCI 318285044 Contact Us For Availability
58B
Oven Insulation WCI 318285036 Contact Us For Availability
58C
Insulation WCI 318294906 Contact Us For Availability
58J
Insulation WCI 318106055 Contact Us For Availability
59
Tube WCI 318072568 Contact Us For Availability
71
Oven Panel WCI 318071111 Contact Us For Availability
76
Oven WCI 318056139 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81
Bracket WCI 5303323710 Contact Us For Availability
83
Oven Liner WCI 318089521 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
88
Latch Rod WCI 318118903 Contact Us For Availability
97
Wrapper WCI 318066602 Contact Us For Availability
98
Trim WCI 318029357 Contact Us For Availability
98A
Trim WCI 318029358 Contact Us For Availability
103
Base Trim WCI 318283201 Contact Us For Availability
103
Wall Oven Vent, Lower (Black) WCI 318283200 Contact Us For Availability
103
Oven Trim WCI 318283202 Contact Us For Availability
121
Wrapper WCI 318145005 Contact Us For Availability
123
Shield WCI 318071444 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
187
Tube WCI 318013503 Contact Us For Availability
189
Retainer Plate WCI 318042500 Contact Us For Availability
227
Retainer Clip WCI 318370900 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Clip WCI 3015722 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318078563 Contact Us For Availability
NI
Oven Harness WCI 318231718 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Screw WCI 5303302745 Contact Us For Availability
NI
Oven Insulation WCI 5303311220 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 5/16-in WCI 5303320422 Contact Us For Availability
× ![]()
