Model Electrolux 790.40459803 Electric Oven (Kenmore 79040459803) – Common Parts & Diagrams

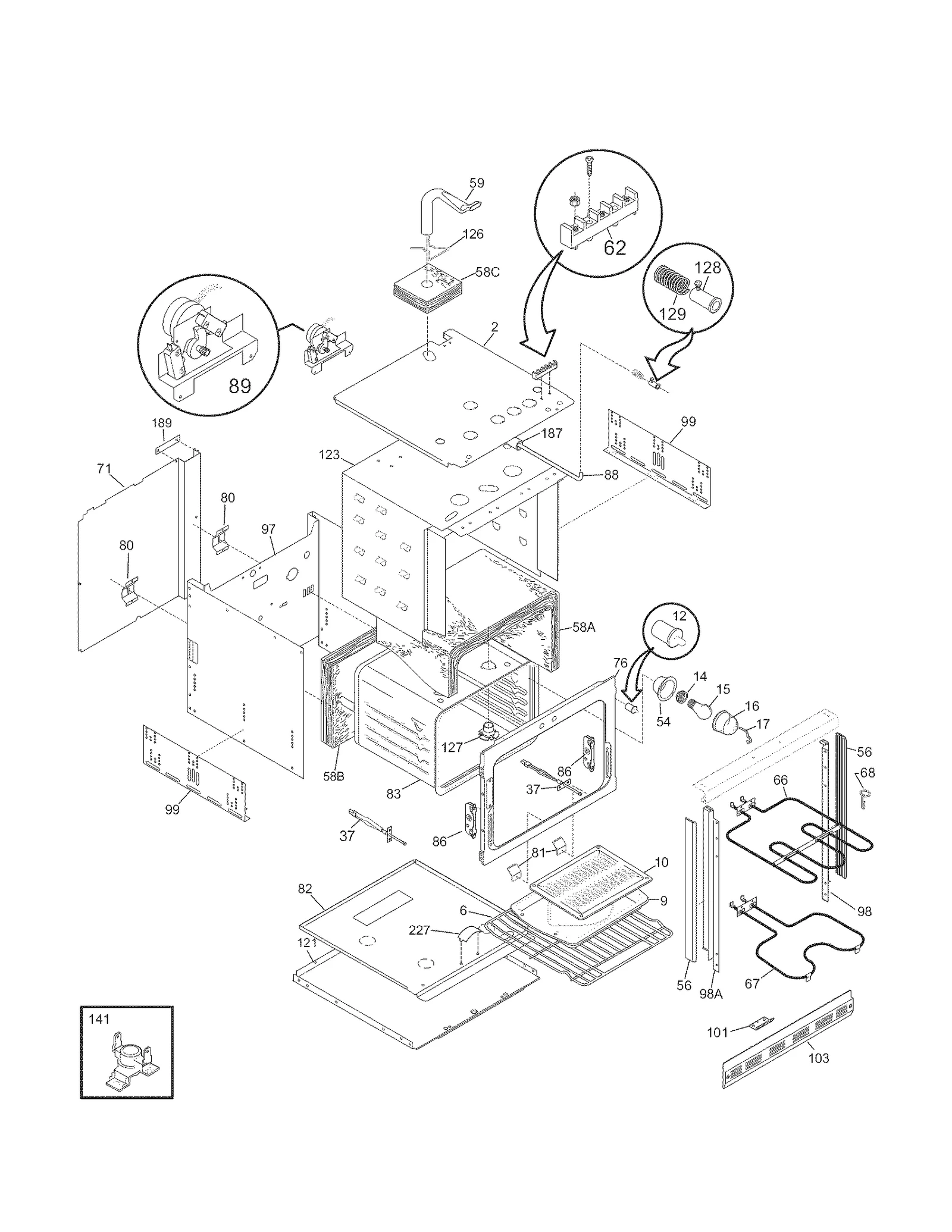

BODY
BODY

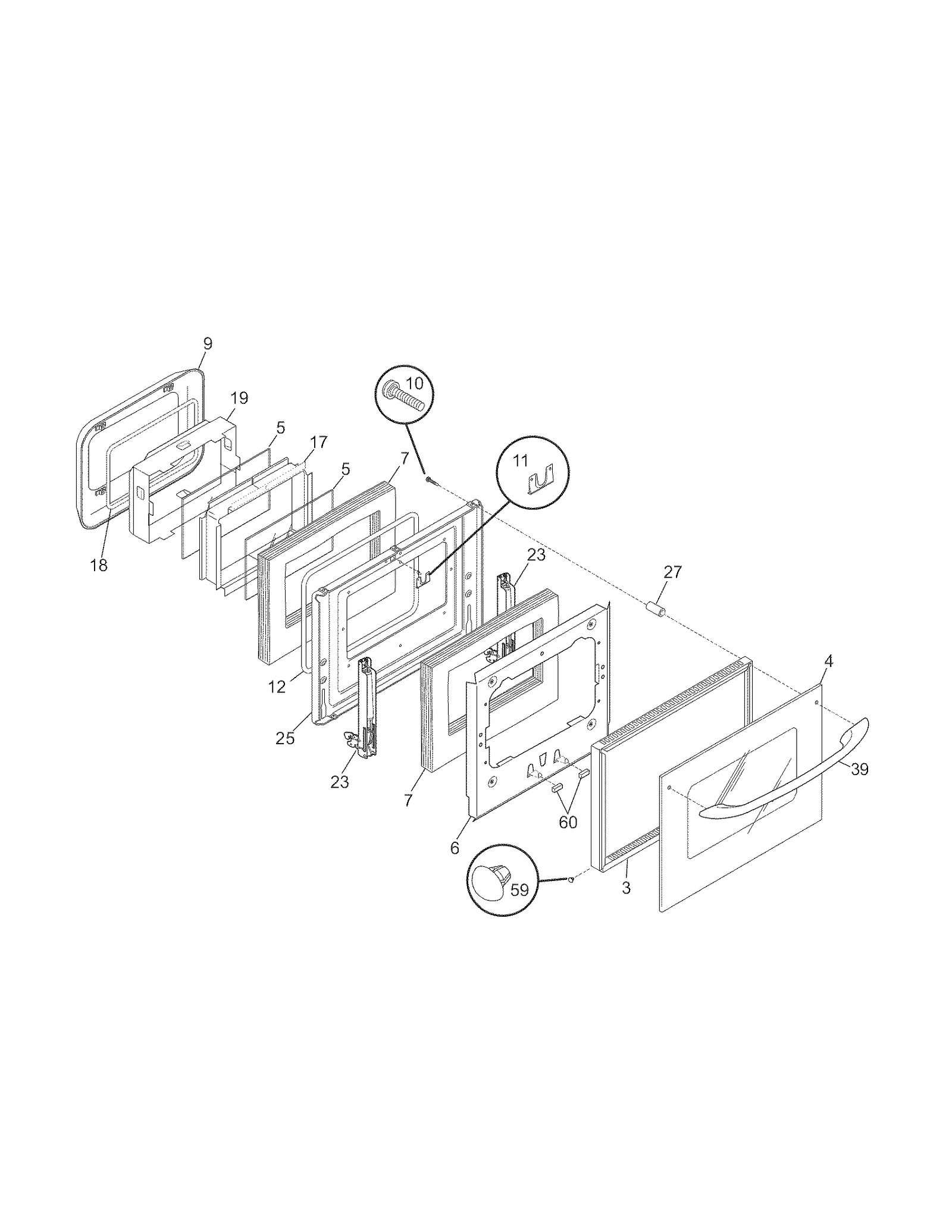

DOOR

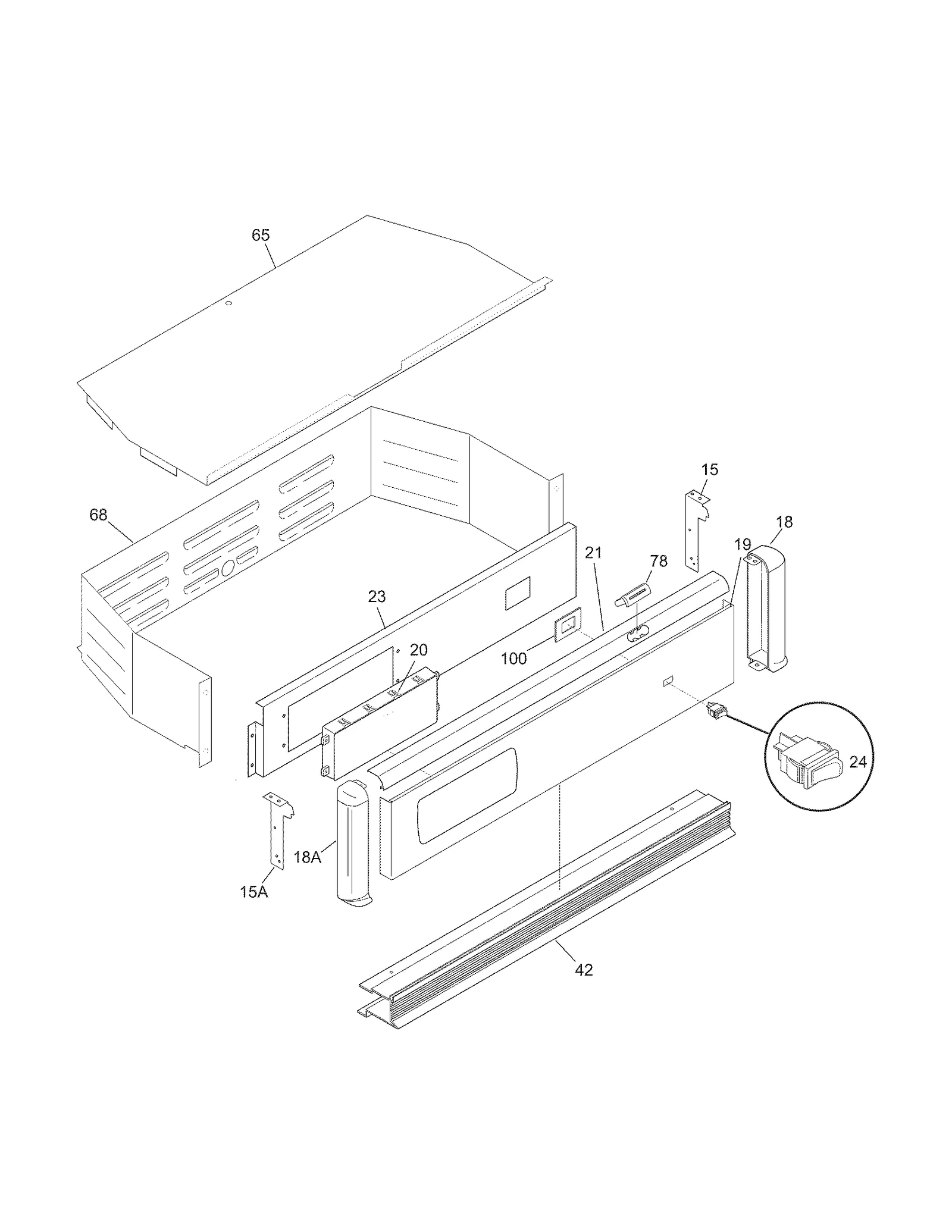

CONTROL PANEL
Common parts from model Electrolux 790.40459803 Electric Oven (Kenmore 79040459803)
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
3
Wall Oven Door Frame Trim Assembly (White) WCI 318287300 Contact Us For Availability
3
Oven Trim WCI 318287301 Contact Us For Availability
4
Frigidaire Wall Oven Door Outer Panel (Black) WCI 318051525 Contact Us For Availability
4
Wall Oven Door Outer Panel (Bisque) WCI 318051526 Contact Us For Availability
4
Oven Door Glass WCI 318051555 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 318212410 Contact Us For Availability
6
Shield WCI 318073610 Contact Us For Availability
7
Oven Insulation WCI 318285086 Contact Us For Availability
9
Deflector WCI 318160503 Contact Us For Availability
10
Wall Oven Door Handle Screw, #10-24 x 2-3/16- WCI 5303311217 Contact Us For Availability
11
Wall Oven Door Catch WCI 318065102 Contact Us For Availability
12
Wall Oven Door Inner Heat Seal WCI 318178801 Contact Us For Availability
15
Support WCI 5303302286 Contact Us For Availability
15A
Support WCI 5303302287 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Oven Spacer WCI 318139102 Contact Us For Availability
18
Oven Seal WCI 318293400 Contact Us For Availability
18
End Cap WCI 318190300 Contact Us For Availability
18
End Cap WCI 5303311208 Contact Us For Availability
18
End Cap WCI 5303311231 Contact Us For Availability
18A
End Cap WCI 318190301 Contact Us For Availability
18A
End Cap WCI 5303311209 Contact Us For Availability
18A
End Cap WCI 5303311232 Contact Us For Availability
19
Collar WCI 318139207 Contact Us For Availability
19
Panel WCI 318234128 Contact Us For Availability
19
Oven Panel WCI 318234129 Contact Us For Availability
19
Panel WCI 318234130 Contact Us For Availability
20
Range Oven Control Board WCI 318414207 Contact Us For Availability
20
Wall Oven Control Board WCI 318414205 Contact Us For Availability
20
Wall Oven Control Board (Bisque) WCI 318414206 Contact Us For Availability
21
Wall Oven Control Panel Trim, Upper (Black) WCI 5303300408 Contact Us For Availability
21
Trim WCI 318028110 Contact Us For Availability
21
Oven Trim WCI 5303320425 Contact Us For Availability
23
Oven Hinge WCI 318567102 Contact Us For Availability
23
Oven Hinge WCI 318567112 Contact Us For Availability
23
Bracket WCI 318015035 Contact Us For Availability
24
Oven Switch WCI 318037520 Contact Us For Availability
25
Oven Liner WCI 318048321 Contact Us For Availability
27
Oven Spacer WCI 318014403 Contact Us For Availability
39
Wall Oven Door Handle WCI 318264410 Contact Us For Availability
39
Wall Oven Door Handle (White) WCI 318264411 Contact Us For Availability
39
Oven Handle WCI 318264412 Contact Us For Availability
42
Wall Oven Vent Cover WCI 318027517 Contact Us For Availability
42
Trim WCI 318027518 Contact Us For Availability
42
Wall Oven Vent Trim (Black) WCI 318027519 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
59
Oven Spacer WCI 3202113 Contact Us For Availability
60
Range Oven Door Trim Double-Sided Tape WCI 5303316982 Contact Us For Availability
65
Oven Cover WCI 318038804 Contact Us For Availability
68
Control Housing WCI 5303302397 Contact Us For Availability
78
Range Oven Vent Cover (White) WCI 318037122 Contact Us For Availability
78
Wall Oven Vent Trim (Black) WCI 318037121 Contact Us For Availability
78
Oven Cover WCI 318037120 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
100
Plate WCI 318112200 Contact Us For Availability
101
Oven Trim WCI 318039511 Contact Us For Availability
101
Oven Trim WCI 318039512 Contact Us For Availability
101
Bracket WCI 318039514 Contact Us For Availability
103
Wall Oven Base Trim (White) WCI 318028711 Contact Us For Availability
103
Wall Oven Bottom Trim (Black) WCI 318028710 Contact Us For Availability
103
Bisq Trim WCI 318028713 Contact Us For Availability
121
Wrapper WCI 318145005 Contact Us For Availability
123
Shield WCI 318071444 Contact Us For Availability
126
Clip WCI 3016303 Contact Us For Availability
128
Range Latch Rod Bushing WCI 318563000 Contact Us For Availability
187
Tube WCI 318013503 Contact Us For Availability
189
Retainer Plate WCI 318042500 Contact Us For Availability
227
Retainer Clip WCI 318370900 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Clip WCI 3015722 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318078563 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318199786 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Wiring Diagram WCI 318046264 Contact Us For Availability
NI
Service Data Sheet WCI 318047492 Contact Us For Availability
NI
Deflector WCI 318189308 Contact Us For Availability
NI
Installation WCI 318206003 Contact Us For Availability
NI
Screw WCI 5303302745 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 0.625-in WCI 5303311528 Contact Us For Availability
× ![]()
