Model Electrolux 790.40459801 Electric Oven (Kenmore 79040459801) – Common Parts & Diagrams
DOOR
CONTROL PANEL

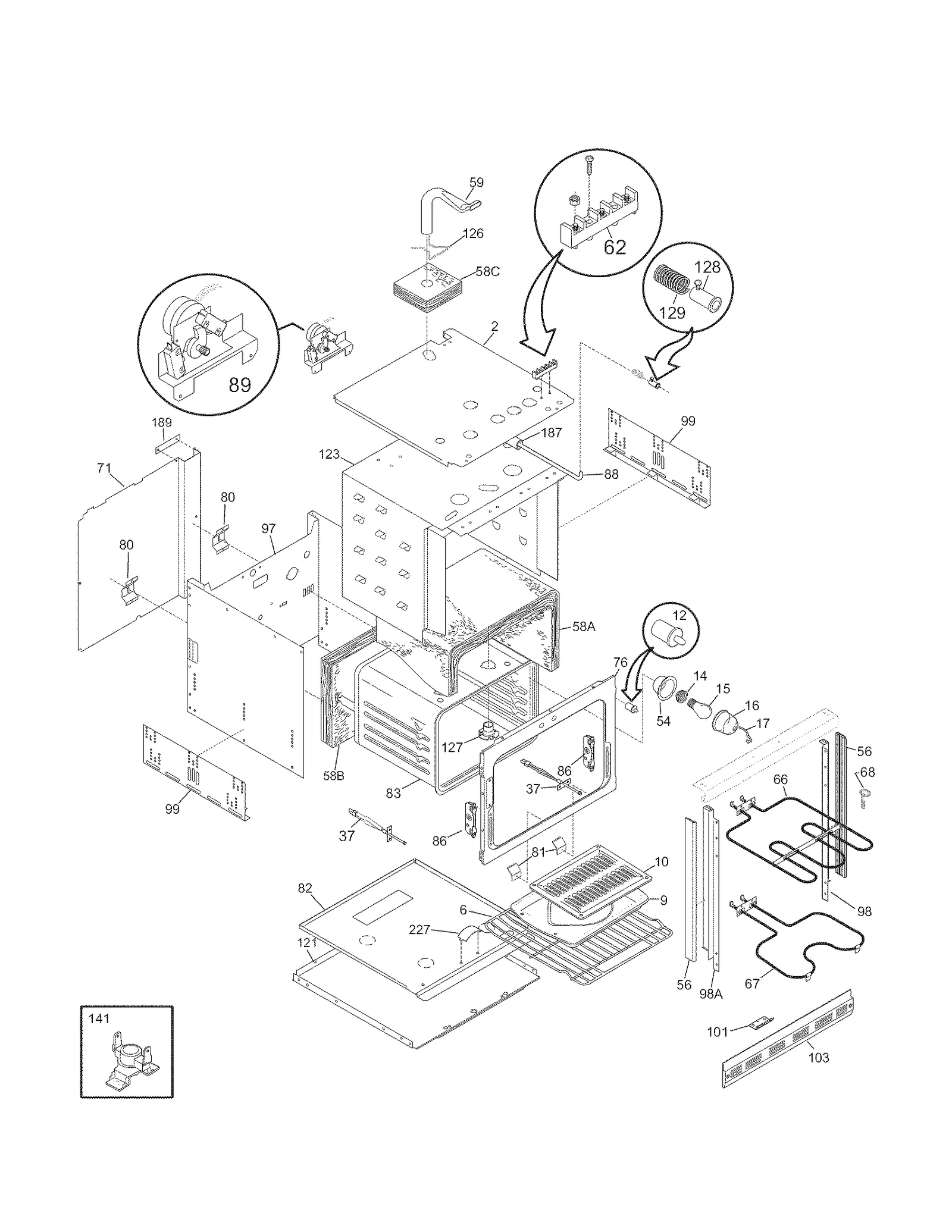

BODY
Common parts from model Electrolux 790.40459801 Electric Oven (Kenmore 79040459801)
2
Wrapper WCI 318195900 Contact Us For Availability
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
4
Frigidaire Wall Oven Door Outer Panel (Black) WCI 318051525 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 318212410 Contact Us For Availability
6
Range Oven Rack WCI 318345305 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Wall Oven Door Handle Screw, #10-24 x 2-3/16- WCI 5303311217 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
11
Wall Oven Door Catch WCI 318065102 Contact Us For Availability
12
Wall Oven Door Inner Heat Seal WCI 318178801 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
21
Wall Oven Control Panel Trim, Upper (Black) WCI 5303300408 Contact Us For Availability
21
Oven Trim WCI 5303320425 Contact Us For Availability
23
Bracket WCI 318015035 Contact Us For Availability
24
Oven Switch WCI 318037520 Contact Us For Availability
42
Wall Oven Vent Cover WCI 318027517 Contact Us For Availability
42
Trim WCI 318027518 Contact Us For Availability
42
Wall Oven Vent Trim (Black) WCI 318027519 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318176900 Contact Us For Availability
56
Trim-side Ou WCI 5303298951 Contact Us For Availability
56
Oven Trim WCI 5303302711 Contact Us For Availability
58A
Insulation WCI 318386111 Contact Us For Availability
58B
Oven Insulation WCI 318285036 Contact Us For Availability
58C
Oven Insulation WCI 5303311220 Contact Us For Availability
59
Tube WCI 318549800 Contact Us For Availability
65
Oven Cover WCI 318038804 Contact Us For Availability
68
Control Housing WCI 5303302397 Contact Us For Availability
71
Oven Panel WCI 318071111 Contact Us For Availability
76
Front WCI 318056145 Contact Us For Availability
78
Range Oven Vent Cover (White) WCI 318037122 Contact Us For Availability
78
Wall Oven Vent Trim (Black) WCI 318037121 Contact Us For Availability
78
Oven Cover WCI 318037120 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81
Bracket WCI 5303323710 Contact Us For Availability
83
Oven Liner WCI 318089521 Contact Us For Availability
88
Latch Rod WCI 318118903 Contact Us For Availability
97
Wrapper WCI 318066602 Contact Us For Availability
98
Oven Trim WCI 318029384 Contact Us For Availability
98A
Oven Trim WCI 318029385 Contact Us For Availability
100
Plate WCI 318112200 Contact Us For Availability
101
Oven Trim WCI 318039511 Contact Us For Availability
101
Oven Trim WCI 318039512 Contact Us For Availability
101
Bracket WCI 318039514 Contact Us For Availability
103
Wall Oven Base Trim (White) WCI 318028711 Contact Us For Availability
103
Wall Oven Bottom Trim (Black) WCI 318028710 Contact Us For Availability
103
Bisq Trim WCI 318028713 Contact Us For Availability
121
Wrapper WCI 318145005 Contact Us For Availability
123
Shield WCI 318071444 Contact Us For Availability
126
Clip WCI 3016303 Contact Us For Availability
128
Range Latch Rod Bushing WCI 318563000 Contact Us For Availability
187
Tube WCI 318013503 Contact Us For Availability
189
Retainer Plate WCI 318042500 Contact Us For Availability
227
Retainer Clip WCI 318370900 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Wiring Diagram WCI 318046259 Contact Us For Availability
NI
Deflector WCI 318189308 Contact Us For Availability
NI
Instructions WCI 318201537 Contact Us For Availability
NI
Screw WCI 5303302745 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 0.625-in WCI 5303311528 Contact Us For Availability
NI
Repair Parts List WCI 5995556585 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Clip WCI 3015722 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318078563 Contact Us For Availability
NI
Wiring Harness WCI 318199775 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
× ![]()
