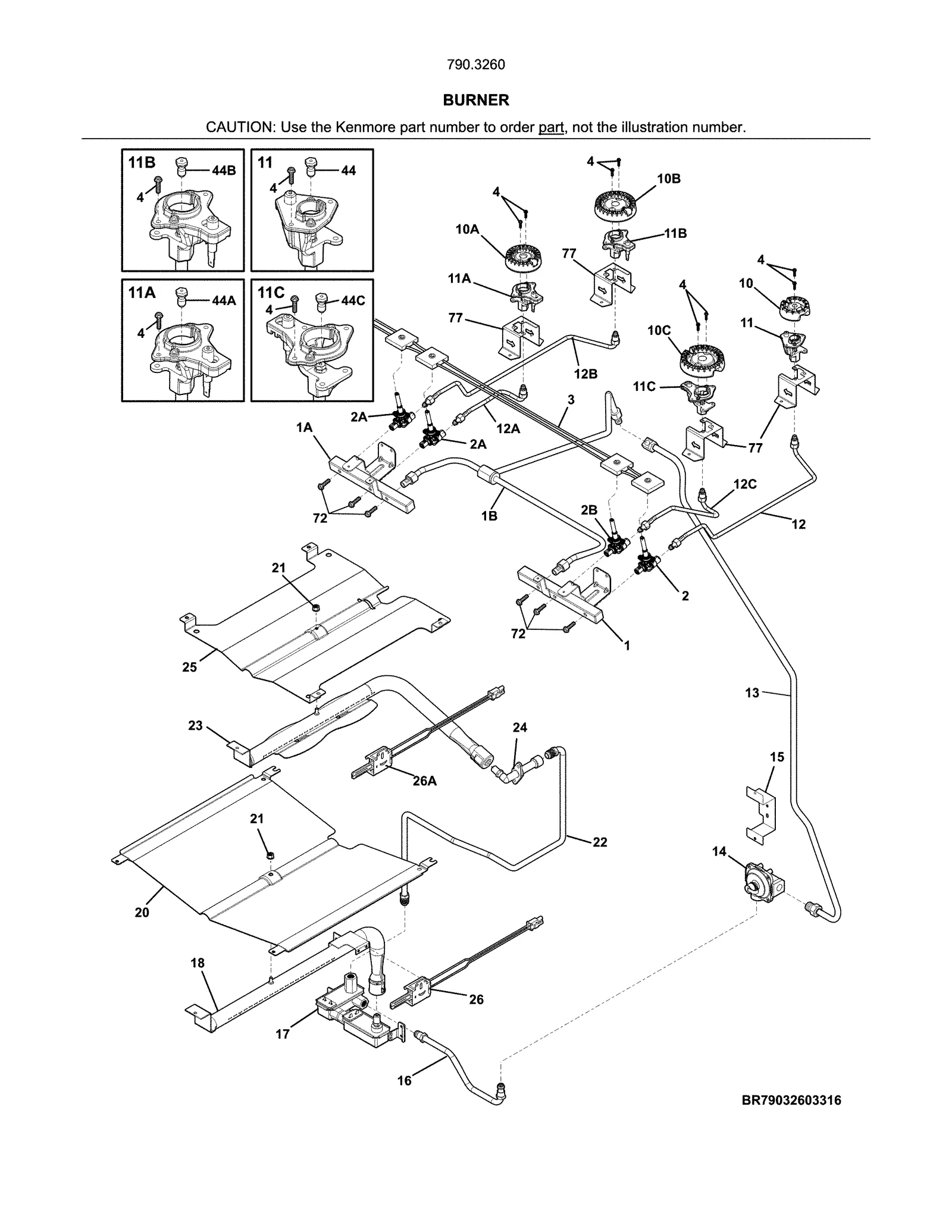

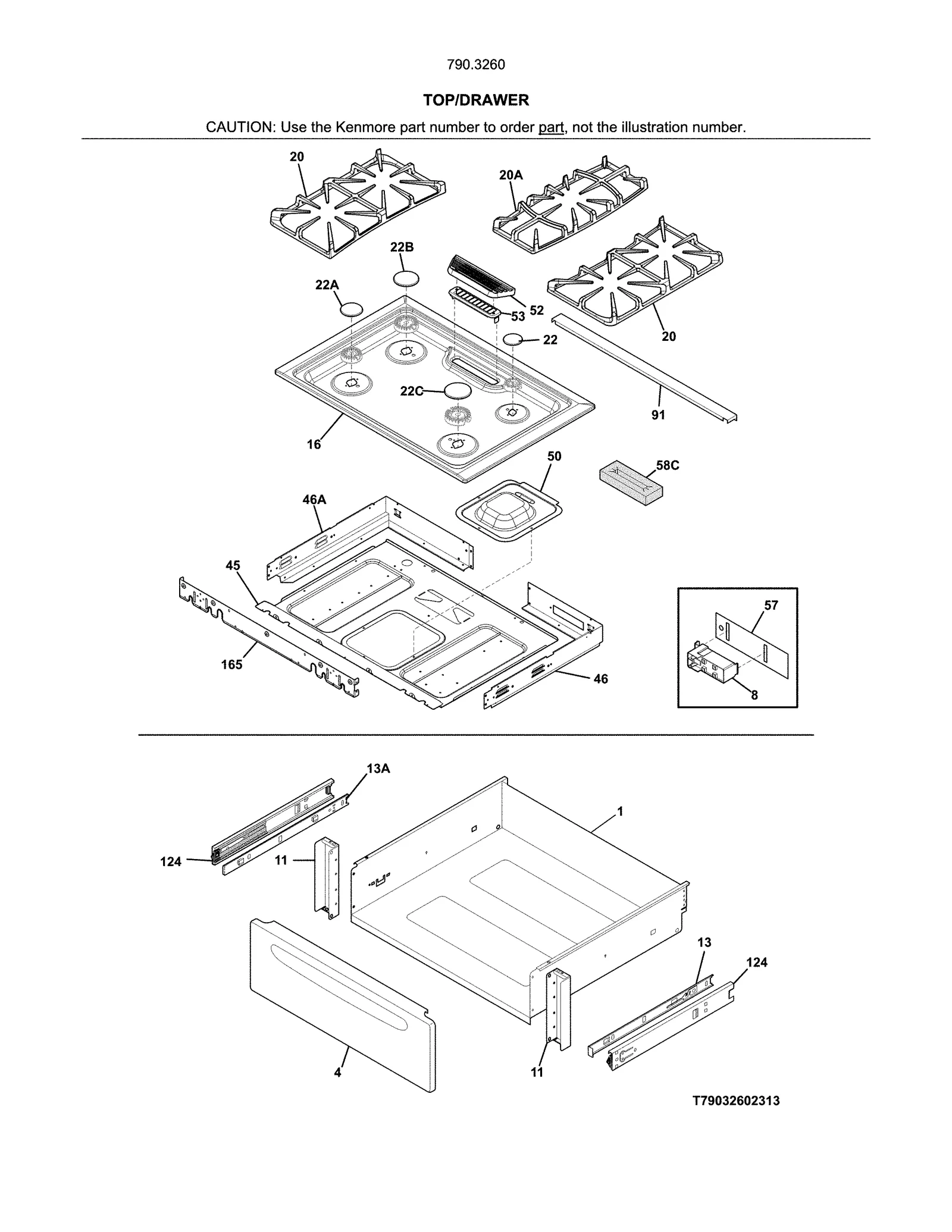

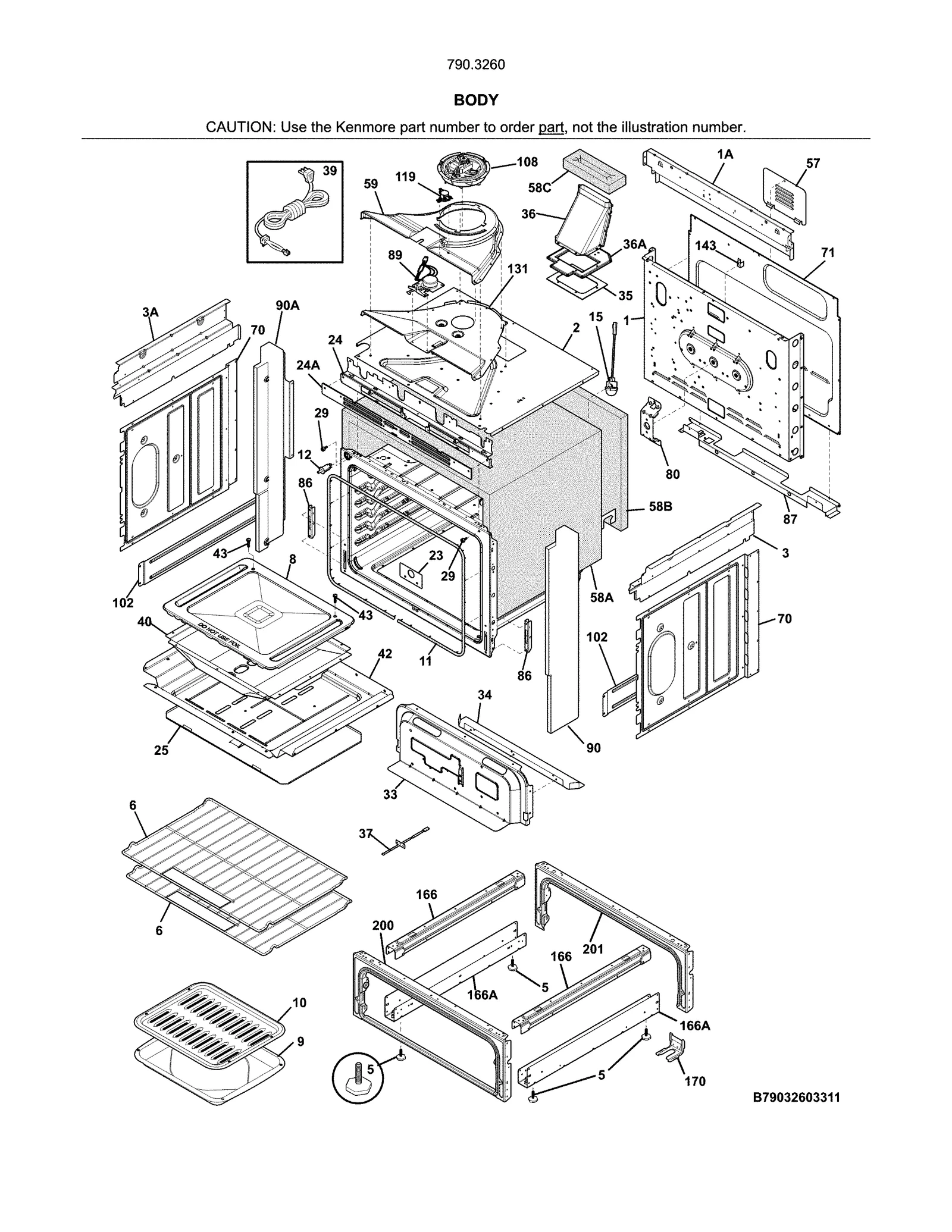

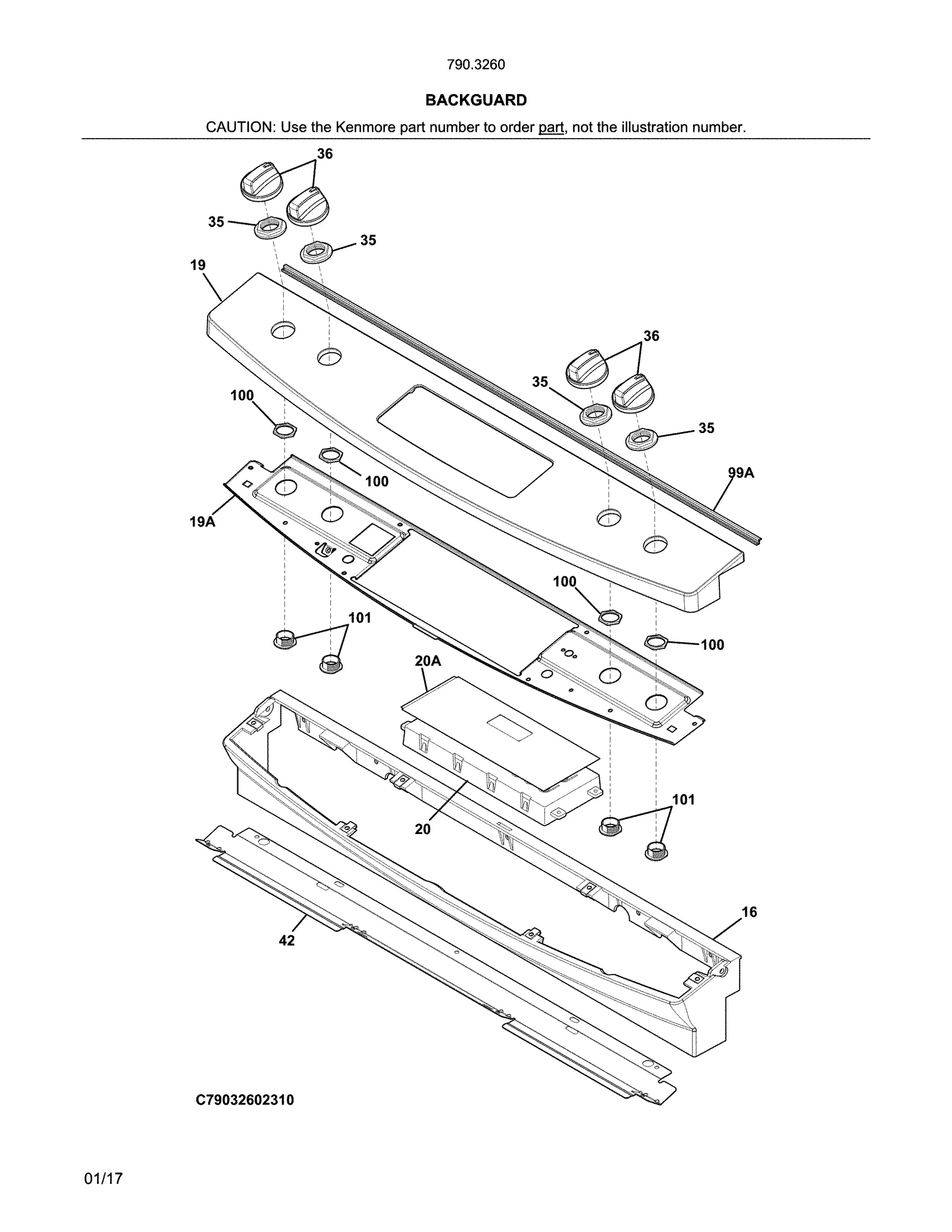

Model Electrolux 790.32609316 Gas Range (Kenmore 79032609316) – Common Parts &amp; Diagrams

1B

318305410 Frigidaire Range Tube Backorder WCI 318305410 $217.86

2A

5304507287 Frigidaire Range Valve Backorder WCI 5304507287 $35.16

2B

5304507290 Frigidaire Range Valve Backorder WCI 5304507290 $34.64

3

139023301 Frigidaire Oven Trim Backorder WCI 139023301 $37.79

3

5304509745 Frigidaire Switch Assembly Backorder WCI 5304509745 $71.21

3A

139014401 Frigidaire Oven Trim Backorder WCI 139014401 $22.56

4

316240600 Frigidaire Igniter Mounting Screw In Stock WCI 316240600 $9.74

4

Range Oven Door Outer Panel (Black) WCI 808950014 Contact Us For Availability

4

Frigidaire Range Oven Door Outer Panel (White WCI 808950013 Contact Us For Availability

4

Range Storage Drawer Front Panel WCI 318298906 Contact Us For Availability

4

Range Storage Drawer Front Panel WCI 318298908 Contact Us For Availability

5

Range Leveling Leg WCI 318175503 Contact Us For Availability

6

139006905 Frigidaire Oven Baffle Backorder WCI 139006905 $83.99

6

Range Oven Rack WCI 139011800 Contact Us For Availability

7

318372017 Frigidaire Insulation Backorder WCI 318372017 $12.06

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $13.11

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $68.80

8

808608802 Frigidaire Range Spark Ignition Fou In Stock WCI 808608802 $48.74

8

Range Oven Bottom Liner WCI 139005003 Contact Us For Availability

9

139000405 Frigidaire Liner Backorder WCI 139000405 $79.79

9

318138801 Frigidaire Oven Pan Backorder WCI 318138801 $72.96

10

316082001 Frigidaire Oven Insert Backorder WCI 316082001 $36.74

10

316438200 Frigidaire Range Sealed Burner, 5K In Stock WCI 316438200 $39.04

10

Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability

10A

316558300 Frigidaire Oven 9.5L Sealed Burner In Stock WCI 316558300 $38.81

10B

316438000 Frigidaire Sealed Burner 12K Assemb Backorder WCI 316438000 $50.21

10C

316438600 Frigidaire Range Sealed Burner, 14K Backorder WCI 316438600 $59.08

11

316540800 Frigidaire Igniter/Orifice Assembly In Stock WCI 316540800 $8.27

11

807545502 Frigidaire Oven Seal Backorder WCI 807545502 $103.94

11

Range Storage Drawer Support WCI 318298600 Contact Us For Availability

11A

316540700 Frigidaire Igniter/Orifice Assembly In Stock WCI 316540700 $8.24

11B

316540702 Frigidaire Igniter/Orifice Assembly Backorder WCI 316540702 $9.50

11C

316543204 Frigidaire Igniter Orifice Assembly Backorder WCI 316543204 $9.11

13

Range Warming Drawer Inner Slide Rail, Right WCI 318259504 Contact Us For Availability

13A

Range Warming Drawer Inner Slide Rail, Left WCI 318259505 Contact Us For Availability

15

5304528790 Frigidaire Lamp Assembly Appliance Backorder WCI 5304528790 $15.74

316446401 Frigidaire Oven Glass In Stock WCI 316446401 $86.61

318296602 Frigidaire Oven Console Backorder WCI 318296602 $222.73

Range Oven Gas Supply Tube WCI 318289500 Contact Us For Availability

Range Control Panel WCI 318296600 Contact Us For Availability

Range Main Top (White) WCI 318569277 Contact Us For Availability

17

316031501 Frigidaire Range Valve In Stock WCI 316031501 $180.45

17

318264731 Frigidaire Oven Spacer Backorder WCI 318264731 $49.86

18

5304502520 Frigidaire Oven Burner Backorder WCI 5304502520 $120.21

19

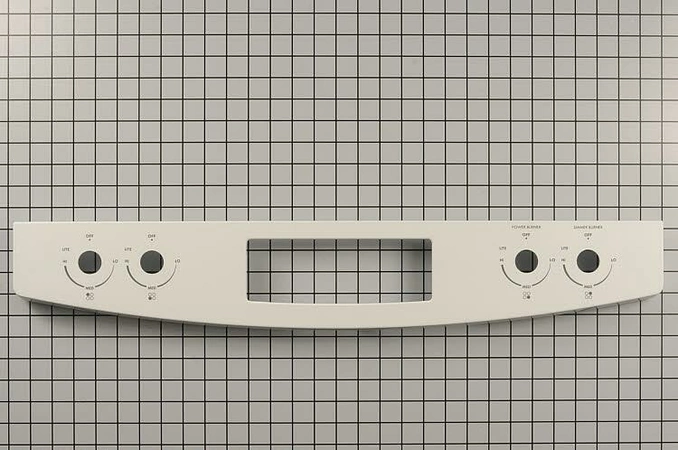

5304501683 Frigidaire Control Panel Assembly Backorder WCI 5304501683 $177.96

19A

Range Control Panel Support WCI 318289702 Contact Us For Availability

20

5304495517 Frigidaire Range Grate Backorder WCI 5304495517 $142.79

20

5304515642 Frigidaire Controller Backorder WCI 5304515642 $253.74

20

Oven Baffle WCI 139005100 Contact Us For Availability

20A

139091300 Frigidaire Oven Overlay Backorder WCI 139091300 $38.84

20A

139091301 Frigidaire Range Overlay Backorder WCI 139091301 $26.76

20A

Range Surface Burner Grate WCI 807008001 Contact Us For Availability

21

154079601 Frigidaire Subassembly to Backorder WCI 154079601 $0.30

22

5304508441 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508441 $20.10

22A

5304508442 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508442 $22.08

22B

5304508510 Frigidaire Surface Burner Cap Backorder WCI 5304508510 $31.11

22C

5304508443 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508443 $30.13

23

139007101 Frigidaire Burner Backorder WCI 139007101 $86.09

23

316575915 Frigidaire Oven Hinge Backorder WCI 316575915 $114.95

24

Range Broil Burner Orifice WCI 316409703 Contact Us For Availability

24A

139075001 Frigidaire Range Cover Backorder WCI 139075001 $41.88

25

Range Broil Burner Baffle WCI 316401301 Contact Us For Availability

26

139013700 Frigidaire Igniter In Stock WCI 139013700 $117.59

26A

139013701 Frigidaire Igniter Backorder WCI 139013701 $126.51

29

139023400 Frigidaire Oven Spacer Backorder WCI 139023400 $14.16

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $8.91

35

Range Control Panel Knob Retainer WCI 318233720 Contact Us For Availability

35

Range Control Panel Knob Retainer WCI 318233721 Contact Us For Availability

36

Range Surface Burner Knob (White) WCI 5304495460 Contact Us For Availability

37

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $31.39

39

5304534000 Frigidaire Cord Backorder WCI 5304534000 $23.08

39

Range Oven Door Handle WCI 318372416 Contact Us For Availability

39

Range Oven Door Handle WCI 318372417 Contact Us For Availability

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 $13.64

41

318370602 Frigidaire Oven Bracket Backorder WCI 318370602 $9.44

42

318382302 Frigidaire Bracket Backorder WCI 318382302 $35.16

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $7.34

44

316527504 Frigidaire Oven Orifice Assembly In Stock WCI 316527504 $16.79

44A

316527500 Frigidaire Oven Burner Orifice Asse In Stock WCI 316527500 $18.38

44B

316527502 Frigidaire Oven Orifice In Stock WCI 316527502 $16.79

44C

316527511 Frigidaire Oven Orifice Backorder WCI 316527511 $14.69

50

Range Control Panel Cooling Fan Service Panel WCI 318578803 Contact Us For Availability

52

318291126 Frigidaire Cover Backorder WCI 318291126 $64.83

57

316283600 Frigidaire Range Cover In Stock WCI 316283600 $8.39

59

139078002 Frigidaire Oven Duct Backorder WCI 139078002 $58.26

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $13.11

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 $49.86

72

316215600 Frigidaire Oven Screw In Stock WCI 316215600 $10.49

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 $14.69

89

5304528836 Frigidaire Motor Backorder WCI 5304528836 $55.42

90

Range Side Filler Panel, Right (Black) WCI 318296904 Contact Us For Availability

90

Panel Filler, Right WCI 318296902 Contact Us For Availability

90A

5304511890 Frigidaire Oven Panel Backorder WCI 5304511890 $56.16

90A

Range Panel WCI 318296903 Contact Us For Availability

91

903113-9010 Frigidaire Filler Kit Assembly Backorder WCI 903113-9010 $48.81

91

Crosley Range Main Top Filler Trim, Rear WCI 318304301 Contact Us For Availability

99A

Range Control Panel Gasket (Black) WCI 318313201 Contact Us For Availability

108

318575612 Frigidaire Oven Cooling Fan Motor In Stock WCI 318575612 $144.24

119

807144901 Frigidaire Thermostat Backorder WCI 807144901 $40.41

124

Range Storage Drawer Outer Rail WCI 318330600 Contact Us For Availability

131

139078102 Frigidaire Oven Duct Backorder WCI 139078102 $47.76

166

318298410 Frigidaire Oven Bracket Backorder WCI 318298410 $52.49

166

5304511884 Frigidaire Oven Bracket Assembly Backorder WCI 5304511884 $45.66

170

5304486410 Frigidaire Range Kit Backorder WCI 5304486410 $109.71

200

Range Frame WCI 318298232 Contact Us For Availability

201

318298233 Frigidaire Oven Frame Backorder WCI 318298233 $33.59

201

318531701 Frigidaire Spacer Backorder WCI 318531701 $8.91

316001017 Frigidaire Screw Backorder WCI 316001017 $2.09

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $8.38

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $9.88

316418900 Frigidaire Oven Screw Backorder WCI 316418900 $10.49

316418901 Frigidaire Oven Screw Backorder WCI 316418901 $10.49

318565430 Frigidaire Conversion Kit Backorder WCI 318565430 $50.91

318946500 Frigidaire Oven Light Bulb Range/Wa Backorder WCI 318946500 $39.36

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $4.19

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $10.49

808041201 Frigidaire Range Harness In Stock WCI 808041201 $35.69

Range Igniter Wire Harness WCI 318199776 Contact Us For Availability
