Model Kenmore 790.30503602 COOKTOP – Common Parts & Diagrams
01 - COVER
03 - COOKTOP

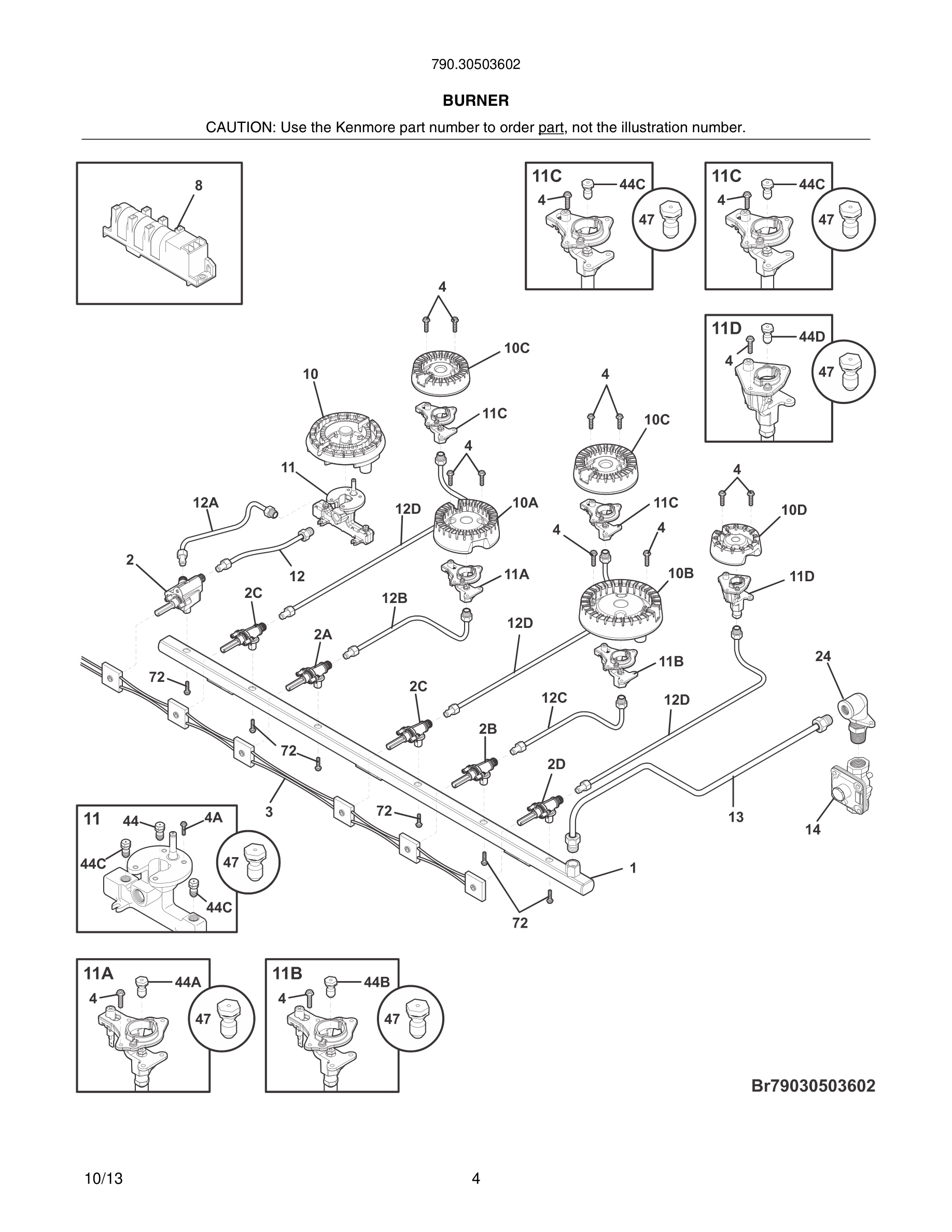

05 - BURNER

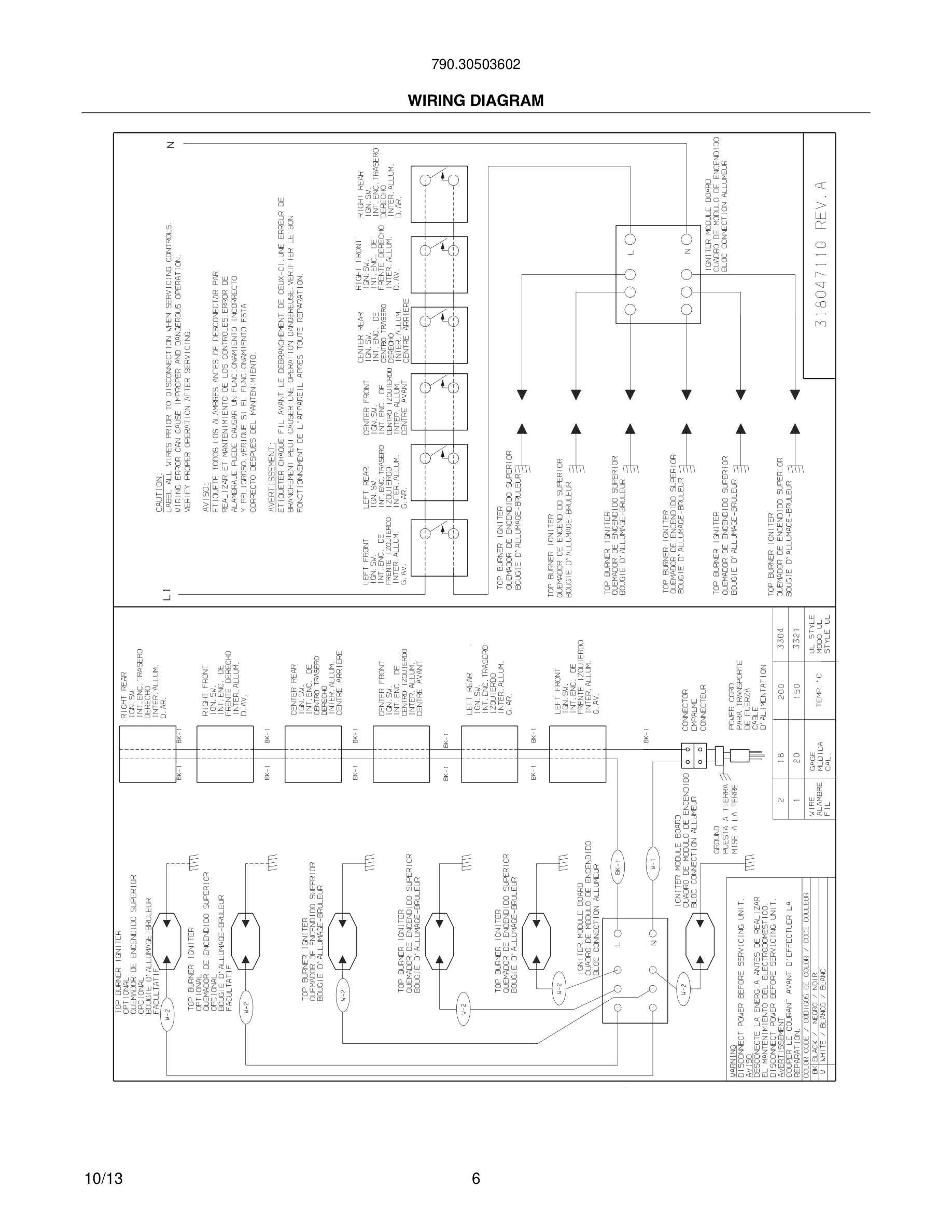

06 - WIRING DIAGRAM
Common parts from model Kenmore 790.30503602 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
1#
Manifold Pipe WCI 318234312 Contact Us For Availability
2#
Valve, top burner, dual port WCI 316412509 Contact Us For Availability
2A#
Valve, top burner, 14K WCI 316464703 Contact Us For Availability
2B#
Valve, top burner, 17K WCI 316464704 Contact Us For Availability
2C#
Valve, top burner, 9.5K WCI 316464701 Contact Us For Availability
2D#
Valve, top burner, 5K WCI 316464700 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232673 Contact Us For Availability
4A
Screw, 8-32 x 3/4, (2) WCI 5304457931 Contact Us For Availability
10#
Burner Assembly, twin WCI 318567000 Contact Us For Availability
12#
Tube, burner, LH front, simmer WCI 318366736 Contact Us For Availability
12A#
Tube, burner, LH front, main WCI 318366735 Contact Us For Availability
12B#
Tube, 14K burner, center front WCI 318366737 Contact Us For Availability
12C#
Tubing, 17.2K, RH front WCI 318221396 Contact Us For Availability
12D#
Tubing, 5/9.5/14K, rear, (3) WCI 318221383 Contact Us For Availability
13
Connection, manifold tube WCI 318054510 Contact Us For Availability
20
Grate, top burner, black, (2), double WCI 318361401 Contact Us For Availability
24
Elbow, fitting WCI 318054002 Contact Us For Availability
33A
Knob, valve, double burner WCI 318353221 Contact Us For Availability
39
Cord, service WCI 318144006 Contact Us For Availability
× ![]()
