Model Kenmore 790.15032500 RANGE – Common Parts & Diagrams

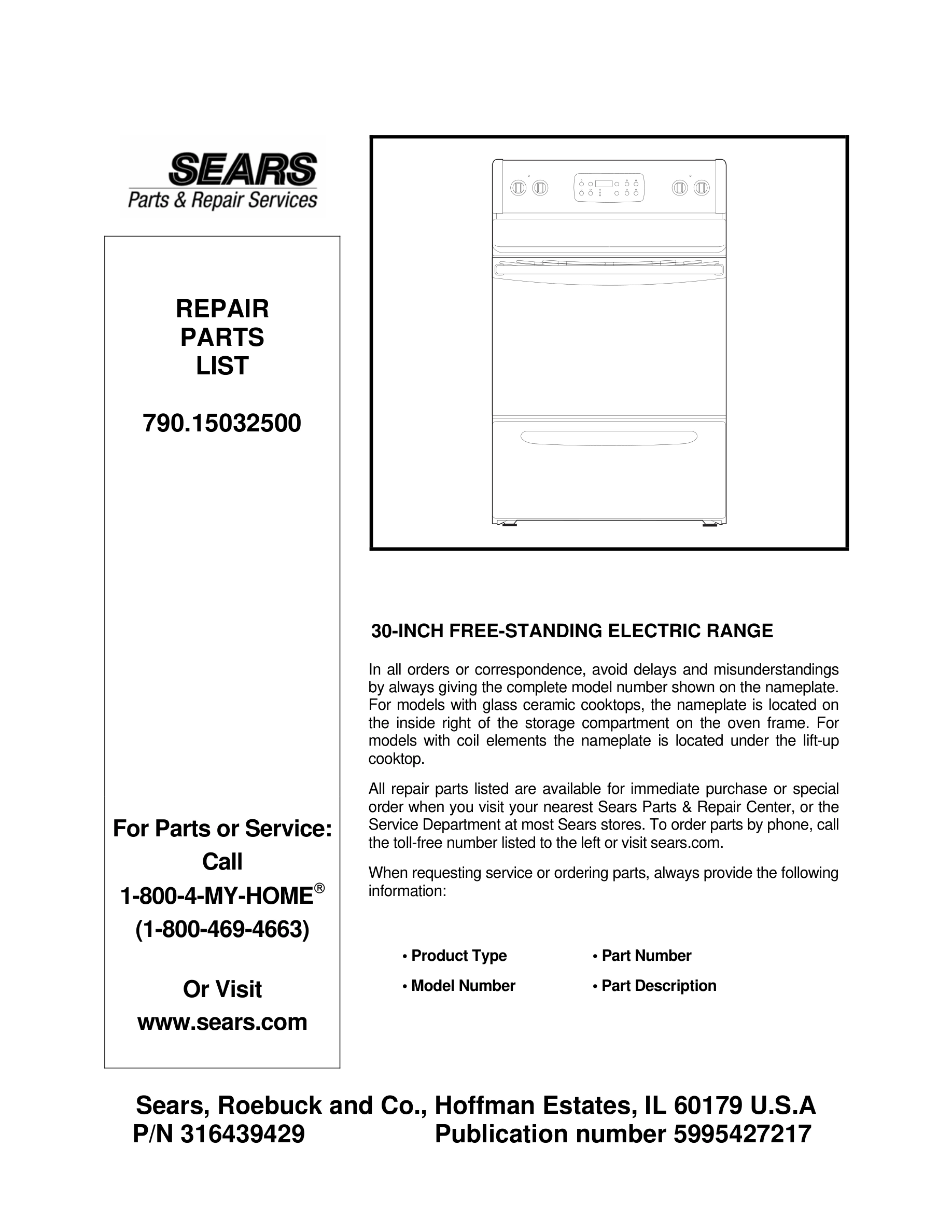

01 - COVER

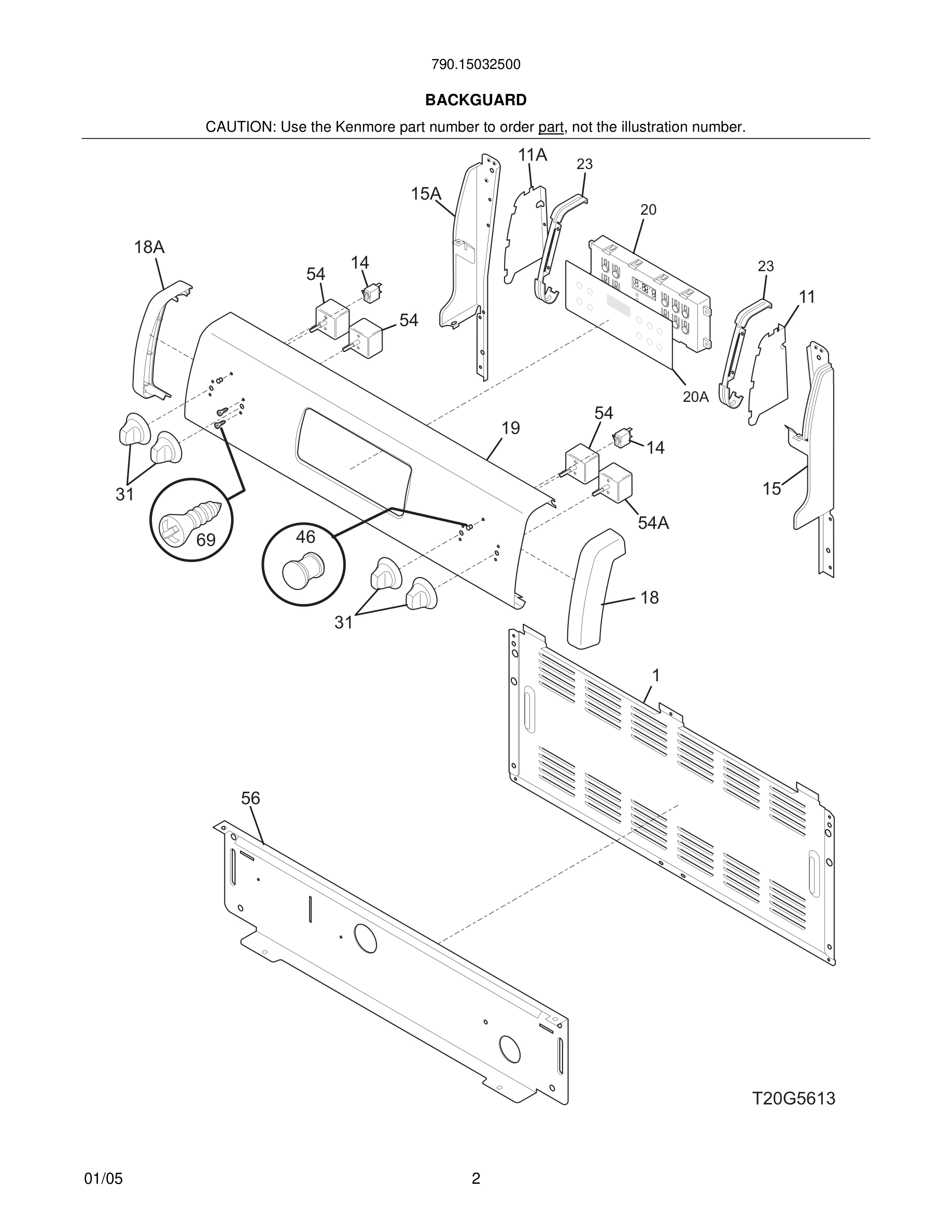

03 - BACKGUARD

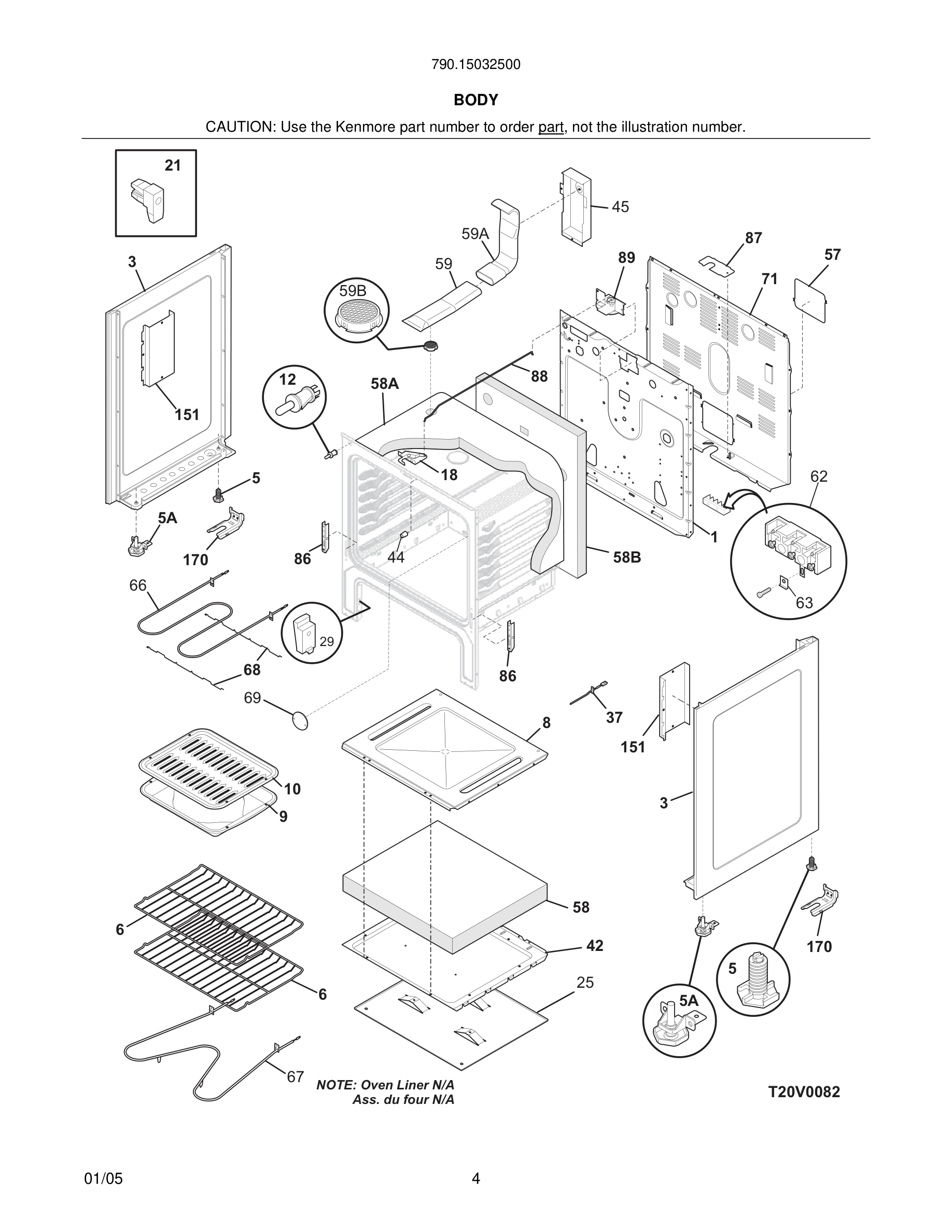

05 - BODY

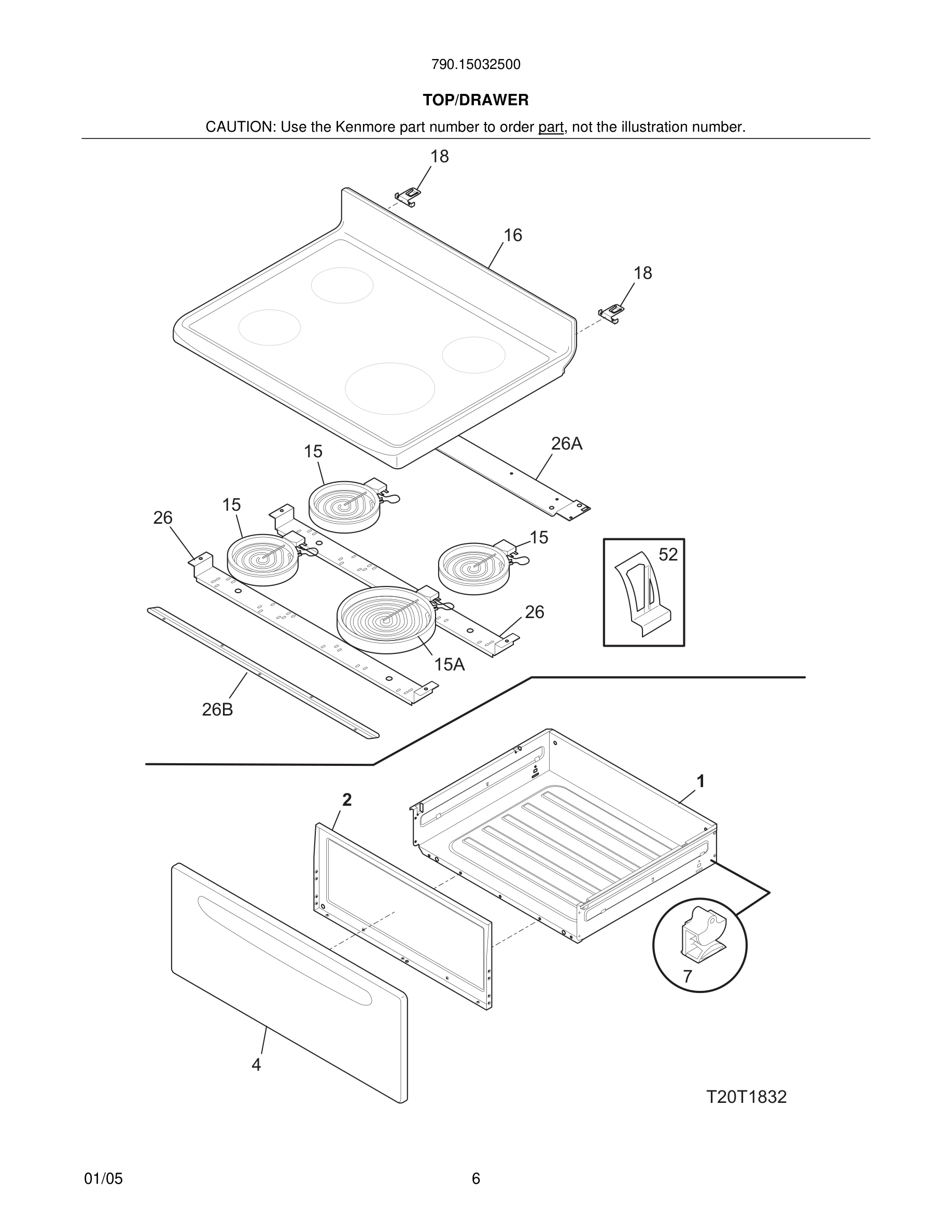

07 - TOP/DRAWER

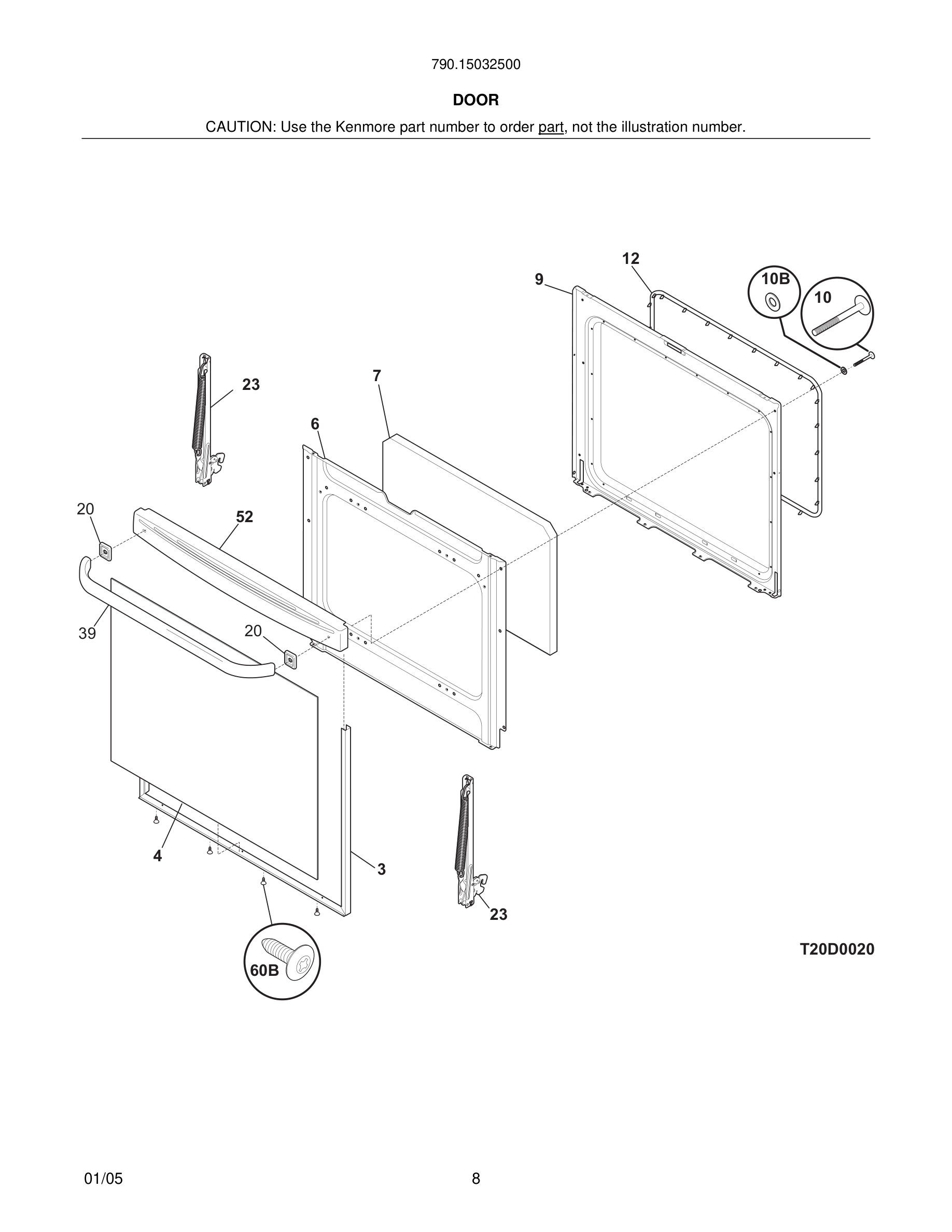

09 - DOOR

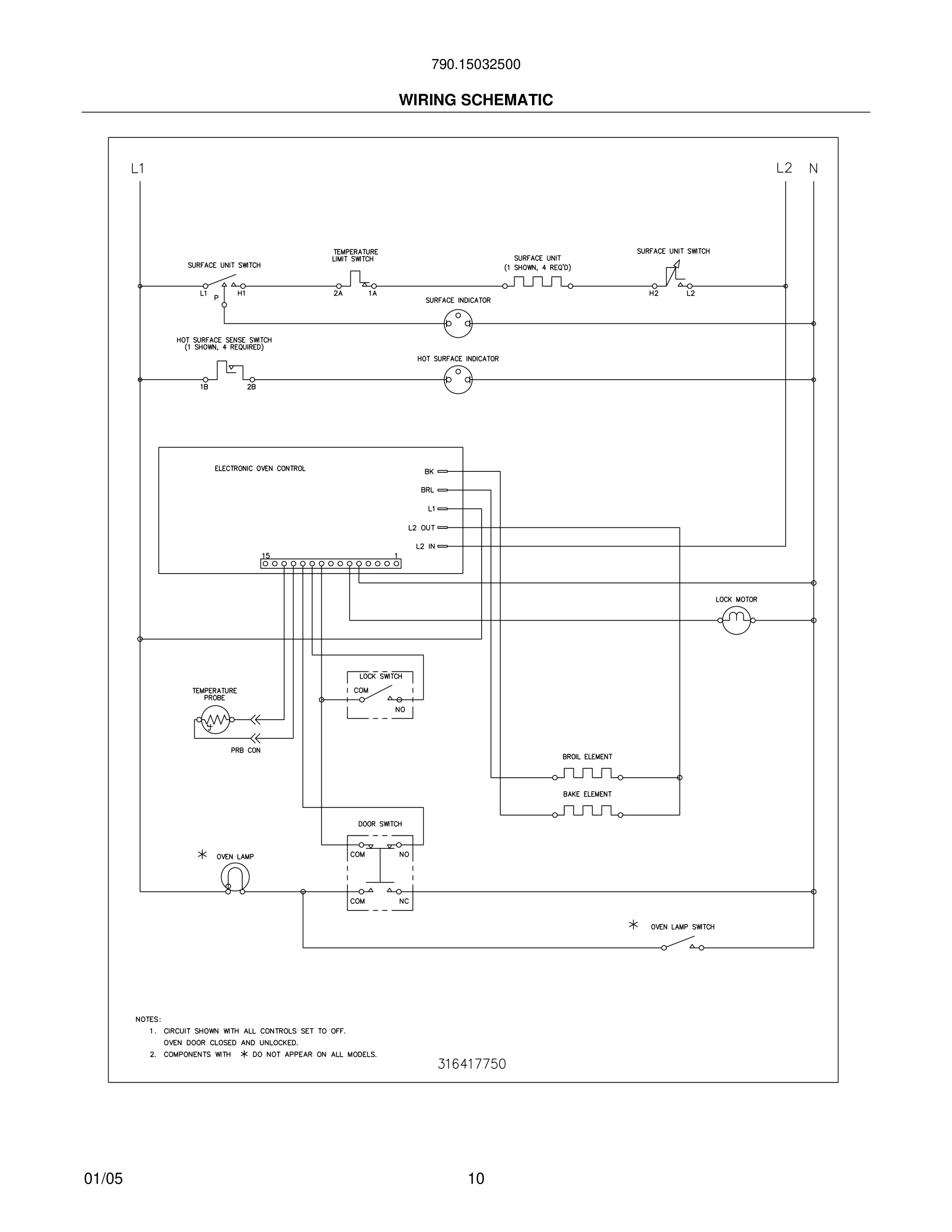

10 - WIRING SCHEMATIC

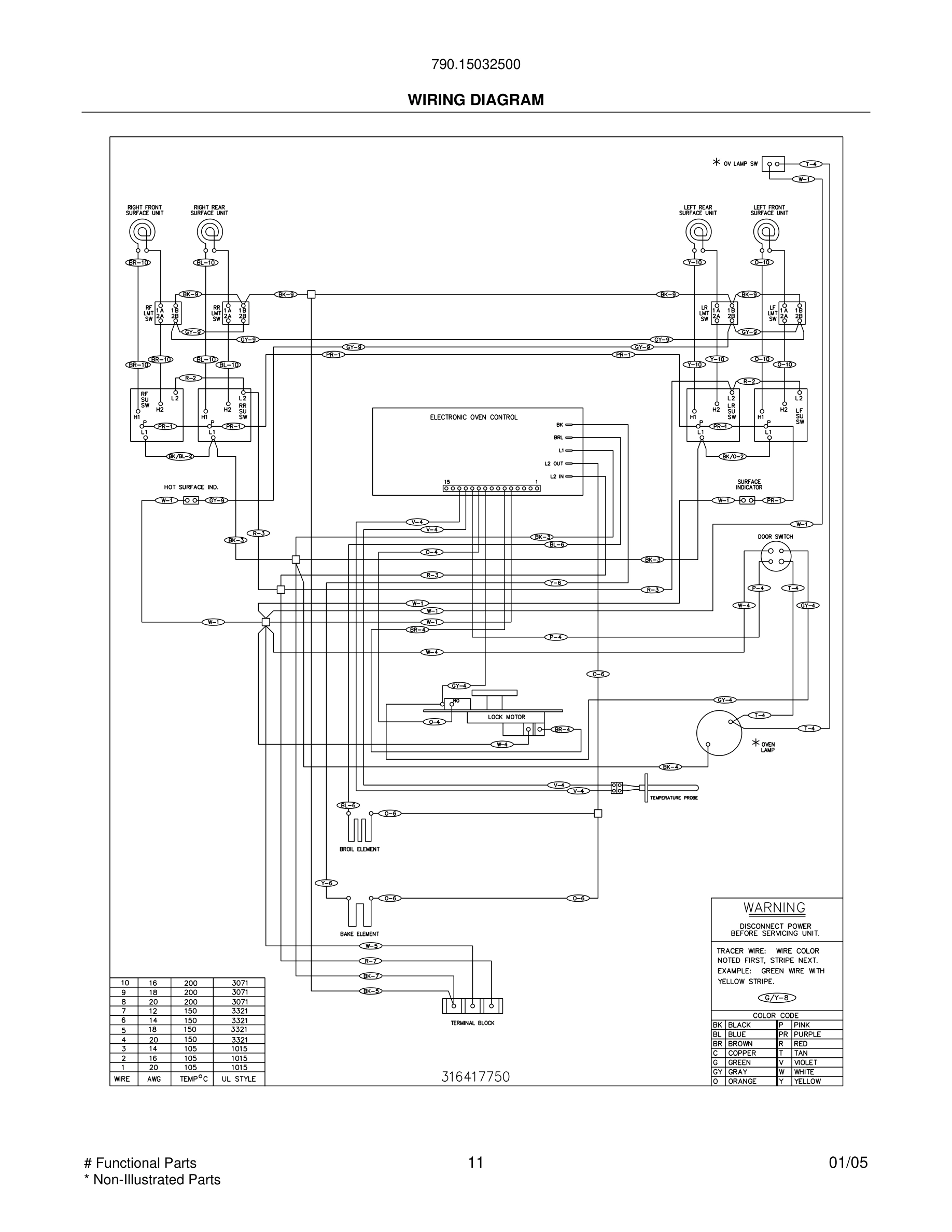

11 - WIRING DIAGRAM
Common parts from model Kenmore 790.15032500 RANGE
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
4
Panel, drawer front, white WCI 316403501 Contact Us For Availability
4
Glass, oven door, white, outer WCI 316406406 Contact Us For Availability
6
Rack, oven WCI 316404500 Contact Us For Availability
7
Insulation, oven door WCI 316405602 Contact Us For Availability
8
Panel, oven bottom WCI 316400601 Contact Us For Availability
9
Pan, broiler WCI 316081900 Contact Us For Availability
10
Insert, broiler pan WCI 316082000 Contact Us For Availability
15
Support, backguard, white, RH WCI 316220214 Contact Us For Availability
18
End Cap, white, RH WCI 316240900 Contact Us For Availability
18
Hinge Bracket, maintop, (2) WCI 316436600 Contact Us For Availability
18A
End Cap, white, LH WCI 316240901 Contact Us For Availability
20
Spacer, handle, white, (2) WCI 316248401 Contact Us For Availability
23
Bracket, clock mtg WCI 316245900 Contact Us For Availability
31
Knob, white WCI 316208100 Contact Us For Availability
52
Clip, element mtg WCI 316278300 Contact Us For Availability
× ![]()
