Model Whirlpool 7858XRA ELECTRIC WALL OVEN – Common Parts & Diagrams

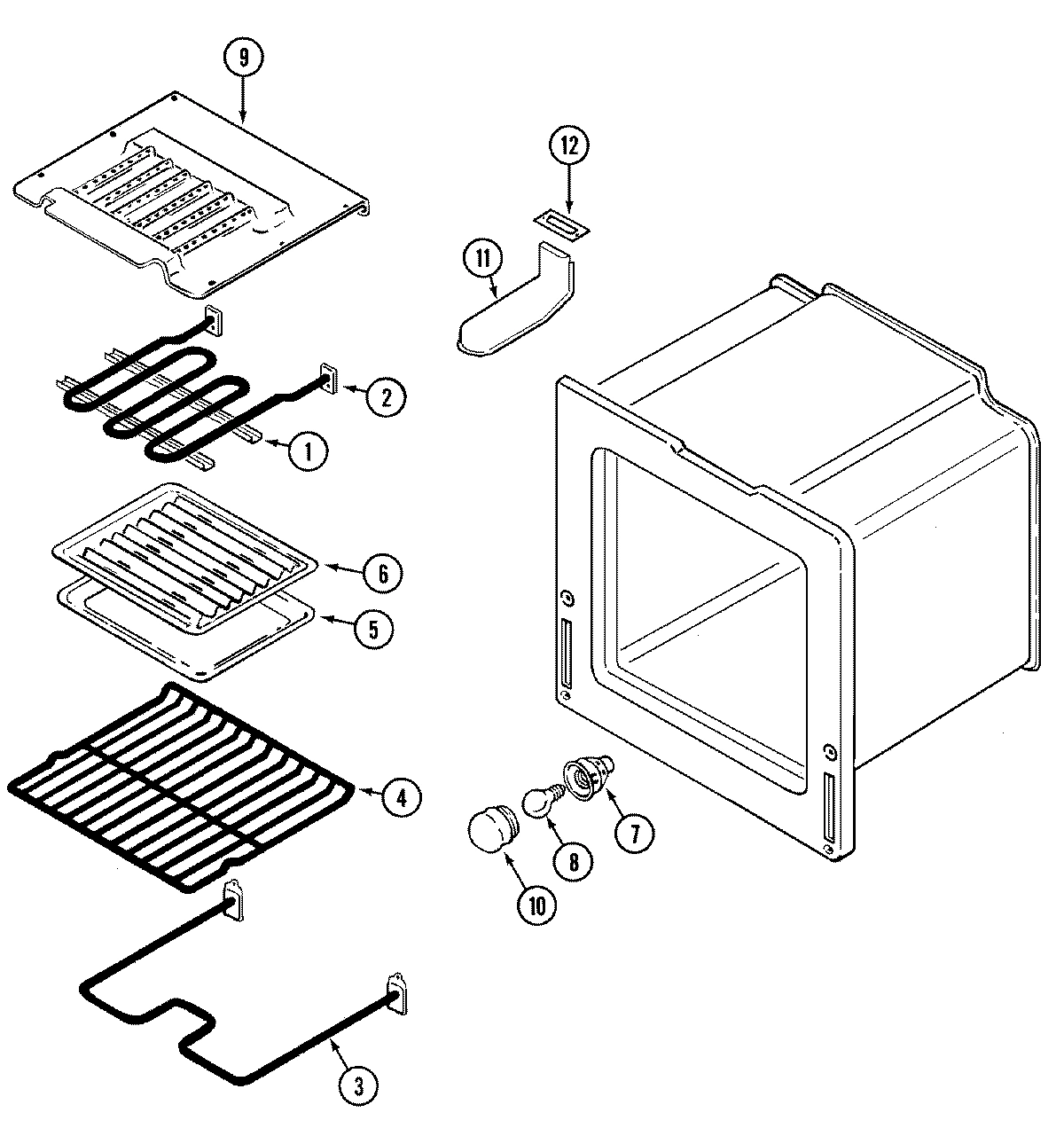

07 - OVEN

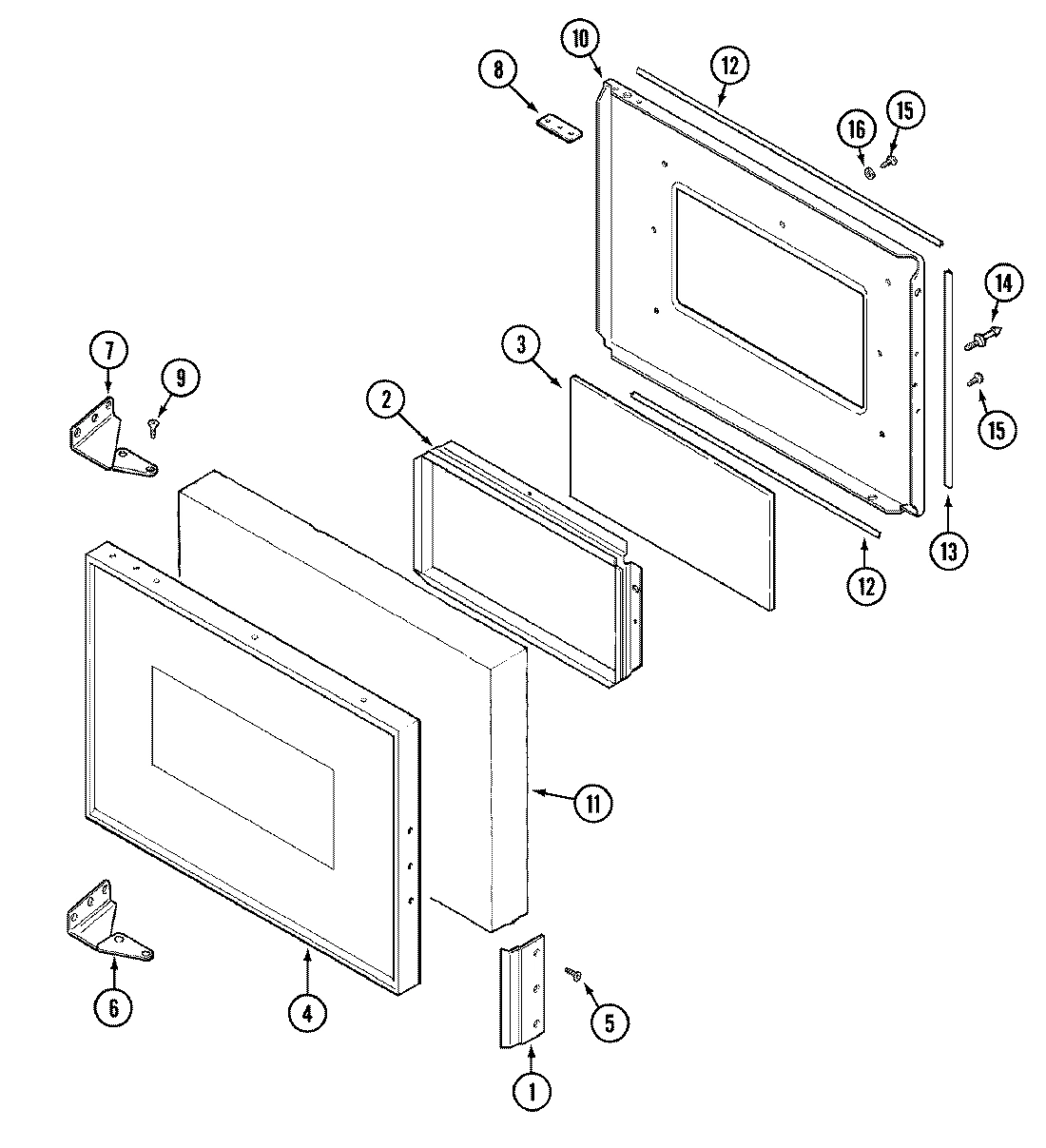

04 - DOOR (UPPER)

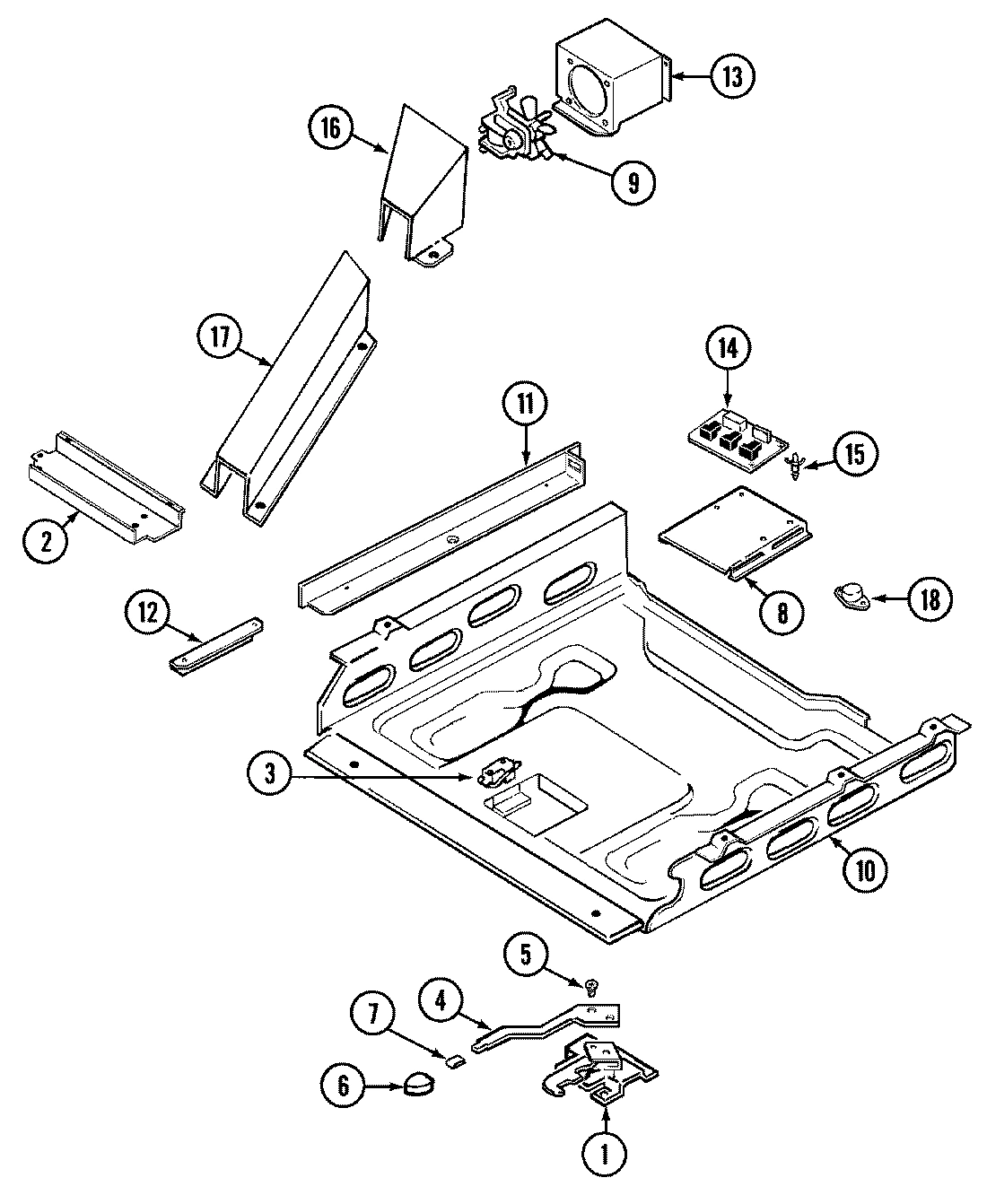

06 - INTERNAL CONTROLS

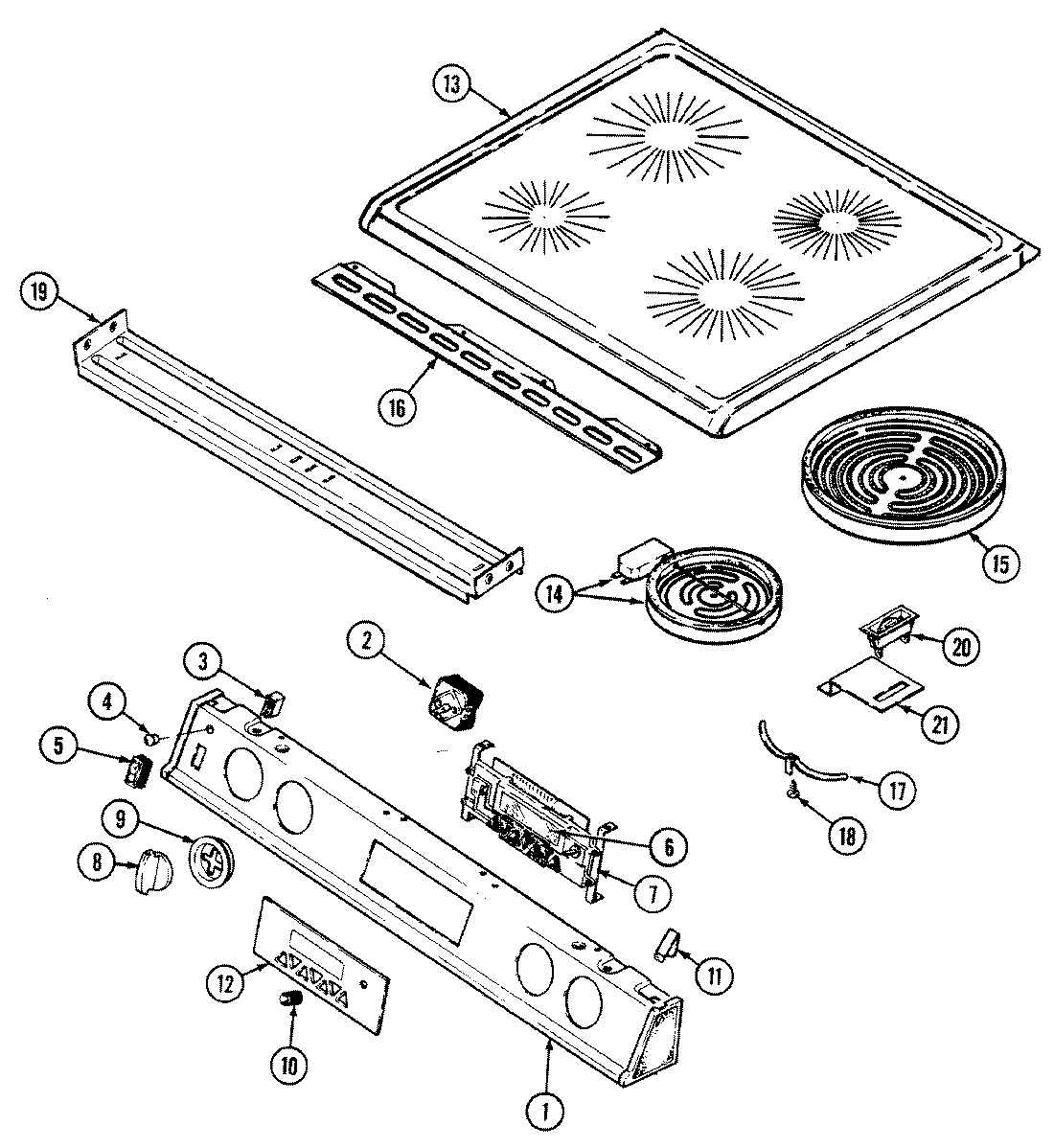

08 - TOP ASSEMBLY

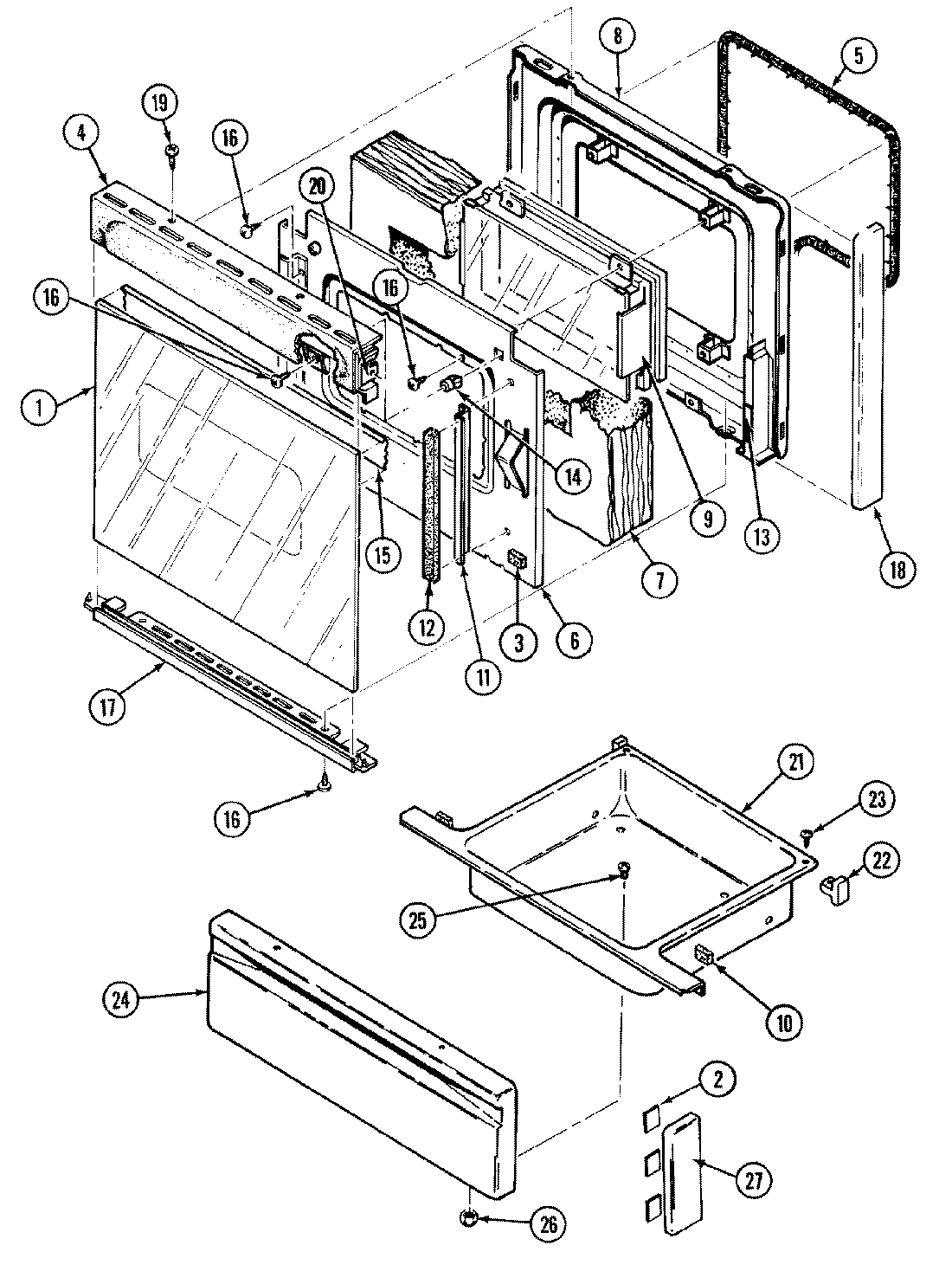

05 - DOOR/DRAWER

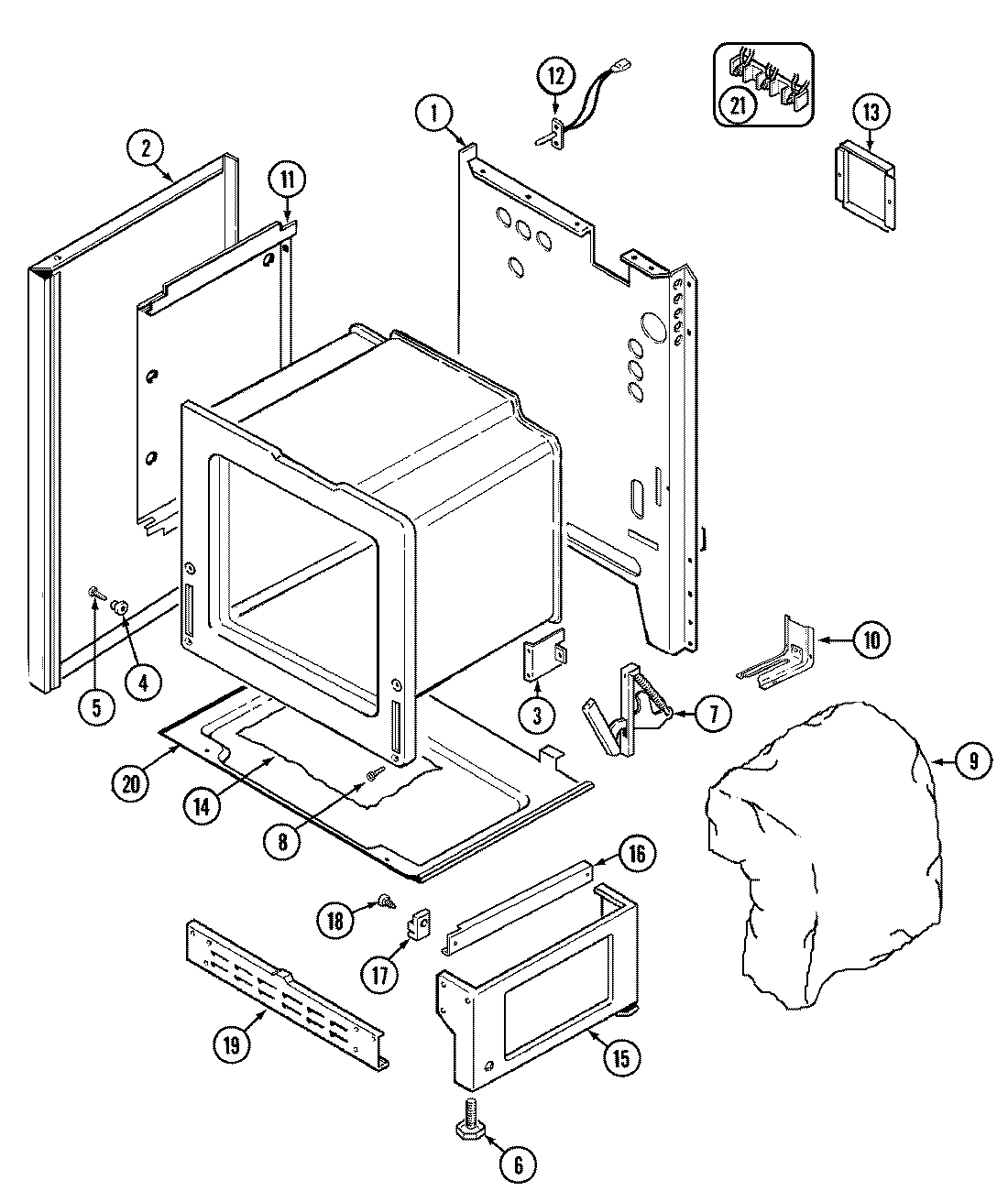

01 - BODY

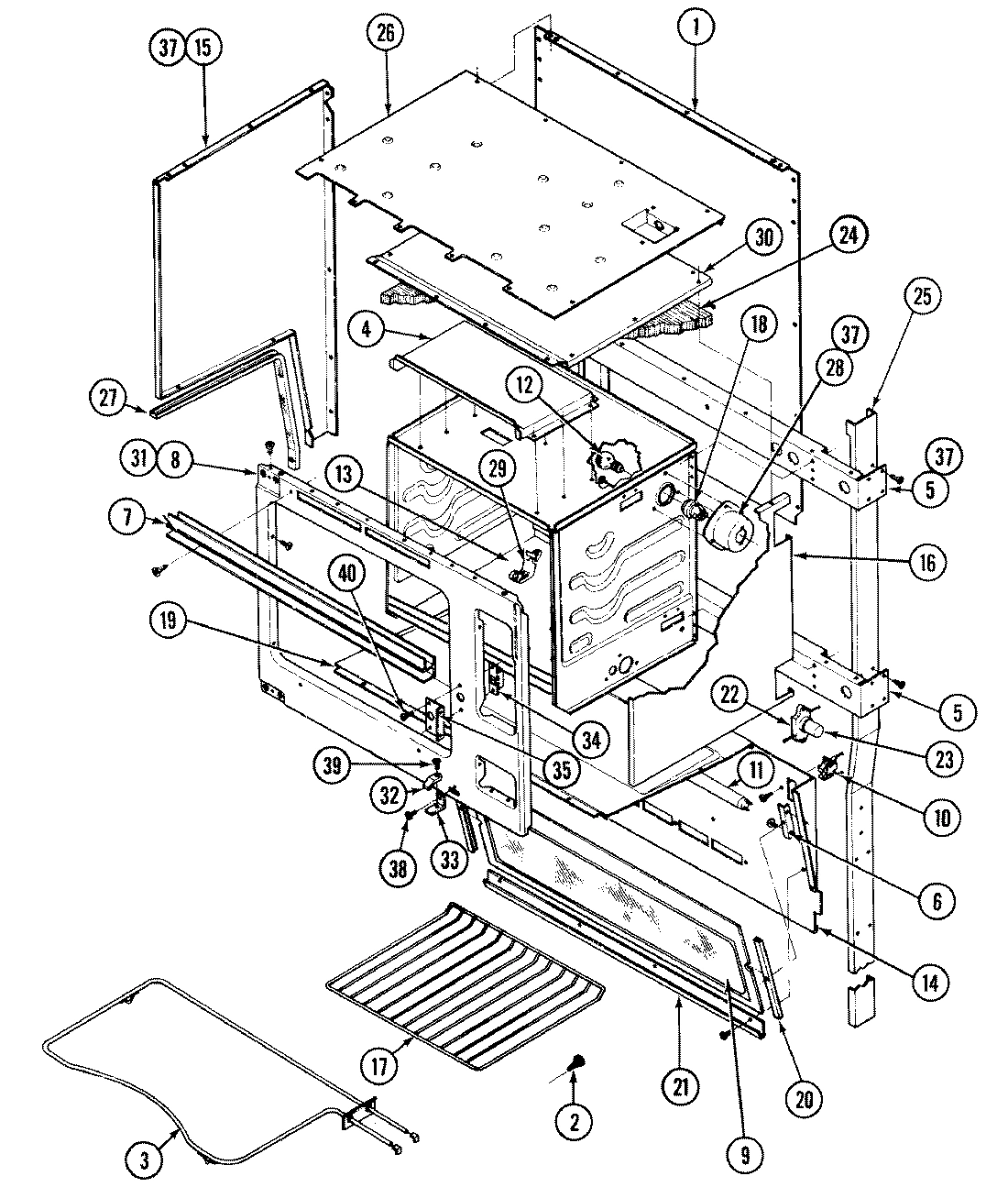

02 - BODY (UPPER)

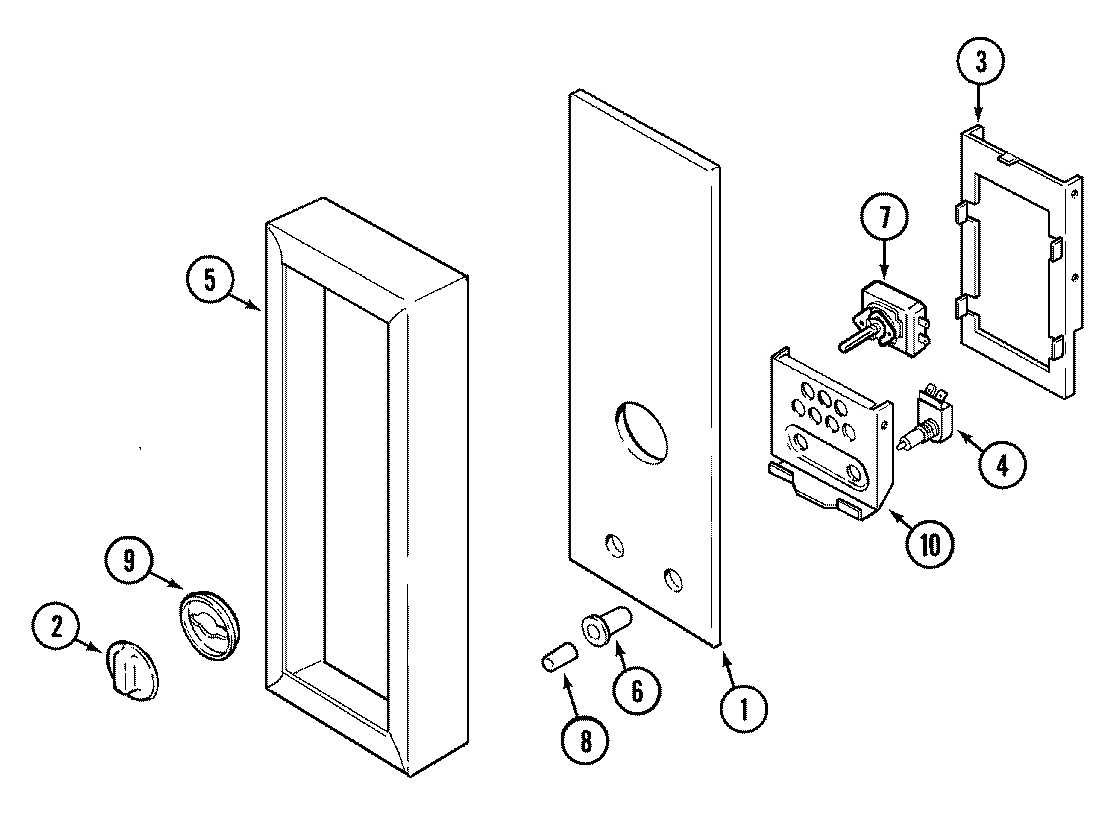

03 - CONTROL PANEL (UPPER)
Common parts from model Whirlpool 7858XRA ELECTRIC WALL OVEN
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
HANDLE, DOOR WPL 7701P01060 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
PANEL, UPPER FRONT (BLK) WPL 7722P10960 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
BACK, MAIN WPL 4002F16480 Contact Us For Availability
1
BACK, MAIN WPL 4002F18716 Contact Us For Availability
1
GLASS, CONTROL PANEL WPL 7902P37960 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
FRAME ASSY. WPL 3603W01580 Contact Us For Availability
2
CHANNEL, AIR WPL 3818F05551 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
2
TAPE WPL 8270P09860 Contact Us For Availability
2
PANEL, SIDE (RT-ALM) WPL 2618F08474 Contact Us For Availability
2
PANEL, SIDE (LT-ALM) WPL 2618F09474 Contact Us For Availability
2
PANEL, SIDE (RT-ALM) WPL 2618F10074 Contact Us For Availability
2
PANEL, SIDE (LT-ALM) WPL 2618F10174 Contact Us For Availability
2
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
GLASS, DOOR INNER WPL 7902P03760 Contact Us For Availability
3
SCREW WPL 7101P03160 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
LIGHT, INDICATOR WPL W10127320 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P00960 Contact Us For Availability
3
SCREW WPL 7101P07660 Contact Us For Availability
3
PLATE, CONTROL WPL 3605F18780 Contact Us For Availability
4
RACK WPL 7801P04660 Contact Us For Availability
4
DOOR ASSEMBLY (BLACK) WPL 5711S08260 Contact Us For Availability
4
LEVER WPL 8009P01760 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
BOX, FLUE WPL 4006F13619 Contact Us For Availability
4
SWITCH, LIGHT WPL 7403P01960 Contact Us For Availability
4
SWITCH, HI-LIMIT WPL 7403P09660 Contact Us For Availability
5
SCREW WPL 7101P33460 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P04560 Contact Us For Availability
5
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
BRACE, UPPER OVEN WPL 3802F09080 Contact Us For Availability
5
SUPPORT WPL 3807F03934 Contact Us For Availability
5
SUPPORT WPL 3807F13334 Contact Us For Availability
5
TRIM, CONTROL PANEL WPL 7720P16560 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
HINGE WPL 7106P00460 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
6
CLOCK WPL 7601P20760 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
6
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
6
BRACKET, GLASS SUPPORT WPL 3801F00934 Contact Us For Availability
6
SLEEVE, SWITCH WPL 7214P00160 Contact Us For Availability
6
BLOCK WPL 7401P01860 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
HINGE WPL 7106P00960 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F22245 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
7
HINGE WPL 7106P05660 Contact Us For Availability
7
EXTRUSION, VENT WPL 7706P03560 Contact Us For Availability
7
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
7
THERMOSTAT WPL 7404P08960 Contact Us For Availability
8
PLATE, CONTROL WPL 8010P01360 Contact Us For Availability
8
COVER, DOOR LATCH WPL 4005F44351 Contact Us For Availability
8
LINING, DOOR WPL 2402W20219 Contact Us For Availability
8
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
8
FRAME, OVEN FRONT WPL 2201F06419 Contact Us For Availability
8
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
BOLT WPL 7101P10560 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
9
BEZEL, KNOB (BLK) WPL 7740P02060 Contact Us For Availability
9
GLASS ASY, OVEN DOOR WPL 7907P01460 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
GLASS, BACKSPLASH WPL 7902P38160 Contact Us For Availability
9
BEZEL, KNOB WPL 7740P01860 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402S19016 Contact Us For Availability
10
BOX, BURNER WPL 4011F22380 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
10
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
BRACKET, LAMP HOLDER WPL 3801F05734 Contact Us For Availability
10
RECEPTACLE, LAMP WPL 7408P00660 Contact Us For Availability
10
BRACKET, INDICATOR LIGHT WPL 3801F11151 Contact Us For Availability
10
HARNESS, UPPER OVEN WPL 5195D10160 Contact Us For Availability
11
SCREW WPL 7101P29060 Contact Us For Availability
11
EXTENSION, VENT WPL 3826W01545 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P01460 Contact Us For Availability
11
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
11
CLIP, SPEED WPL 7112P10260 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
11
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
11
BALLAST WPL 7412P00760 Contact Us For Availability
12
BULB, OVEN WPL 7407P09560 Contact Us For Availability
12
GASKET, VENT WPL 7201P05560 Contact Us For Availability
12
SEAL WPL 7212P00560 Contact Us For Availability
12
SWITCH, MEMBRANE (BLK) WPL 7740P03760 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
13
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08051 Contact Us For Availability
13
TOP, MAIN (ALM W/BLK GLASS) WPL 5706M10484 Contact Us For Availability
13
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
13
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
13
LINING, OVEN BOTTOM WPL 4009F00216 Contact Us For Availability
14
STRIKE, MALE WPL 8024P00160 Contact Us For Availability
14
RELAY BOARD WPL 7428P00960 Contact Us For Availability
14
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
14
SPACER WPL 8010P07560 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
PANEL, BACKSPLASH WPL 2612F03532 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
15
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 4020W01180 Contact Us For Availability
15
PANEL, SIDE (LT-ALM) WPL 2618F09074 Contact Us For Availability
15
PANEL, SIDE (RT-ALM) WPL 2618F09174 Contact Us For Availability
15
PANEL, SIDE (RT-ALM) WPL 2618F10274 Contact Us For Availability
15
PANEL, SIDE (LT-ALM) WPL 2618F10374 Contact Us For Availability
16
WASHER WPL 7109P01560 Contact Us For Availability
16
BRACKET, PANEL WPL 3801F25651 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
16
RETAINER, SIDE WPL 3804F04551 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
17
CHANNEL, BOTTOM WPL 3818F05451 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
17
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
17
RACK WPL 7801P00860 Contact Us For Availability
18
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
18
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
18
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
18
RECEPTACLE, OVEN LIGHT WPL 7408P03460 Contact Us For Availability
19
SUPPORT, ELEMENT WPL 3807F39045 Contact Us For Availability
19
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
19
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
19
RETAINER, BOTTOM WPL 3804F02919 Contact Us For Availability
20
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P07460 Contact Us For Availability
20
END CAP (RT) WPL 7744P07560 Contact Us For Availability
20
END CAP (LT) WPL 7744P07660 Contact Us For Availability
20
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
20
SCREW WPL 7101P07560 Contact Us For Availability
20
RETAINER, GLASS WPL 7720P01960 Contact Us For Availability
21
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
21
HARNESS, SENSOR/LOCK WPL 5170P13860 Contact Us For Availability
21
HARNESS, CONTROL TO RELAY WPL 5170P14760 Contact Us For Availability
21
HARNESS, COOKTOP TO SWITCH WPL 5175D07660 Contact Us For Availability
21
HARNESS, PANEL WPL 5195D09960 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
21
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
21
EXTRUSION, GLASS RET WPL 7706P01460 Contact Us For Availability
22
MANUAL, USE & CARE-INSERT WPL 8112P10560 Contact Us For Availability
22
MANUAL, USE & CARE WPL 8113P02960 Contact Us For Availability
22
MANUAL, USE & CARE WPL 8113P04160 Contact Us For Availability
22
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
22
SOCKET, STARTER----NA WPL 7408P03660 Contact Us For Availability
23
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
23
SCREW WPL 7101P32960 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
24
PANEL, DRAWER (ALM) WPL 2416F03864 Contact Us For Availability
24
INSULATION, REAR WPL 7002P03060 Contact Us For Availability
24
INSULATION, WRAP WPL 7002P04260 Contact Us For Availability
25
SCREW WPL 7101P11560 Contact Us For Availability
25
SUPPORT, OVEN SIDE WPL 3818F00651 Contact Us For Availability
26
NUT, LOCK WPL 7103P08560 Contact Us For Availability
26
TOP, MAIN UPPER WPL 2007W00180 Contact Us For Availability
27
END CAP, DRAWER (ALM) WPL 7744P11260 Contact Us For Availability
27
SCREW WPL 7101P08160 Contact Us For Availability
27
TRIM WPL 7720P10160 Contact Us For Availability
27
TRIM WPL 7720P10260 Contact Us For Availability
28
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
29
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
30
GUARD, SIDE INS. WPL 3609F00280 Contact Us For Availability
30
RETAINER, TOP WPL 3804F00351 Contact Us For Availability
30
RETAINER WPL 3804F03351 Contact Us For Availability
31
SCREW WPL 7101P05860 Contact Us For Availability
32
GLIDE, DOOR WPL 8016P00160 Contact Us For Availability
33
SUPPORT WPL 8004P00260 Contact Us For Availability
34
CATCH FEMALE WPL 8002P00660 Contact Us For Availability
35
PLATE WPL 3605F00132 Contact Us For Availability
37
SCREW WPL 7101P06160 Contact Us For Availability
38
SCREW WPL 7101P07260 Contact Us For Availability
39
SCREW, DR LCK HNDL WPL 7101P01960 Contact Us For Availability
40
SCREW WPL 7101P01860 Contact Us For Availability
40
HARNESS, UPPER WPL 5180D14960 Contact Us For Availability
40
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
× ![]()
Login and Registration Form
