Model Broan 765H110L-A Directionally Controllable Heater/Fan/Light - 1500 Watts / 110 CFM / 2.0 Sones – Common Parts & Diagrams

Common parts from model Broan 765H110L-A Directionally Controllable Heater/Fan/Light - 1500 Watts / 110 CFM / 2.0 Sones

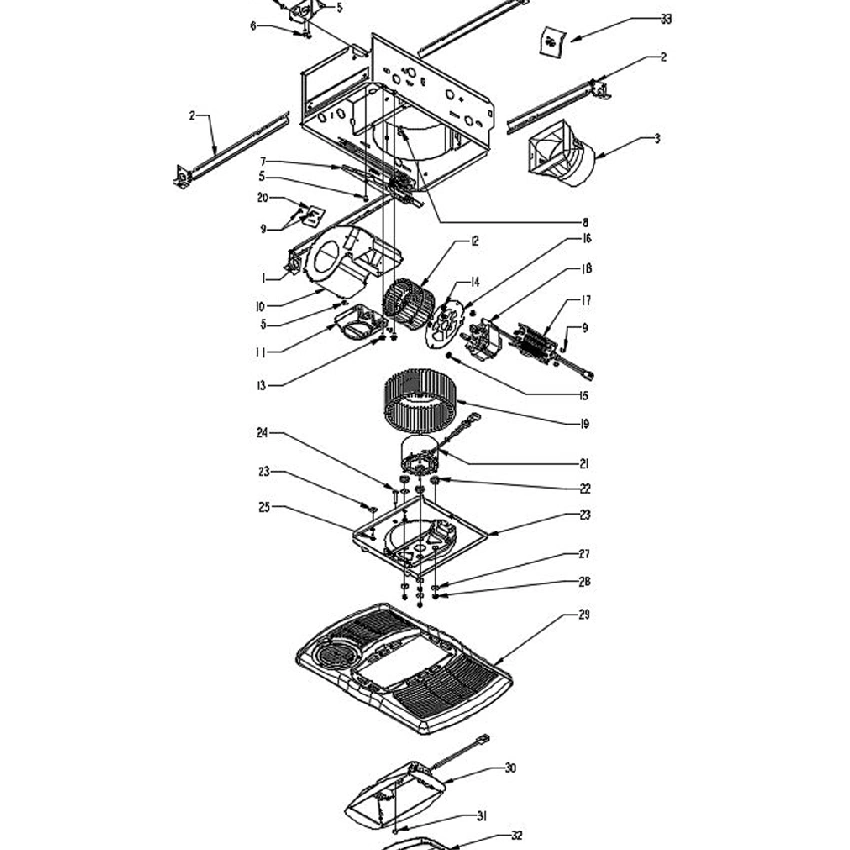

Exploded View

Print

• This Diagram
• All Diagrams

3

S97016449 Broan Range Backorder BRN S97016449 View Details $22.53

View on Model

6

Screw - #10-32 x 1/2" - No Longer Available - BRN S99150471 Contact Us For Availability

View on Model

7

SRV ASSY, WIRE PANEL Backorder BRN S97017713 View Details $43.20

View on Model

9

S99150415 Broan Screw Backorder BRN S99150415 View Details $43.20

View on Model

10

Heater Scroll Housing BRN S97017609 Contact Us For Availability

View on Model

11

Heater Discharge Transition BRN S98010405 Contact Us For Availability

View on Model

12

Heater Blower Wheel - No Longer Available - R BRN S99020294 Contact Us For Availability

View on Model

14

Nut - #6-32 x 5/16" - No Longer Available - N BRN S99260428 Contact Us For Availability

View on Model

15

Whiz Hex Nut - #10-24 - No Longer Available - BRN S99260488 Contact Us For Availability

View on Model

16

NO LONGER AVAILABLE - Heater Motor Bracket BRN 98010409 Contact Us For Availability

View on Model

17

S97020888 Broan Heating Element Backorder BRN S97020888 View Details $34.45

View on Model

18

S97020890 Broan Range Heater Assembly Backorder BRN S97020890 View Details $142.50

View on Model

19

Fan Blower Wheel - No Longer Available - May BRN S99020293 Contact Us For Availability

View on Model

19,21-25,27,& 28

S1101255 Broan Blower Assembly for SRV 765H11 Backorder BRN S1101255 View Details $329.40

View on Model

20

Heating Element Mounting Bracket BRN S98010089 Contact Us For Availability

View on Model

22

S99100491 Broan Bushing Backorder BRN S99100491 View Details $43.20

View on Model

23

Partition Assembly / Fan Motor Mounting Plate BRN S97017606 Contact Us For Availability

View on Model

24

Grille Mounting Screw - #10-24 x 1-1/4" - No BRN S99150583 Contact Us For Availability

View on Model

25

S93150459 Broan Range Screw Backorder BRN S93150459 View Details $40.82

View on Model

26

S93260454 Broan Range Nut Backorder BRN S93260454 View Details $40.82

View on Model

27

Motor Mounting Washer - #8 x 5/8" - No Longer BRN S99250959 Contact Us For Availability

View on Model

28

Motor Mounting Nut - #8-32 - No Longer Availa BRN S99260558 Contact Us For Availability

View on Model

29

S1101173 Broan Service Assembly Grille for 76 Backorder BRN S1101173 View Details $149.28

View on Model

30

Reflector Assembly - Includes Lamp Socket BRN S97017688 Contact Us For Availability

View on Model

31

S97005316 Broan Range Nut Bag for Combos Backorder BRN S97005316 View Details $43.20

View on Model

33

Screw Hardware Bag for Hanger Bars BRN S97017739 Contact Us For Availability

View on Model
