Model LG 75UW970H – Common Parts & Diagrams

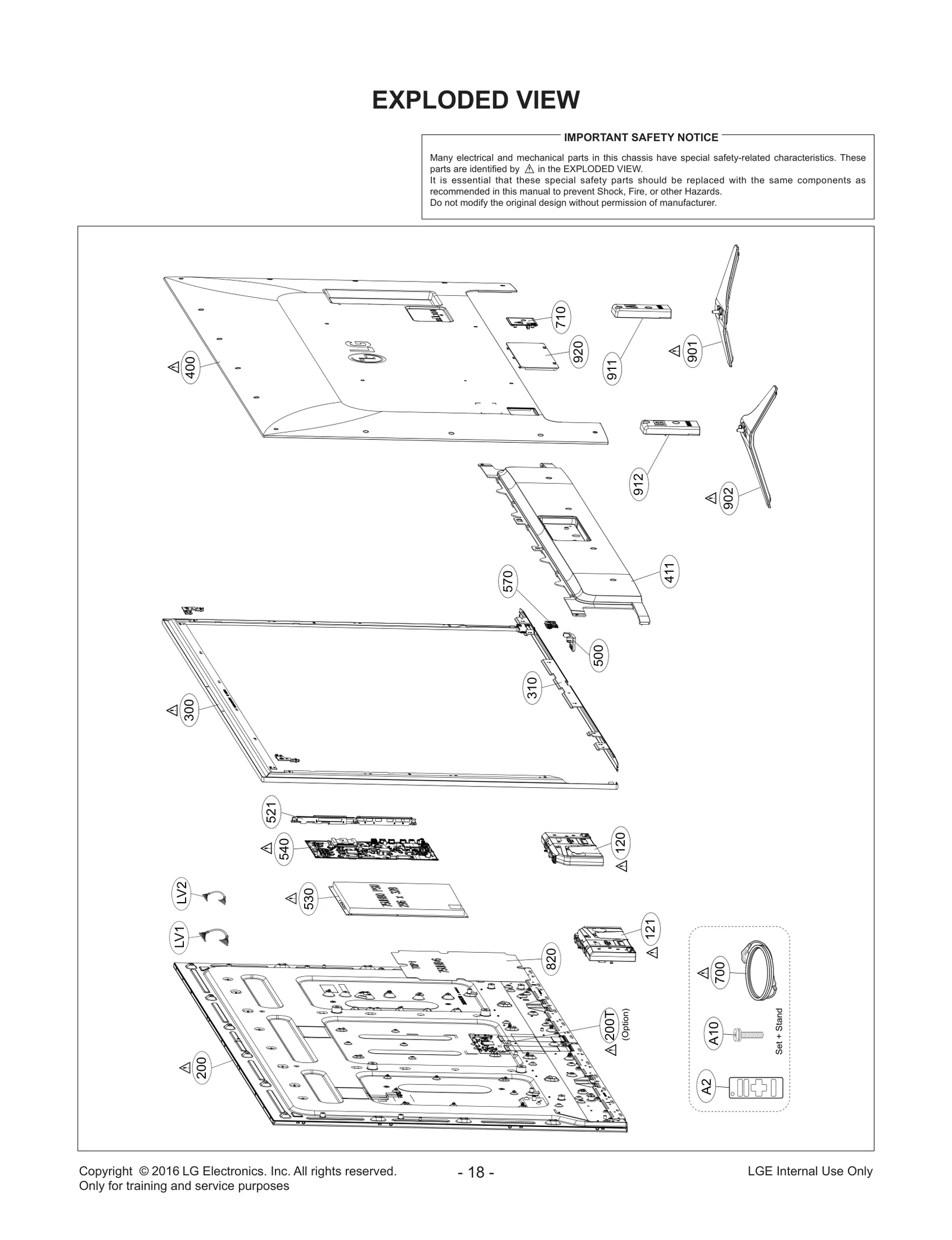

Diagram 0
Diagram 1
Common parts from model LG 75UW970H
200T
Time Control LGE EAT63357001 Contact Us For Availability
310
Cabinet LGE MBH64102503 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88533639 Contact Us For Availability
411
Cover,Rear LGE MCK69126812 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR81960508 Contact Us For Availability
521
Bracket LGE MAZ65205714 Contact Us For Availability
530
Power Supply Assembly LGE EAY64269141 Contact Us For Availability
540
Chassis Assembly LGE EBT64419004 Contact Us For Availability
700
Power Cord,Attach LGE EAD64027701 Contact Us For Availability
710
Bracket LGE MAZ62827620 Contact Us For Availability
820
Insulator LGE MEV65771401 Contact Us For Availability
901
Base Assembly LGE AAN75689603 Contact Us For Availability
902
Base Assembly LGE AAN75689604 Contact Us For Availability
911
Bracket LGE MAZ65166103 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692636 Contact Us For Availability
B1
Box LGE MAY67589003 Contact Us For Availability
B2
Box LGE MAY67589004 Contact Us For Availability
CA1
Harness,Single LGE EAD62732502 Contact Us For Availability
CA2
Harness,Multi LGE EAD63305604 Contact Us For Availability
CA4
Harness,Multi LGE EAD63286713 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61273123 Contact Us For Availability
× ![]()
