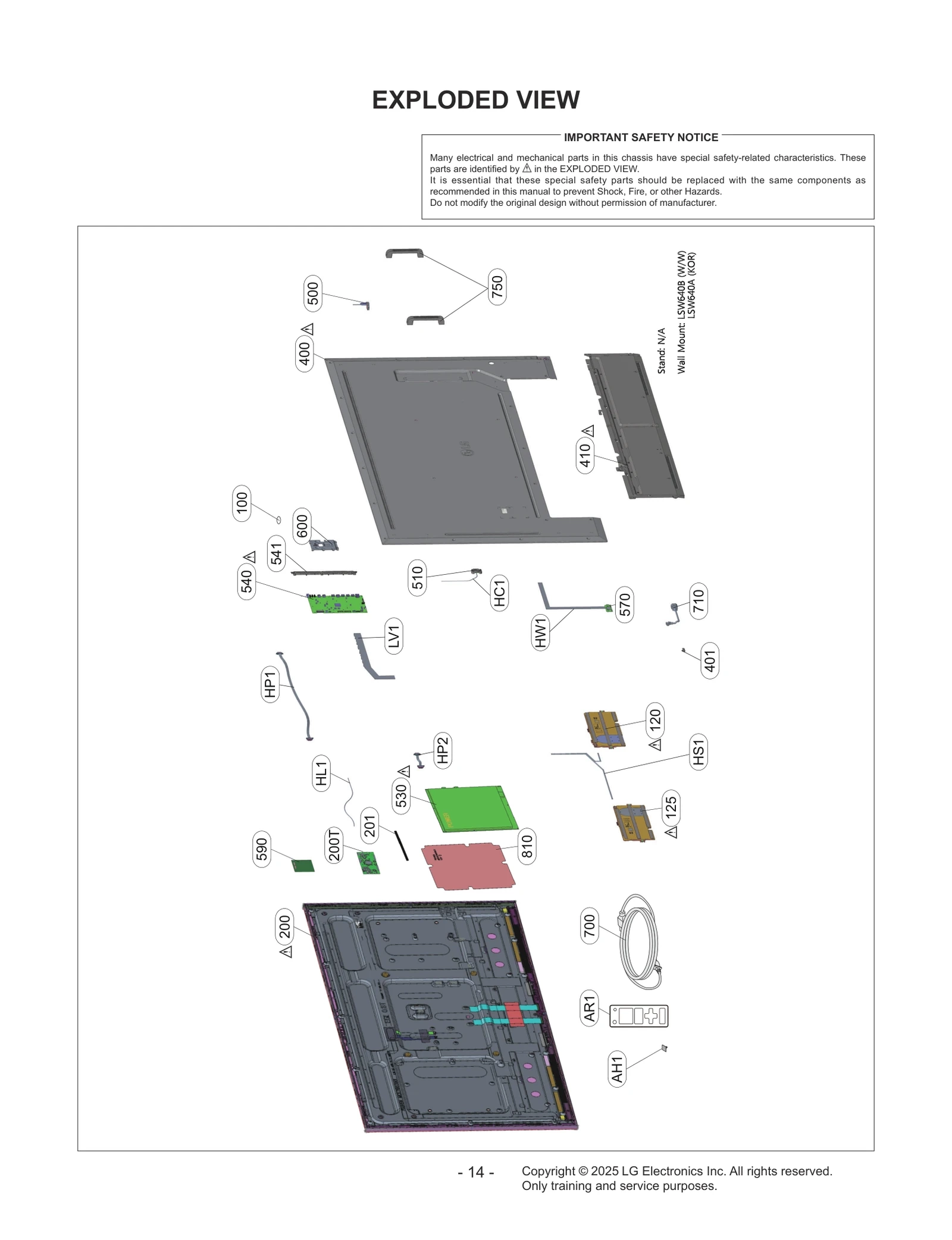

Model LG 75UH5N-M – Common Parts & Diagrams

100
Primary Cell Battery,Lithium
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
View on Model
120
Speaker Assembly
Speaker Assembly LGE EAB65836701 Contact Us For Availability
View on Model
125
Speaker Assembly
Speaker Assembly LGE EAB65836702 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65913801 Contact Us For Availability
View on Model
401
Holder
Holder LGE 4930V00218C Contact Us For Availability
View on Model
410
Cover Assembly,Bottom
Cover Assembly,Bottom LGE ACQ30678402 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY65918901 Contact Us For Availability
View on Model
541
Bracket
Bracket LGE MAZ67801106 Contact Us For Availability
View on Model
600
Plate,Shield
Plate,Shield LGE MGJ66243402 Contact Us For Availability
View on Model
750
Handle
Handle LGE MEB65438702 Contact Us For Availability
View on Model
810
Insulator
Insulator LGE MEV67808903 Contact Us For Availability
View on Model
AH1
Bracket
Bracket LGE MAZ67715401 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB76039803 Contact Us For Availability
View on Model
HC1
Harness,Single
Harness,Single LGE EAD64145118 Contact Us For Availability
View on Model
HL1
Harness,Single
Harness,Single LGE EAD65850809 Contact Us For Availability
View on Model
HP2
Harness,Single
Harness,Single LGE EAD63026118 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD63727385 Contact Us For Availability
View on Model
HW1
Cable,FFC
Cable,FFC LGE EAD65825892 Contact Us For Availability
View on Model
