Model LG 75SJ8570 – Common Parts & Diagrams

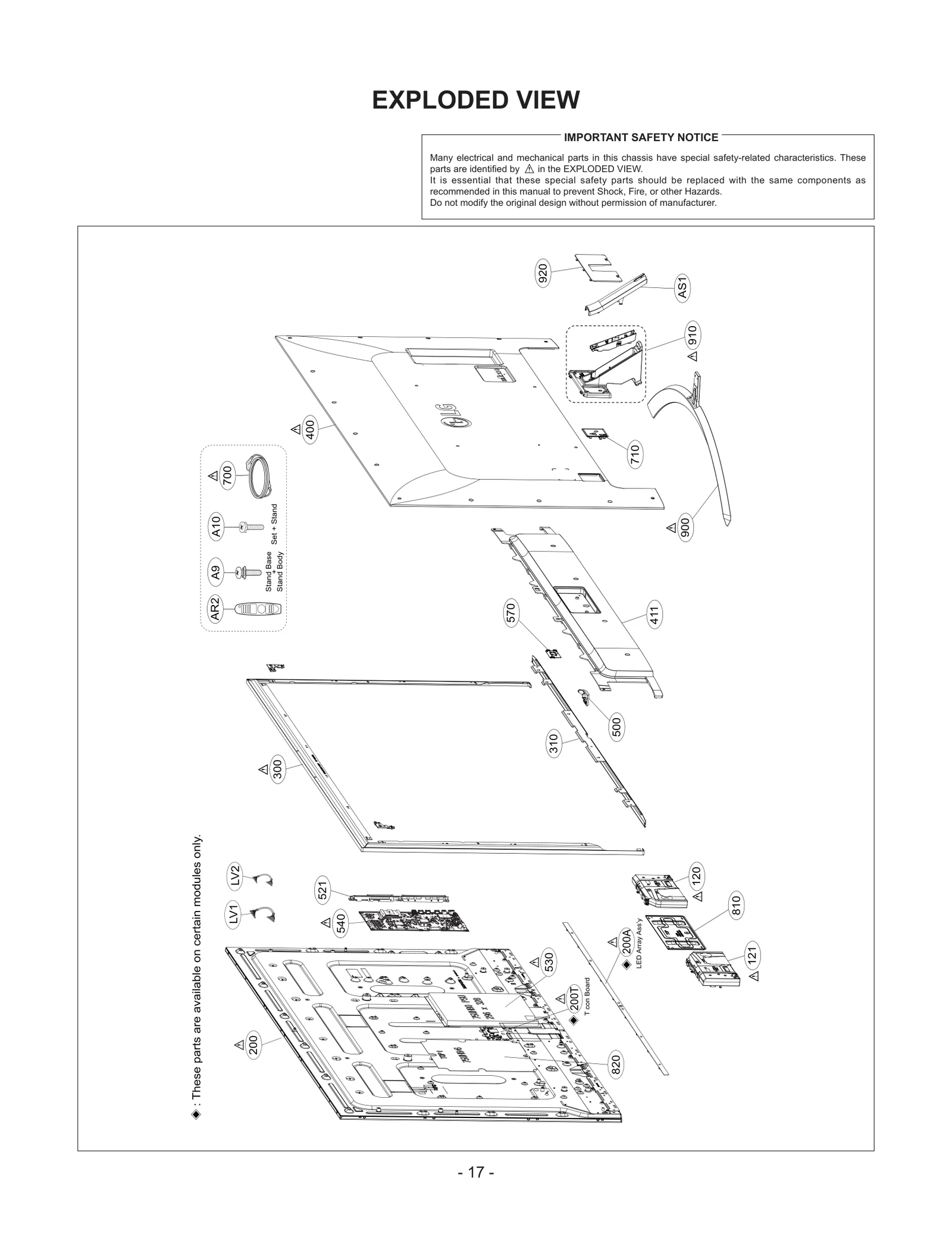

Diagram 0
Diagram 1
Common parts from model LG 75SJ8570
200
LCD,Module-TFT LGE EAJ63989001 Contact Us For Availability
200T
Time Control LGE EAT63357001 Contact Us For Availability
310
Cabinet LGE MBH64102503 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88533644 Contact Us For Availability
521
Bracket LGE MAZ65205715 Contact Us For Availability
530
Power Supply Assembly LGE EAY64269142 Contact Us For Availability
710
Bracket LGE MAZ62827620 Contact Us For Availability
820
Insulator LGE MEV65771401 Contact Us For Availability
910
Bracket Assembly LGE ABA75870202 Contact Us For Availability
920
Cover LGE MCK69066802 Contact Us For Availability
AS1
Cover LGE MCK69126902 Contact Us For Availability
B1
Box LGE MAY67877401 Contact Us For Availability
B2
Box LGE MAY67877402 Contact Us For Availability
B3
Box LGE MAY66251083 Contact Us For Availability
C605
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C4111
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C5320
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5411
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
CA1
Harness,Single LGE EAD62732502 Contact Us For Availability
CA2
Harness,Multi LGE EAD63305604 Contact Us For Availability
CA4
Harness,Multi LGE EAD64009602 Contact Us For Availability
P6000
Conector,Wafer LGE 6602T25009L Contact Us For Availability
Q1000
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R1108
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R3405
Resistor,Chip LGE EBC01890805 Contact Us For Availability
× ![]()
