Model LG 75QNED99TUA – Common Parts & Diagrams

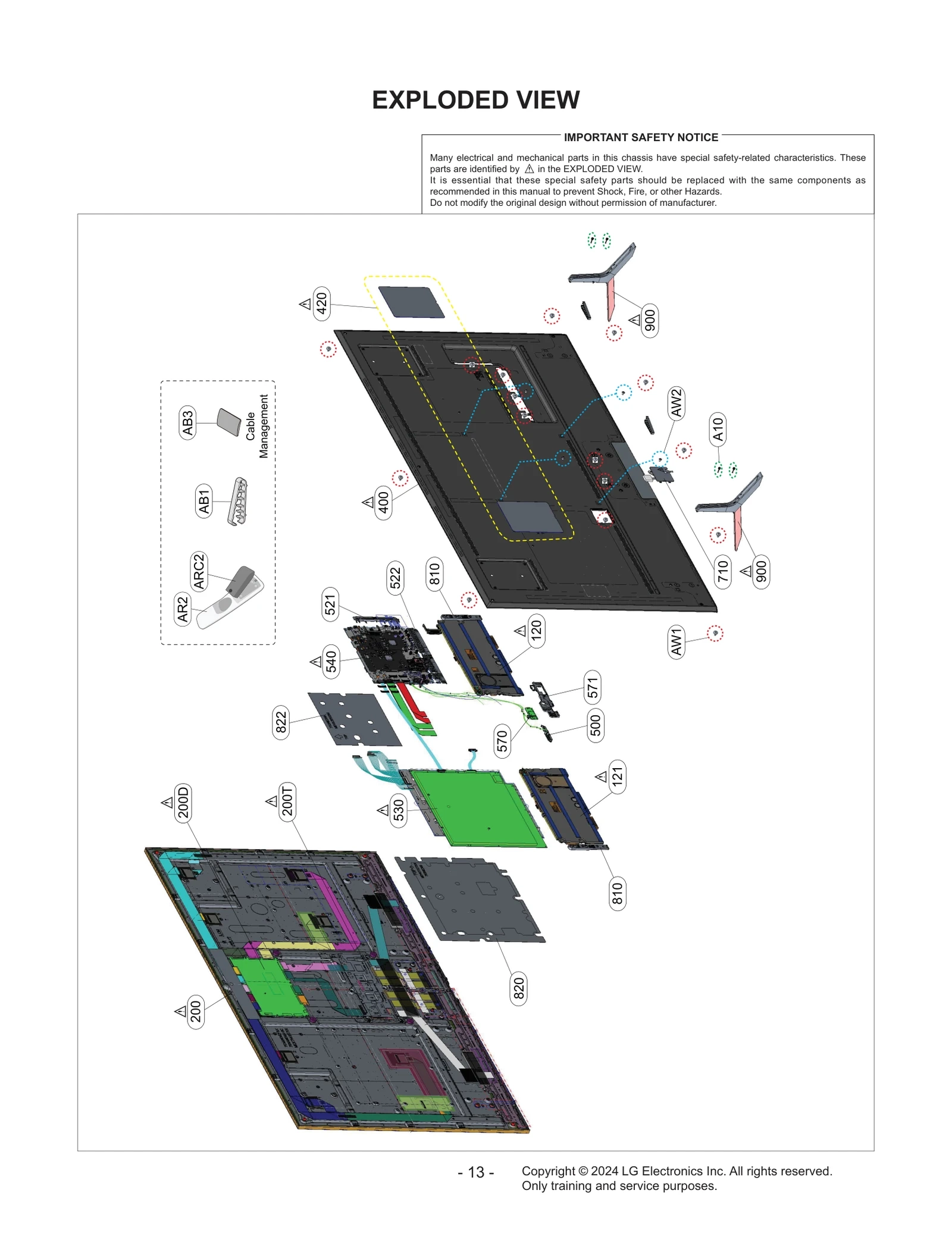

Diagram 0
Diagram 1
Common parts from model LG 75QNED99TUA
200
LCD,Module-TFT LGE EAJ65917601 Contact Us For Availability
200D
PCB Assembly LGE EBR33087402 Contact Us For Availability
200T
Time Control LGE EAT65193001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30648310 Contact Us For Availability
420
Cover Assembly,Accessory LGE ACQ30359309 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR31871307 Contact Us For Availability
521
Bracket LGE MAZ67494816 Contact Us For Availability
522
Bracket Assembly LGE ABA30040039 Contact Us For Availability
530
PCB Assembly,Power package LGE EBR35465621 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU67569801 Contact Us For Availability
571
Bracket LGE MAZ67494604 Contact Us For Availability
810
Bracket Assembly LGE ABA30043802 Contact Us For Availability
820
Plate Assembly LGE AGU30015808 Contact Us For Availability
822
Insulator,Sealing LGE MEV63551251 Contact Us For Availability
900
Base Assembly LGE AAN30014761 Contact Us For Availability
AB1
Bracket LGE MAZ67110805 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HD2
Harness,Single LGE EAD63046204 Contact Us For Availability
HP1
Harness,Multi LGE EAD64687816 Contact Us For Availability
HS1
Harness,Multi LGE EAD65894905 Contact Us For Availability
HT1
Harness,Single LGE EAD63725103 Contact Us For Availability
LV1
Cable,FFC LGE EAD63285782 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285783 Contact Us For Availability
LV3
Cable,FFC LGE EAD63285784 Contact Us For Availability
LV4
Cable,FFC LGE EAD63285785 Contact Us For Availability
× ![]()
