Model LG 75130 – Common Parts & Diagrams
Diagram 0

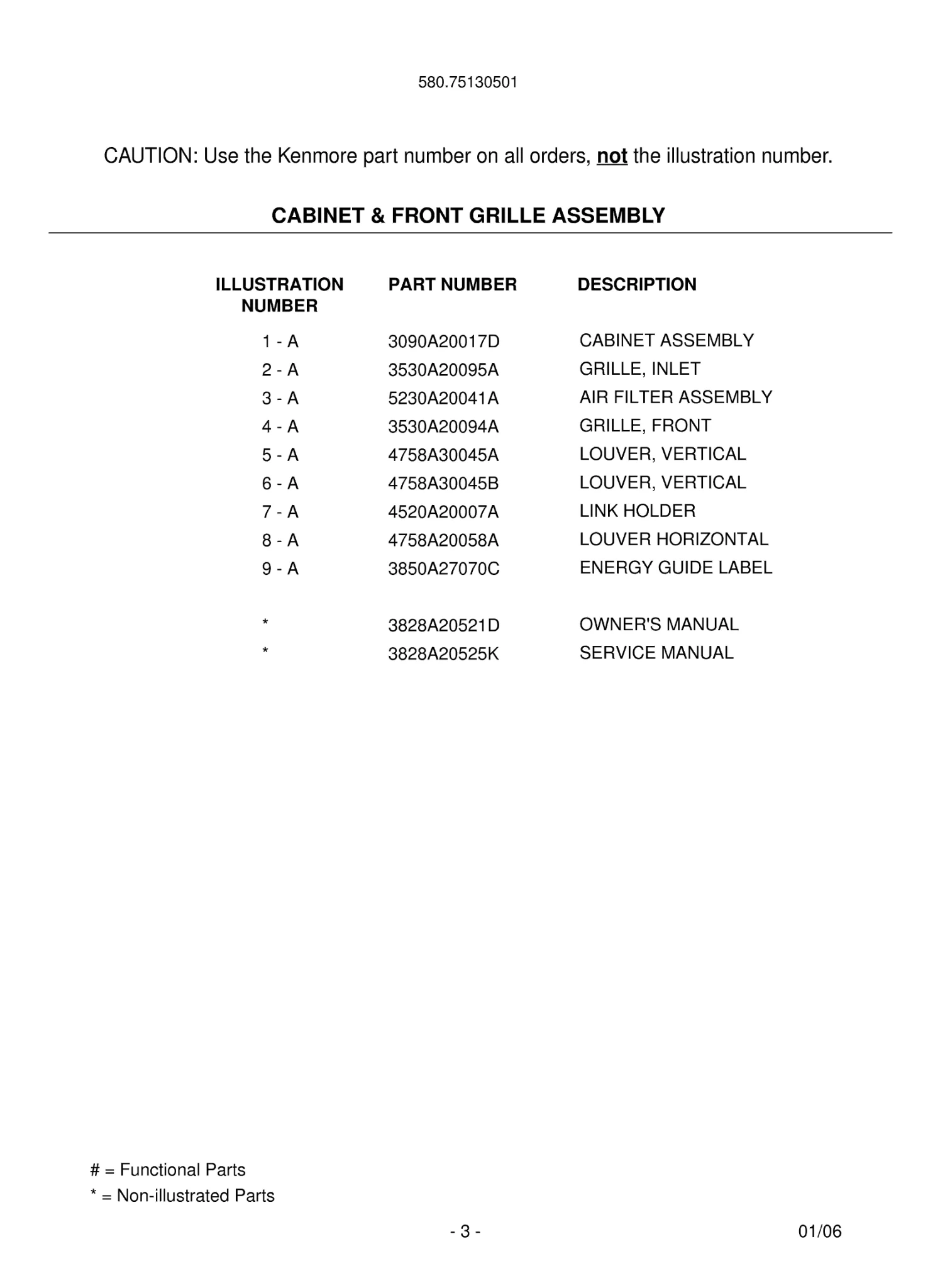

Diagram 1

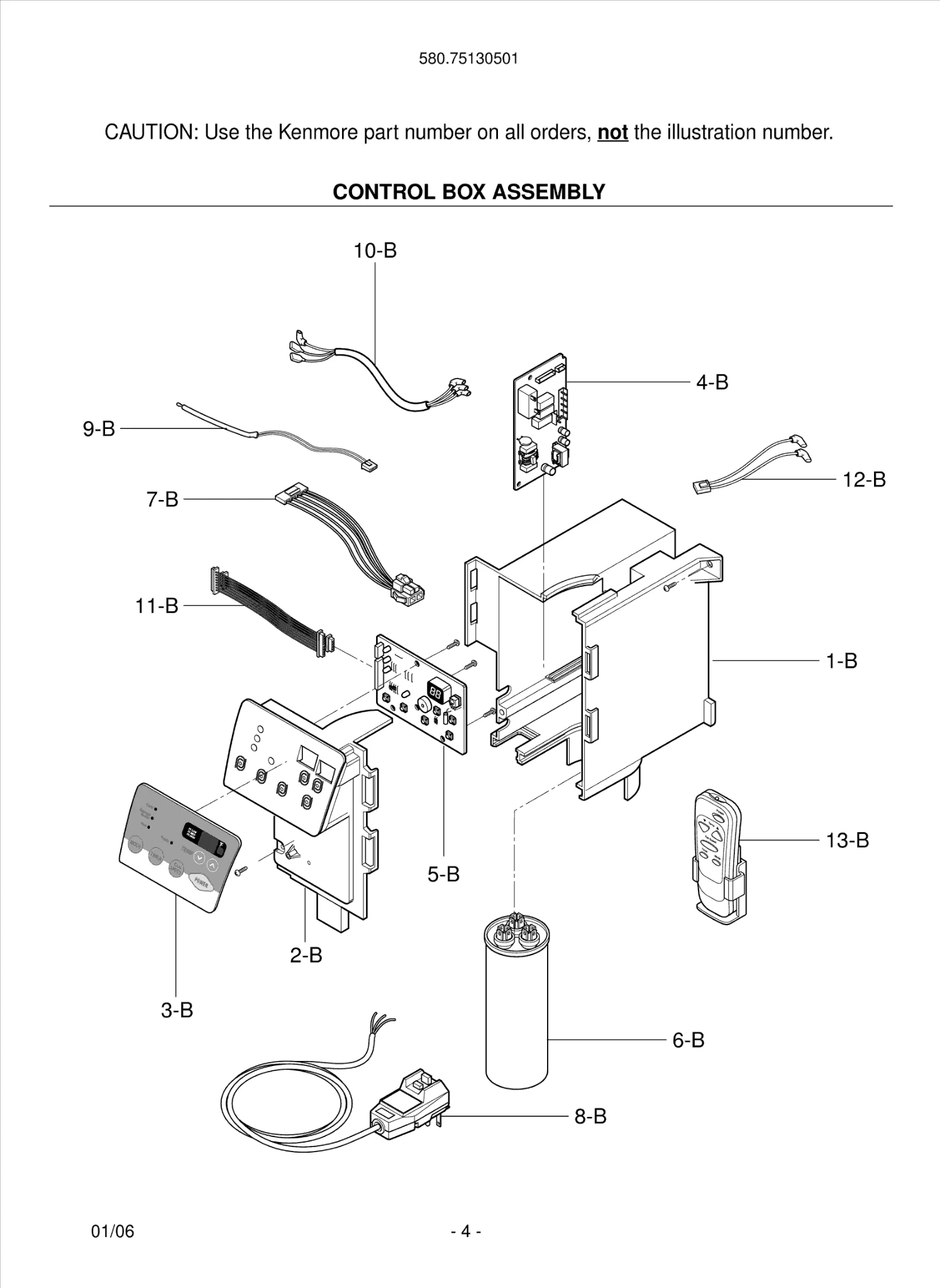

Diagram 2

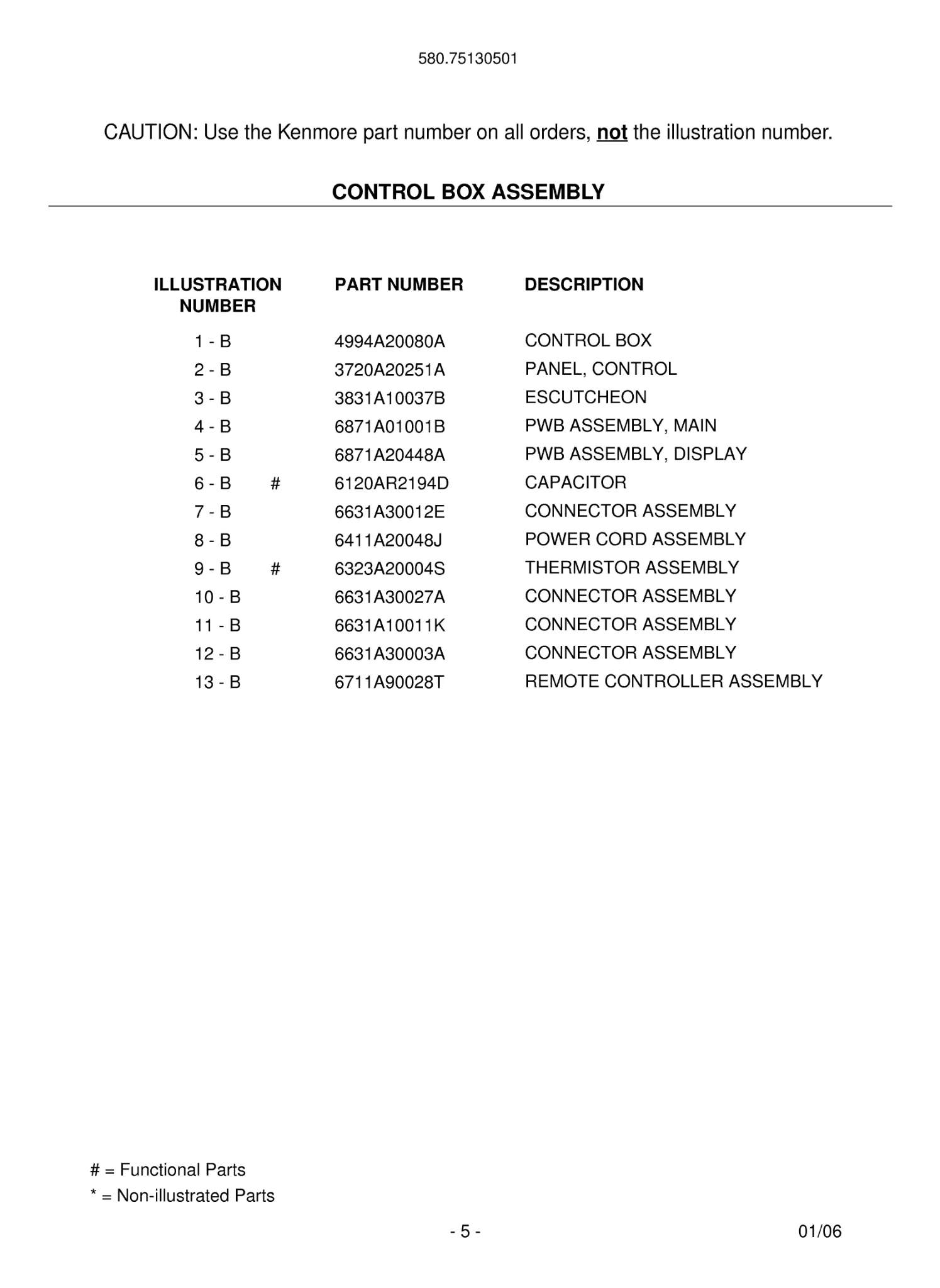

Diagram 3

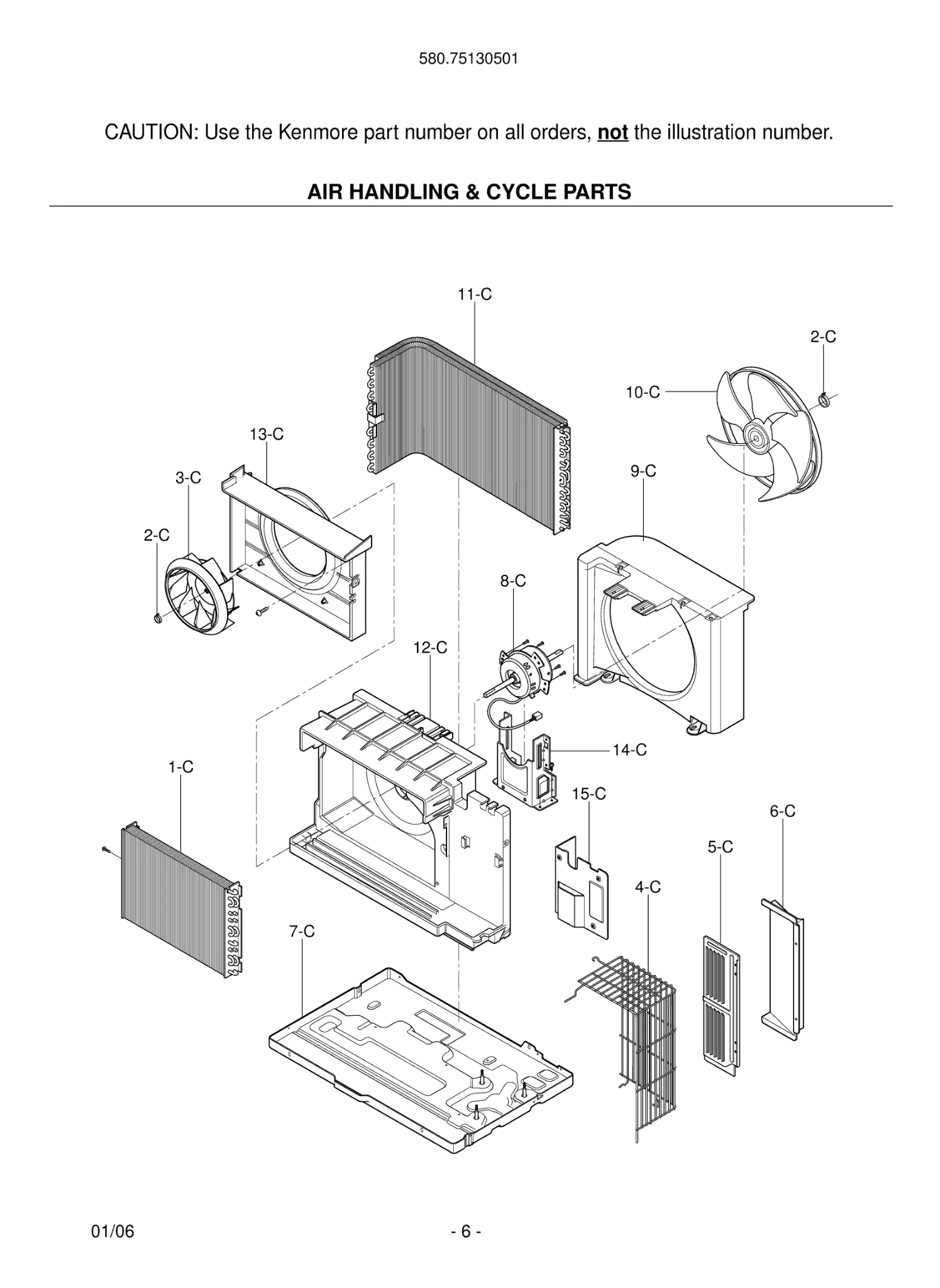

Diagram 4

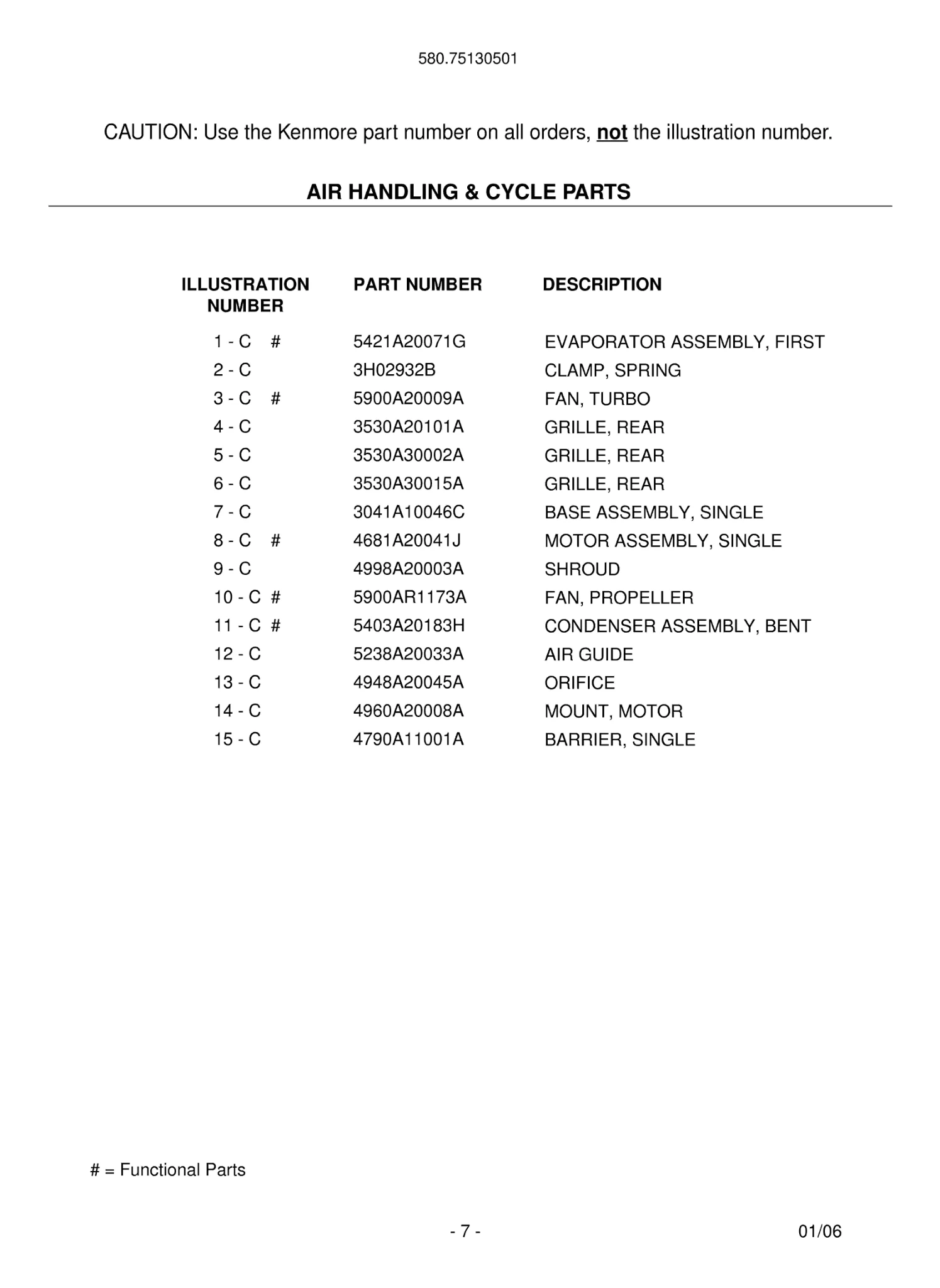

Diagram 5

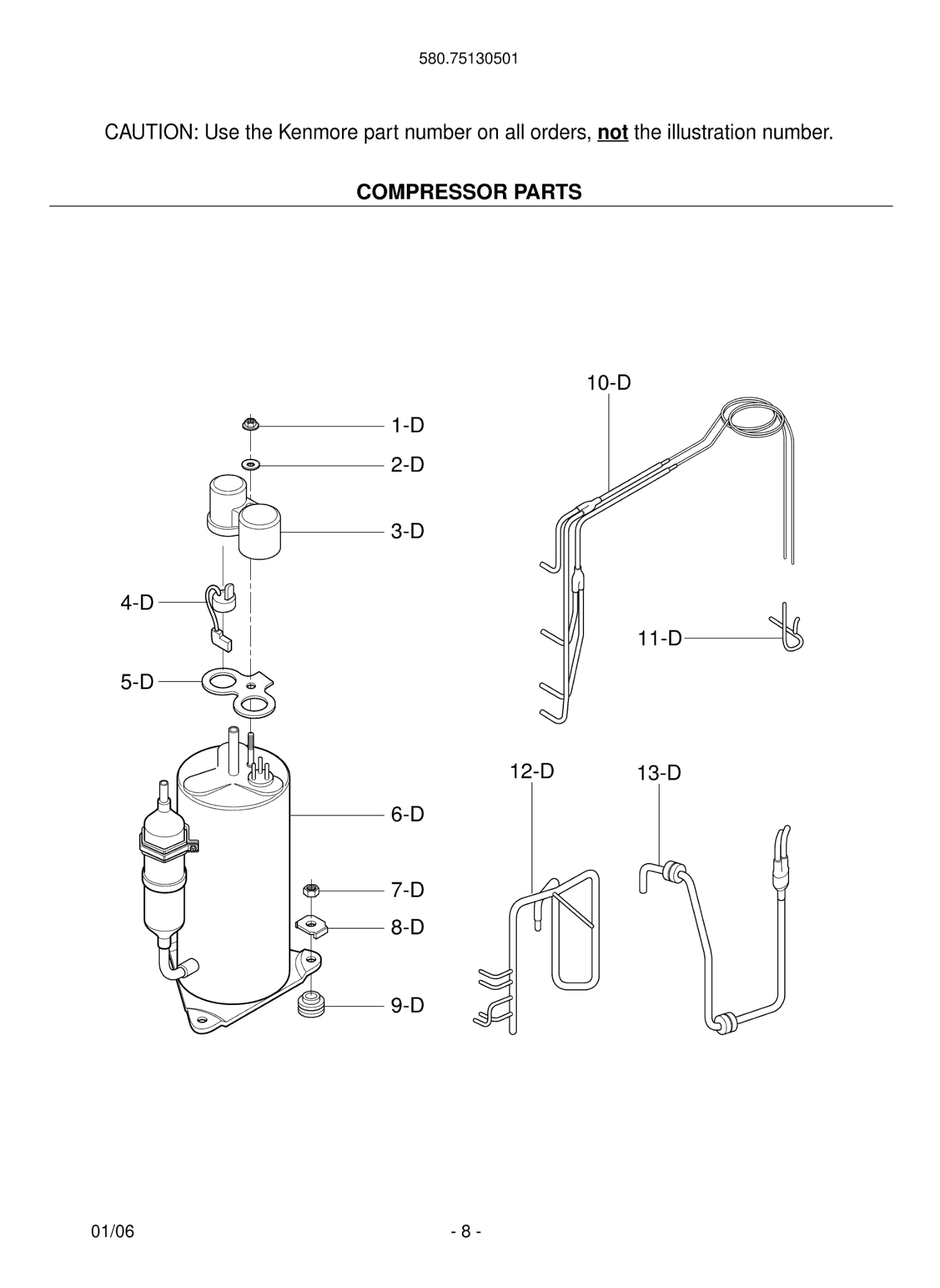

Diagram 6

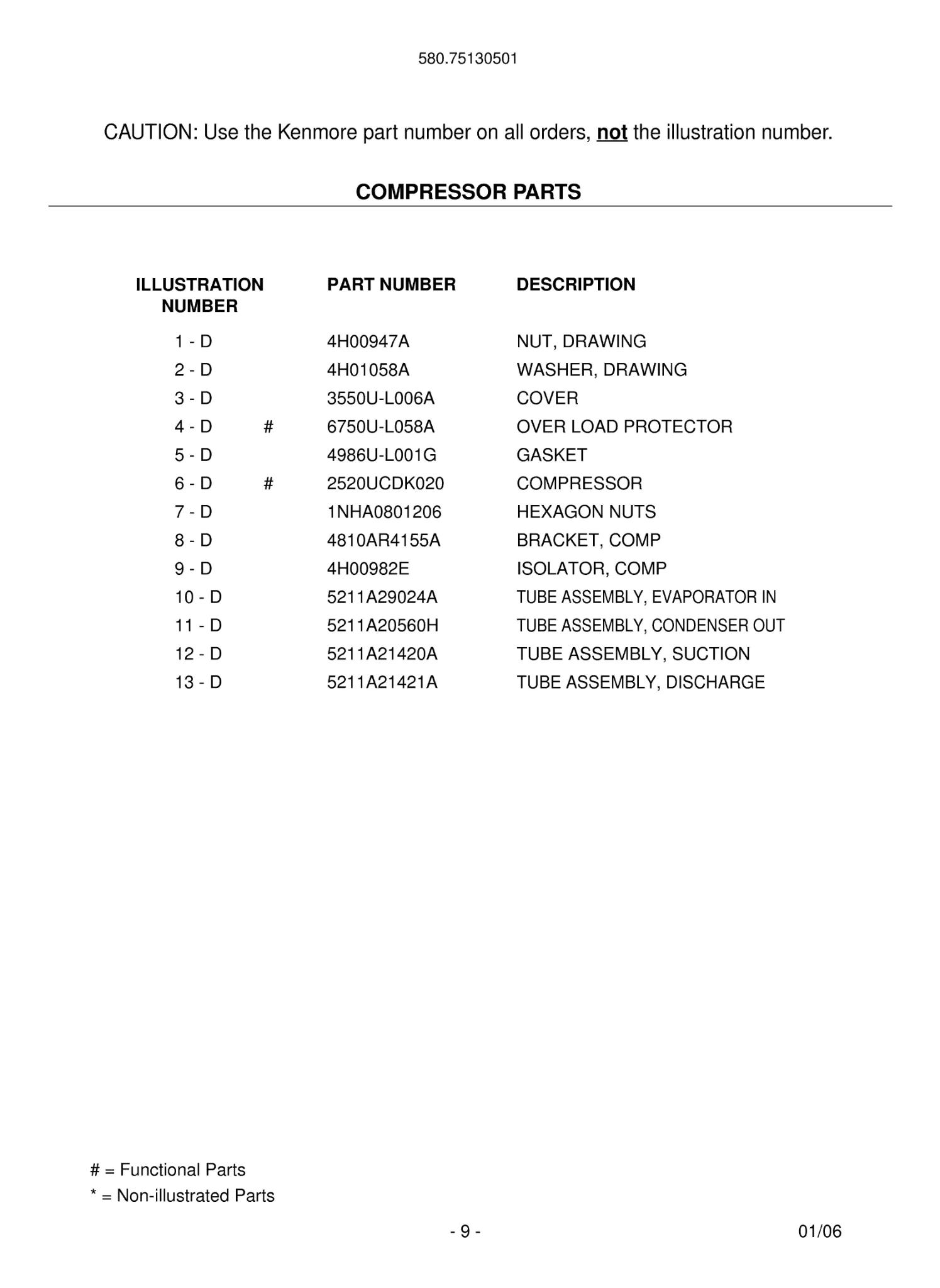

Diagram 7

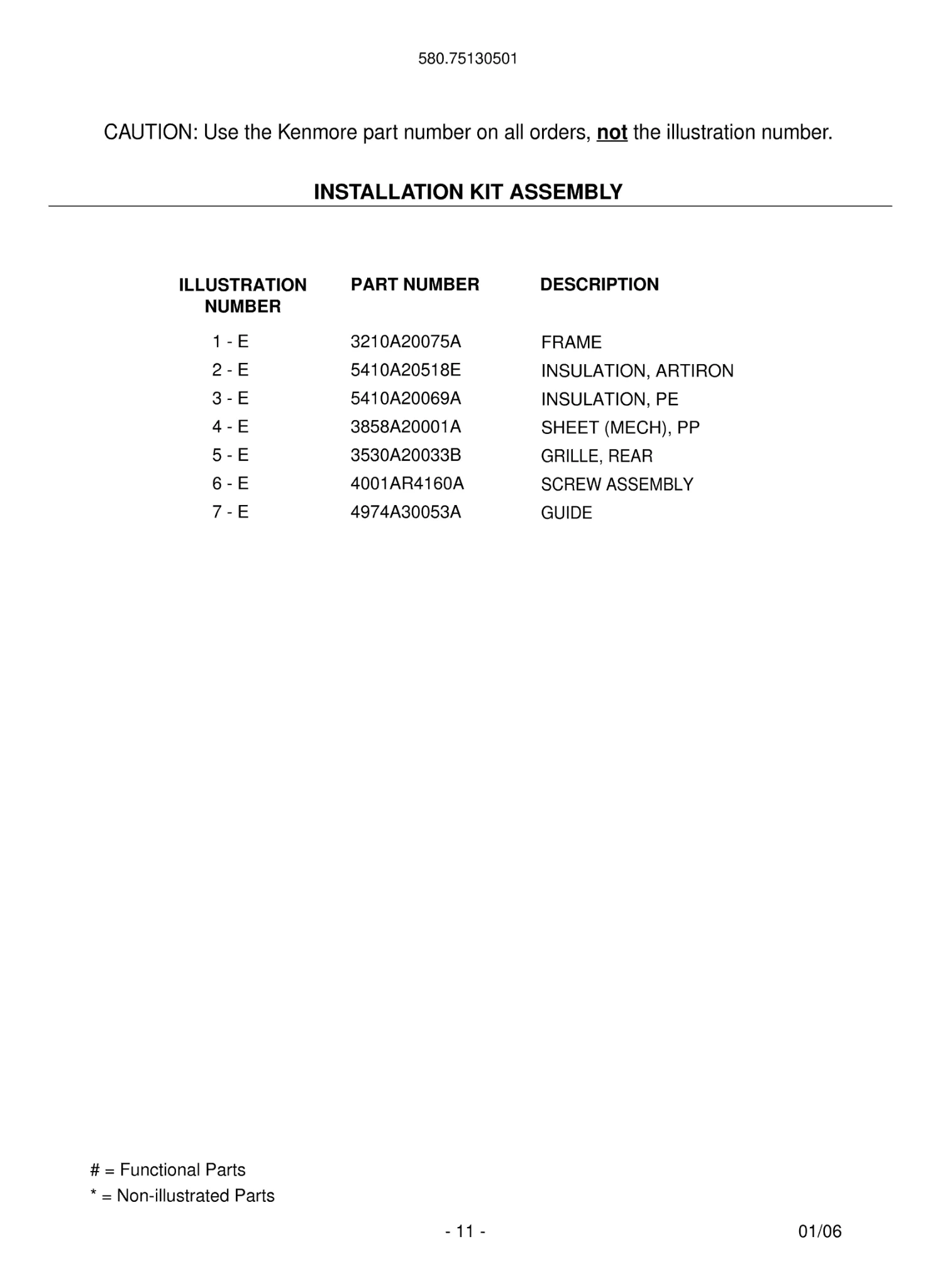

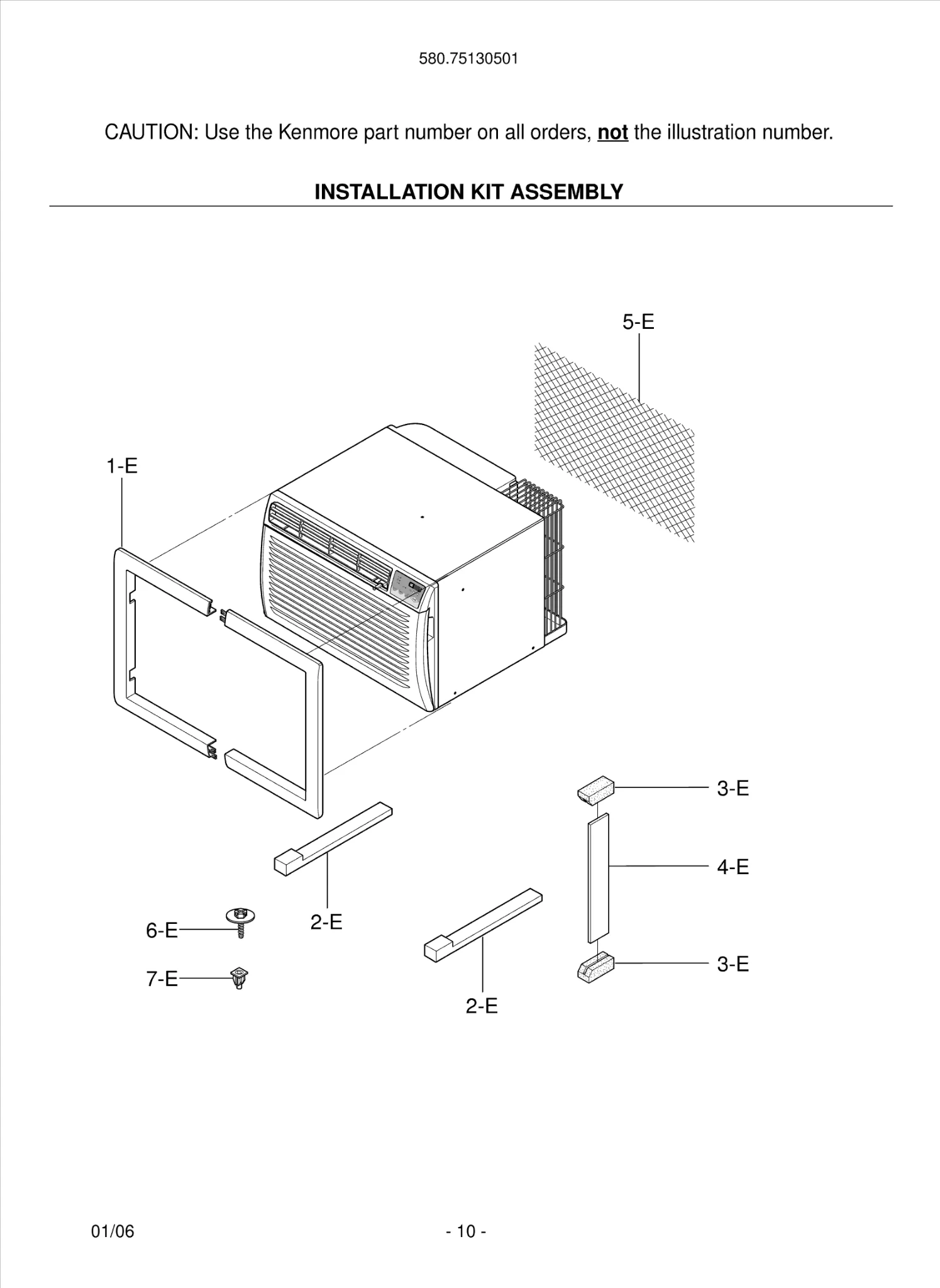

Diagram 8
Diagram 9
Common parts from model LG 75130
1-B
CONTROL BOX,SINGLE LGE 4994A20080A Contact Us For Availability
1-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071G Contact Us For Availability
1-E
FRAME LGE 3210A20075A Contact Us For Availability
2-B
PANEL,CONTROL LGE 3720A20251A Contact Us For Availability
2-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
3-B
ESCUTCHEON LGE 3831A10037B Contact Us For Availability
3-D
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
3-E
INSULATION,PE LGE 5410A20069A Contact Us For Availability
4-E
SHEET (MECH),VINYL LGE 3858A20001A Contact Us For Availability
5-B
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20448A Contact Us For Availability
5-C
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
6-C
GRILLE,REAR LGE 3530A30015A Contact Us For Availability
6-D
COMPRESSOR SET,CHINA LGE 2520UCDK020 Contact Us For Availability
7-C
BASE ASSEMBLY,SINGLE LGE 3041A10046C Contact Us For Availability
8-A
LOUVER,HORIZONTAL LGE 4758A20058A Contact Us For Availability
8-B
POWER CORD ASSEMBLY LGE 6411A20048J Contact Us For Availability
8-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20041J Contact Us For Availability
9-A
Label,Energy LGE 3850A27070C Contact Us For Availability
10-B
CONNECTOR ASSEMBLY LGE 6631A30027A Contact Us For Availability
10-C
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
10-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A29024A Contact Us For Availability
11-C
CONDENSER ASSEMBLY,BENT LGE 5403A20183H Contact Us For Availability
12-C
AIR GUIDE LGE 5238A20033A Contact Us For Availability
12-D
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A21420A Contact Us For Availability
13-B
REMOTE CONTROLLER ASSEMBLY LGE 6711A90028T Contact Us For Availability
13-D
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A21421A Contact Us For Availability
15-C
Barrier,Single LGE 4790A11001A Contact Us For Availability
× ![]()
