Model LG 75085 TTW – Common Parts & Diagrams

1-B
CONTROL BOX,SINGLE
CONTROL BOX,SINGLE LGE 4994A20080A Contact Us For Availability
View on Model

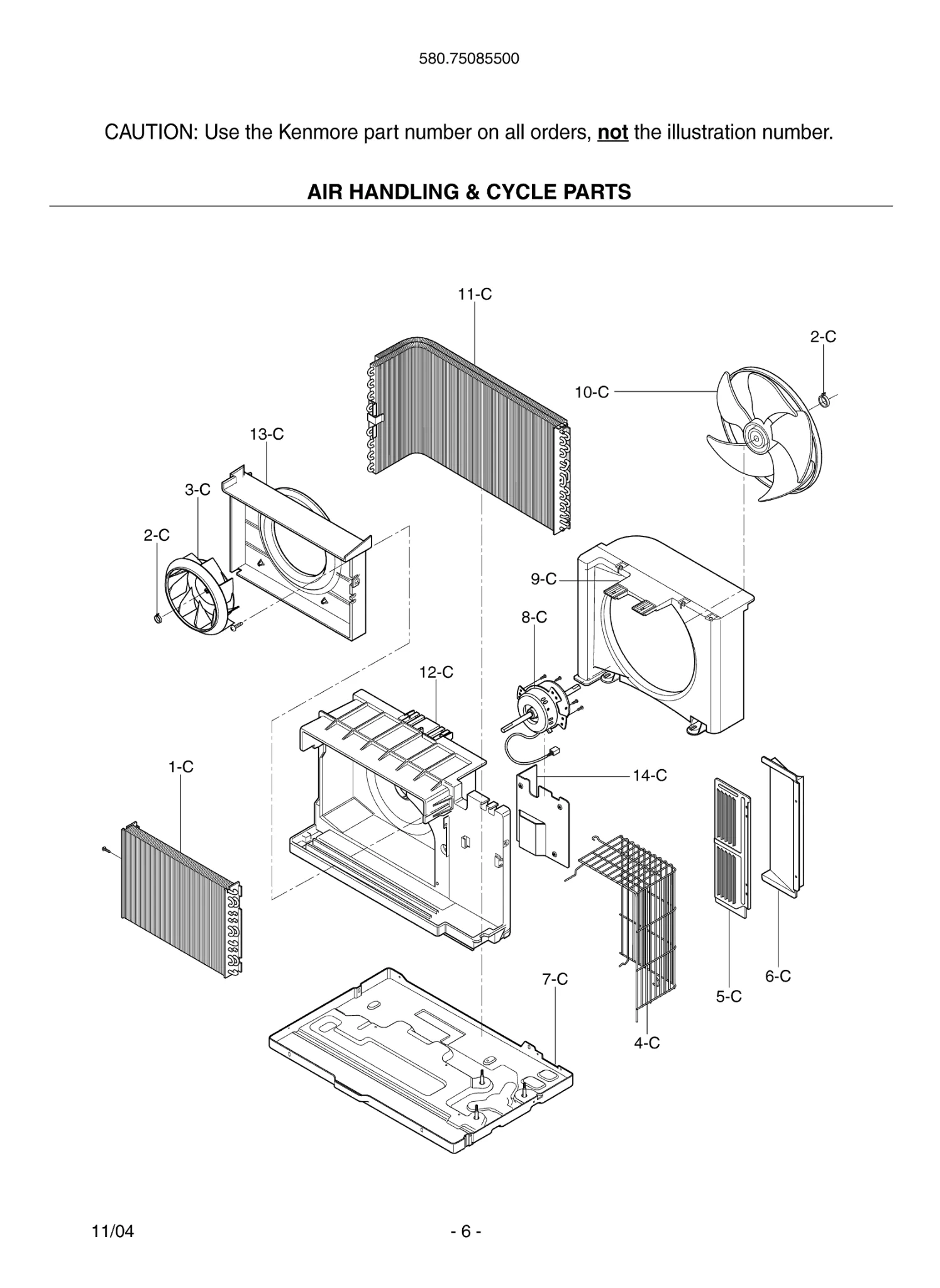

1-C
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071H Contact Us For Availability
View on Model

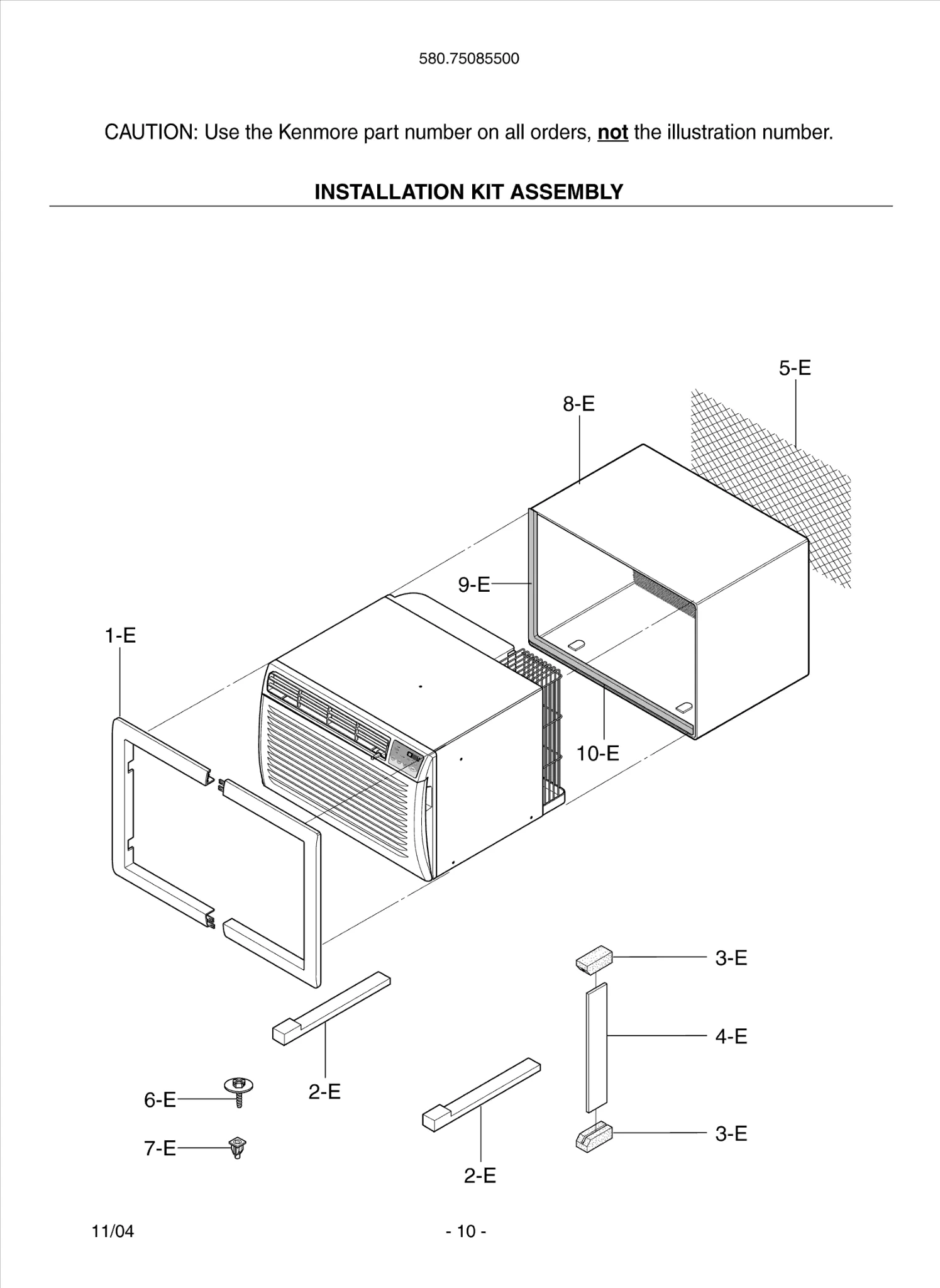

1-E
FRAME
FRAME LGE 3210A20075A Contact Us For Availability
View on Model
2-B
PANEL,CONTROL
PANEL,CONTROL LGE 3720A20251A Contact Us For Availability
View on Model
2-D
GASKET-NUT <GA-0711HCR/0712HCM
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
View on Model
3-B
ESCUTCHEON
ESCUTCHEON LGE 3831A10037B Contact Us For Availability
View on Model
3-D
COVER,TERMINAL
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
View on Model
3-E
INSULATION,PE
INSULATION,PE LGE 5410A20069A Contact Us For Availability
View on Model
4-B
PWB(PCB) ASSEMBLY,MAIN
PWB(PCB) ASSEMBLY,MAIN LGE 6871A01001A Contact Us For Availability
View on Model
4-E
SHEET (MECH),VINYL
SHEET (MECH),VINYL LGE 3858A20001A Contact Us For Availability
View on Model
5-B
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20448A Contact Us For Availability
View on Model
5-C
GRILLE,REAR
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
View on Model
6-B
CAPACITOR
CAPACITOR LGE 6120AR2194P Contact Us For Availability
View on Model
6-C
GRILLE,REAR
GRILLE,REAR LGE 3530A30015A Contact Us For Availability
View on Model

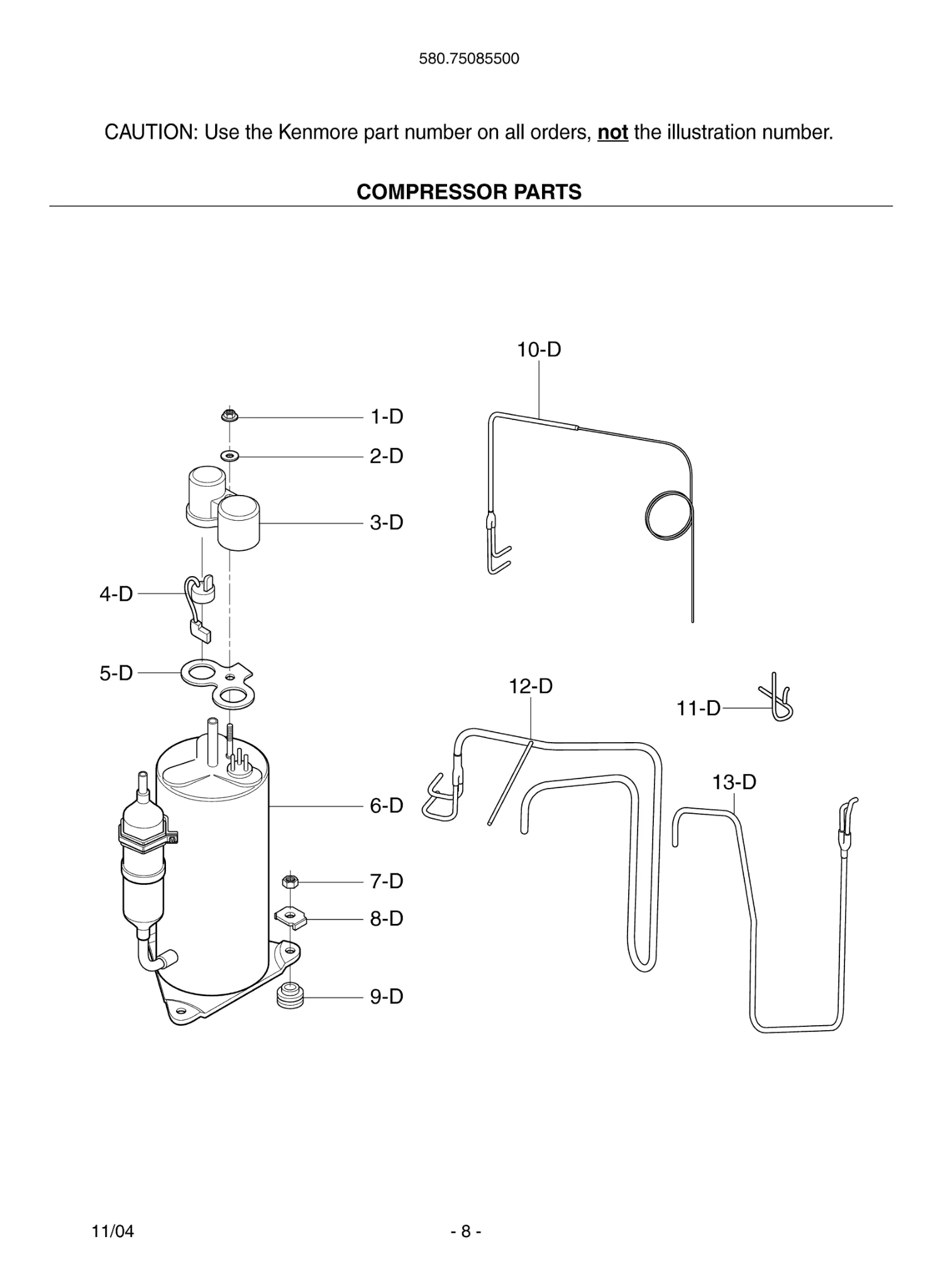

6-D
COMPRESSOR SET,CHINA
COMPRESSOR SET,CHINA LGE 2520UCDA020 Contact Us For Availability
View on Model
8-A
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758A20058A Contact Us For Availability
View on Model
8-B
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20048W Contact Us For Availability
View on Model
8-C
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20175B Contact Us For Availability
View on Model
8-E
CABINET ASSEMBLY,SLEEVE
CABINET ASSEMBLY,SLEEVE LGE 3091A10028D Contact Us For Availability
View on Model
9-A
LABEL,ENERGY
LABEL,ENERGY LGE 3850A27070E Contact Us For Availability
View on Model
9-B
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20004E Contact Us For Availability
View on Model
10-B
CONNECTOR ASSEMBLY
CONNECTOR ASSEMBLY LGE 6631A30027A Contact Us For Availability
View on Model
10-C
FAN "WC" CHASSIS LW-C1211/1011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
View on Model
10-E
INSULATION,PU
INSULATION,PU LGE 5410A20046Q Contact Us For Availability
View on Model
11-C
CONDENSER ASSEMBLY,BENT
CONDENSER ASSEMBLY,BENT LGE 5403A20183H Contact Us For Availability
View on Model
12-D
TUBE ASSEMBLY,SUCTION SINGLE
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A24022A Contact Us For Availability
View on Model
13-B
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A90028T Contact Us For Availability
View on Model
14-C
Barrier,Single
Barrier,Single LGE 4790A11001A Contact Us For Availability
View on Model
