Model LG 75051 – Common Parts & Diagrams

130910
CABINET ASSEMBLY,SINGLE
CABINET ASSEMBLY,SINGLE LGE 3091A30016C Contact Us For Availability
View on Model
131410
BASE ASSY,SINGLE
BASE ASSY,SINGLE LGE 3041A10011E Contact Us For Availability
View on Model
135301
GRILLE,FRONT
GRILLE,FRONT LGE 3530A10009A Contact Us For Availability
View on Model
135303
GRILLE,INLET
GRILLE,INLET LGE 3530A10010A Contact Us For Availability
View on Model
145200
LINK HOLDER PP JI-350 LW-A0512
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
View on Model
147581
VANE,HORIZONTAL
VANE,HORIZONTAL LGE 5990A20001A Contact Us For Availability
View on Model
147582A
VANE,VERTICAL
VANE,VERTICAL LGE 5990A30005D Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A10008A Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5231AR2148G Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20056B Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20193C Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSEMBLY,MAIN(AC)
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20188M Contact Us For Availability
View on Model
346811
Motor Assembly,AC,Single
Motor Assembly,AC,Single LGE 4681A10002W Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A10007A Contact Us For Availability
View on Model
352113
Tube Assembly,Discharge
Tube Assembly,Discharge LGE AJR72933001 Contact Us For Availability
View on Model
352380A
AIR GUIDE
AIR GUIDE LGE 5238A20003A Contact Us For Availability
View on Model
352380B
AIR GUIDE, UPPER
AIR GUIDE, UPPER LGE 5238A20004B Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE ADL72917201 Contact Us For Availability
View on Model
359012
FAN,TURBO
FAN,TURBO LGE 5900A10005A Contact Us For Availability
View on Model
554030
CONDENSER ASSY,FIRST
CONDENSER ASSY,FIRST LGE 5403A20009F Contact Us For Availability
View on Model

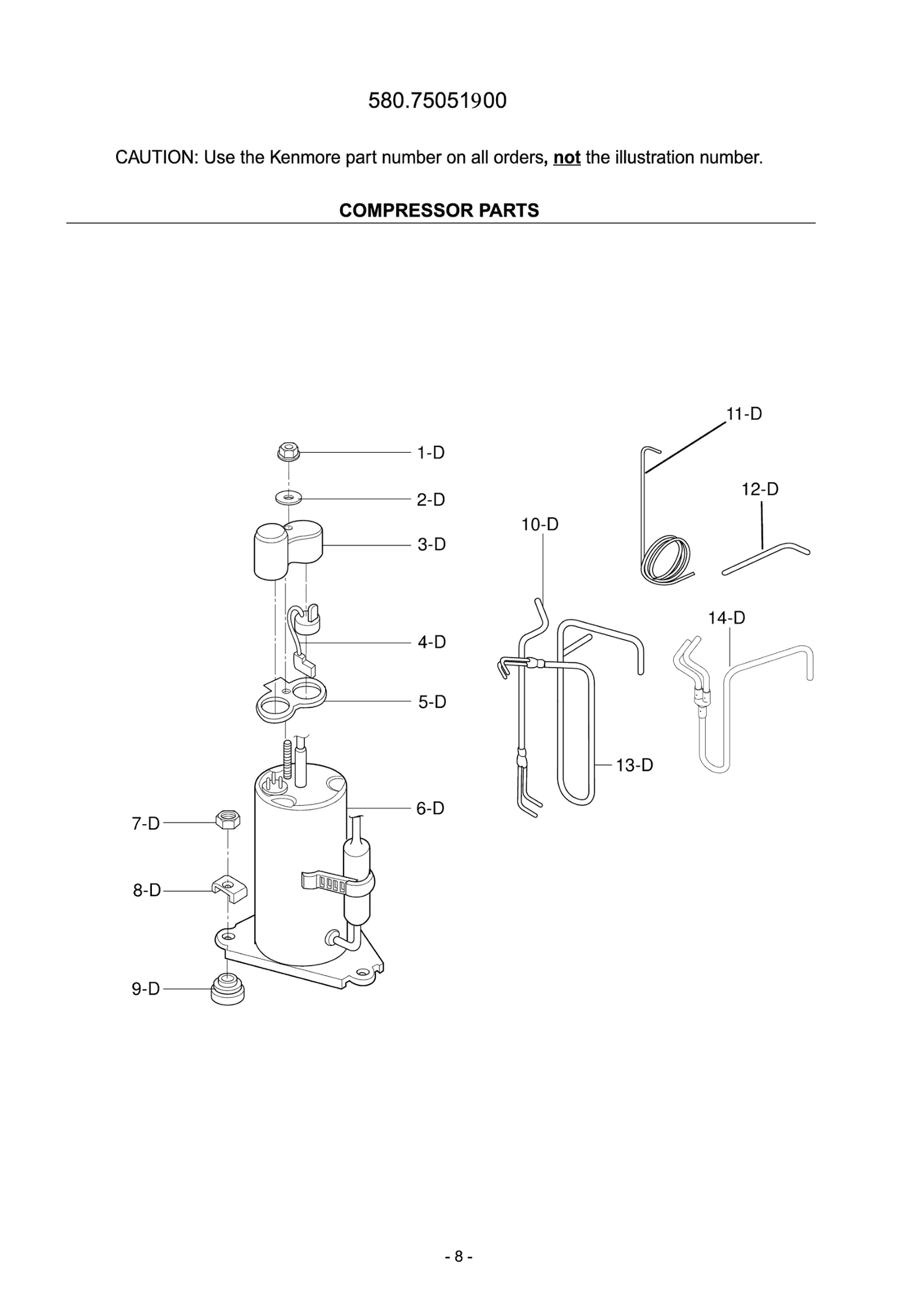

554160
Compressor Set,China
Compressor Set,China LGE TBZ34638201 Contact Us For Availability
View on Model
559010
FAN,PROPELLER
FAN,PROPELLER LGE 5900A20017A Contact Us For Availability
View on Model
567480
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
View on Model
731273
INSTALL PART ASSY,SINGLE
INSTALL PART ASSY,SINGLE LGE 3127A20016B Contact Us For Availability
View on Model
749740
UPPER GUIDE LW-A0510/511CL
UPPER GUIDE LW-A0510/511CL LGE 5210AR3196C Contact Us For Availability
View on Model
W0CZZ
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 0CZZA20001W Contact Us For Availability
View on Model
W6631
CONDUCTOR ASSY
CONDUCTOR ASSY LGE 6631AR3843R Contact Us For Availability
View on Model
