Model Whirlpool 7498XVA GAS RANGE/MICROWAVE COMBO – Common Parts & Diagrams

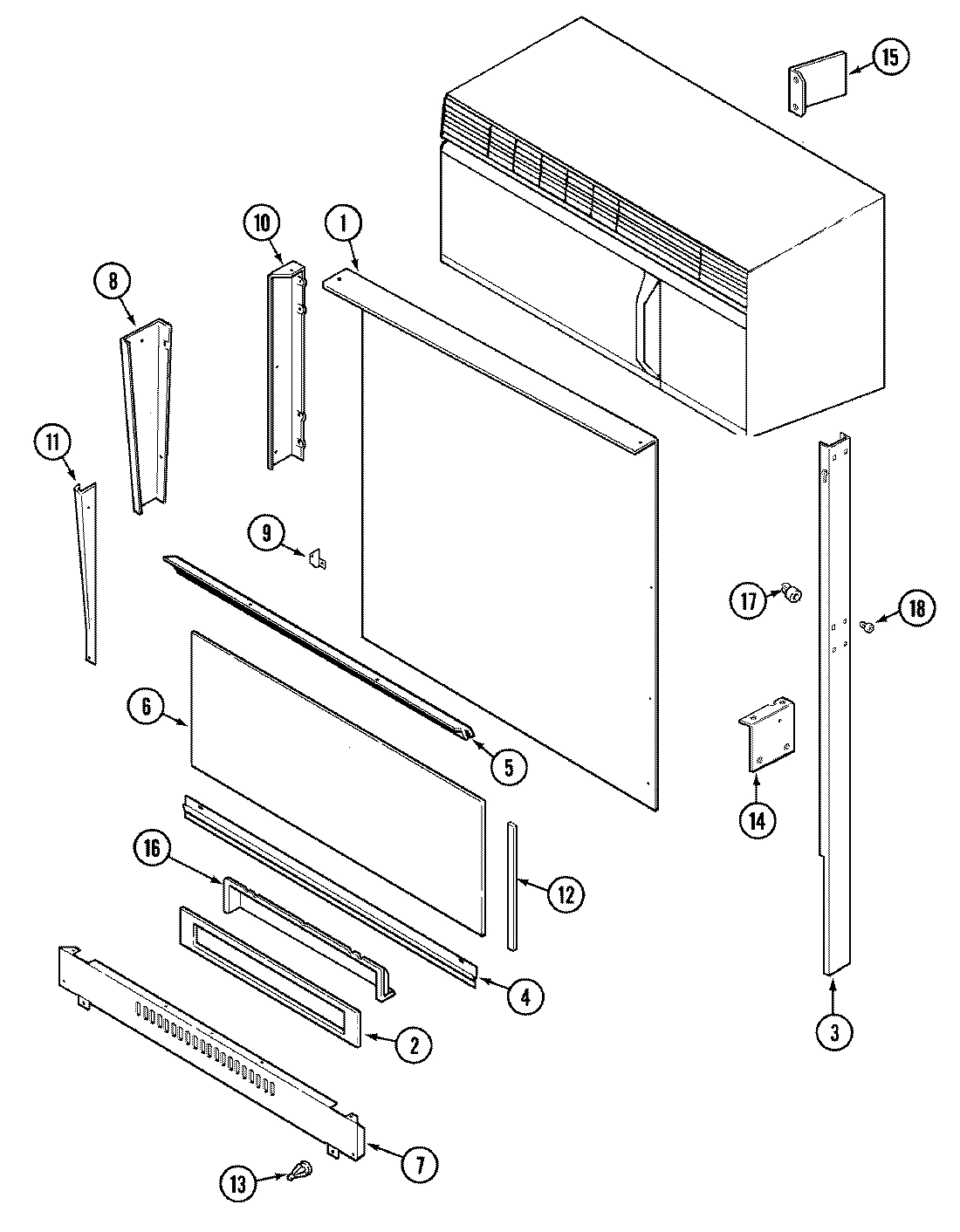

02 - BODY (UPR)

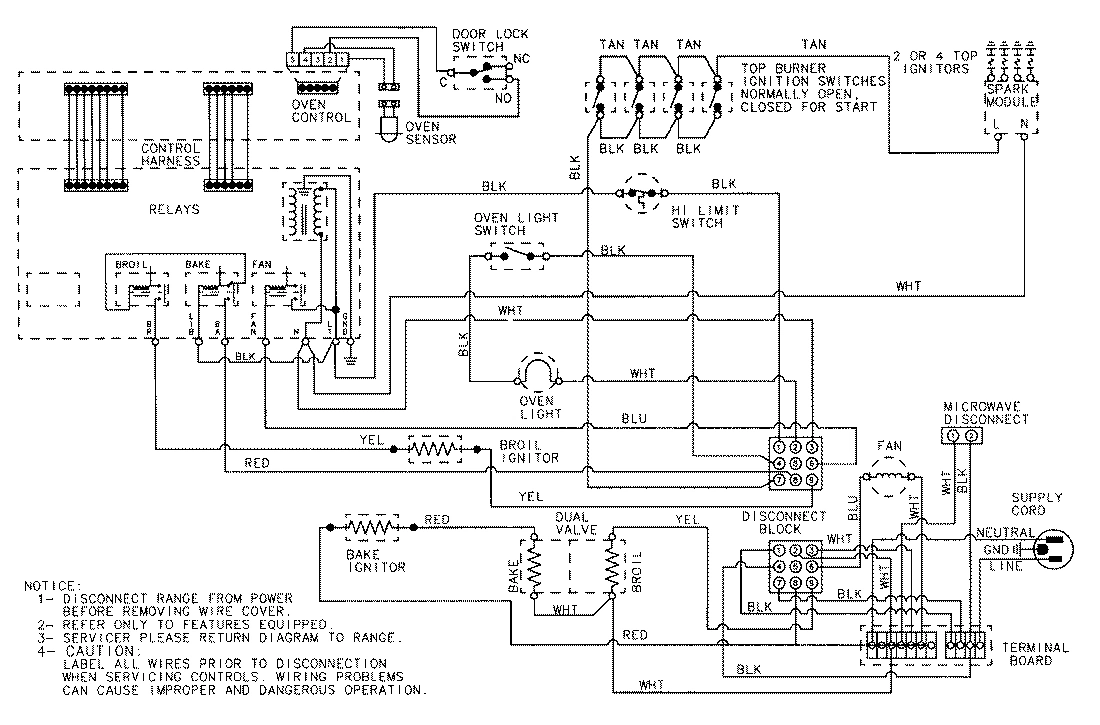

09 - WIRING INFORMATION

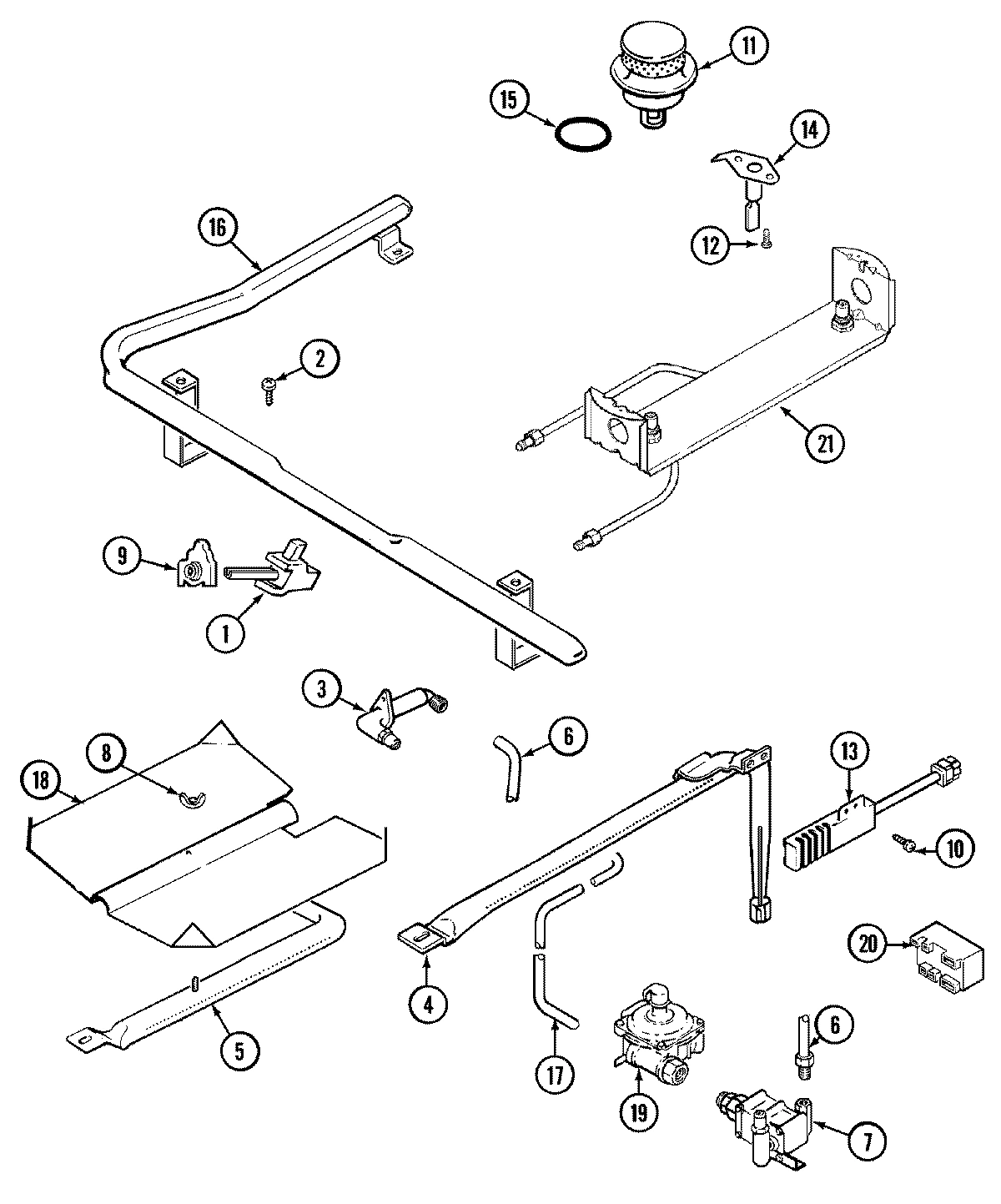

05 - GAS CONTROLS
06 - MICROWAVE

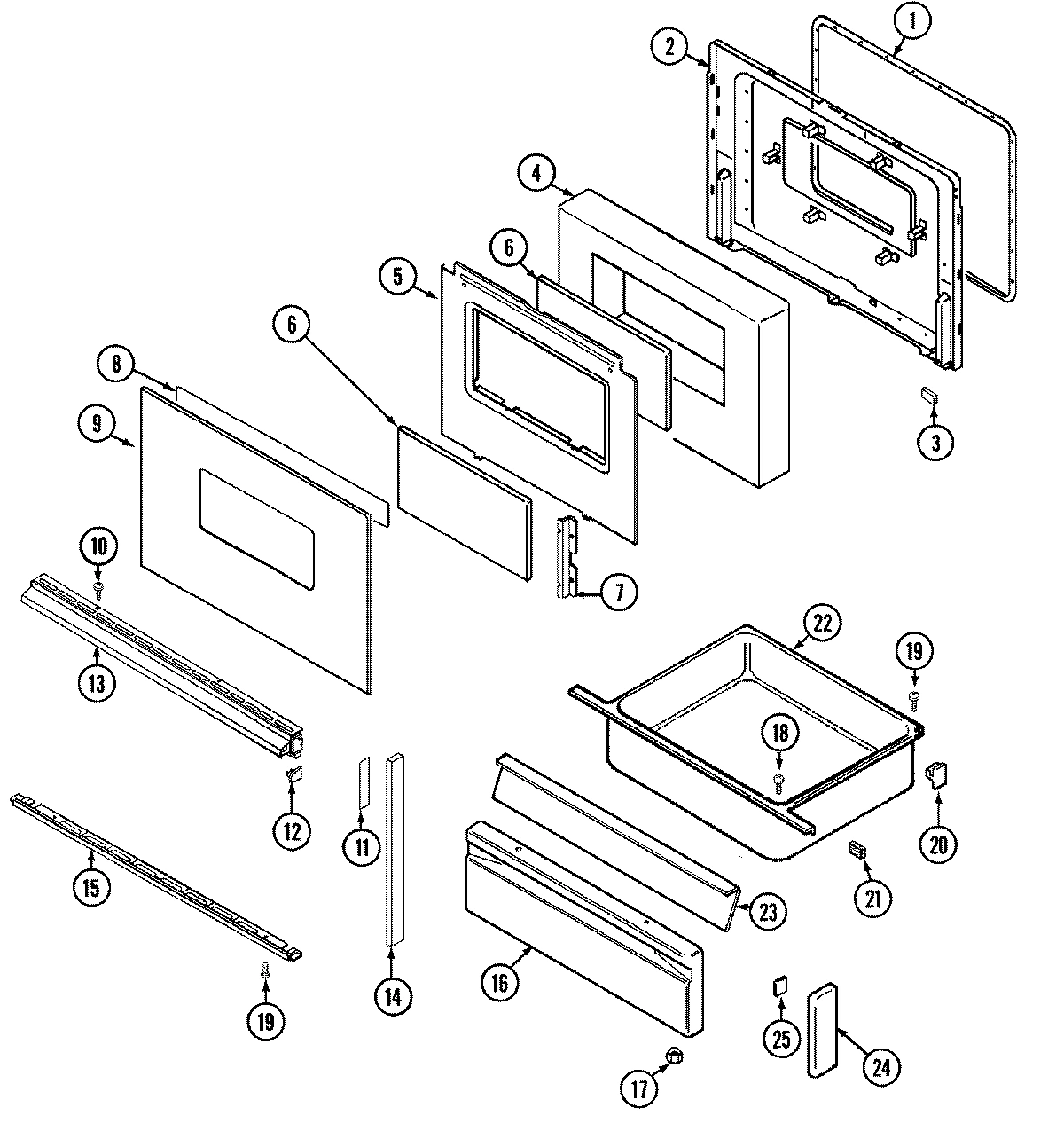

04 - DOOR/DRAWER (SER. PRE. 11)

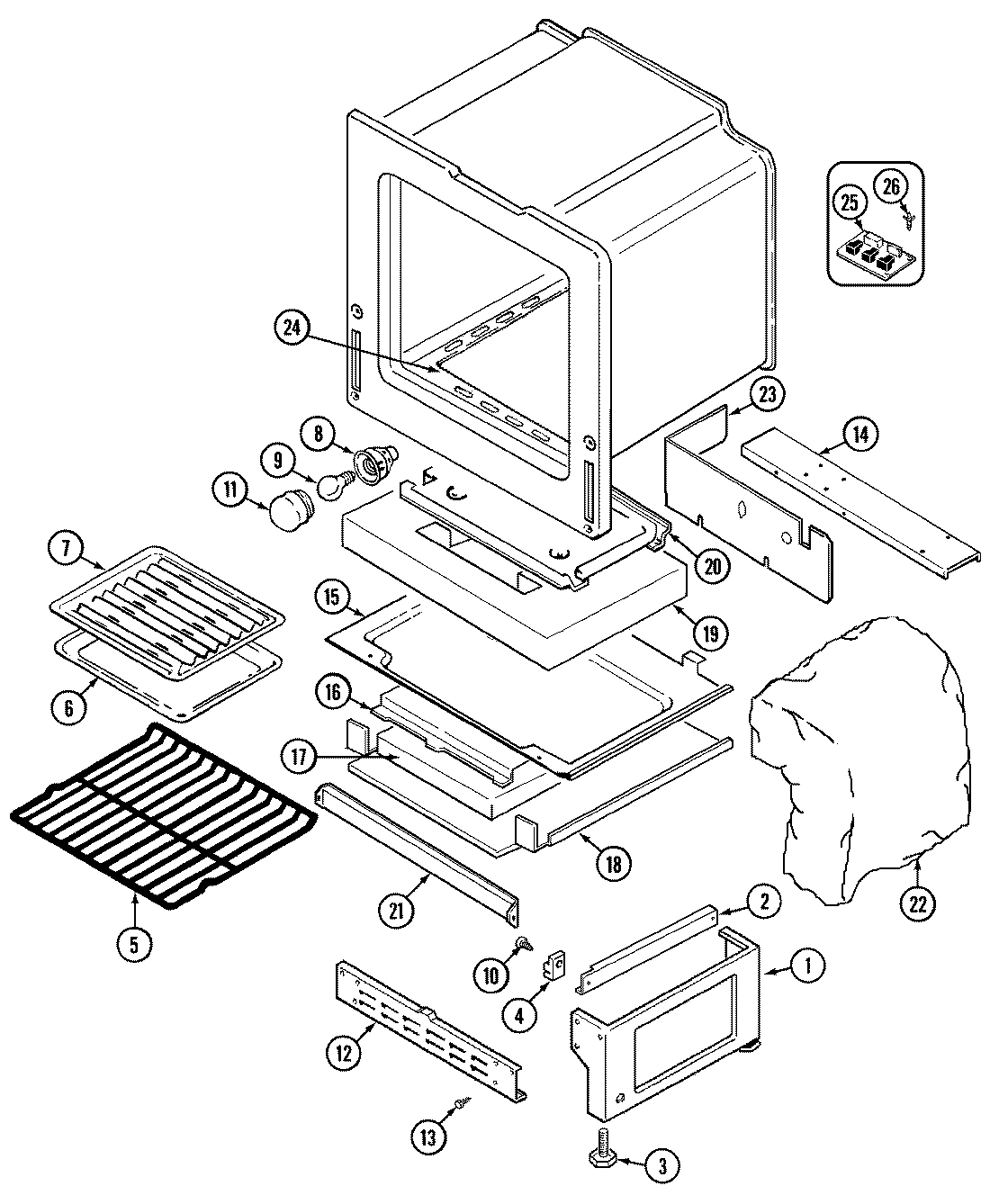

07 - OVEN

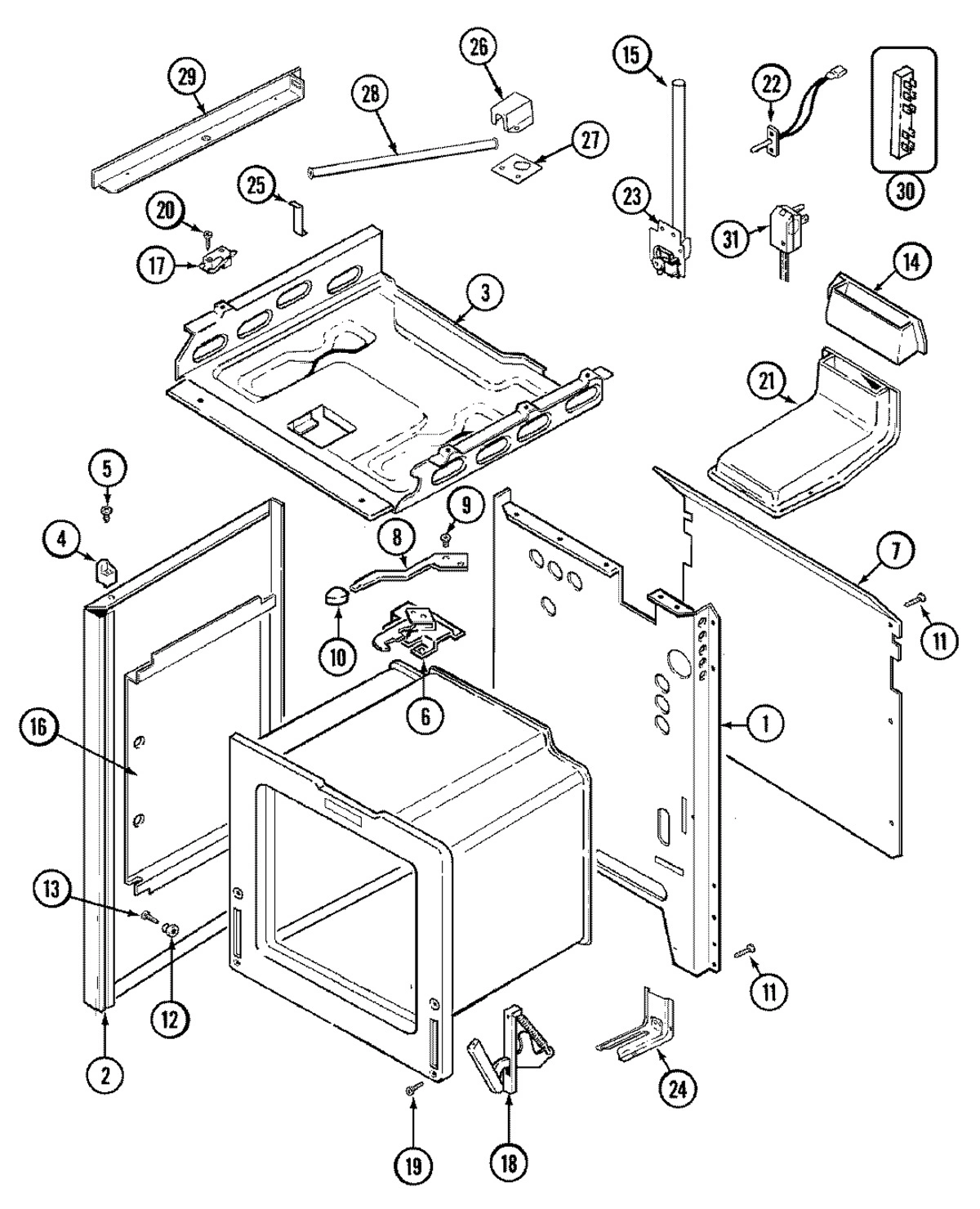

01 - BODY

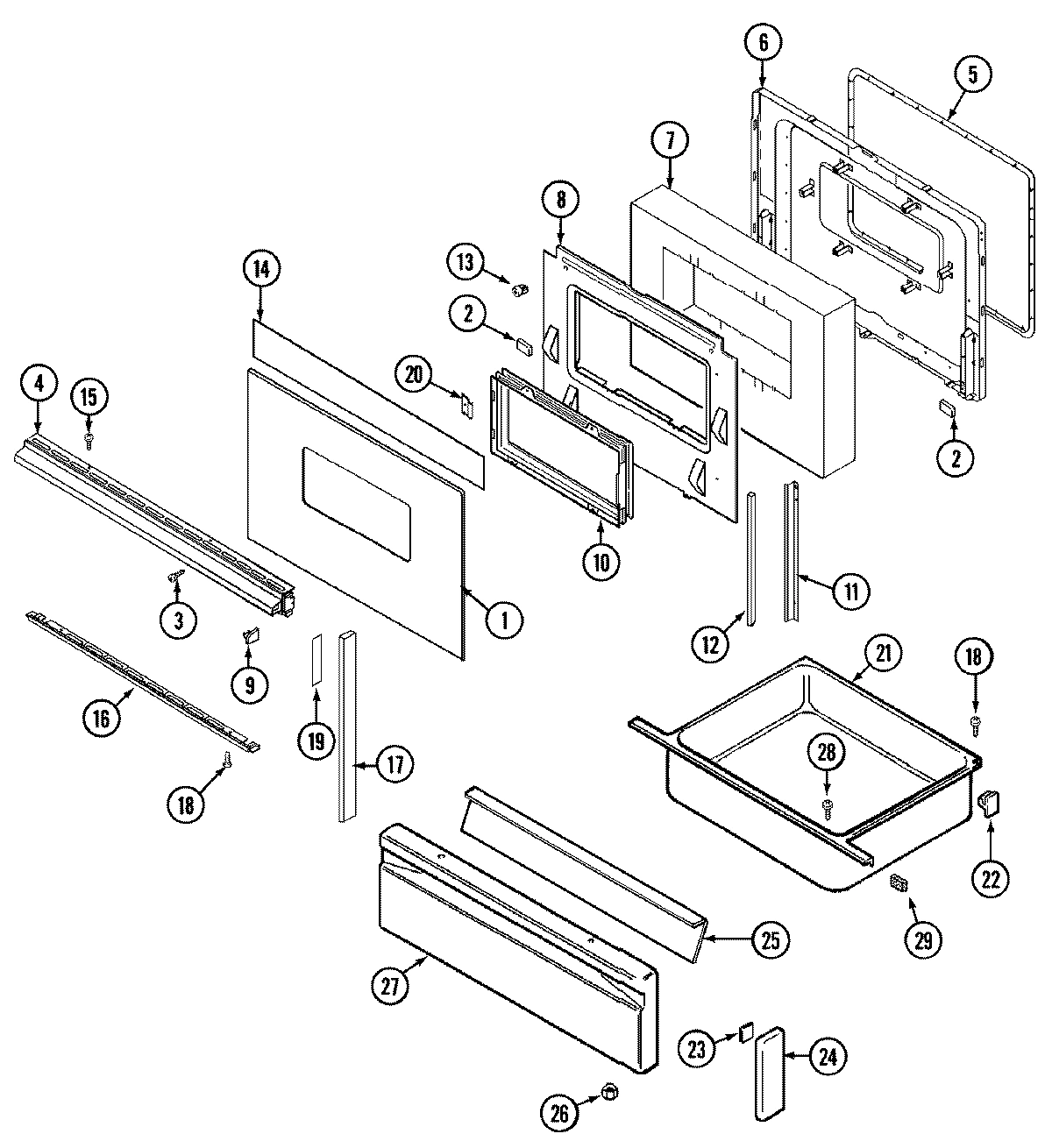

03 - DOOR/DRAWER

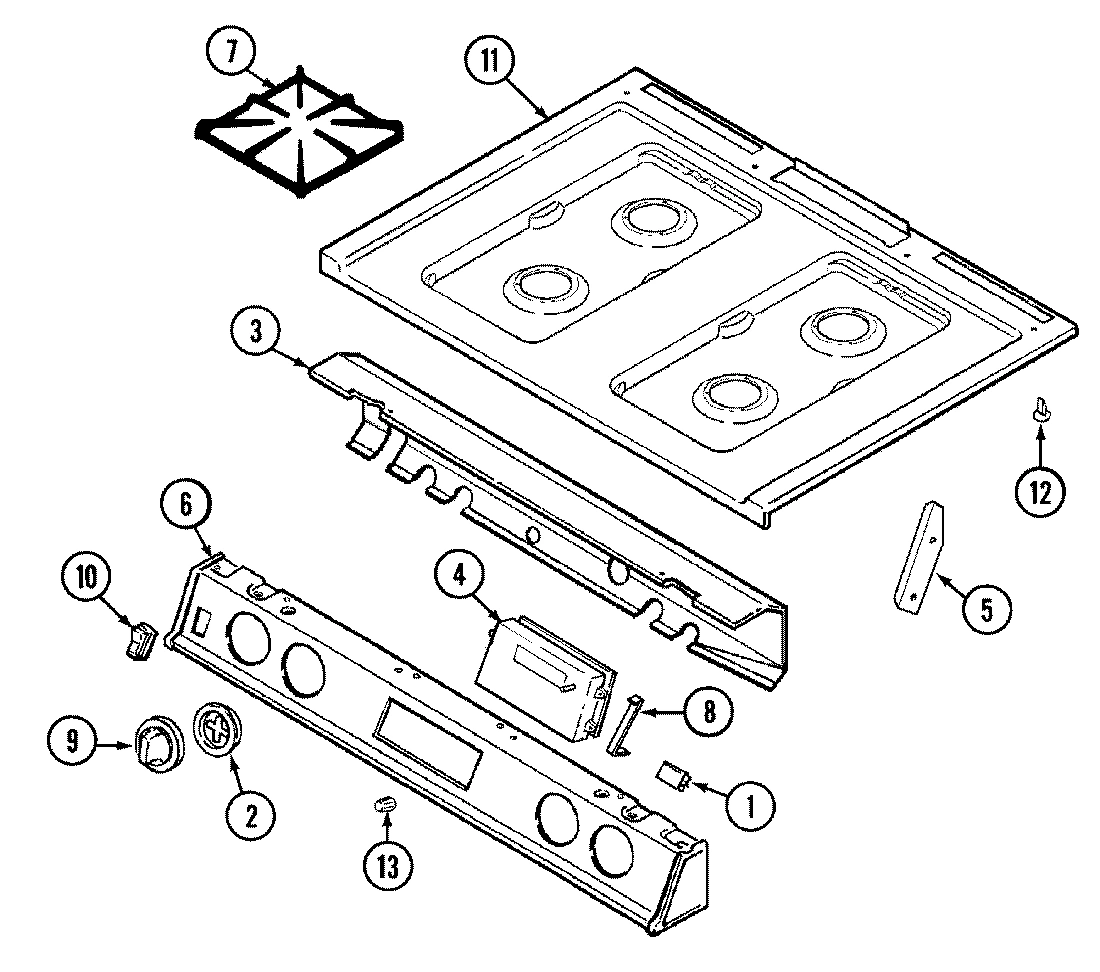

08 - TOP ASSEMBLY
Common parts from model Whirlpool 7498XVA GAS RANGE/MICROWAVE COMBO
1
COVER, BACK WPL 4002F18380 Contact Us For Availability
1
SCREW WPL 7101P35660 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
PEDESTAL, SIDES WPL 4020W01580 Contact Us For Availability
1
BACK, MAIN WPL 74002364 Contact Us For Availability
1
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
2
GASKET, FLUE BOX WPL 7201P02660 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE FOR MICROWAVE P WPL W10124350 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
PANEL, SIDE (LT-ALM) WPL 2618F11174 Contact Us For Availability
2
PANEL, SIDE (RT-ALM) WPL 2618F11274 Contact Us For Availability
2
BEZEL, KNOB (BLK) WPL 7740P05860 Contact Us For Availability
3
CHANNEL, OVEN SUPPORT WPL 3818F05751 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
LEG, LEVELING WPL 74001311 Contact Us For Availability
3
BOX, BURNER WPL 74001821 Contact Us For Availability
3
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
COVER, MANIFOLD (REAR) WPL 74001542 Contact Us For Availability
4
EXTRUSION, GLASS BTM WPL 7756P08960 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
4
CLOCK (BLK) WPL 7601P27660 Contact Us For Availability
5
TRIM, RETAINER (TOP) WPL 74002286 Contact Us For Availability
5
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
RACK, OVEN WPL 7801P04760 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
6
GLASS, BACKSPLASH WPL 7902P38260 Contact Us For Availability
6
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
6
PANEL, MANIFOLD (BLK) WPL 74001535 Contact Us For Availability
7
PANEL, LOWER (ALM) WPL 2620F05784 Contact Us For Availability
7
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
COVER, MAIN WIRE WPL 4005F42551 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
8
PANEL, SIDE UPPER (LT) WPL 2618F09232 Contact Us For Availability
8
PANEL, SIDE UPPER (RT) WPL 2618F09332 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
WASHER WPL 7109P01560 Contact Us For Availability
8
LEVER, LATCH ASSY. WPL 8009P02360 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
BRACKET, CLOCK WPL 3801F34951 Contact Us For Availability
9
BRACKET, SIDE PANEL (LT) WPL 3804F04345 Contact Us For Availability
9
BRACKET, SIDE PANEL (RT) WPL 3804F04445 Contact Us For Availability
9
SCREW WPL 7118P01760 Contact Us For Availability
9
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
KNOB, VALVE (BLK) WPL 7733P08460 Contact Us For Availability
10
PANEL, SIDE UPPER TOP (LT) WPL 2618F04332 Contact Us For Availability
10
PANEL, SIDE UPPER TOP (RT) WPL 2618F04432 Contact Us For Availability
10
SCREW WPL 7101P32860 Contact Us For Availability
10
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
11
TRIM, SIDE PANEL (LT) WPL 7720P16660 Contact Us For Availability
11
TRIM, SIDE PANEL (RT) WPL 7720P16760 Contact Us For Availability
11
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
11
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
11
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
TOP, MAIN (ALM) WPL 2001F11784 Contact Us For Availability
12
SCREW WPL 7101P07560 Contact Us For Availability
12
TRIM, GLASS RETAINER WPL 7720P08360 Contact Us For Availability
12
SCREW WPL 7101P31560 Contact Us For Availability
12
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
GLIDE, MAIN TOP WPL 8016P01460 Contact Us For Availability
13
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
13
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
13
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
13
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
13
SCREW WPL 7101P33460 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
14
BRACKET, REINFORCEMENT WPL 3801F30151 Contact Us For Availability
14
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
SUPPORT, VALVE & REGULATOR WPL 3807F47651 Contact Us For Availability
14
EXTENSION, VENT BOX WPL 4022W00445 Contact Us For Availability
14
HARNESS, SENSOR & LOCK WPL 5170P22860 Contact Us For Availability
14
HARNESS, BURNER BOX WPL 5195D10560 Contact Us For Availability
14
HARNESS, CONTROL/RELAY WPL 74001575 Contact Us For Availability
15
SHIELD, WIRE (MW) WPL 74002314 Contact Us For Availability
15
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
15
TUBE, AIR DUCT WPL 8026P02160 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8113P06560 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8113P06660 Contact Us For Availability
16
BOX, FLUE WPL 4006F09619 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
16
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
16
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
16
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
16
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
16
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
17
SPACER, UPPER SIDE WPL 7105P00360 Contact Us For Availability
17
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
17
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
17
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
18
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
18
SCREW WPL 7101P07260 Contact Us For Availability
18
SCREW WPL 7101P29060 Contact Us For Availability
18
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
18
HINGE WPL 7106P05660 Contact Us For Availability
19
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
19
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
19
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
19
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
20
MODULE, SPARK WPL 7431P02660 Contact Us For Availability
20
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
20
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
20
SCREW WPL 7101P03160 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
21
ORIFICE FITTING ASSY WPL 5187D02560 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
21
BOX, VENT WPL 4006W11345 Contact Us For Availability
22
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
22
INSULATION, BACK WPL 74001159 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
22
SCREW WPL 7101P29160 Contact Us For Availability
23
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
23
COVER, VALVE WPL 4005F42951 Contact Us For Availability
23
FAN ASSY. WPL 7427P01360 Contact Us For Availability
24
BAFFLE, OVEN BOTTOM WPL 3601F23445 Contact Us For Availability
24
RETAINER WPL 3804F01050 Contact Us For Availability
24
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
24
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
24
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
25
BOARD, RELAY WPL 7428P02060 Contact Us For Availability
26
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
26
SUPPORT, RELAY BOARD WPL 3807F43951 Contact Us For Availability
26
SUPPORT, RELAY BOARD WPL 8004P02260 Contact Us For Availability
26
BOX, AIR TUBE WPL 4006F14851 Contact Us For Availability
27
HARNESS, PEDESTAL WPL 74001657 Contact Us For Availability
27
BOTTOM, AIR TUBE BOX WPL 4011F24251 Contact Us For Availability
27
NUT, LOCK WPL 7103P08560 Contact Us For Availability
28
TUBE, AIR WPL 7506P12460 Contact Us For Availability
28
PANEL, DRAWER (ALM) WPL 2416F03864 Contact Us For Availability
29
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
29
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
29
SCREW WPL 7101P11560 Contact Us For Availability
30
CAP, DISCONNECT 2 CIRCUIT WPL 74002109 Contact Us For Availability
30
BLOCK, DISCONNECT (MALE) WPL 74002230 Contact Us For Availability
30
BLOCK, DISCONNECT WPL 74002303 Contact Us For Availability
30
BLOCK, DISCONNECT WPL 74002304 Contact Us For Availability
30
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
31
CORD, POWER WPL 7402P04660 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001412 Contact Us For Availability
× ![]()
Login and Registration Form
