Model Whirlpool 7458XTW GAS WALL OVEN – Common Parts & Diagrams

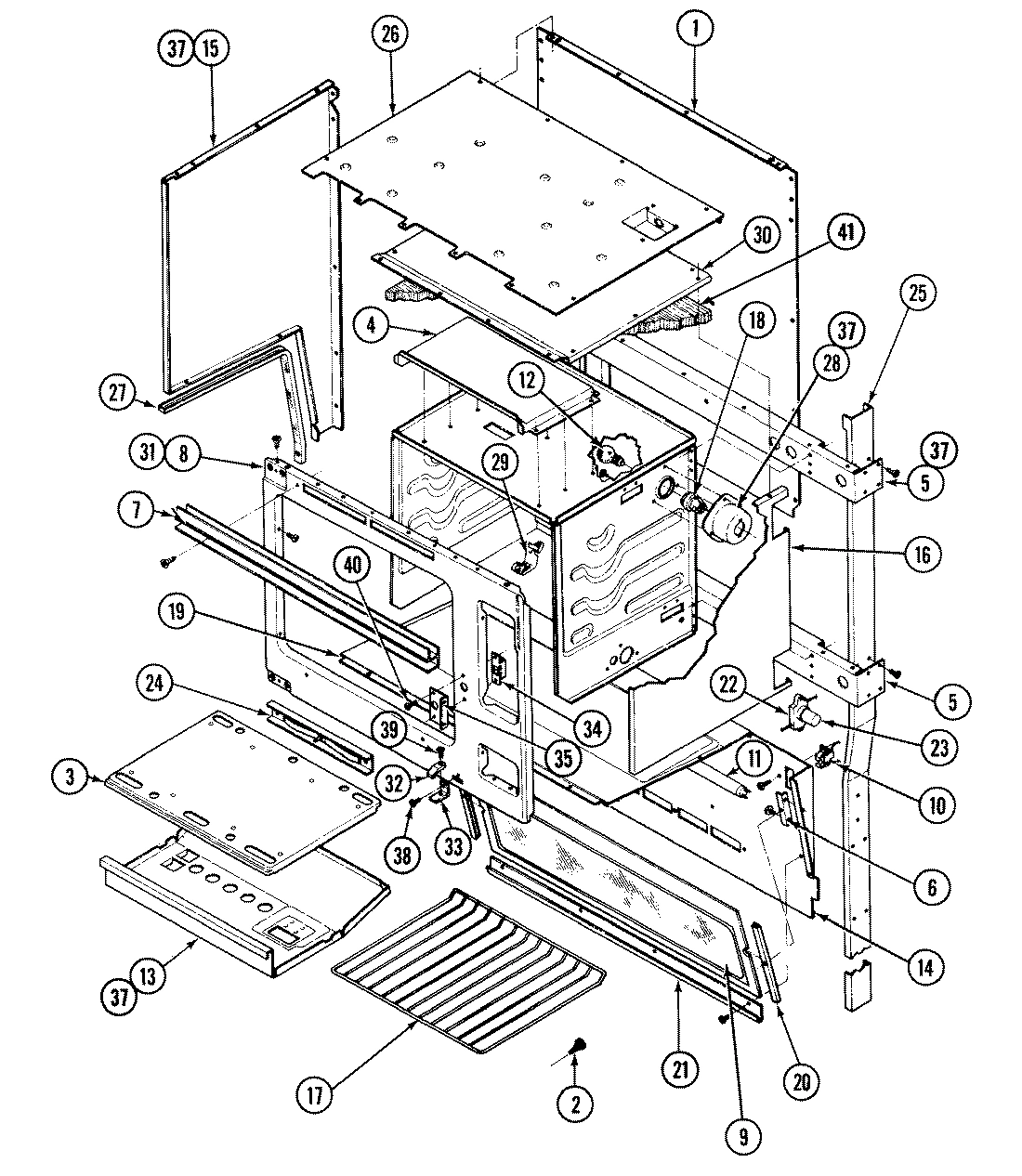

02 - BODY-UPPER

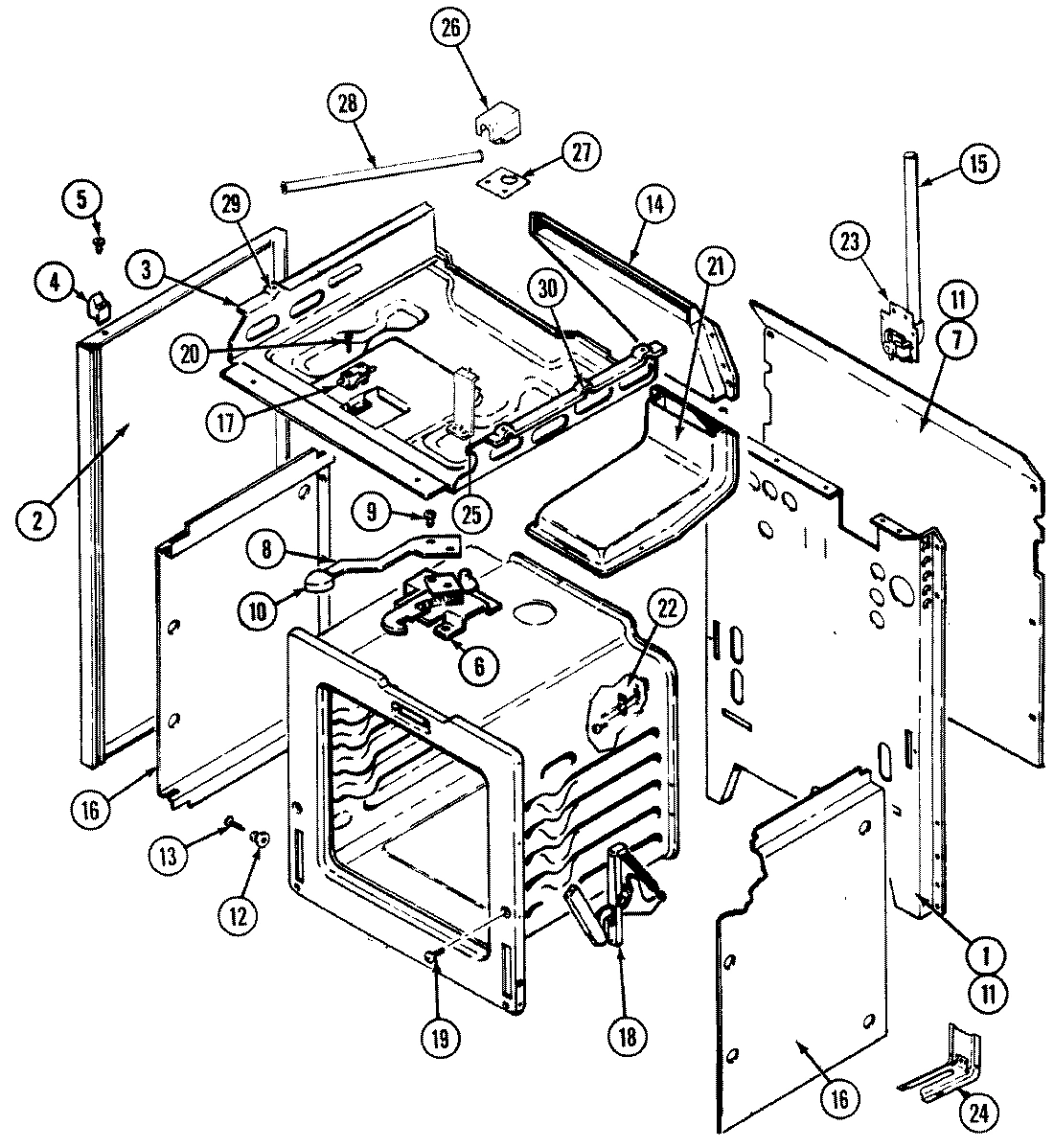

01 - BODY

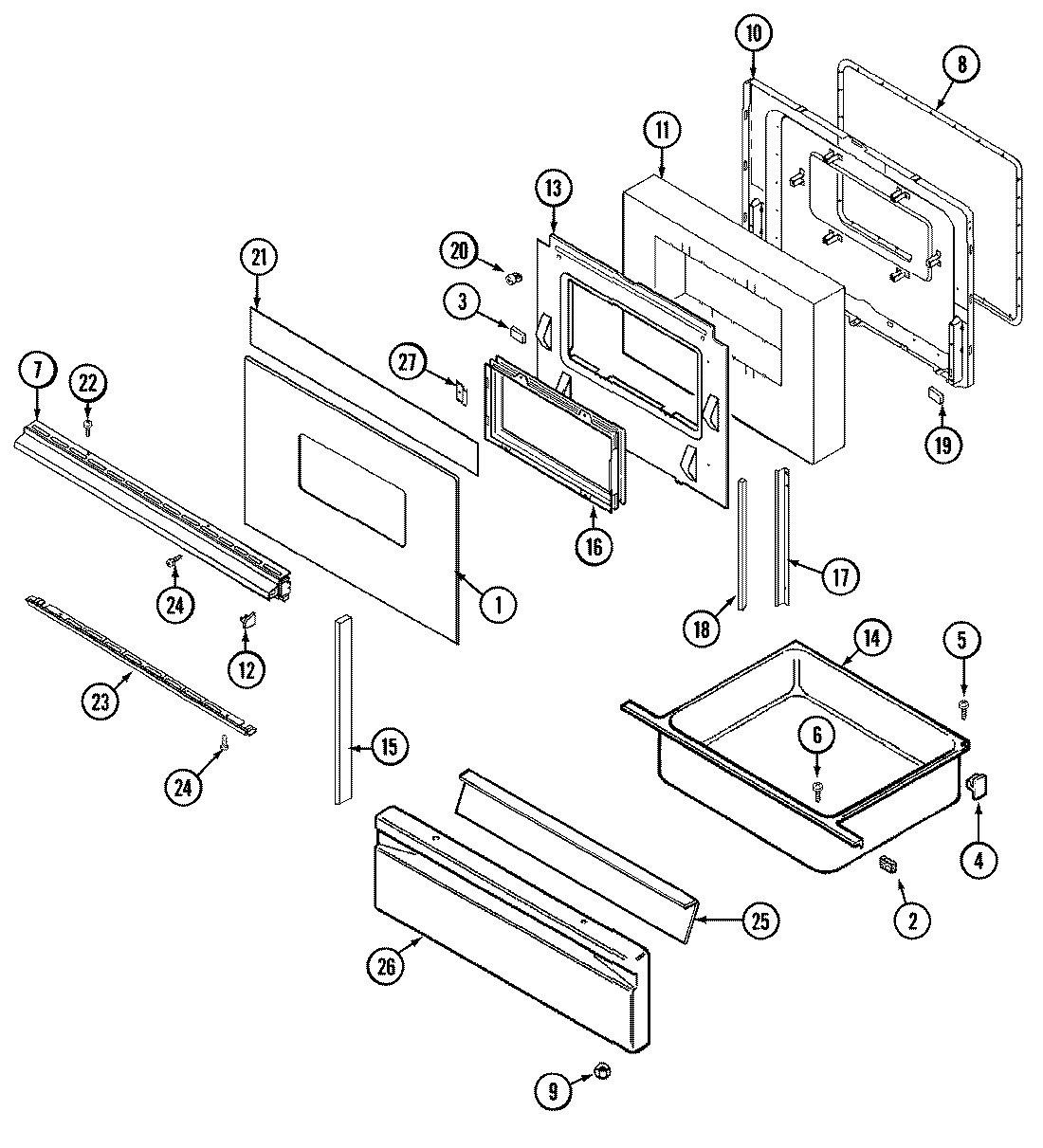

05 - DOOR/DRAWER

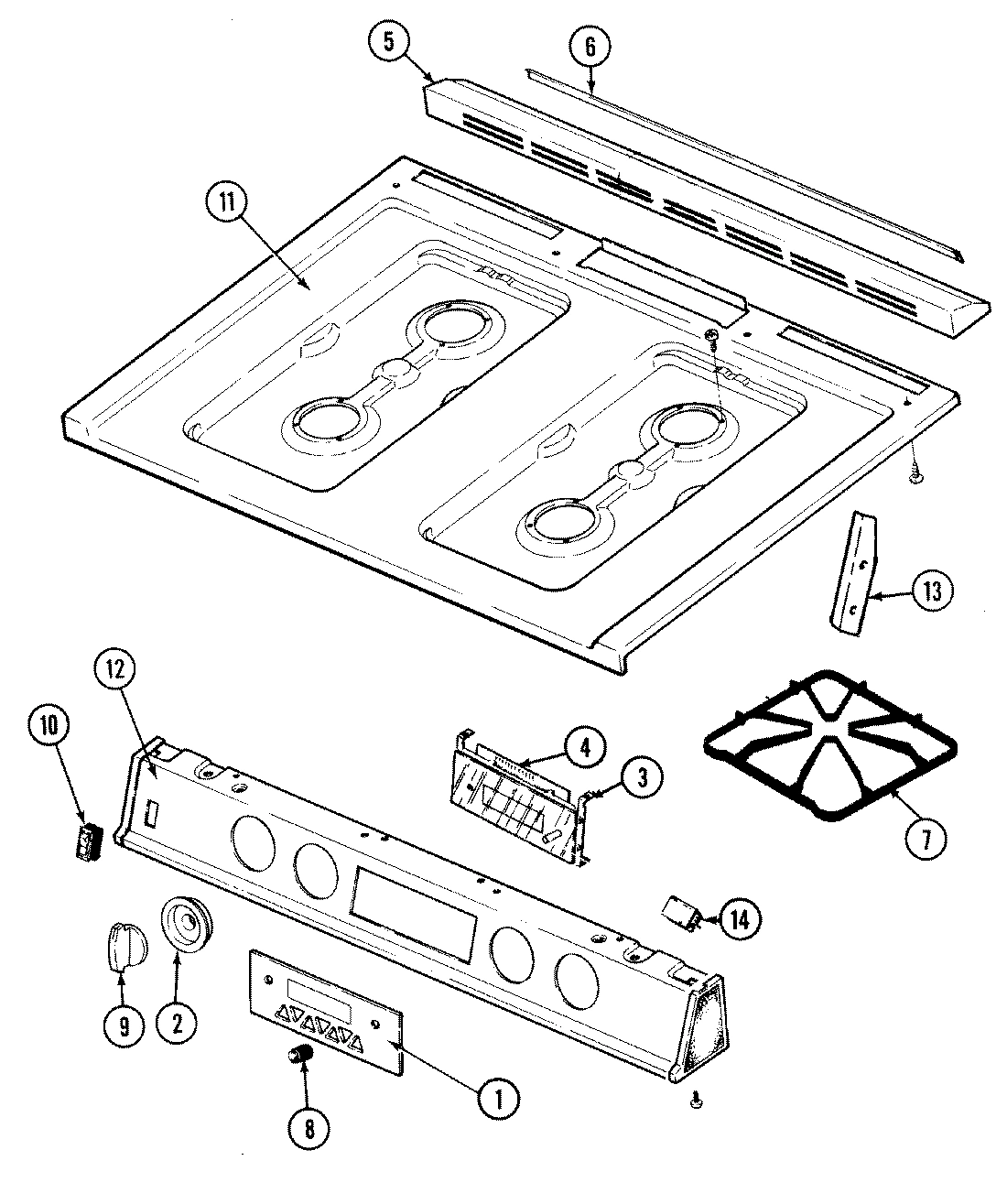

08 - TOP ASSEMBLY

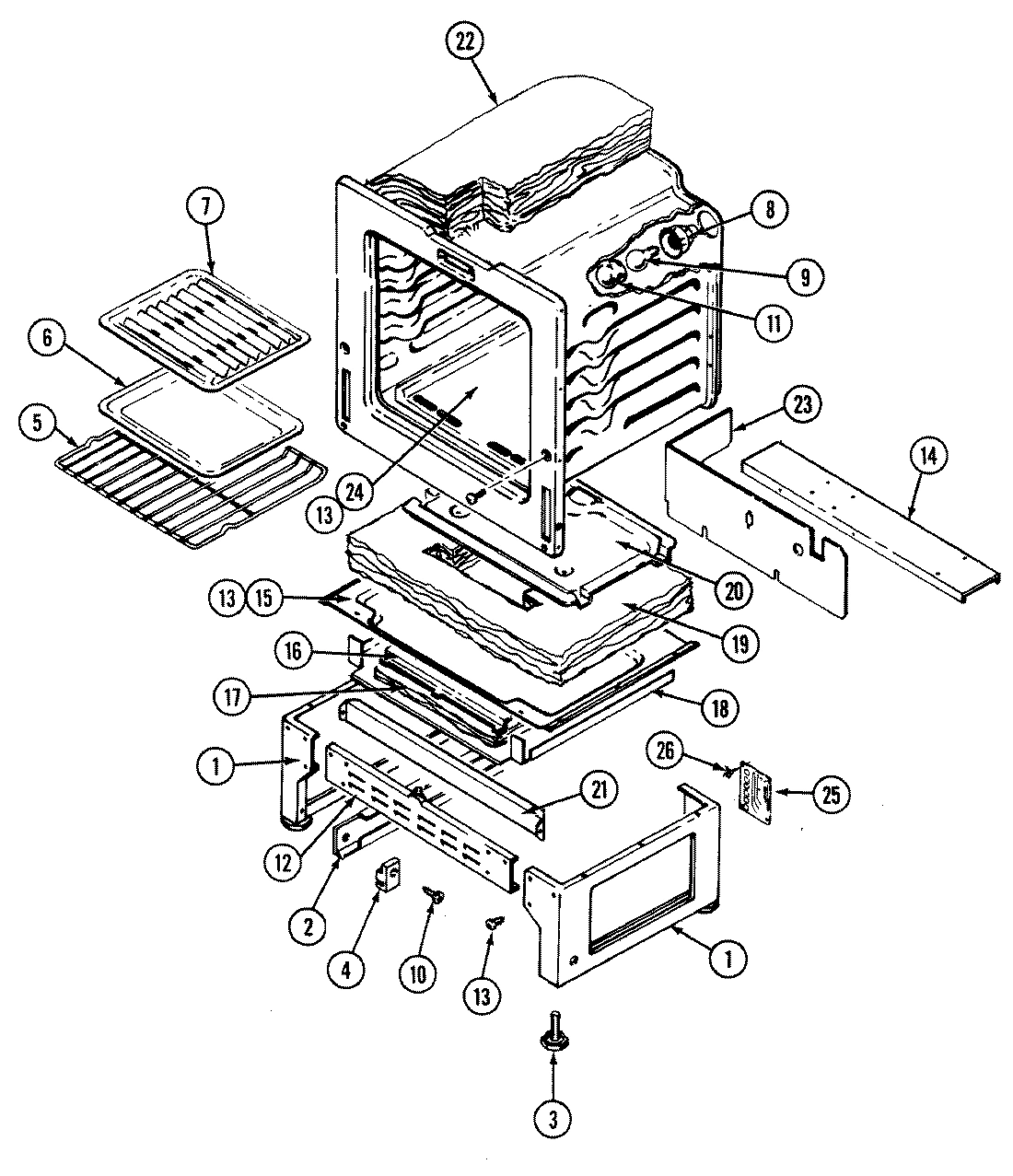

07 - OVEN

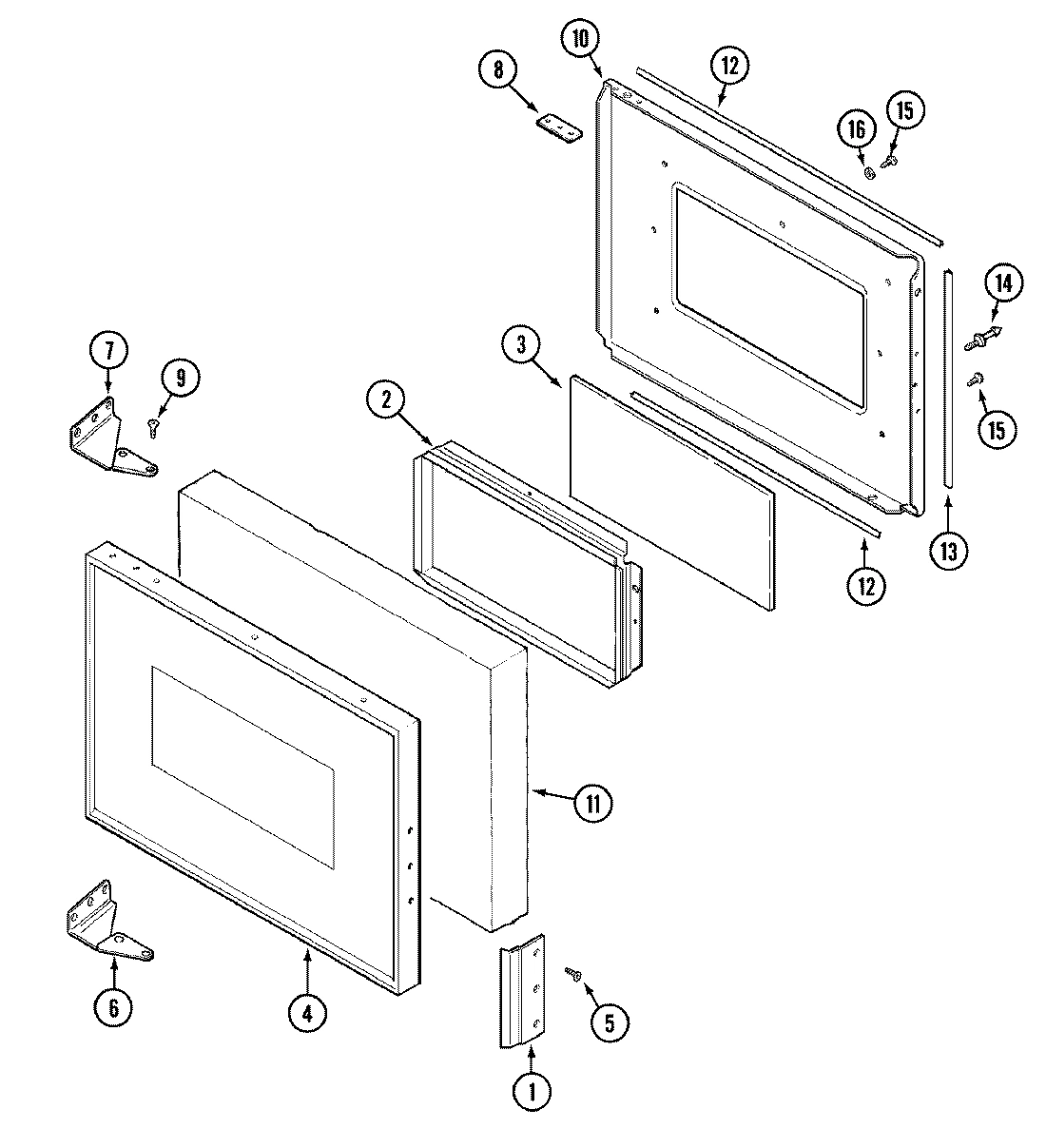

04 - DOOR (UPPER)

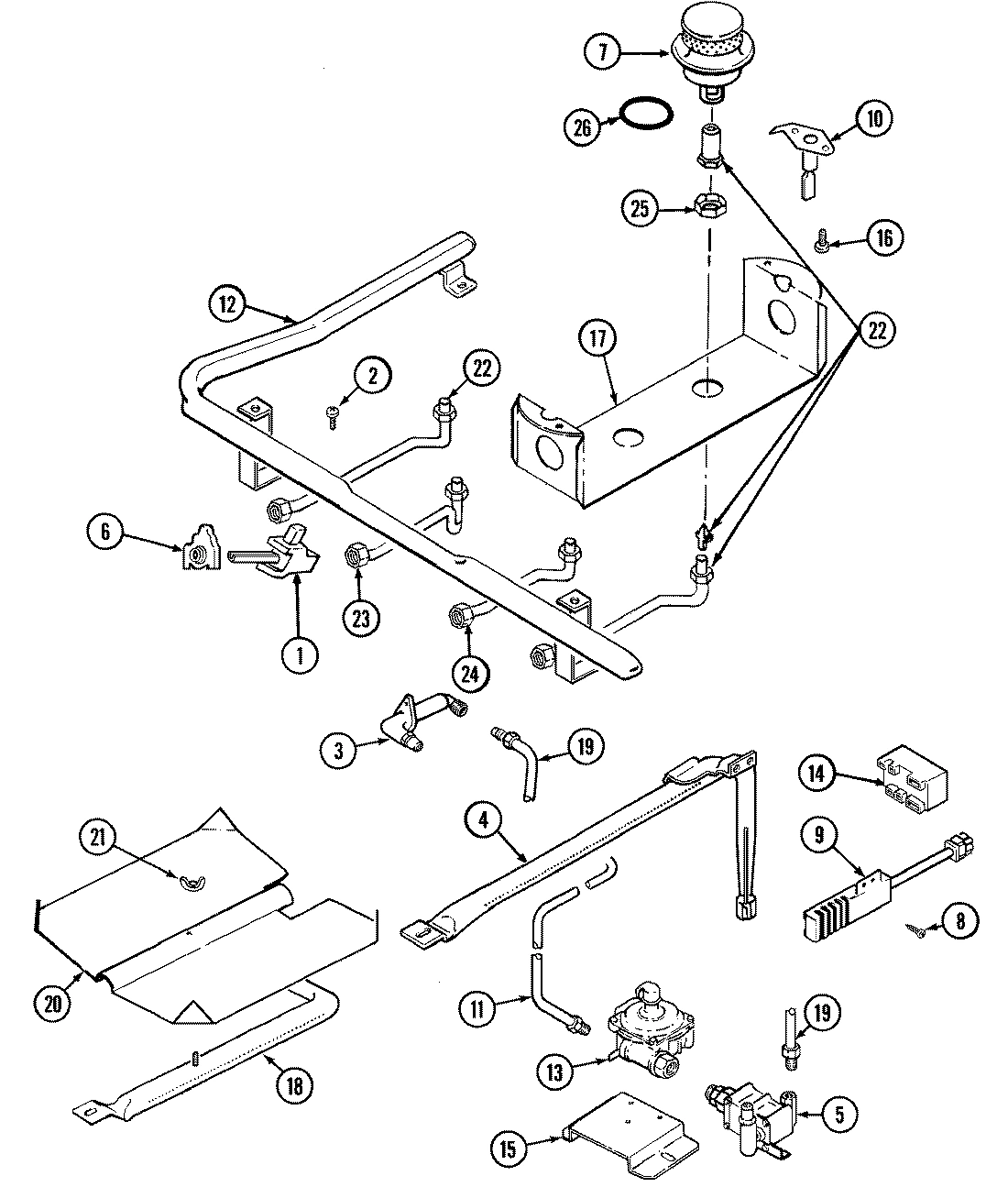

06 - GAS CONTROLS

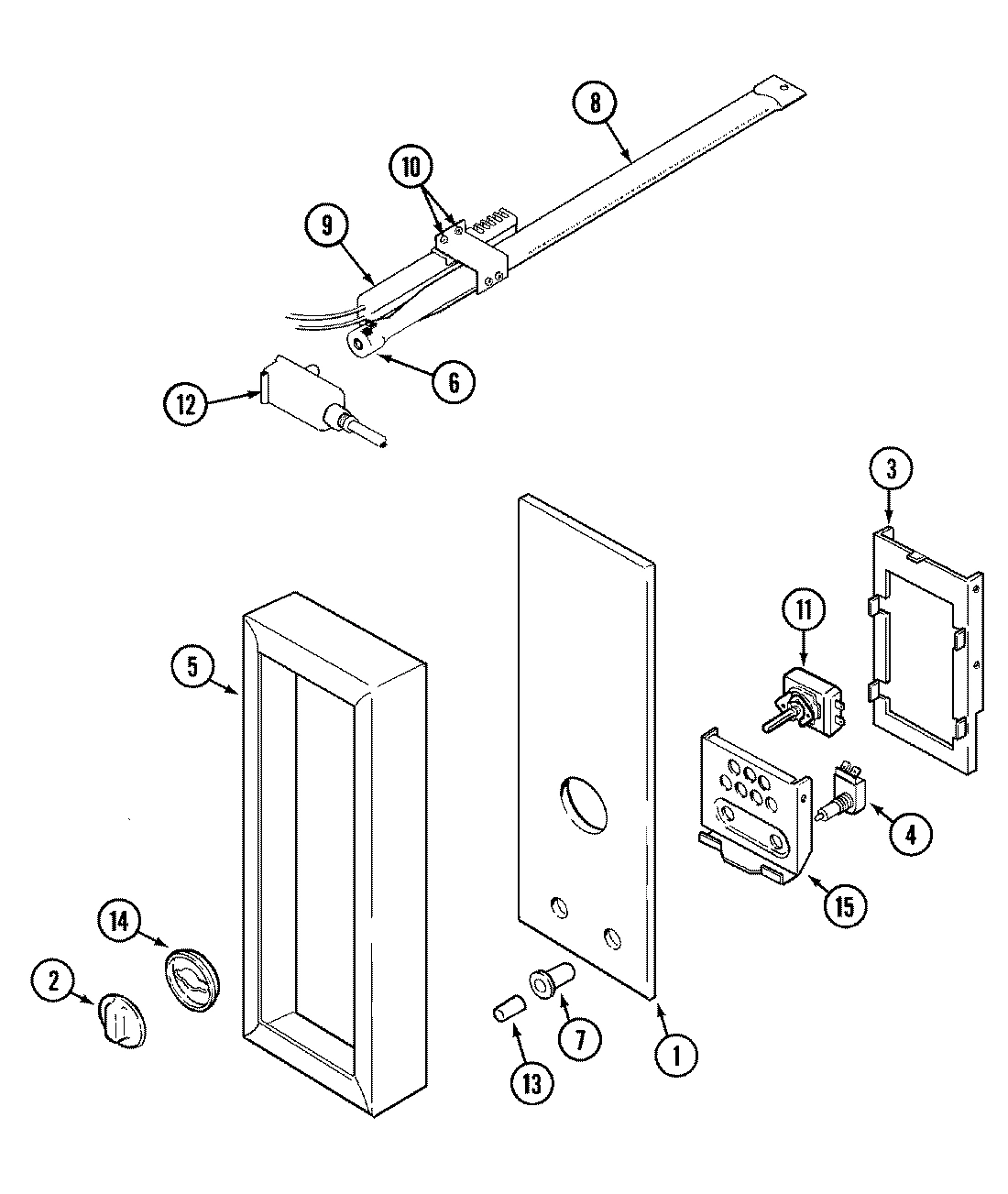

03 - CONTROLS-UPPER
Common parts from model Whirlpool 7458XTW GAS WALL OVEN
1
BACK, MAIN WPL 4002F18716 Contact Us For Availability
1
BACK, MAIN WPL 4002F18880 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
SWITCH, MEMBRANE (BLK) WPL 7403P33160 Contact Us For Availability
1
PEDESTAL (SIDES) WPL 4020W01180 Contact Us For Availability
1
HANDLE, DOOR WPL 7701P01060 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
GLASS, CONTROL PANEL WPL 7902P37960 Contact Us For Availability
2
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F10071 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F10171 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
BEZEL, KNOB (BLK) WPL 7740P05860 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
FRAME ASSY. WPL 3603W01580 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
3
BOTTOM, OVEN WPL 5720M00117 Contact Us For Availability
3
SCREW WPL 7101P07660 Contact Us For Availability
3
BOX, BURNER WPL 4001F20480 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
BRACKET, CLOCK WPL 3801F22245 Contact Us For Availability
3
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
3
GLASS, DOOR INNER WPL 7902P03760 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
PLATE, CONTROL WPL 3605F18780 Contact Us For Availability
4
BOX, FLUE ASSY WPL 4006W02019 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
CLOCK, ELECTRONIC WPL 7601P20660 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
4
DOOR ASSEMBLY (BLACK) WPL 5711S08260 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
SWITCH, LIGHT WPL 7403P01960 Contact Us For Availability
5
BRACE, UPPER OVEN WPL 3802F09080 Contact Us For Availability
5
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
COVER, VENT TRIM WPL 7724P05160 Contact Us For Availability
5
RACK WPL 7801P04060 Contact Us For Availability
5
SCREW WPL 7101P04560 Contact Us For Availability
5
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
5
VALVE, SHUTOFF WPL 7502P24760 Contact Us For Availability
5
FITTING WPL 7507P12260 Contact Us For Availability
5
SUPPORT WPL 3807F03934 Contact Us For Availability
5
SUPPORT WPL 3807F13334 Contact Us For Availability
5
TRIM, CONTROL PANEL WPL 7720P16560 Contact Us For Availability
6
BRACKET, GLASS SUPPORT WPL 3801F00934 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
GASKET, VENT WPL 7201P04060 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
HINGE WPL 7106P00460 Contact Us For Availability
6
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
6
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
7
EXTRUSION, TRIM WPL 7706P00660 Contact Us For Availability
7
EXTRUSION, VENT WPL 7706P03560 Contact Us For Availability
7
COVER, MAIN WIRE WPL 4005F42551 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
7
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
HINGE WPL 7106P00960 Contact Us For Availability
7
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
7
SLEEVE, SWITCH WPL 7214P00160 Contact Us For Availability
8
FRAME, OVEN FRONT WPL 2201F06419 Contact Us For Availability
8
SCREW WPL 7101P06160 Contact Us For Availability
8
LEVER LOCK WPL 8009P01560 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
8
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
8
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
PLATE, CONTROL WPL 8010P01360 Contact Us For Availability
8
SUPPORT WPL 3807F06134 Contact Us For Availability
8
BURNER, BAKE WPL 7505P02860 Contact Us For Availability
9
GLASS, BACKSPLASH WPL 7902P38160 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
SLEEVE, WIRE PROTECTOR WPL 7214P04160 Contact Us For Availability
9
KNOB, VALVE (BLK) WPL 7733P08460 Contact Us For Availability
9
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
BOLT WPL 7101P10560 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
BLOCK WPL 7401P01860 Contact Us For Availability
10
BRACKET, LAMP HOLDER WPL 3801F05734 Contact Us For Availability
10
RECEPTACLE, LAMP WPL 7408P00660 Contact Us For Availability
10
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
10
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
10
LINING, OVEN DOOR WPL 74001761 Contact Us For Availability
10
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
11
BULB, FLUORESCENT LI WPL 7407P03760 Contact Us For Availability
11
BALLAST WPL 7412P00760 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
11
TOP, MAIN (WHITE) WPL 2001F11581 Contact Us For Availability
11
TOP, MAIN (WHT) WPL 2001F11781 Contact Us For Availability
11
GLIDE, MAIN TOP WPL 8016P01460 Contact Us For Availability
11
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P01460 Contact Us For Availability
11
TUBING, REGULATOR & PIPE WPL 3414F11044 Contact Us For Availability
11
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
11
THERMOSTAT WPL 7404P08860 Contact Us For Availability
12
BULB, OVEN WPL 7407P09560 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
12
NUT, SPEED WPL 7103P12060 Contact Us For Availability
12
PANEL, MAINFOLD WPL 7712P15060 Contact Us For Availability
12
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
12
SEAL WPL 7212P00560 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P15560 Contact Us For Availability
12
VALVE, OVEN WPL 7501P01160 Contact Us For Availability
13
SCREW WPL 7101P29060 Contact Us For Availability
13
LINING, MISC. WPL 4009F00145 Contact Us For Availability
13
SCREW WPL 7101P33460 Contact Us For Availability
13
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
SUPPORT, VALVE & REGULATOR WPL 3807F44751 Contact Us For Availability
13
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P06560 Contact Us For Availability
13
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
14
PANEL, BACKSPLASH WPL 2612F02232 Contact Us For Availability
14
FLUE BOX, BACKSPLASH PANEL WPL 4006W01819 Contact Us For Availability
14
GASKET WPL 7201P00860 Contact Us For Availability
14
EXTENSION, VENT BOX WPL 4022W00445 Contact Us For Availability
14
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
14
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
14
STRIKE, MALE WPL 8024P00160 Contact Us For Availability
14
BRACKET, SPARK MODULE WPL 3801F34145 Contact Us For Availability
14
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
14
BEZEL, KNOB WPL 7740P01860 Contact Us For Availability
15
PANEL, SIDE (RT-WHT) WPL 2618F10271 Contact Us For Availability
15
PANEL, SIDE (LT-WHT) WPL 2618F10371 Contact Us For Availability
15
SCREW WPL 7101P05860 Contact Us For Availability
15
TUBE, AIR DUCT WPL 8026P02160 Contact Us For Availability
15
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
15
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
15
HARNESS, SENSOR/LOCK WPL 5170P13860 Contact Us For Availability
15
HARNESS, RELAY WPL 5170P18460 Contact Us For Availability
15
HARNESS, BURNER BOX WPL 5195D11060 Contact Us For Availability
15
BLOCK, DISCONNECT WPL 74002303 Contact Us For Availability
15
BLOCK, DISCONNECT WPL 74002304 Contact Us For Availability
15
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
15
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
15
BRACKET, INDICATOR LIGHT WPL 3801F11151 Contact Us For Availability
16
RETAINER, SIDE WPL 3804F04551 Contact Us For Availability
16
WASHER WPL 7109P01560 Contact Us For Availability
16
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
16
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
16
MANUAL, USE & CARE-INSERT WPL 8112P10660 Contact Us For Availability
16
INSERT, INSTR SHEET (CLOCK) WPL 8113P02660 Contact Us For Availability
16
MANUAL, USE & CARE WPL 8113P04660 Contact Us For Availability
16
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
16
SCREW WPL 7101P31560 Contact Us For Availability
17
RACK WPL 7801P00860 Contact Us For Availability
17
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
17
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
17
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
17
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
18
RECEPTACLE, OVEN LIGHT WPL 7408P03460 Contact Us For Availability
18
HINGE WPL 7106P05660 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
18
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
18
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
19
RETAINER, BOTTOM WPL 3804F02919 Contact Us For Availability
19
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
19
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
19
SUPPORT, TUBE WPL 8004P00760 Contact Us For Availability
20
SCREW WPL 7101P07560 Contact Us For Availability
20
RETAINER, GLASS WPL 7720P01960 Contact Us For Availability
20
SCREW WPL 7101P03160 Contact Us For Availability
20
SPACER WPL 8010P07560 Contact Us For Availability
20
PAN, BAKE BURNER WPL 3401F02445 Contact Us For Availability
20
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
21
EXTRUSION, GLASS RET WPL 7706P01460 Contact Us For Availability
21
BOX, VENT WPL 4006W11345 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
21
NUT, WING WPL 7103P03060 Contact Us For Availability
22
SOCKET, STARTER----NA WPL 7408P03660 Contact Us For Availability
22
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
22
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
22
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
22
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
23
FAN ASSY. WPL 7427P01360 Contact Us For Availability
23
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
23
COVER, VALVE WPL 4005F42951 Contact Us For Availability
23
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
24
SUPPORT, OVEN BOTTOM WPL 5720A00211 Contact Us For Availability
24
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
24
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
24
BAFFLE, OVEN BOTTOM WPL 3601F23445 Contact Us For Availability
24
RETAINER WPL 3804F01050 Contact Us For Availability
24
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
24
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
25
SUPPORT, OVEN SIDE WPL 3818F00651 Contact Us For Availability
25
CORD, POWER WPL 7402P04660 Contact Us For Availability
25
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
25
RELAY BOARD WPL 7428P01060 Contact Us For Availability
25
SHUTTER AIR WPL 3411F00734 Contact Us For Availability
25
PALNUT WPL 7103P11960 Contact Us For Availability
26
TOP, MAIN UPPER WPL 2007W00180 Contact Us For Availability
26
BOX, AIR TUBE WPL 4006F14851 Contact Us For Availability
26
PANEL, DRAWER (WHT) WPL 2416F03862 Contact Us For Availability
26
SUPPORT, RELAY BOARD WPL 3807F43951 Contact Us For Availability
26
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
26
HARNESS, PEDESTAL WPL 5185D27760 Contact Us For Availability
26
SUPPORT, RELAY BOARD WPL 8004P02260 Contact Us For Availability
27
SCREW WPL 7101P08160 Contact Us For Availability
27
TRIM WPL 7720P10160 Contact Us For Availability
27
TRIM WPL 7720P10260 Contact Us For Availability
27
BOTTOM, AIR TUBE BOX WPL 4011F22651 Contact Us For Availability
27
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
28
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
28
TUBE, AIR WPL 7506P12460 Contact Us For Availability
29
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
29
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
30
GUARD, SIDE INS. WPL 3609F00280 Contact Us For Availability
30
RETAINER, TOP WPL 3804F00351 Contact Us For Availability
30
RETAINER WPL 3804F03351 Contact Us For Availability
30
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
30
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
32
GLIDE, DOOR WPL 8016P00160 Contact Us For Availability
33
SUPPORT WPL 8004P00260 Contact Us For Availability
34
CATCH FEMALE WPL 8002P00660 Contact Us For Availability
35
PLATE WPL 3605F00132 Contact Us For Availability
38
SCREW WPL 7101P07260 Contact Us For Availability
39
SCREW, DR LCK HNDL WPL 7101P01960 Contact Us For Availability
40
SCREW WPL 7101P01860 Contact Us For Availability
40
HARNESS, UPPER WPL 5180D14960 Contact Us For Availability
40
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
41
INSULATION, REAR WPL 7002P03060 Contact Us For Availability
41
INSULATION, WRAP WPL 7002P04260 Contact Us For Availability
× ![]()
Login and Registration Form
