Model Whirlpool 68HN-4TXW ELECTRIC RANGE – Common Parts & Diagrams

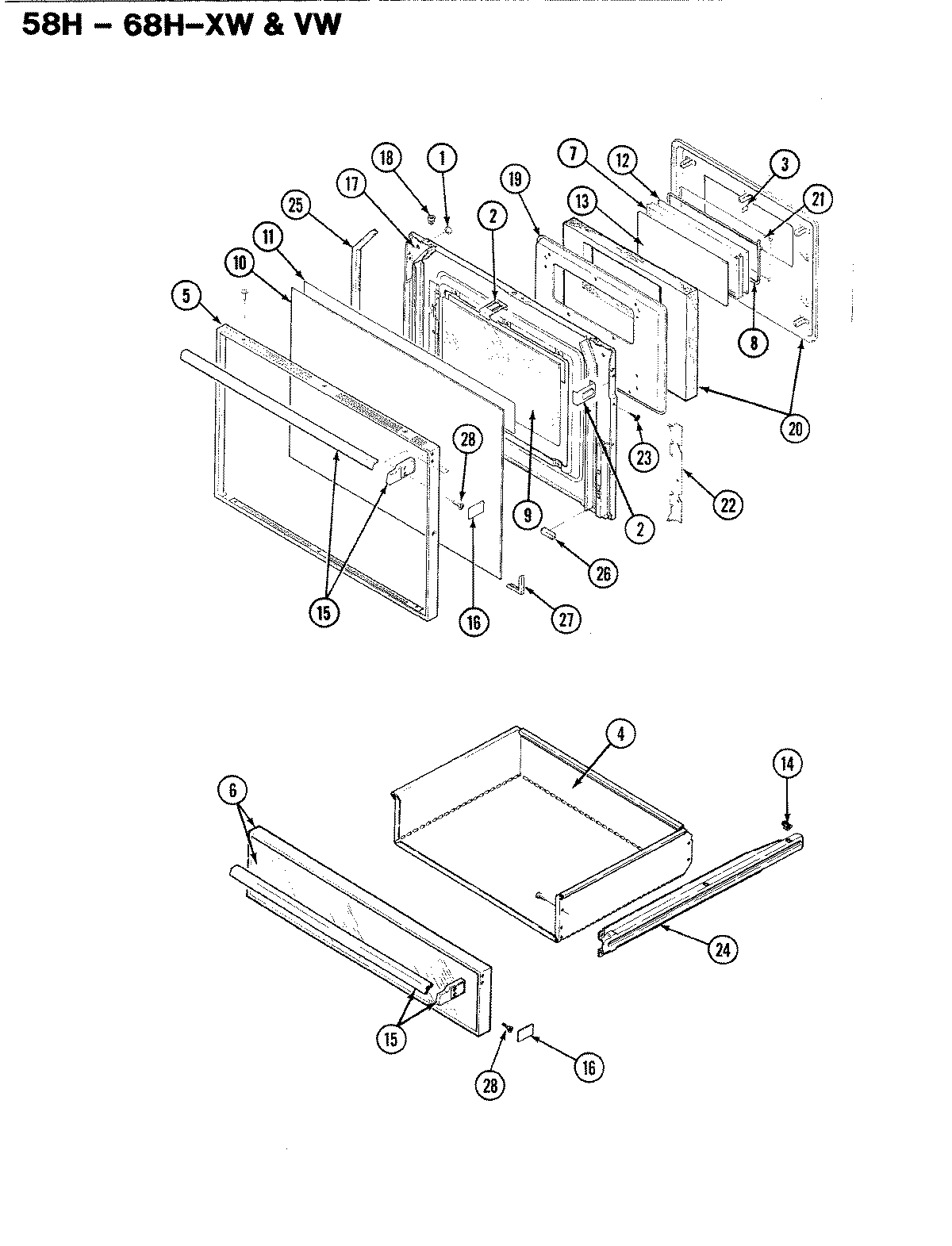

02 - DOOR

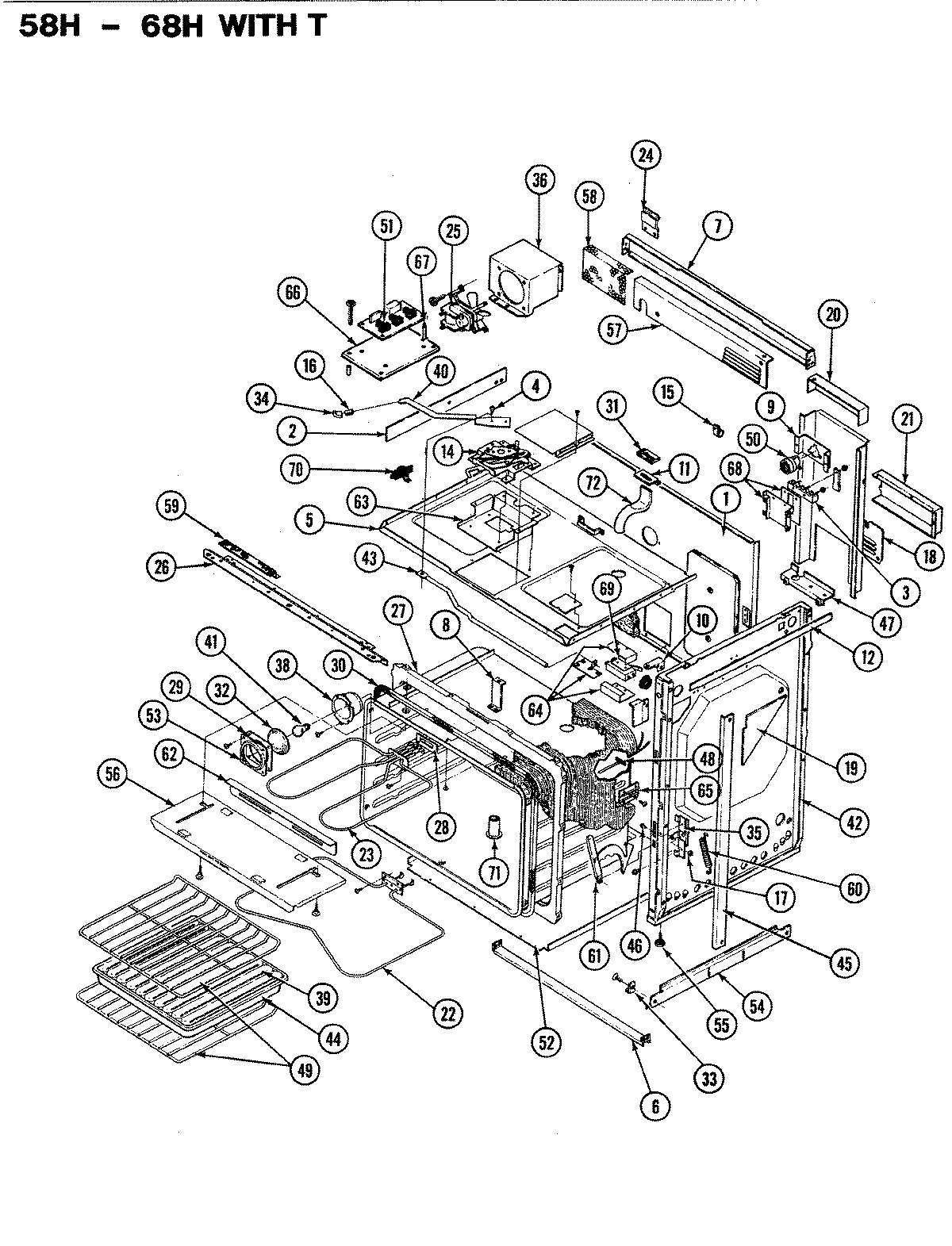

01 - BODY
Common parts from model Whirlpool 68HN-4TXW ELECTRIC RANGE
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
3
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
4
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
5
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F15823 Contact Us For Availability
6
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
7
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
7
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
8
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
8
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
9
GLASS, INNER WPL 7902P09760 Contact Us For Availability
9
BRACKET WPL 3801F02451 Contact Us For Availability
10
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
10
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
10
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
11
TAPE 29.5`` WPL 4870F00560 Contact Us For Availability
11
TAPE, 2`` X 16`` REFLECTIVE WPL 8270P05160 Contact Us For Availability
11
BRACKET, SEAL WPL 3801F12645 Contact Us For Availability
12
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
12
GLASS, WINDOW INNER WPL 7902P34060 Contact Us For Availability
12
SCREW WPL 7101P06160 Contact Us For Availability
12
BRACKET, SPACER RT WPL 3801F08480 Contact Us For Availability
12
BRACKET, SPACER LT WPL 3801F08680 Contact Us For Availability
12
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
12
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
12
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
13
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
13
BRACKET, VENT TUBE WPL 3801F12245 Contact Us For Availability
14
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
14
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
14
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
14
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
15
SCREW WPL 7101P12360 Contact Us For Availability
15
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
15
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
16
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
16
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
17
LINING WPL 2402W12815 Contact Us For Availability
17
LINING WPL 2402W17315 Contact Us For Availability
17
LINING WPL 2402W17319 Contact Us For Availability
17
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
17
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
18
NUT, SNAP WPL 7103P11460 Contact Us For Availability
18
COVER,ACCESS WPL 4005F28851 Contact Us For Availability
19
PAD, INNER WPL 2410F01651 Contact Us For Availability
19
COVER, SWITCH WPL 4005F16351 Contact Us For Availability
20
PAD, OVEN DOOR WPL 2410A03715 Contact Us For Availability
20
DRAWER, SERVICE WPL 5425A02170K Contact Us For Availability
20
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
21
RETAINER WPL 3804F02245 Contact Us For Availability
21
COVER, REDUNDANT THERMO WPL 4005F29951 Contact Us For Availability
22
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
22
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
22
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
23
RIVET WPL 7107P01760 Contact Us For Availability
23
SCREW WPL 7101P10460 Contact Us For Availability
23
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
23
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
23
FILLER, STRIP WPL 7706P00960 Contact Us For Availability
24
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
24
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
24
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
25
SEAL WPL 7208P00260 Contact Us For Availability
25
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
26
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
26
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
26
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
27
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
27
NOT REQUIRED PART OR SEE NOTE (FRONT, UPPER) WPL W10124350 Contact Us For Availability
27
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
28
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
28
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
29
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
29
INSULATION, DOOR LOCK WPL 7002P04860 Contact Us For Availability
29
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
30
INSULATION TOP WPL 4804F00160 Contact Us For Availability
30
INSULATION - TOP WPL 4804F00860 Contact Us For Availability
30
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
31
GASKET, VENT WPL 7201P02860 Contact Us For Availability
32
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
33
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
34
HANDLE, DOOR LOCK (WHITE) WPL 7701P07260 Contact Us For Availability
35
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
35
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
36
HOUSING, FAN MOTOR WPL 4001F05051 Contact Us For Availability
37
HOUSING MAIN WIRE WPL 4001F05851 Contact Us For Availability
38
SCREW WPL 7101P06460 Contact Us For Availability
38
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
39
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
39
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
40
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
41
BULB, OVEN WPL 7407P02660 Contact Us For Availability
42
LINING, INNER SID WPL 4009W04080 Contact Us For Availability
42
WPL 4009W05980 WPL 4009W05980 Contact Us For Availability
42
WPL 4009W07780 WPL 4009W07780 Contact Us For Availability
43
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
44
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
44
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
45
WPL 2618F04571 WPL 2618F04571 Contact Us For Availability
45
WPL 2618F04580 WPL 2618F04580 Contact Us For Availability
46
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
47
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
47
WPL 3605F15651 WPL 3605F15651 Contact Us For Availability
48
WPL 7430P00560 WPL 7430P00560 Contact Us For Availability
48
WPL 7430P00860 WPL 7430P00860 Contact Us For Availability
48
WPL 7430P01060 WPL 7430P01060 Contact Us For Availability
49
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
50
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
51
WPL 7101P08460 WPL 7101P08460 Contact Us For Availability
51
WPL 7428P00460 WPL 7428P00460 Contact Us For Availability
51
WPL 7428P00960 WPL 7428P00960 Contact Us For Availability
52
WPL 3804F09380 WPL 3804F09380 Contact Us For Availability
52
WPL 3804F10280 WPL 3804F10280 Contact Us For Availability
53
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
54
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
54
WPL 3406F02751 WPL 3406F02751 Contact Us For Availability
55
WPL 7101P25560 WPL 7101P25560 Contact Us For Availability
56
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
56
WPL 7101P00560 WPL 7101P00560 Contact Us For Availability
56
WPL 7101P28760 WPL 7101P28760 Contact Us For Availability
57
WPL 3604F18780 WPL 3604F18780 Contact Us For Availability
58
WPL 3604F00780 WPL 3604F00780 Contact Us For Availability
× ![]()
