Model Whirlpool 6898VRV ELECTRIC RANGE – Common Parts & Diagrams

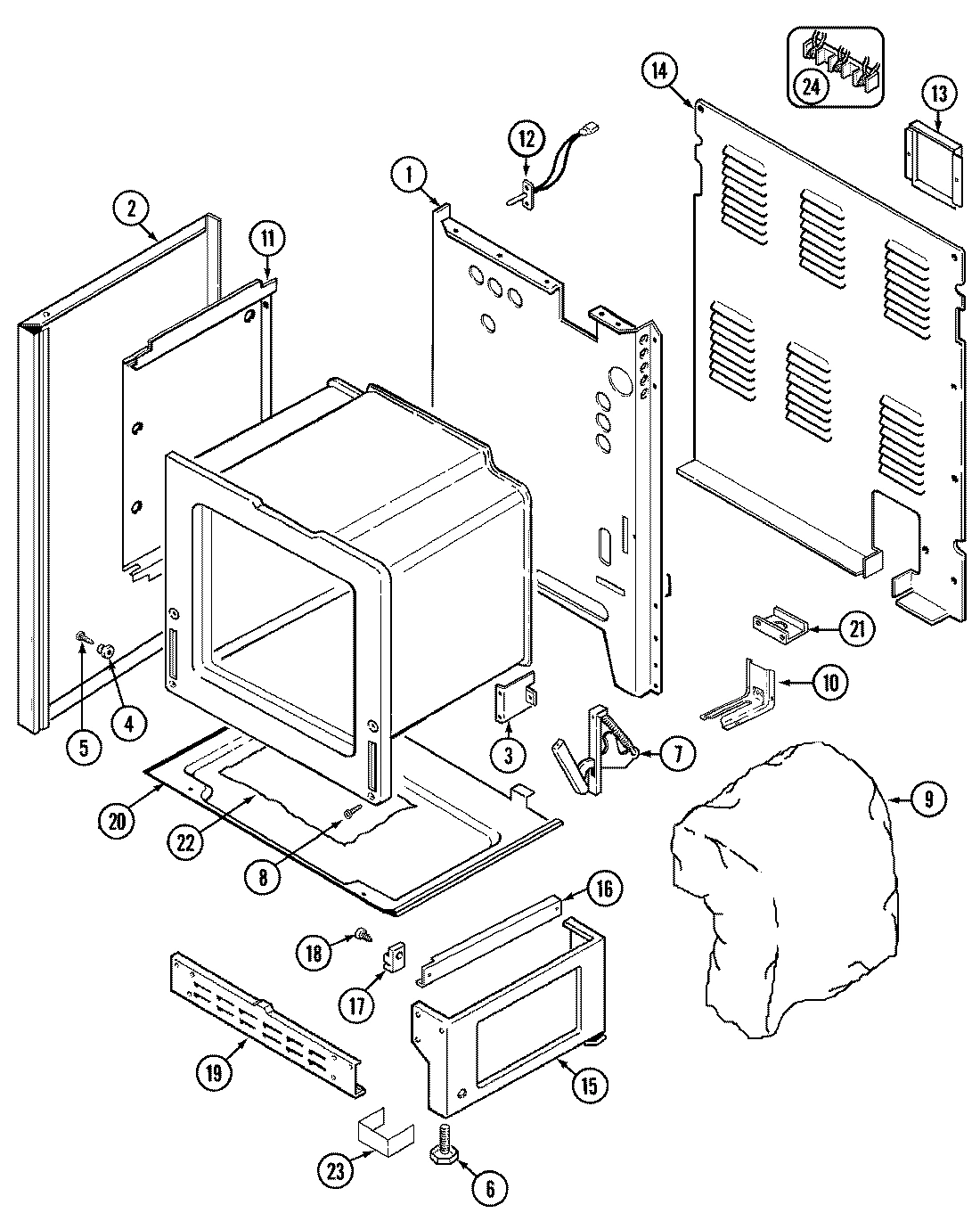

01 - BODY

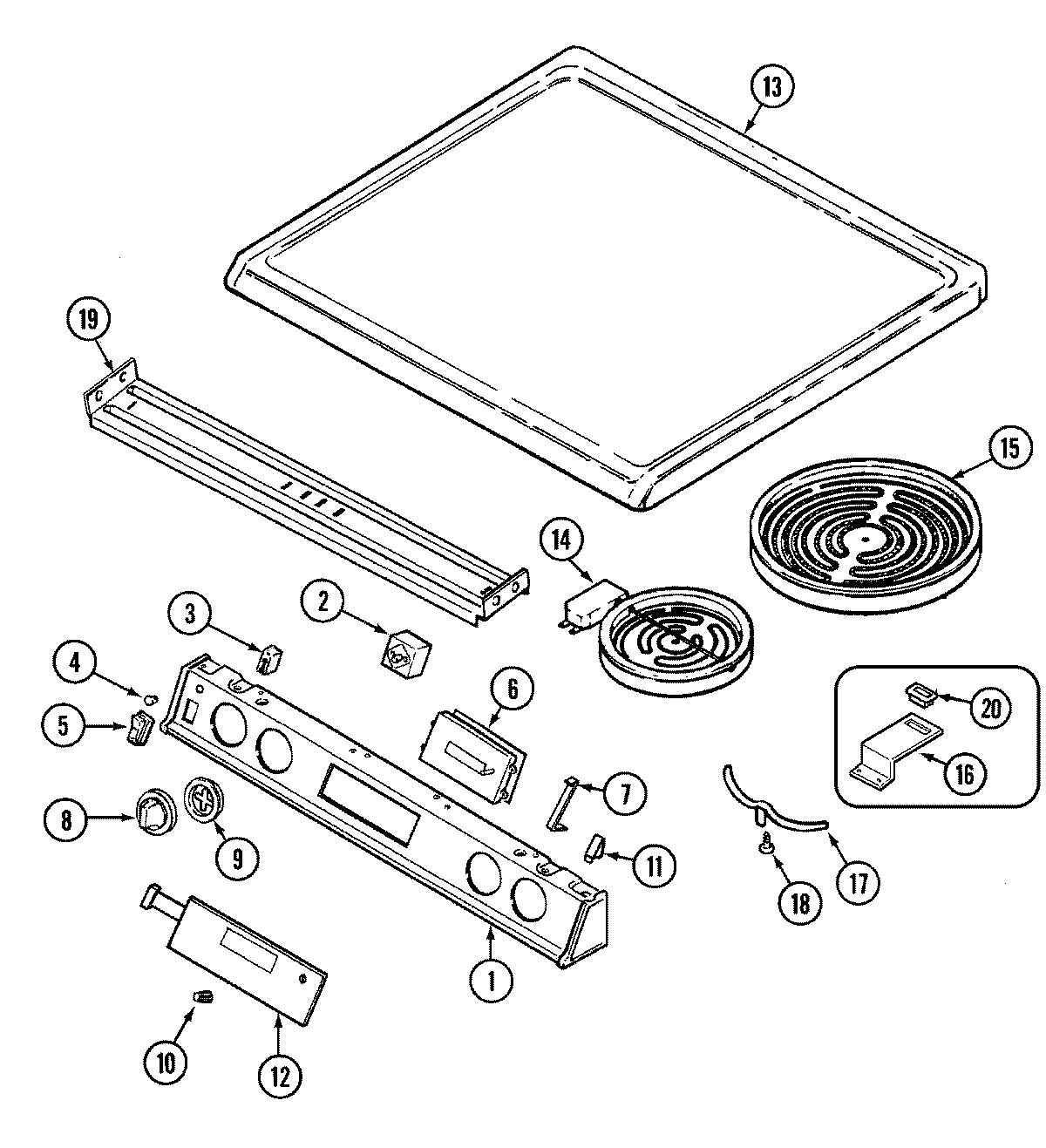

04 - TOP ASSEMBLY

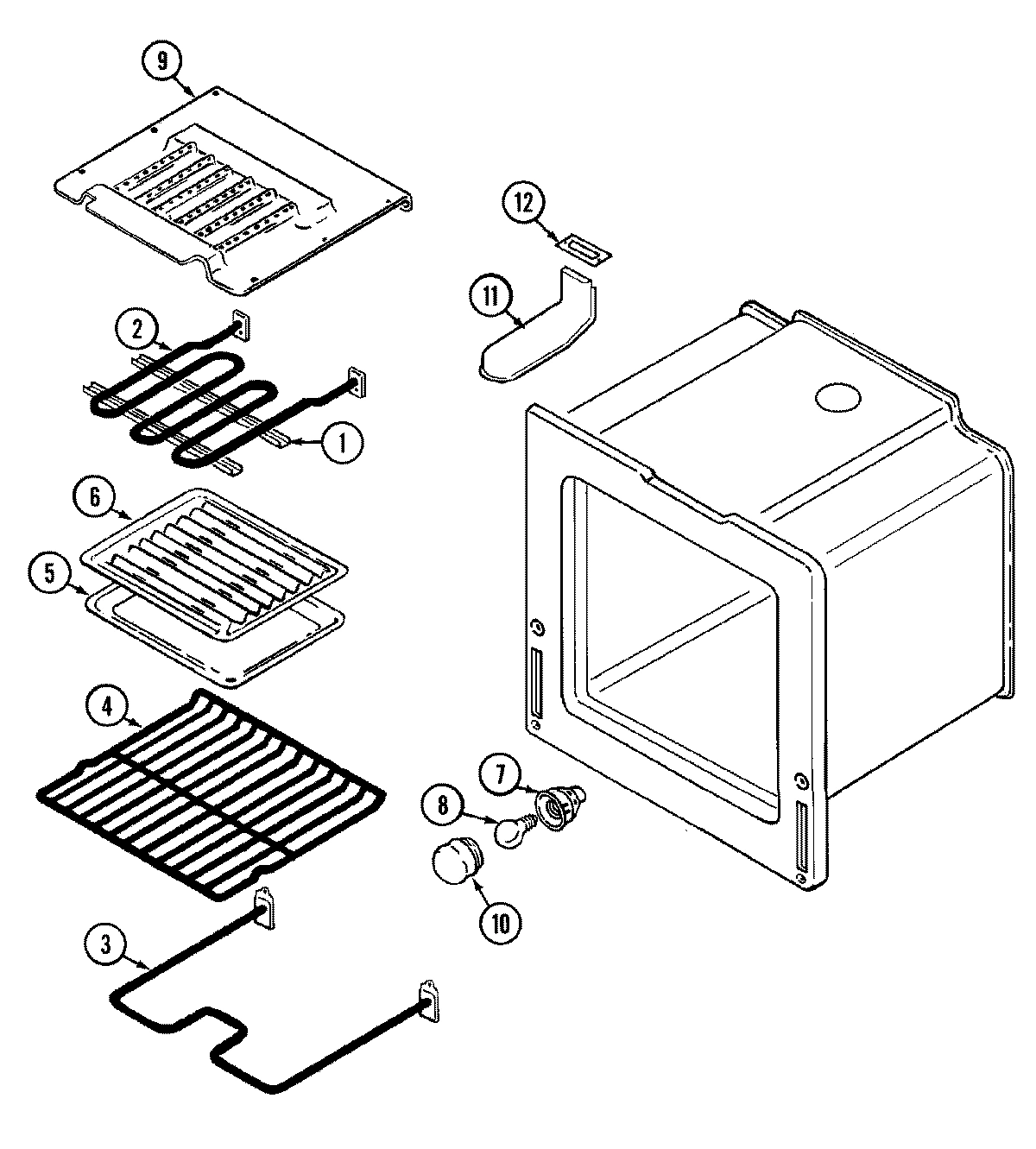

03 - OVEN

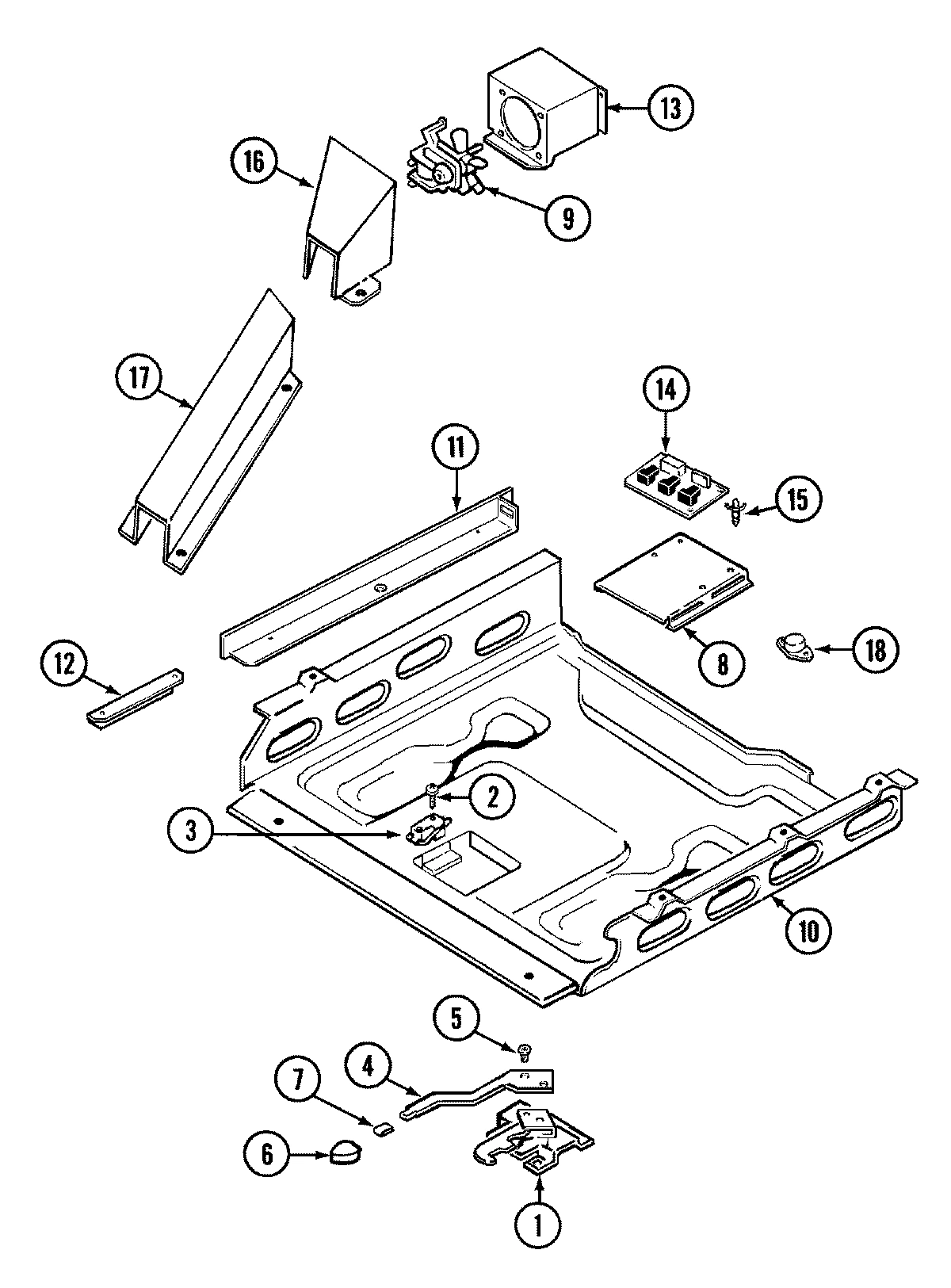

02 - INTERNAL CONTROLS
Common parts from model Whirlpool 6898VRV ELECTRIC RANGE
1
BACK, MAIN WPL 4002F16480 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
1
PANEL, UPR FRONT (WHT) WPL 7722P11460 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F07871 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F07971 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F09571 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F09671 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
SCREW WPL 7101P03160 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
LIGHT, INDICATOR WPL W10127320 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
4
RACK WPL 7801P04060 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
4
LEVER WPL 8009P01760 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
5
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
6
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
6
CLOCK WPL 7601P20760 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
7
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F22245 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
8
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
8
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
8
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
COVER, LOCK WPL 4005F40151 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005F46651 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
BEZEL, KNOB (BLK) WPL 7740P02060 Contact Us For Availability
9
BEZEL, KNOB (WHT) WPL 7740P02360 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
10
KNOB, CLOCK (WHT) WPL 7711P43260 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
BOX, BURNER WPL 4011F22380 Contact Us For Availability
10
BOX, BURNER WPL 4011F25080 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
11
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
11
CLIP, SPEED WPL 7112P10260 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
TRIM, MEMBRANE WPL 7740P06260 Contact Us For Availability
12
GASKET, VENT WPL 7201P05560 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
13
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
13
TOP ASSY. (BLK GLASS/WHT FRM) WPL 5706S05681 Contact Us For Availability
13
EXTRUSION, FILLER WPL 7706P30160 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08051 Contact Us For Availability
14
COVER, MAIN BACK WPL 4005F35651 Contact Us For Availability
14
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
14
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
14
RELAY BOARD WPL 7428P00960 Contact Us For Availability
15
PEDESTAL WPL 4020W00980 Contact Us For Availability
15
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
15
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
16
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
18
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
18
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
19
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
19
SUPPORT, ELEMENT WPL 3807F39045 Contact Us For Availability
19
SHIELD, WIRE WPL 3604F19951 Contact Us For Availability
20
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
20
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P07460 Contact Us For Availability
20
CHANNEL, AIR WPL 3818F05551 Contact Us For Availability
20
SCREW WPL 7101P06160 Contact Us For Availability
21
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
21
HARNESS, SENSOR/LOCK WPL 5170P13860 Contact Us For Availability
21
HARNESS, CONTROL TO RELAY WPL 5170P14760 Contact Us For Availability
21
HARNESS, COOKTOP TO SWITCH WPL 5175D07660 Contact Us For Availability
21
HARNESS, PANEL WPL 5195D09760 Contact Us For Availability
21
MANUAL, USE & CARE-INSERT WPL 8112P10560 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
22
MANUAL, USE & CARE WPL 8113P00860 Contact Us For Availability
23
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
23
INSERT, INSTR SHEET (CLOCK) WPL 8113P02660 Contact Us For Availability
23
MANUAL, USE & CARE WPL 8113P04160 Contact Us For Availability
24
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
× ![]()
