Model Whirlpool 6895VRV ELECTRIC RANGE – Common Parts & Diagrams

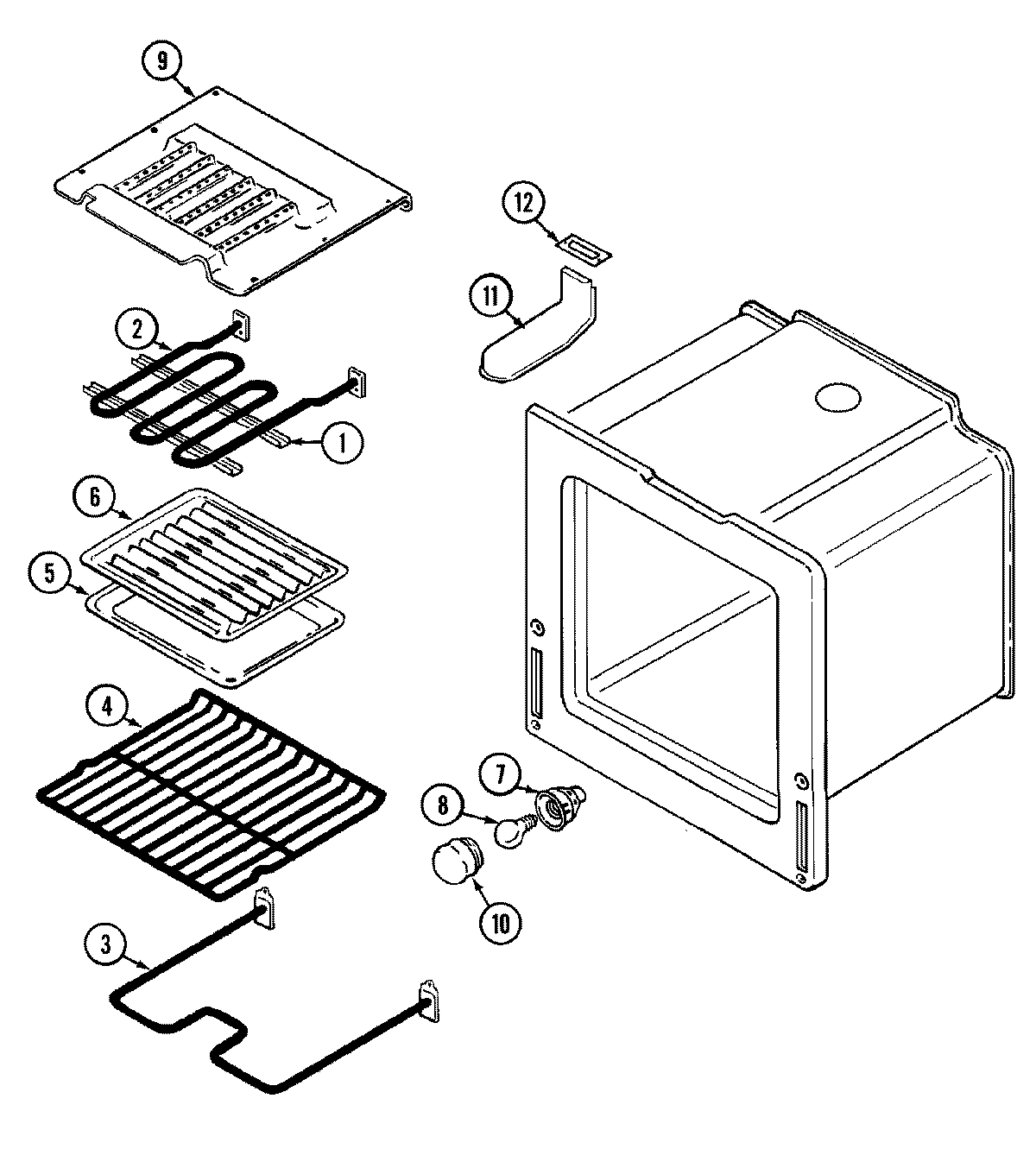

04 - OVEN

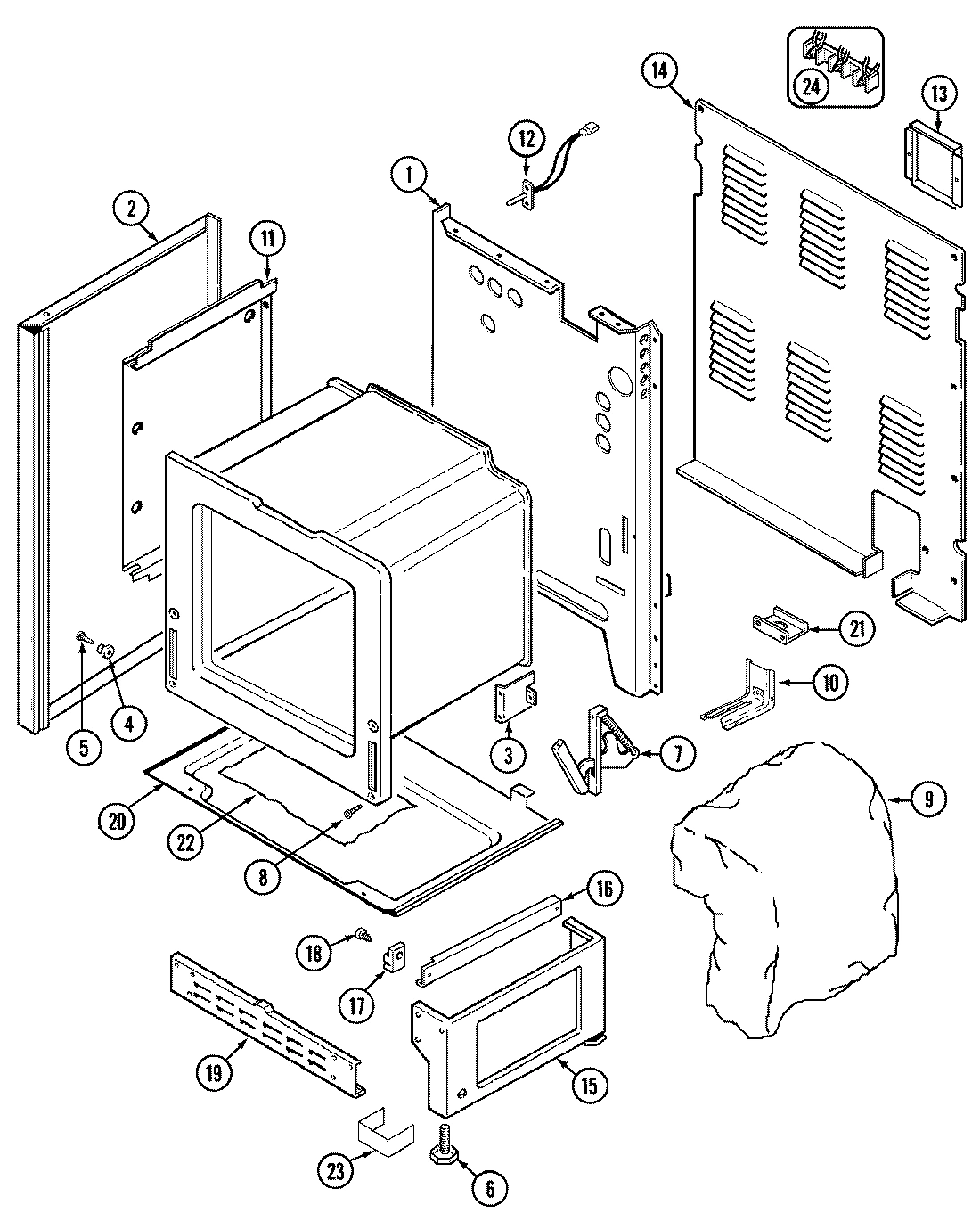

01 - BODY

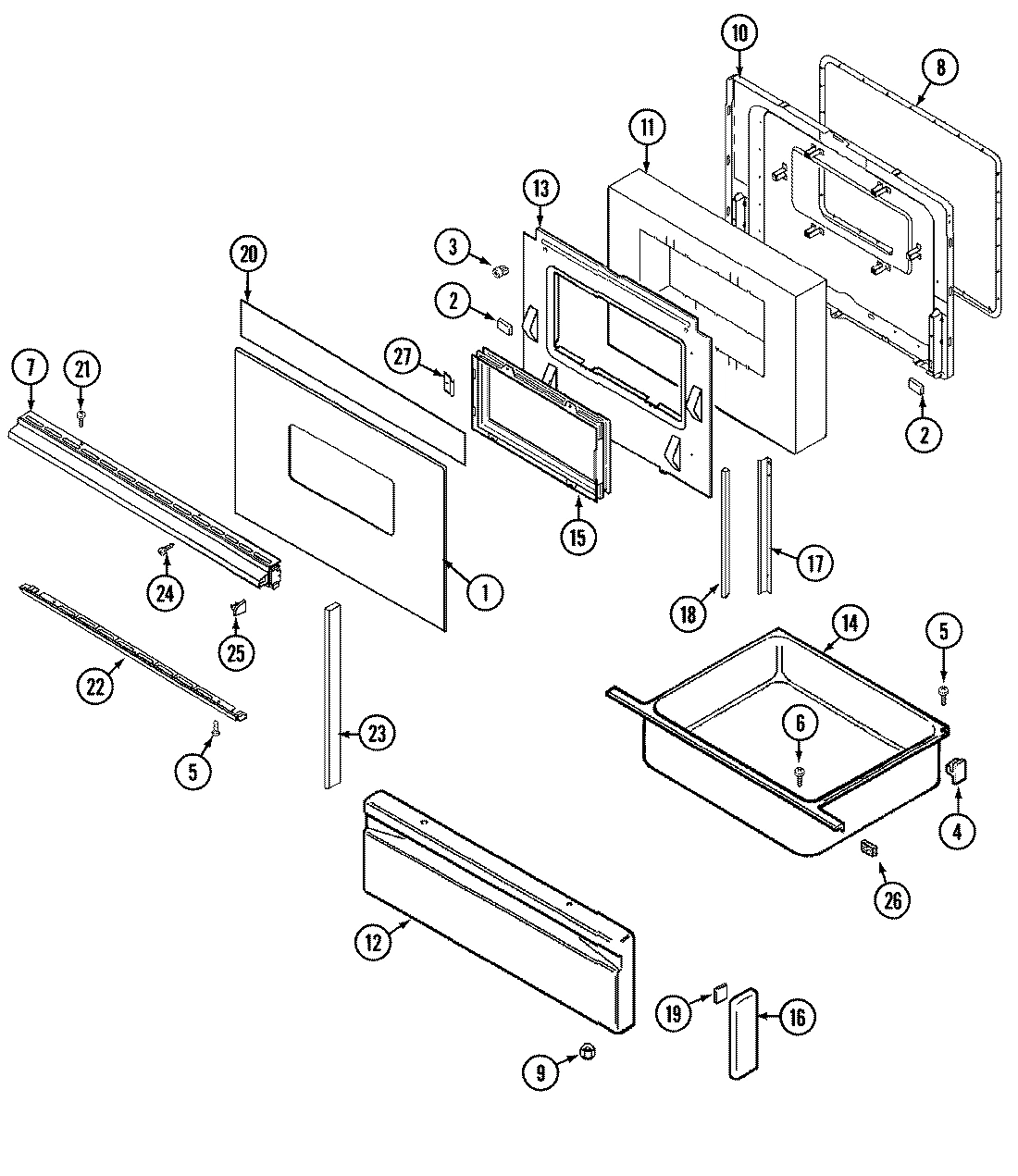

02 - DOOR/DRAWER

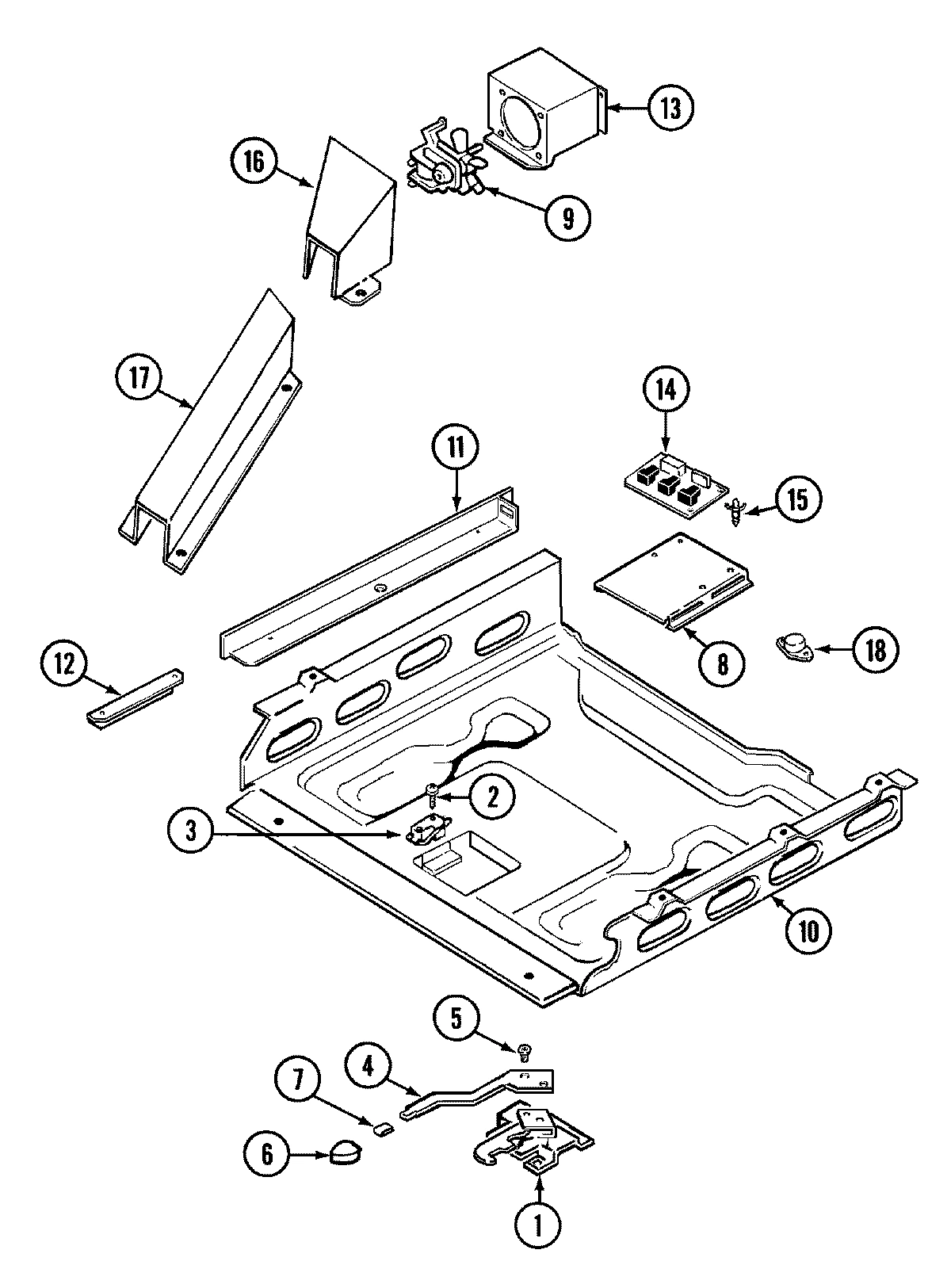

03 - INTERNAL CONTROLS
Common parts from model Whirlpool 6895VRV ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
BACK, MAIN WPL 4002F16480 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F07871 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F07971 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F09571 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F09671 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SCREW WPL 7101P03160 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
NUT, NYLON WPL 7103P04560 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
4
RACK WPL 7801P04060 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
4
LEVER WPL 8009P01760 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P33460 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
7
HANDLE, DOOR (WHT) WPL 7701P10560 Contact Us For Availability
7
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
COVER, LOCK WPL 4005F40151 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005F46651 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
BOX, BURNER WPL 4011F22380 Contact Us For Availability
10
BOX, BURNER WPL 4011F25080 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
11
INSULATION DOOR WPL 4804F01260 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
12
GASKET, VENT WPL 7201P05560 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F03862 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
13
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08051 Contact Us For Availability
14
COVER, MAIN BACK WPL 4005F35651 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
14
RELAY BOARD WPL 7428P00960 Contact Us For Availability
15
PEDESTAL WPL 4020W00980 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
16
END CAP, DRAWER (WHT) WPL 7744P06760 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
18
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
19
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
19
TAPE WPL 8270P09860 Contact Us For Availability
19
SHIELD, WIRE WPL 3604F19951 Contact Us For Availability
20
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
20
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
20
CHANNEL, AIR WPL 3818F05551 Contact Us For Availability
20
SCREW WPL 7101P06160 Contact Us For Availability
21
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
21
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
22
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
23
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
23
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
24
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
24
SCREW WPL 7101P29060 Contact Us For Availability
25
END CAP (RT) WPL 7744P07560 Contact Us For Availability
25
END CAP (LT) WPL 7744P07660 Contact Us For Availability
26
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
× ![]()
