Model Whirlpool 685AJ-CKV GAS RANGE – Common Parts & Diagrams
01 - BODY

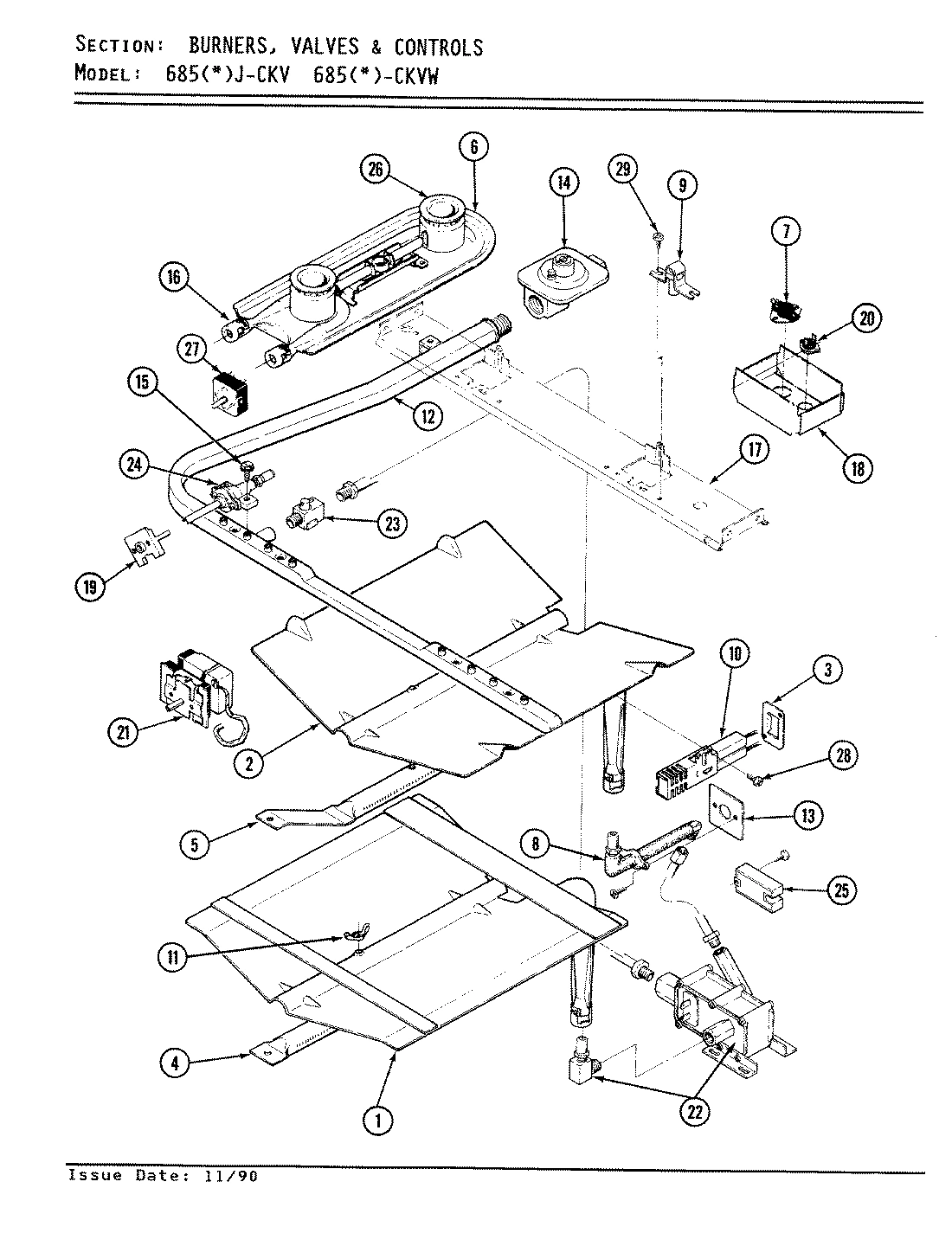

03 - CONTROL SYSTEM

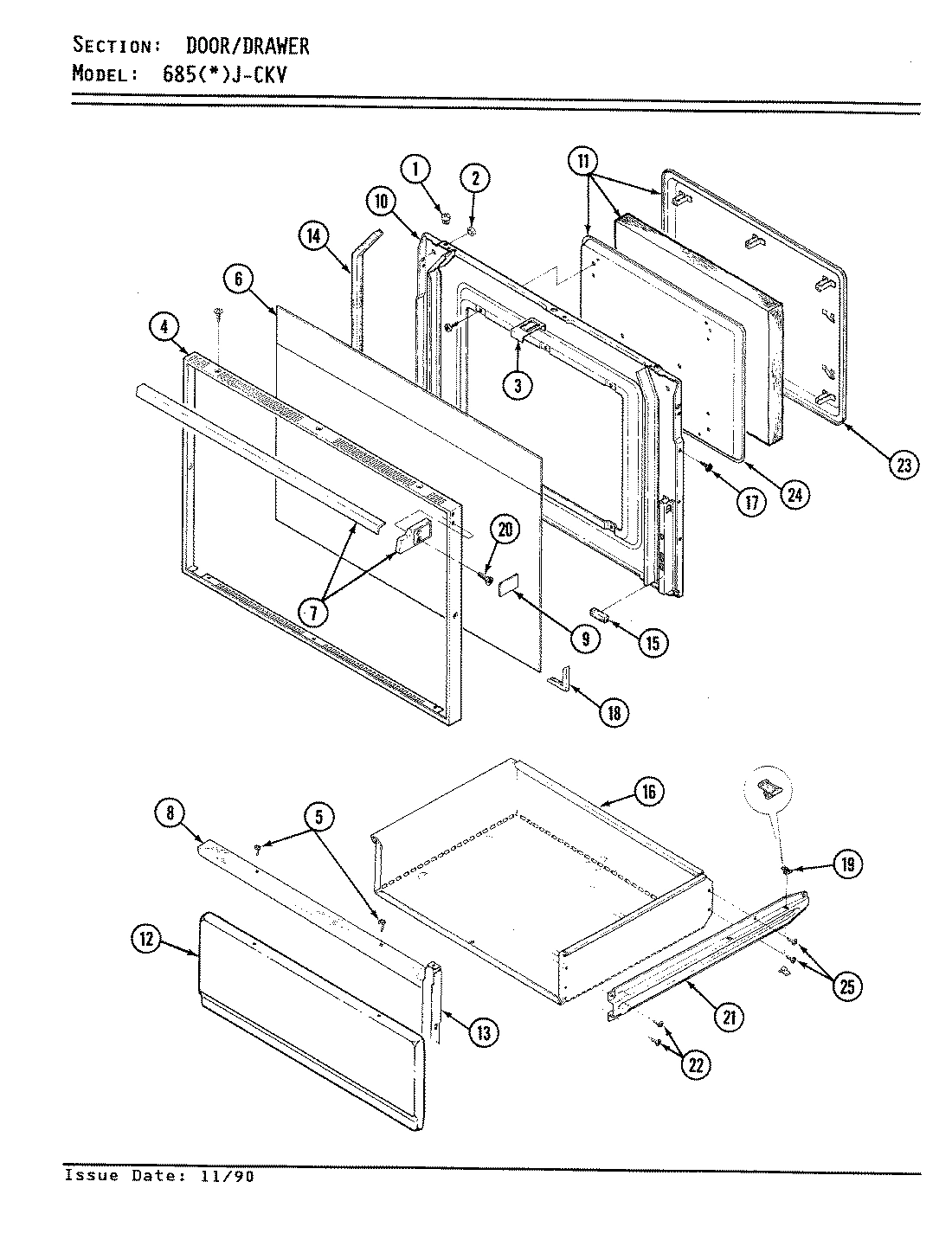

04 - DOOR/DRAWER

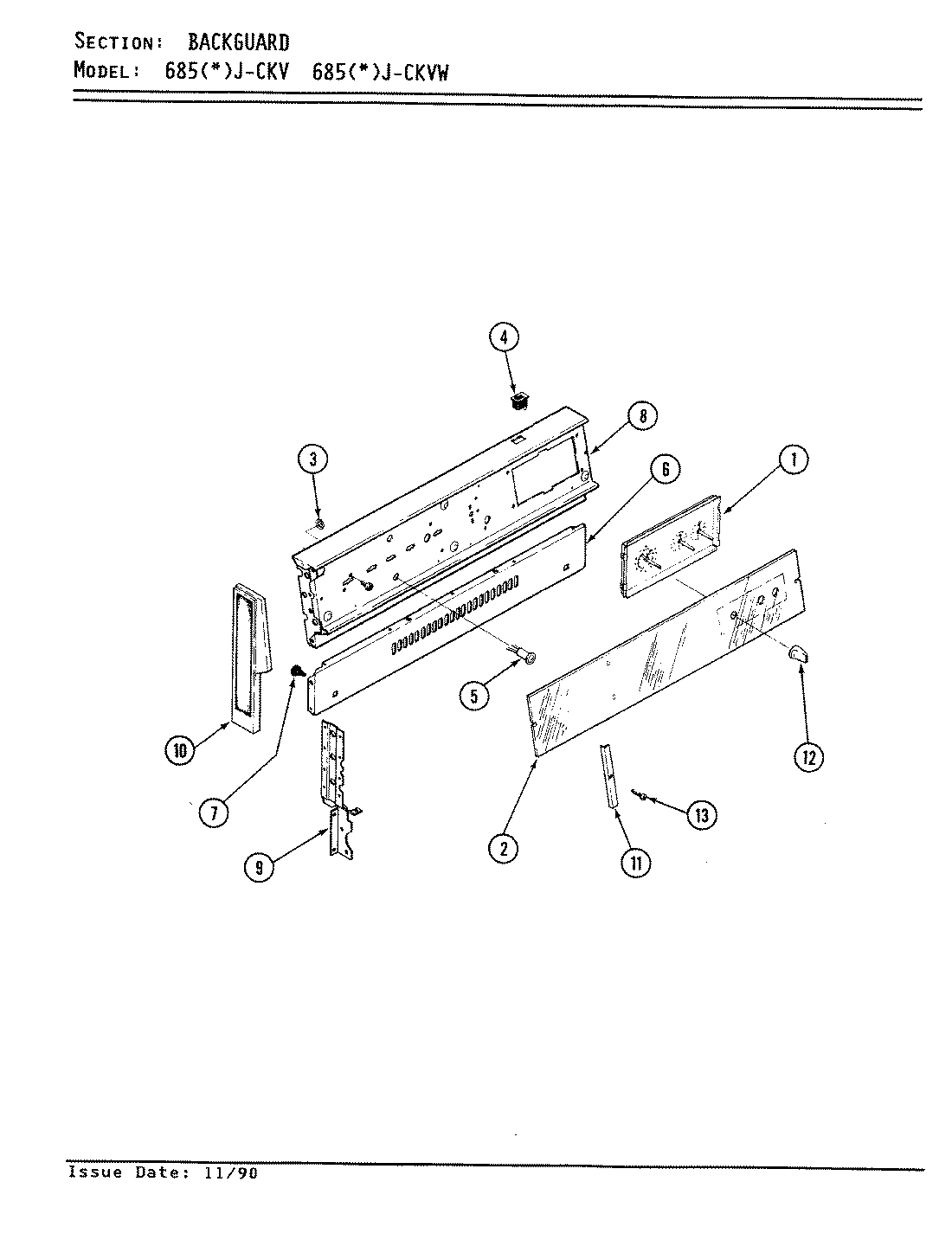

02 - CONTROL PANEL

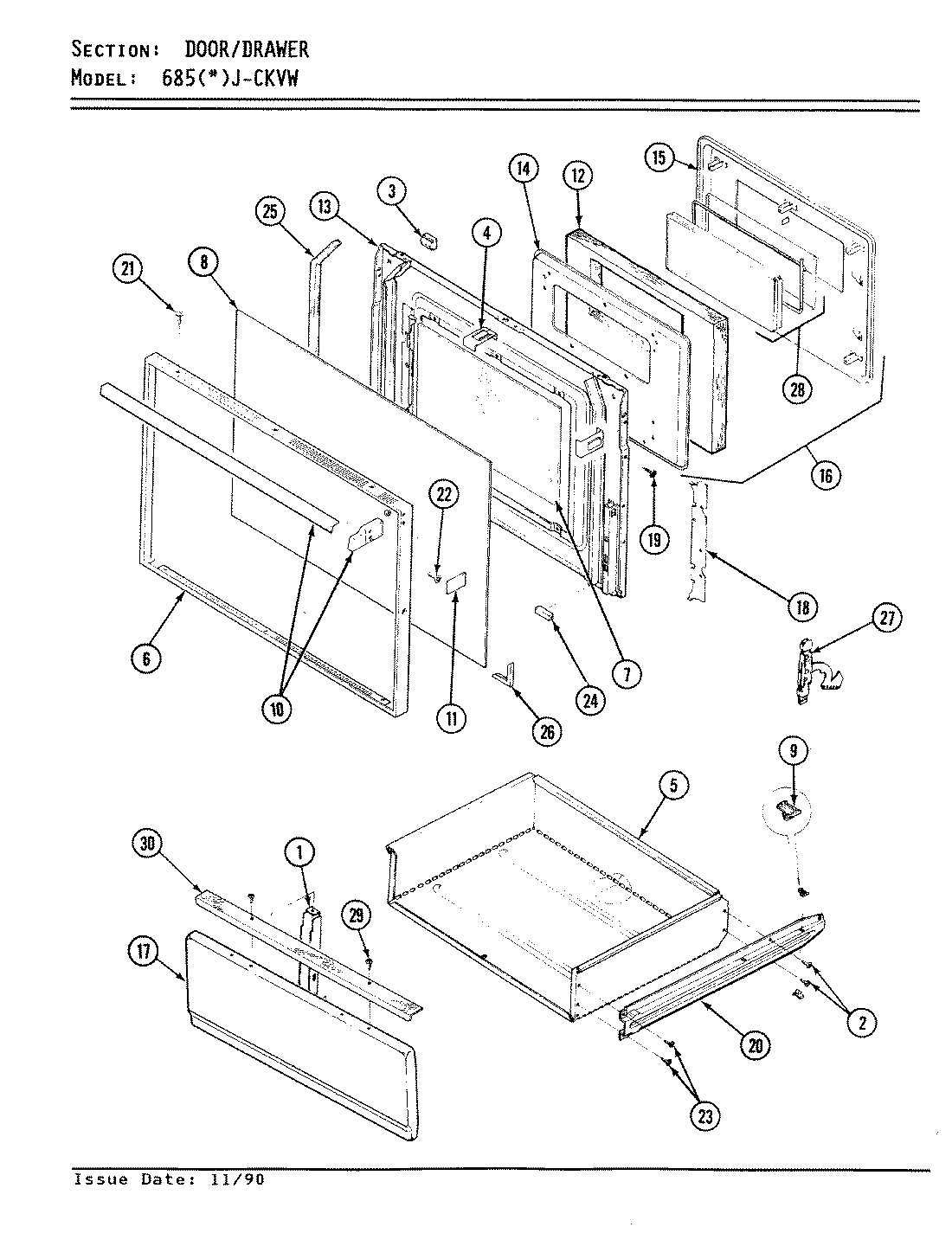

05 - DOOR/DRAWER
Common parts from model Whirlpool 685AJ-CKV GAS RANGE
1
BACK, BROILER SECTION WPL 4002F06645 Contact Us For Availability
1
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
1
BAFFLE WPL 3601W18415 Contact Us For Availability
1
BAFFLE, BAKE WPL 3601W18419 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
CLOCK WPL 7601P13160 Contact Us For Availability
2
BACK, MAIN WPL 4002F13080 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
SCREW, SERVICE DRAWER WPL 7101P27260 Contact Us For Availability
2
GLASS BKGD WPL 7910P10160 Contact Us For Availability
2
BACKGUARD, GLASS WPL 7910P13460 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
3
SCREW WPL 7101P27360 Contact Us For Availability
3
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
3
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
3
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
4
BAFFLE WPL 3601F11645 Contact Us For Availability
4
BURNER OVEN WPL 3403A01545 Contact Us For Availability
4
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
4
BURNER WPL 7505P10160 Contact Us For Availability
4
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
4
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
5
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
5
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
5
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
5
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
5
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
5
LIGHT, INDICATOR WPL 7407P01360 Contact Us For Availability
5
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
6
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
6
SCREW WPL 7101P05860 Contact Us For Availability
6
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
6
UNIBURNER ASSY. WPL 3412A00470 Contact Us For Availability
6
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
6
PANEL, BACKGUARD LOWER WPL 2620W01823 Contact Us For Availability
7
BLOCK, DISCONNECT WPL 7401P01160 Contact Us For Availability
7
BLOCK WPL 7401P01860 Contact Us For Availability
7
SWITCH, THERM LOCK WPL 7403P00460 Contact Us For Availability
7
SWITCH, HI LIMIT WPL 7403P18760 Contact Us For Availability
7
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
TAPE, 2`` X 60 YD ROLL WPL 8270P07160 Contact Us For Availability
8
BOLT WPL 7116P00360 Contact Us For Availability
8
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
8
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
8
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
8
COVER, BOTTOM BKGD WIRE WPL 4005F07380 Contact Us For Availability
8
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
8
TAPE, FOIL 3`` X 60 YRDS WPL 8270P03360 Contact Us For Availability
9
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
9
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
9
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
9
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
9
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
10
OVEN BOTTOM ASSY KIT WPL 12400020 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
10
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
10
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
10
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
LINING, DOOR WPL 2402W15315 Contact Us For Availability
10
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
10
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
11
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
11
PAD, OVEN DR WPL 2410A02815 Contact Us For Availability
11
PAD DOOR ASSY WPL 2410A02819 Contact Us For Availability
11
SCREW WPL 7101P01660 Contact Us For Availability
11
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
11
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
12
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P01360 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
12
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
12
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
12
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
13
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
13
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
13
NUT, SNAP WPL 7103P11460 Contact Us For Availability
13
LINING WPL 2402W17315 Contact Us For Availability
13
LINING WPL 2402W17319 Contact Us For Availability
13
SCREW WPL 7101P00860 Contact Us For Availability
14
BRACKET WPL 3801F02451 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
14
PAD, INNER WPL 2410F01651 Contact Us For Availability
15
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
15
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
SCREW WPL 7101P29660 Contact Us For Availability
15
PAD, DOOR WPL 2401W04119 Contact Us For Availability
15
PAD, DOOR WPL 2410W04115 Contact Us For Availability
16
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
16
MIXER, AIR WPL 3411F00434 Contact Us For Availability
16
DRAWER ASSY. WPL 3405F00820 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
17
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
17
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
17
PANEL, STORAGE DWR ALMOND WPL 2416F01874 Contact Us For Availability
17
PANEL, STORAGE DWR WHITE WPL 2416F01871 Contact Us For Availability
18
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
18
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
18
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
19
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
19
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
19
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
19
SWITCH WPL 7403P25960 Contact Us For Availability
19
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
19
RIVET WPL 7107P01760 Contact Us For Availability
20
BLOCK, DISCONNECT CAP WPL 7401P00460 Contact Us For Availability
20
CORD, POWER WPL 7402P01460 Contact Us For Availability
20
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
20
SWITCH, THERMAL WPL 7403P09160 Contact Us For Availability
20
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
21
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
21
TUBING, 3/8 X 51-1/2 WPL 3414F04844 Contact Us For Availability
21
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
21
THERMOSTAT WPL 7404P06460 Contact Us For Availability
21
THERMOSTAT, OV WPL 7515P02060 Contact Us For Availability
21
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
21
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
22
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
22
LOXIT NUT WPL 7103P12160 Contact Us For Availability
22
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
22
VALVE, BROIL & BAKE WPL 7501P09160 Contact Us For Availability
22
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
22
SCREW WPL 7101P12360 Contact Us For Availability
23
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
23
SCREW WPL 7101P06160 Contact Us For Availability
23
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
23
PAD, OVEN DOOR WPL 2410W04015 Contact Us For Availability
23
PAD DOOR WPL 2410W04019 Contact Us For Availability
24
COVER, MODULE WPL 4005F17680 Contact Us For Availability
24
SLEEVE WPL 7214P00360 Contact Us For Availability
24
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
24
VALVE, BURNER WPL 7502P13260 Contact Us For Availability
24
VALVE WPL 7502P22260 Contact Us For Availability
24
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
24
PAD, INNER OV DR WPL 2410F01251 Contact Us For Availability
25
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
25
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
25
SEAL WPL 7208P00260 Contact Us For Availability
26
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
26
CAP, BURNER WPL 7504P00160 Contact Us For Availability
26
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
27
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
27
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
27
SWITCH, SELECTOR WPL 7403P09260 Contact Us For Availability
27
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
28
BOX, FLUE WPL 4006W02615 Contact Us For Availability
28
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
28
RETAINER WPL 3804F02245 Contact Us For Availability
28
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
28
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
28
WINDOW PAK WPL 7902S30360 Contact Us For Availability
29
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
29
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
29
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
29
SCREW WPL 7118P00460 Contact Us For Availability
30
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
30
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
31
GASKET WPL 7201P01360 Contact Us For Availability
32
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
33
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
34
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
35
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
35
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
36
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
37
HINGE, BROILER (RT) WPL 3418A02834 Contact Us For Availability
37
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
37
SCREW WPL 7101P11260 Contact Us For Availability
37
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
38
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
39
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
39
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
39
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
40
TOP, MAIN WPL 2001F03580 Contact Us For Availability
40
TOP, MAIN WPL 2001F03581 Contact Us For Availability
40
TOP, MAIN WPL 2001F03584 Contact Us For Availability
41
KNOB, THERMOSTAT WPL 7731P02060 Contact Us For Availability
42
KNOB, VALVE (BL WPL 7733P02760 Contact Us For Availability
43
WPL 8009P01060 WPL 8009P01060 Contact Us For Availability
44
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
45
WPL 4009W06980 WPL 4009W06980 Contact Us For Availability
46
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
47
WPL 3801F19851 WPL 3801F19851 Contact Us For Availability
47
WPL 3801F21851 WPL 3801F21851 Contact Us For Availability
47
WPL 7101P28960 WPL 7101P28960 Contact Us For Availability
48
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
49
WPL 2614F00880 WPL 2614F00880 Contact Us For Availability
50
WPL 7712A03360 WPL 7712A03360 Contact Us For Availability
51
WPL 2618F05270 WPL 2618F05270 Contact Us For Availability
51
WPL 2618F05271 WPL 2618F05271 Contact Us For Availability
51
WPL 2618F05274 WPL 2618F05274 Contact Us For Availability
51
WPL 2618F07370 WPL 2618F07370 Contact Us For Availability
51
WPL 2618F07371 WPL 2618F07371 Contact Us For Availability
51
WPL 2618F07374 WPL 2618F07374 Contact Us For Availability
52
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
53
WPL 3601F10651 WPL 3601F10651 Contact Us For Availability
54
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
55
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
56
WPL 3804F WPL 3804F Contact Us For Availability
× ![]()
Login and Registration Form
