Model Whirlpool 676AJ-KSVW GAS RANGE – Common Parts & Diagrams

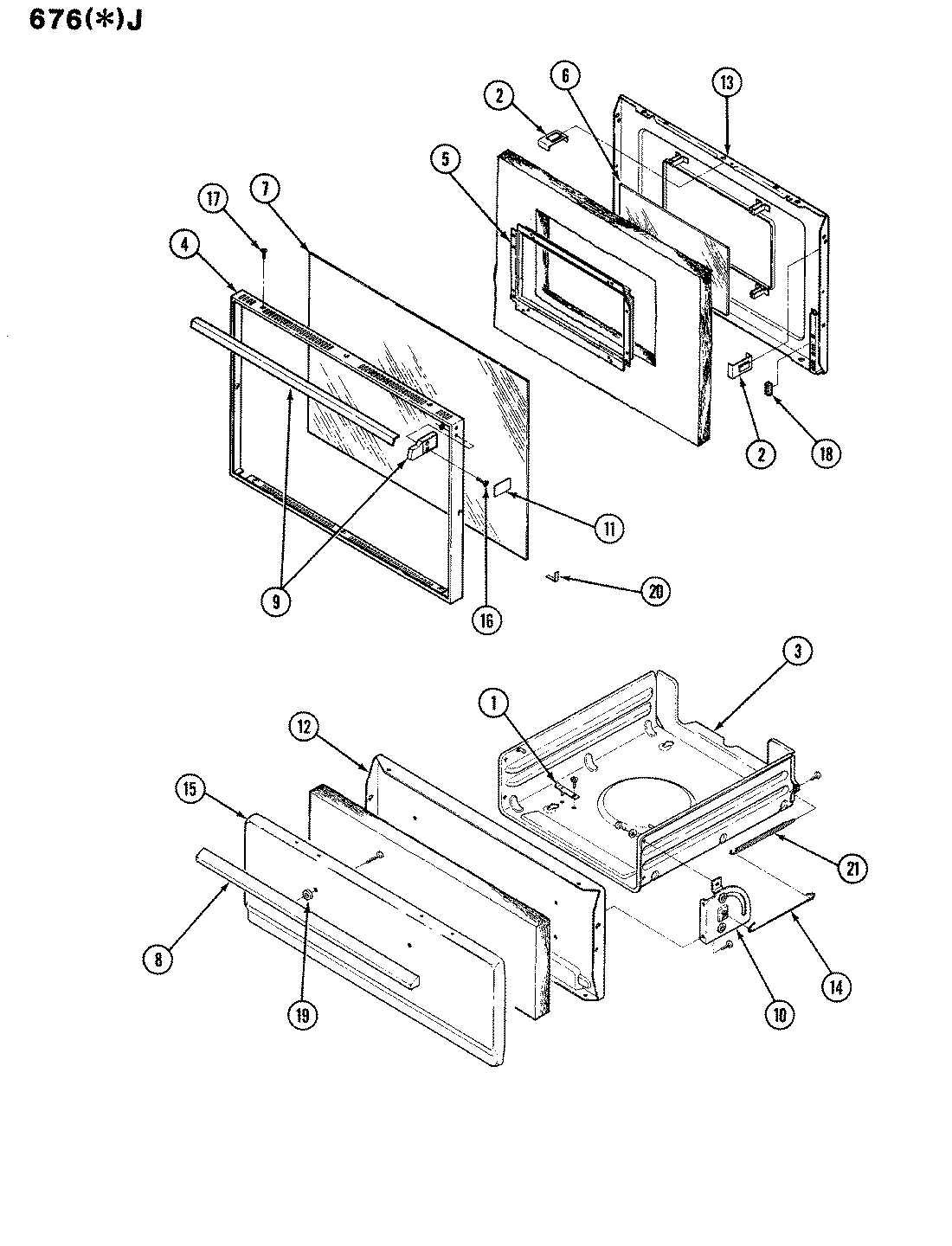

04 - DOOR

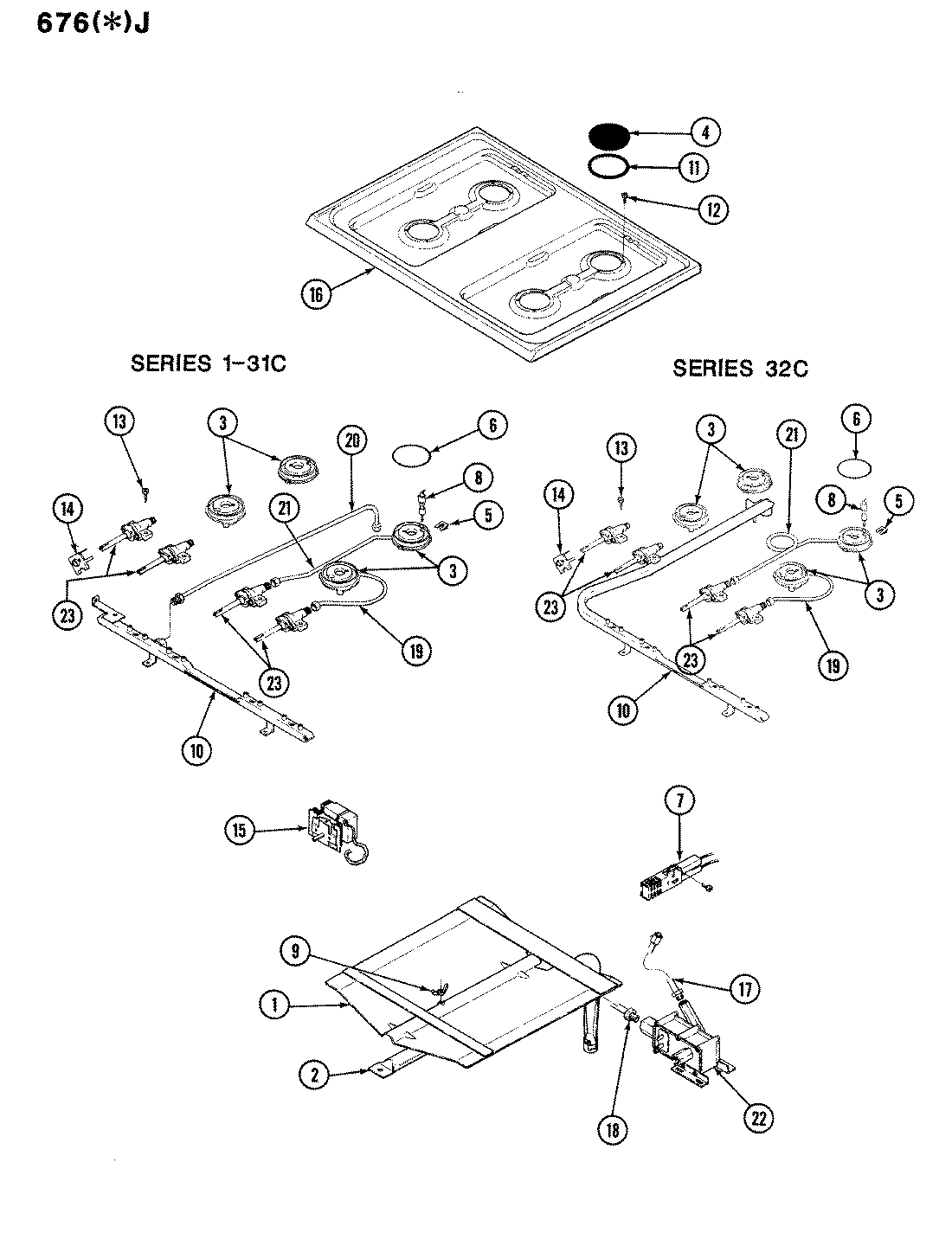

03 - CONTROL SYSTEM

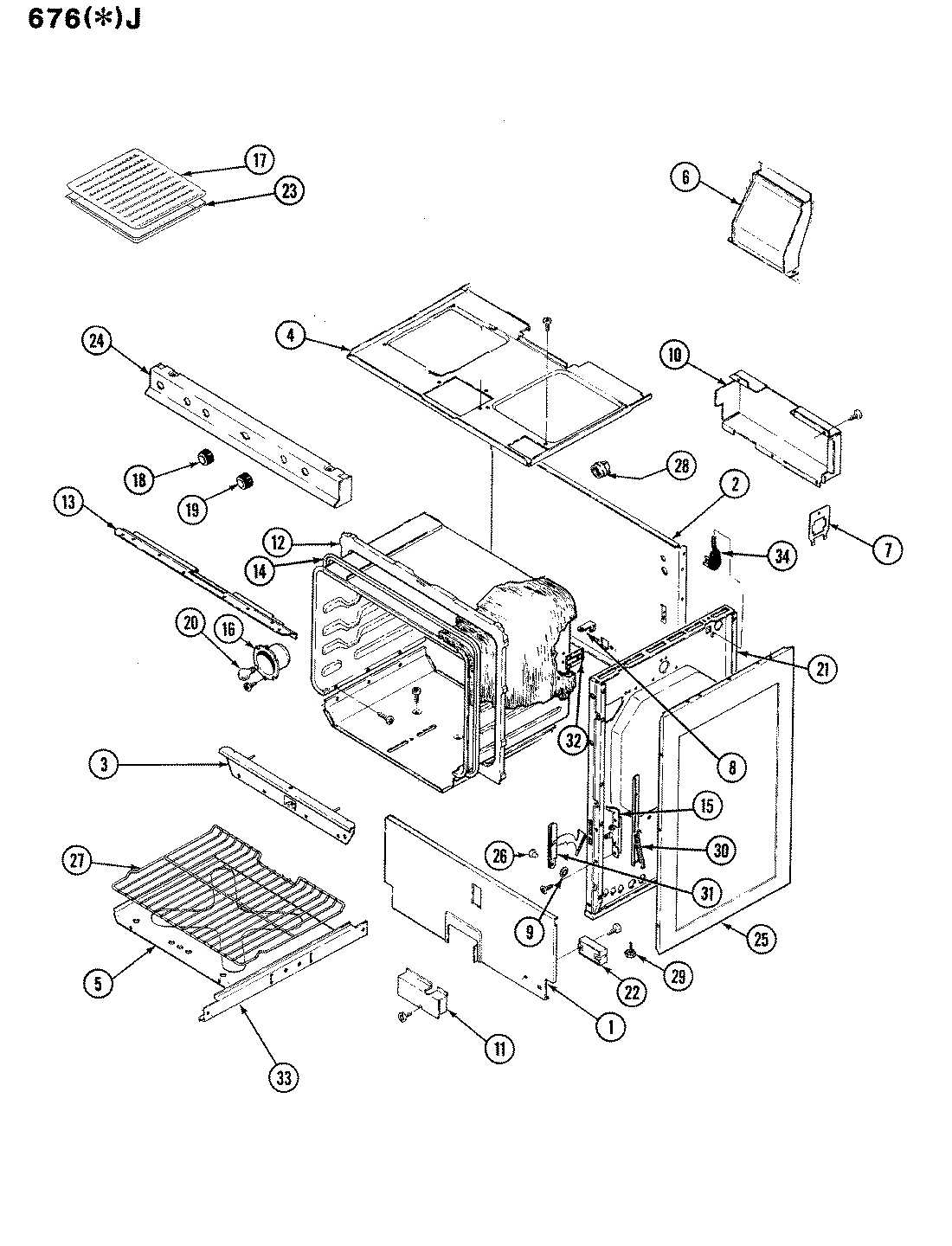

01 - BODY

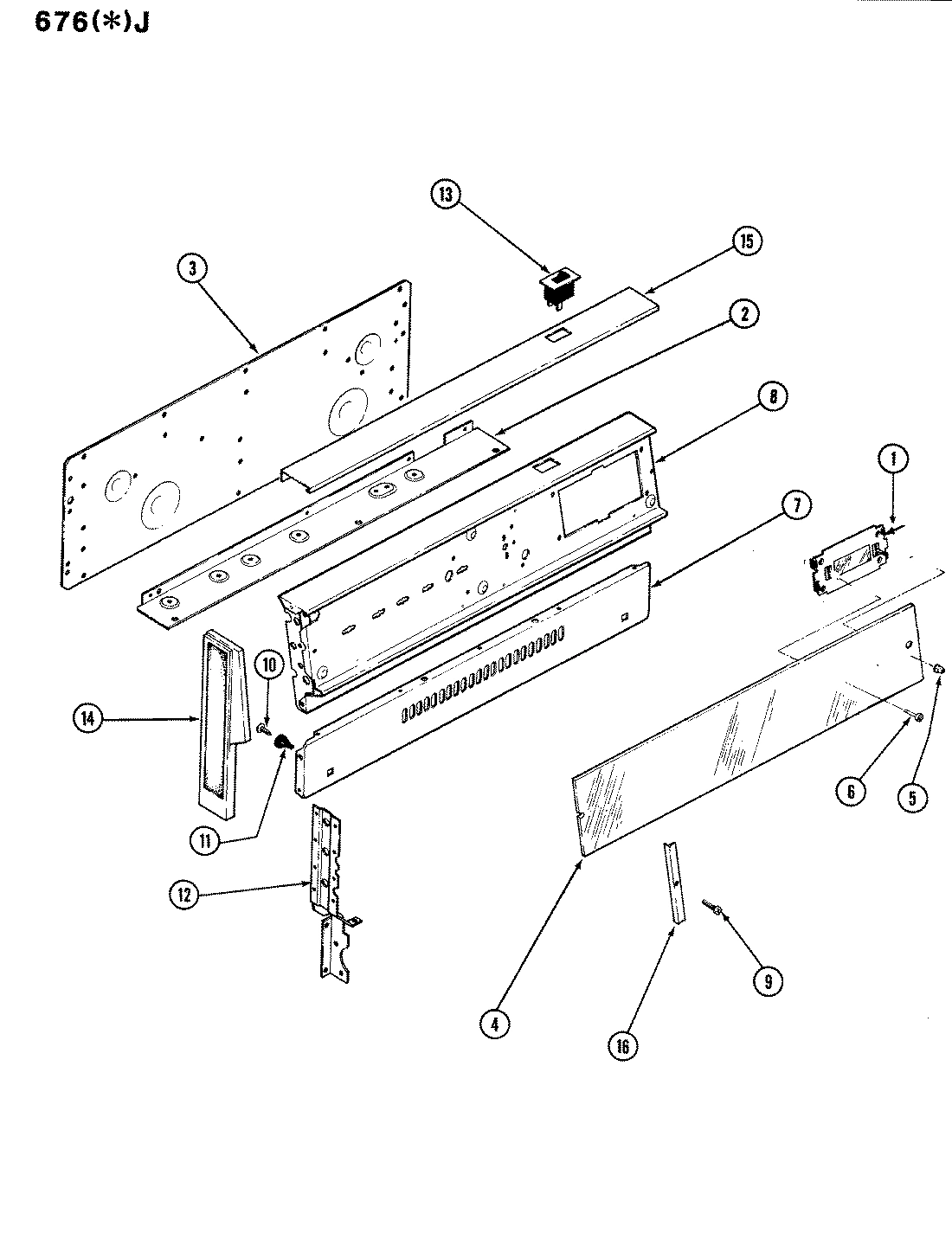

02 - CONTROL PANEL
Common parts from model Whirlpool 676AJ-KSVW GAS RANGE
1
CATCH WPL 8002P00160 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BACK, BROILER SECTION WPL 4002F09745 Contact Us For Availability
1
BACK, BROIL WPL 4002F12345 Contact Us For Availability
1
CLOCK WPL 7602P05760 Contact Us For Availability
1
CLOCK WPL 7602P09760 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
3
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
3
BURNER, TOP COMPLETE WPL 7505A15560 Contact Us For Availability
3
BAFFLE, OVEN TOP WPL 3601F05945 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F14680 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
3
BLOCK, UPPER DISCONT WPL 7401P01060 Contact Us For Availability
3
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
CAP, BURNER WPL 7504P00560 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
4
GLASS, BACKGUARD WPL 7902P21960 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
COVER, WIRE WPL 4005F30451 Contact Us For Availability
5
CLIP WPL 7112P07260 Contact Us For Availability
5
FITTING, STRAIGHT WPL 7507P05360 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01217 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01224 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
6
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
6
GRATE WPL 7518P00460 Contact Us For Availability
6
BOX, FLUE WPL 4006W02680 Contact Us For Availability
6
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
7
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
7
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
7
BRACKET WPL 3801F02145 Contact Us For Availability
7
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
8
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
8
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
8
BRACKET, SPARK MODULE WPL 3801F18045 Contact Us For Availability
8
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
8
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
8
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
8
PANEL, BKGD HVT WHEAT WPL 2601W19986 Contact Us For Availability
8
PANEL, BKGD AVOCADO WPL 2601W19987 Contact Us For Availability
8
PANEL, BKGD COFFEE WPL 2601W19988 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
9
NUT, WING WPL 7103P03060 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
SCREW WPL 7101P00860 Contact Us For Availability
10
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
10
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
10
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P02660 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P08660 Contact Us For Availability
10
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
10
COVER, MODULE WPL 4005F16780 Contact Us For Availability
10
SCREW WPL 7101P11560 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
RING, BLACK WPL 2014F00100 Contact Us For Availability
11
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
11
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
11
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
12
LINING, BROILER WPL 2404F02123 Contact Us For Availability
12
SCREW WPL 7101P25660 Contact Us For Availability
12
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
12
SUPPORT WPL 3807F01080 Contact Us For Availability
12
SUPPORT WPL 3807F01280 Contact Us For Availability
13
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
13
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
13
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
13
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
13
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
14
LINK, BROILER WPL 7807P00160 Contact Us For Availability
14
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
14
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
14
SEAL WPL 7212P00160 Contact Us For Availability
14
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
14
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
15
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
15
PANEL, DRAWER (ALM) WPL 2416F02574 Contact Us For Availability
15
PANEL, DRAWER (HV WHT) WPL 2416F02576 Contact Us For Availability
15
PANEL, DRAWER (AVOC) WPL 2416F02577 Contact Us For Availability
15
PANEL, DRAWER (COFF) WPL 2416F02578 Contact Us For Availability
15
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
15
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
15
THERMOSTAT WPL 7515P00860 Contact Us For Availability
15
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
15
TRIM, BACKGUARD TOP WPL 7715P01560 Contact Us For Availability
16
SCREW WPL 7101P12360 Contact Us For Availability
16
TOP, MAIN SNOW WHITE WPL 2001F06391 Contact Us For Availability
16
TOP, MAIN ALMOND WPL 2001F06394 Contact Us For Availability
16
TOP, MAIN HVT. WHEAT WPL 2001F06396 Contact Us For Availability
16
TOP, MAIN FR AVOC. WPL 2001F06397 Contact Us For Availability
16
TOP, MAIN COFFEE WPL 2001F06398 Contact Us For Availability
16
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
16
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
17
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
17
SEAL, SILASTIC WPL 7208P00760 Contact Us For Availability
17
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
17
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
18
KNOB, THERM WPL 7711P18560 Contact Us For Availability
19
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
19
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
19
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
20
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
20
TUBE, MANIFOLD FEED WPL 7506P09060 Contact Us For Availability
20
TUBE, MANIFOLD WPL 7506P09260 Contact Us For Availability
20
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
20
LINING, SIDE BROILER COMP. WPL 4009F04445 Contact Us For Availability
20
BULB, OVEN WPL 7407P02660 Contact Us For Availability
21
SPRING WPL 7803P01460 Contact Us For Availability
21
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
21
TUBE, REGULATOR WPL 7506P08760 Contact Us For Availability
21
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
22
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
22
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
22
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
22
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
23
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
23
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
23
PAN, BROIL WPL 3401F00423 Contact Us For Availability
24
TRIM ASSY, MANIFOLD WPL 7712A06060 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
25
PANEL, SIDE (AVOC) WPL 2618F05277 Contact Us For Availability
25
PANEL, SIDE COFFEE WPL 2618F05278 Contact Us For Availability
26
PIN, HINGE WPL 7113P00260 Contact Us For Availability
27
RACK, OVEN WPL 7801P03060 Contact Us For Availability
28
RETAINER WPL 3804F01050 Contact Us For Availability
28
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
29
COVER WPL 4005F08880 Contact Us For Availability
29
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
30
SPRING WPL 7803P00260 Contact Us For Availability
31
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
32
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
33
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
33
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
34
CORD, POWER WPL 7402P02460 Contact Us For Availability
34
MANUAL, USE & CARE WPL 8112P00860 Contact Us For Availability
34
MANUAL, USE & CARE WPL 8112P03360 Contact Us For Availability
× ![]()
