Model Whirlpool 674AJ-EKW GAS RANGE – Common Parts & Diagrams

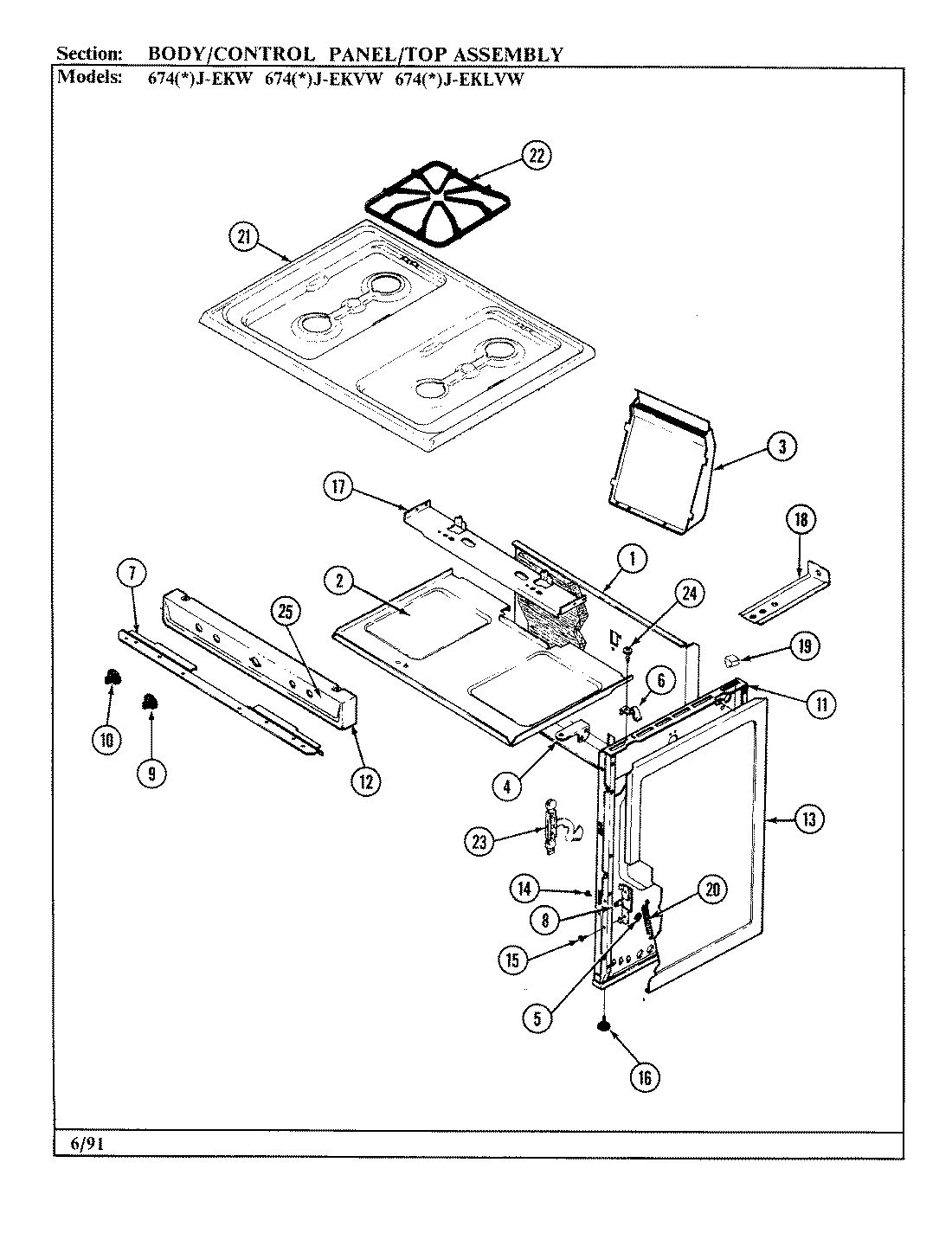

01 - BODY/CONTROL PANEL/TOP ASSY.

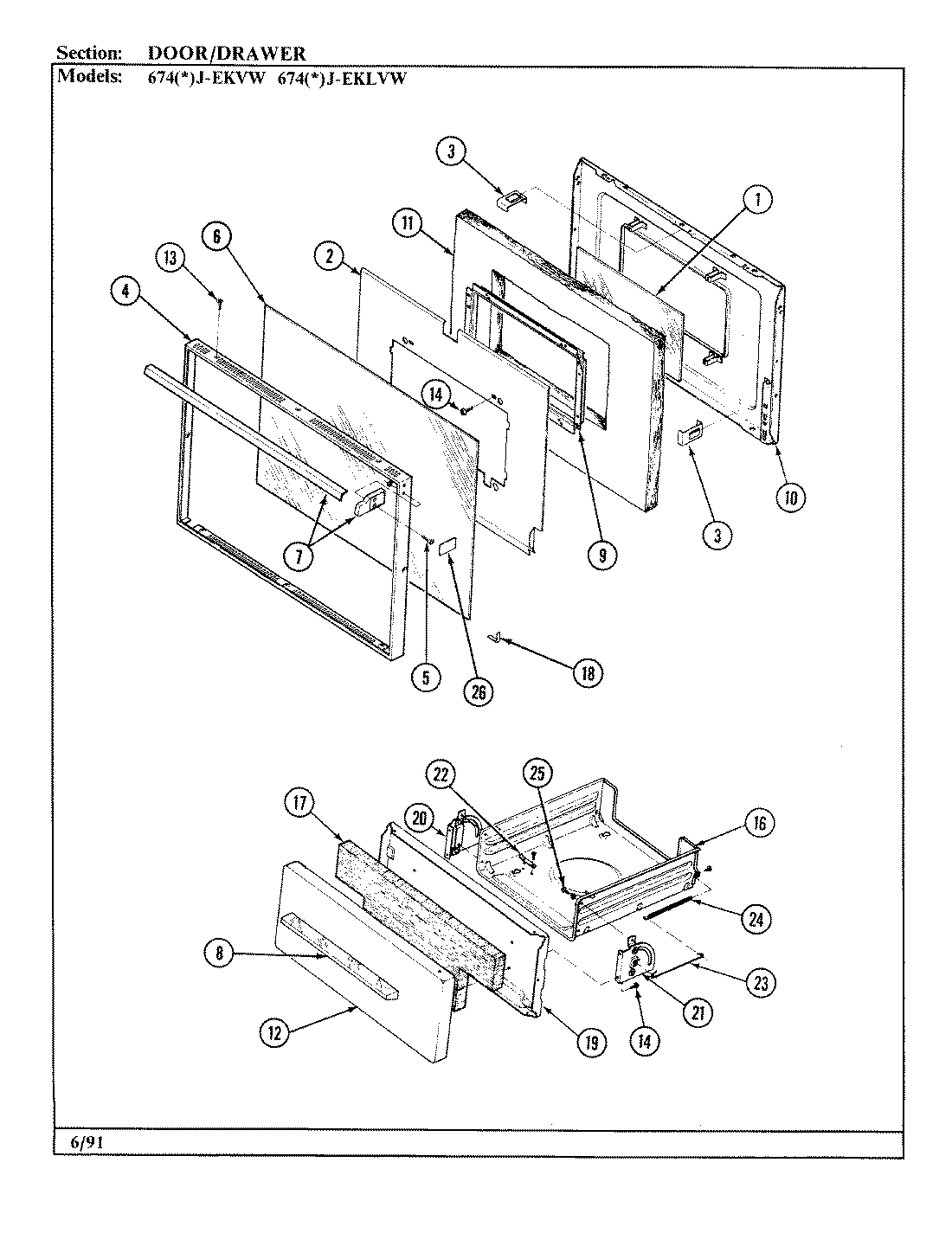

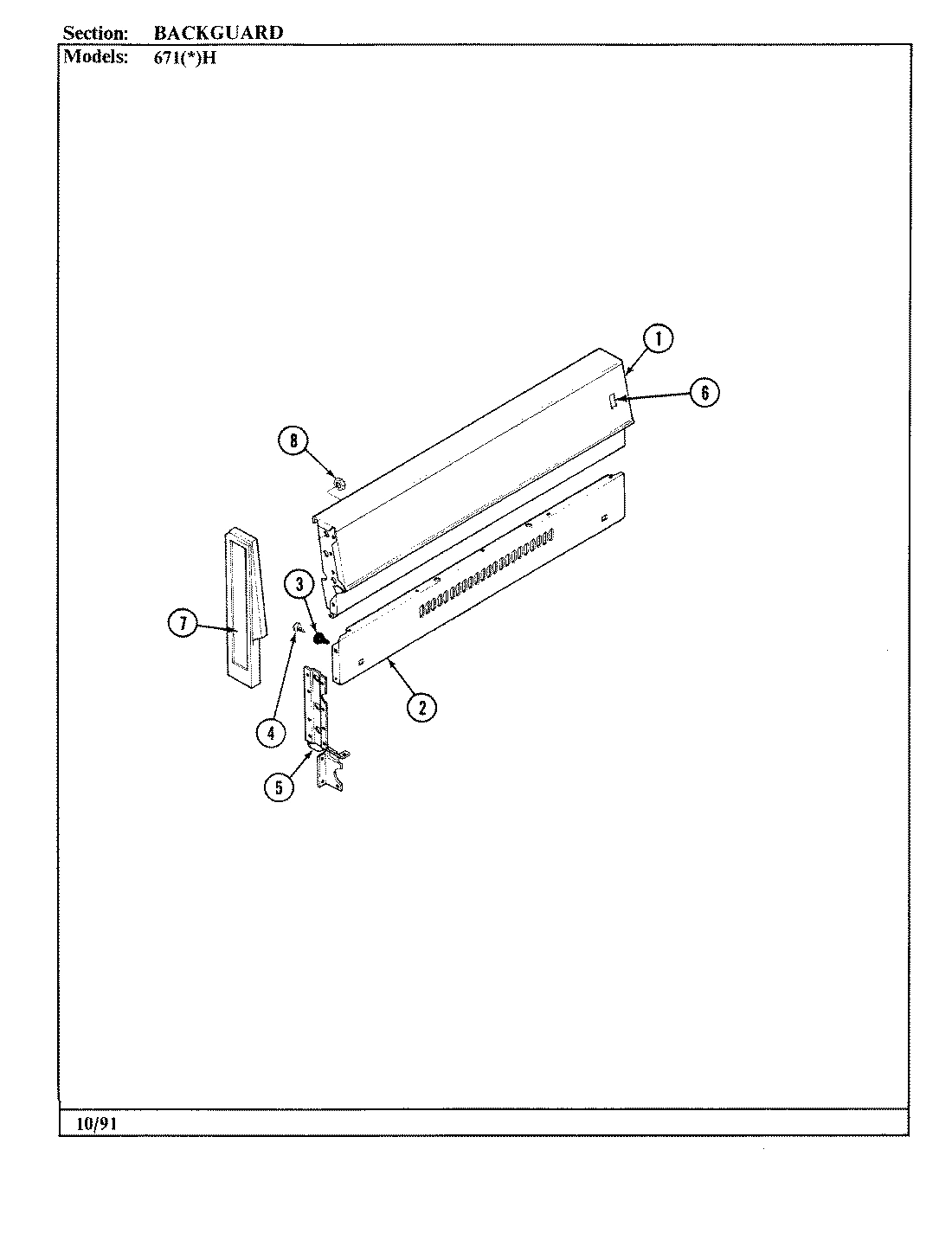

04 - DOOR/DRAWER
02 - CONTROL PANEL
03 - CONTROL SYSTEM

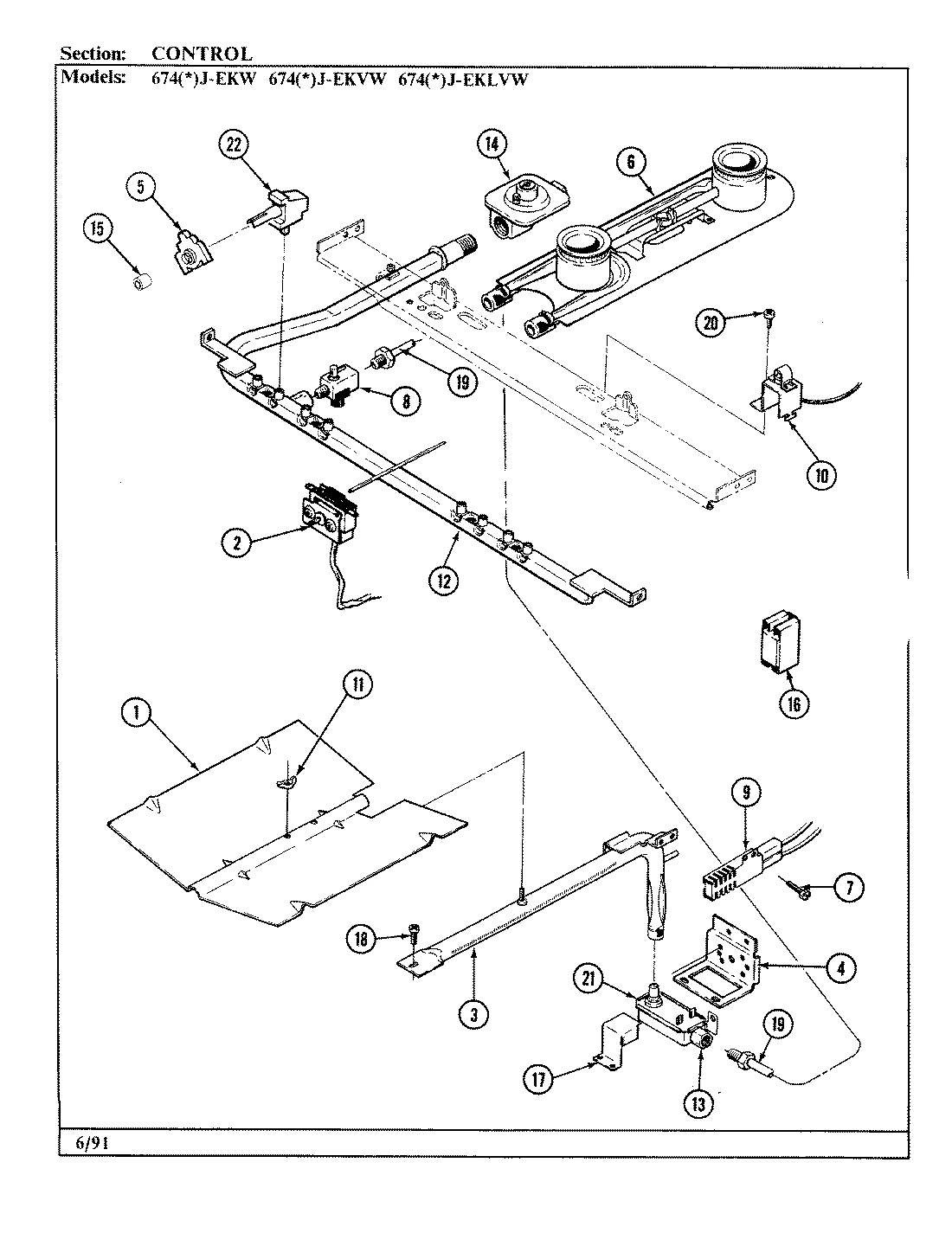

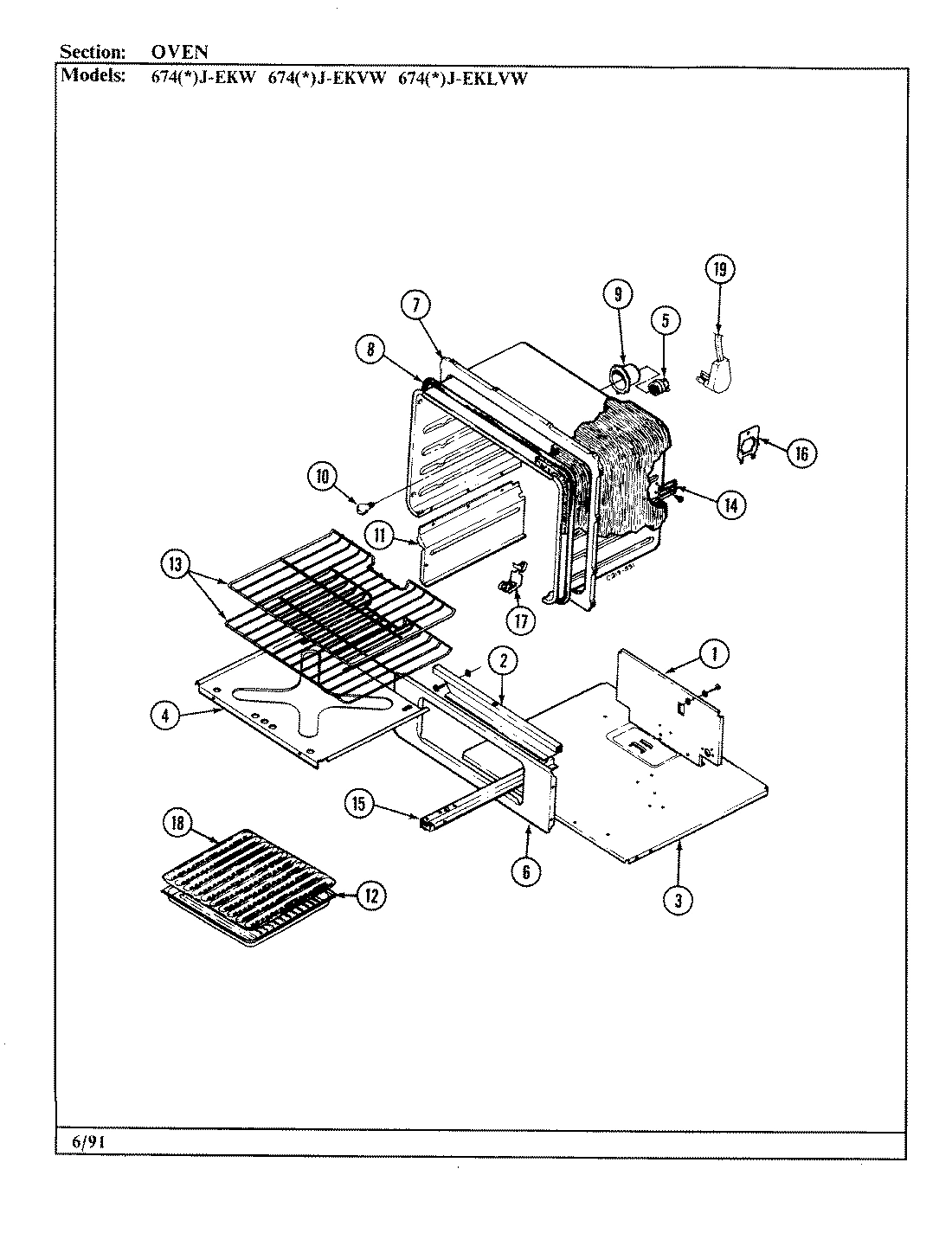

05 - OVEN
Common parts from model Whirlpool 674AJ-EKW GAS RANGE
1
BACK, MAIN WPL 4002F14480 Contact Us For Availability
1
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
1
SCREW WPL 7101P29360 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
COVER, WIRE WPL 4005F30451 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
2
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
PANEL, LOWER BKGD. (BLK) WPL 2620W05323 Contact Us For Availability
2
SHIELD, THEMOSTAT WPL 3604F03051 Contact Us For Availability
2
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
2
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
3
BOX, FLUE WPL 4006W02680 Contact Us For Availability
3
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
3
PANEL BKGD WPL 2601W32084 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
4
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
4
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
4
PANEL, DOOR (ALM) WPL 2401F04274 Contact Us For Availability
4
SCREW WPL 7101P05860 Contact Us For Availability
4
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
4
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
4
SCREW WPL 7101P07460 Contact Us For Availability
4
SUPPORT WPL 3807F12034 Contact Us For Availability
5
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P24760 Contact Us For Availability
5
SWITCH, LIGHTER BURNER WPL 7403P23560 Contact Us For Availability
5
COVER WPL 4005F08880 Contact Us For Availability
5
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
6
GLASS WPL 7902P05160 Contact Us For Availability
6
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
6
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
6
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
6
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
7
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
7
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
7
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE FRAME, UPPER OV WPL W10124350 Contact Us For Availability
8
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
8
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
8
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
8
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
8
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
8
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
8
SEAL WPL 7212P00160 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7711P38960 Contact Us For Availability
9
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
9
BLOCK WPL 7401P01860 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
9
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
10
KNOB, VALVE WPL 7711P38760 Contact Us For Availability
10
LINING, DOOR WPL 2402W15423 Contact Us For Availability
10
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
10
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
10
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
10
BULB, OVEN WPL 7407P02660 Contact Us For Availability
11
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
11
RETAINER, BUTTON WPL 7711P44160 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
12
PANEL, UPPER FRONT (ALM) WPL 2616F01084 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2416F02574 Contact Us For Availability
12
BUTTON, PUSH WPL 7711P44060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P10160 Contact Us For Availability
12
PAN, BROIL WPL 3401F00423 Contact Us For Availability
13
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
13
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
13
BUTTON, SLIDE WPL 7711P44360 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
13
RACK, OVEN WPL 7801P03060 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
14
SPACER, CLOCK GLASS WPL 8010P07860 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
14
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
15
RETAINER, GLASS WPL 3804F09580 Contact Us For Availability
15
TRIM, INLAY (ADMIRAL) WPL 7703P30460 Contact Us For Availability
15
SLEEVE WPL 7214P00360 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
15
SCREW WPL 7101P11560 Contact Us For Availability
16
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
16
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
16
SCREW WPL 7101P07660 Contact Us For Availability
16
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
16
SCREW WPL 7101P00360 Contact Us For Availability
16
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
16
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
17
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
17
INSULATION WPL 7002P00260 Contact Us For Availability
17
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
17
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
18
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
18
SCREW WPL 7101P11460 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
19
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
19
LINING, BROILER WPL 2404F02123 Contact Us For Availability
19
TUBING, 3/8`` X 54.5`` WPL 3414F04944 Contact Us For Availability
19
BLOCK, DISCONNECT WPL 7401P01260 Contact Us For Availability
19
CORD, POWER WPL 7402P01460 Contact Us For Availability
19
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
20
SCREW WPL 7118P00460 Contact Us For Availability
20
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
20
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
20
MANUAL, USE & CARE WPL 8112P05360 Contact Us For Availability
21
SCREW WPL 7101P11260 Contact Us For Availability
21
TOP, MAIN WPL 2001F03584 Contact Us For Availability
21
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
21
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
22
GRATE WPL 2003W00100 Contact Us For Availability
22
CATCH WPL 8002P00160 Contact Us For Availability
22
SCREW WPL 7101P29660 Contact Us For Availability
22
VALVE, BURNER WPL 7502P13260 Contact Us For Availability
23
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
23
LINK, BROILER WPL 7807P00160 Contact Us For Availability
24
SPRING WPL 7803P01460 Contact Us For Availability
25
TRIM, MANIFOLD INSERT WPL 7728P02460 Contact Us For Availability
26
GAS DRIP TRAY KIT----NA WPL 04000043 Contact Us For Availability
× ![]()
