Model Whirlpool 665WH-CVW ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

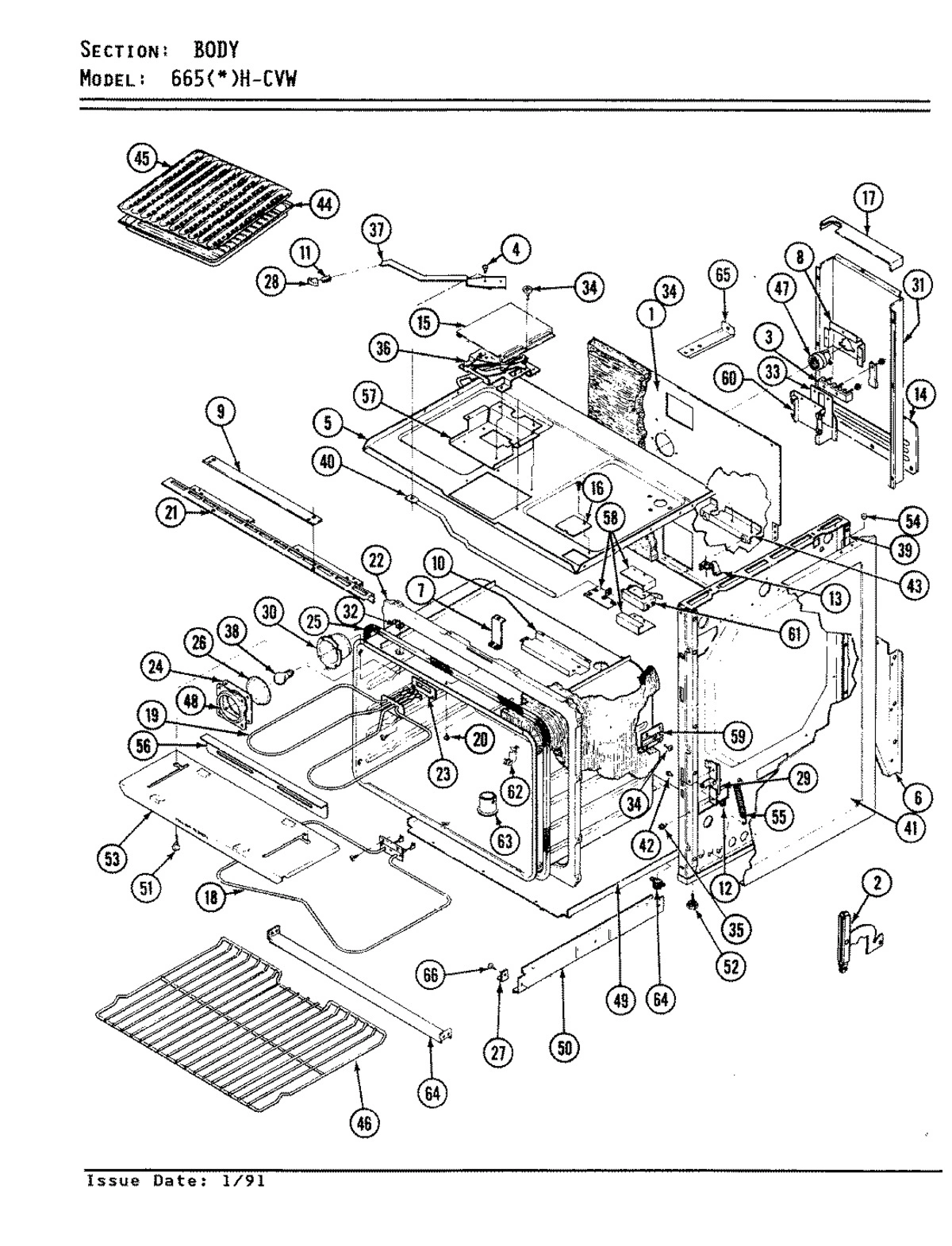

01 - BODY

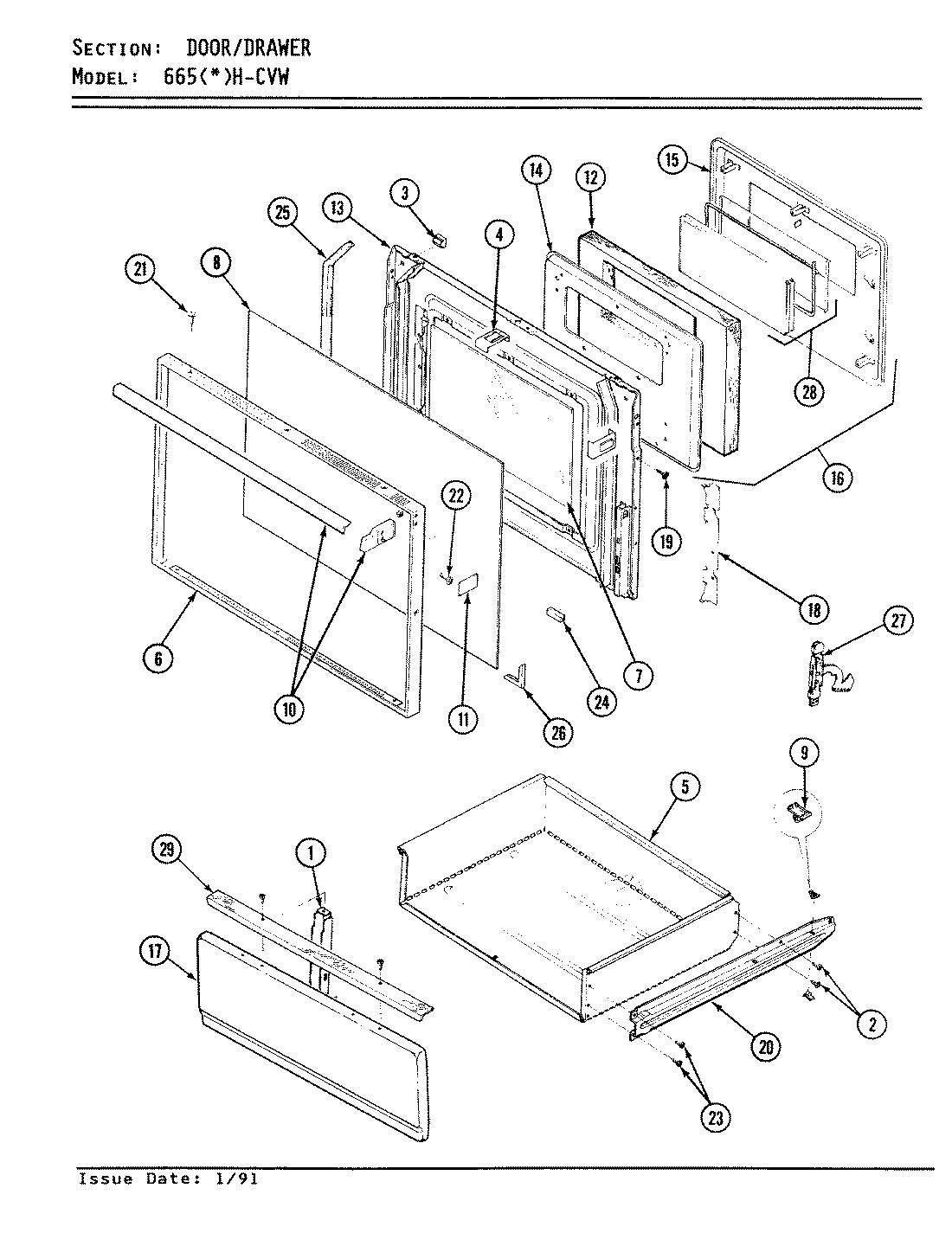

03 - DOOR/DRAWER

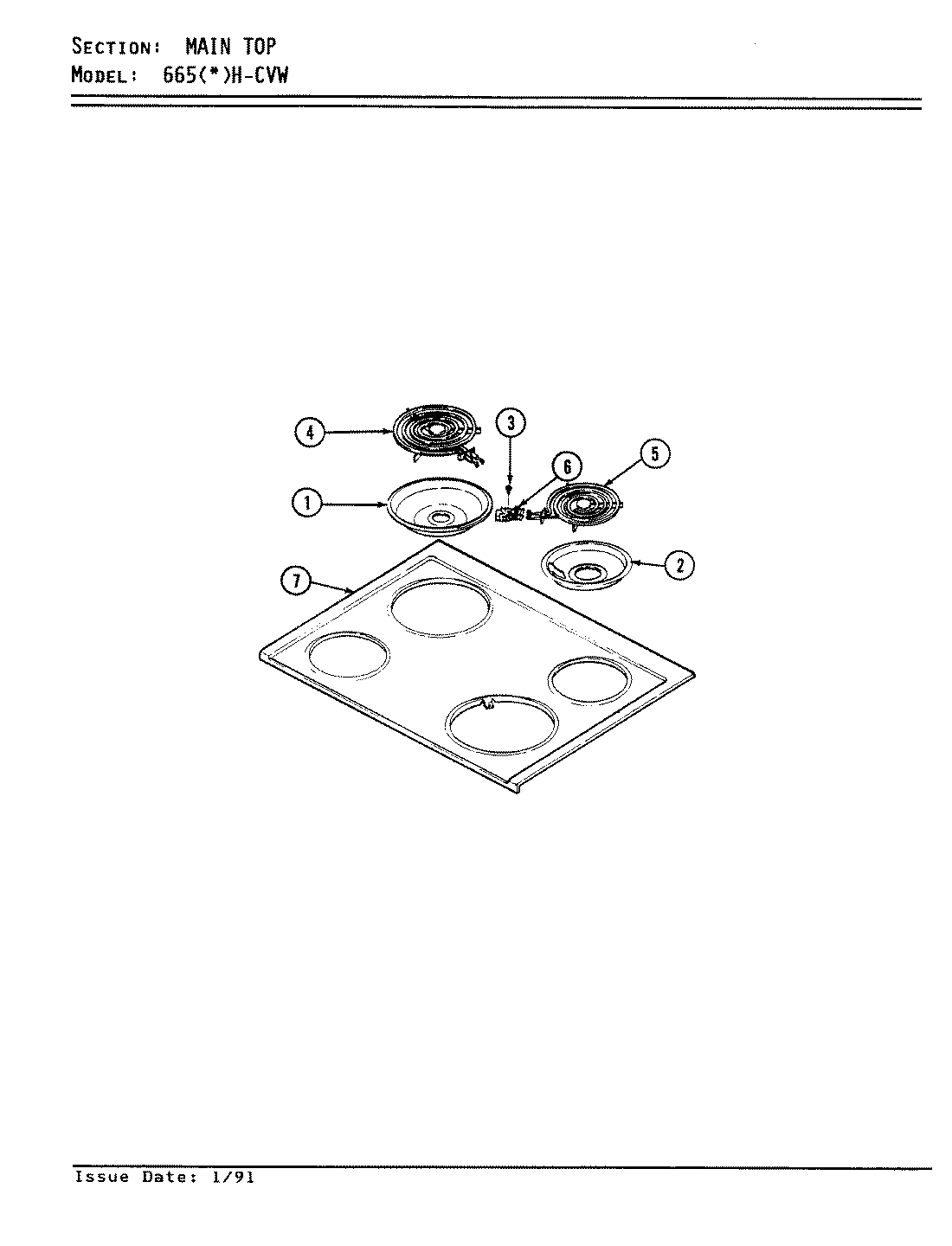

04 - TOP ASSY.
Common parts from model Whirlpool 665WH-CVW ELECTRIC RANGE
1
INSULATION, CLOCK WPL 7003P00260 Contact Us For Availability
1
CLIP WPL 7112P00760 Contact Us For Availability
1
CLOCK WPL 7601P09460 Contact Us For Availability
1
CLOCK WPL 7601P10260 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
1
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
2
KNOB, SELECTOR WPL 7711P38360 Contact Us For Availability
2
SCREW, SERVICE DRAWER WPL 7101P27260 Contact Us For Availability
2
TRIM, BACKGUARD TOP WPL 7715P01560 Contact Us For Availability
3
KNOB, SWITCH WPL 7711P38460 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
3
SCREW WPL 7118P01060 Contact Us For Availability
4
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
4
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
4
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
5
KNOB, THERMOSTAT WPL 7711P38260 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F15823 Contact Us For Availability
5
BOTTOM BURNER BOX WPL 4011F18019 Contact Us For Availability
5
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
6
LIGHT, SIGNAL WPL 7407P06760 Contact Us For Availability
6
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
6
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
6
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
7
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
TOP, MAIN (WHITE) WPL 2002W02881 Contact Us For Availability
7
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
7
SCREW WPL 7118P00460 Contact Us For Availability
8
BACKGUARD ASSY, WHITE WPL 2601W26381 Contact Us For Availability
8
COVER, BKGD WIRE WPL 4005F28480 Contact Us For Availability
8
BRACKET WPL 3801F02451 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
9
BRACKET, MAIN TOP RETAINER WPL 3801F12580 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
10
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
10
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
10
SCREW WPL 7101P07460 Contact Us For Availability
10
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
11
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
11
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
11
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
12
SWITCH, SELECTOR WPL 7403P08160 Contact Us For Availability
12
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
12
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
13
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
13
SWITCH, INF. 250V WPL 7403P18360 Contact Us For Availability
13
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
13
LINING WPL 2402W17315 Contact Us For Availability
13
LINING WPL 2402W17319 Contact Us For Availability
13
NUT, SNAP WPL 7103P11460 Contact Us For Availability
13
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
14
THERMOSTAT WPL 7404P05260 Contact Us For Availability
14
COVER ACCESS WPL 4005F30251 Contact Us For Availability
14
PAD, INNER WPL 2410F01651 Contact Us For Availability
15
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
15
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
15
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
15
PAD, DOOR WPL 2410W04115 Contact Us For Availability
15
PAD, DOOR WPL 2410W04119 Contact Us For Availability
16
TRIM, BACKGUARD WPL 7703P20460 Contact Us For Availability
16
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
17
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
17
COVER, WIRE HOUSING WPL 4005F18280 Contact Us For Availability
17
PANEL, SERVICE DRAWER WHITE WPL 2416F00671 Contact Us For Availability
18
SCREW WPL 7101P00860 Contact Us For Availability
18
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
18
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
18
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
19
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
19
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
19
CLIP, BROIL ELEMENT SUPPORT WPL 8004P01360 Contact Us For Availability
19
RIVET, TRIM WPL 7107P01560 Contact Us For Availability
20
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
20
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
21
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
21
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
21
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
22
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
22
SCREW WPL 7101P12360 Contact Us For Availability
23
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
23
SCREW WPL 7101P06160 Contact Us For Availability
24
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
24
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
25
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
25
SEAL WPL 7208P00260 Contact Us For Availability
26
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
26
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
27
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
27
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
28
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
28
RETAINER WPL 3804F02245 Contact Us For Availability
28
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
28
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
28
WINDOW PAK WPL 7902S30360 Contact Us For Availability
29
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
29
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
29
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
29
HANDLE DOOR WHT WPL 2411F00171 Contact Us For Availability
30
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
30
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
30
BRACKET WPL 3801F03151 Contact Us For Availability
31
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
32
NUT, KEPS BLACK WPL 7103P06260 Contact Us For Availability
33
INSULATION, TERM BD WPL 7003P01860 Contact Us For Availability
35
SCREW WPL 7101P11260 Contact Us For Availability
36
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
36
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
37
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
38
BULB, OVEN WPL 7407P02660 Contact Us For Availability
39
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
39
NUT, NYLON WPL 7103P04560 Contact Us For Availability
39
RIVET WPL 7107P01760 Contact Us For Availability
40
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
41
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
42
PIN, HINGE WPL 7113P00260 Contact Us For Availability
43
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
43
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
44
PAN, BROIL WPL 3401F00423 Contact Us For Availability
45
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
46
RACK, OVEN WPL 7801P03060 Contact Us For Availability
47
SHIELD, LIGHT RECEPT WPL 3604F00780 Contact Us For Availability
47
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
48
WPL 7101P06460 WPL 7101P06460 Contact Us For Availability
48
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
49
WPL 3804F10280 WPL 3804F10280 Contact Us For Availability
50
WPL 3406F02751 WPL 3406F02751 Contact Us For Availability
51
WPL 7118P00160 WPL 7118P00160 Contact Us For Availability
52
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
53
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
54
WPL 8003P01160 WPL 8003P01160 Contact Us For Availability
55
WPL 7803P05560 WPL 7803P05560 Contact Us For Availability
56
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
57
WPL 3807F19545 WPL 3807F19545 Contact Us For Availability
57
WPL 3807F40845 WPL 3807F40845 Contact Us For Availability
58
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
59
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
60
WPL 3807F15760 WPL 3807F15760 Contact Us For Availability
61
WPL 7003P01960 WPL 7003P01960 Contact Us For Availability
61
WPL 7003P03960 WPL 7003P03960 Contact Us For Availability
61
WPL 7403P04560 WPL 7403P04560 Contact Us For Availability
62
WPL 7112P00460 WPL 7112P00460 Contact Us For Availability
63
WPL 8026A00760 WPL 8026A00760 Contact Us For Availability
64
WPL 3802F07651 WPL 3802F07651 Contact Us For Availability
65
WPL 3801F19851 WPL 3801F19851 Contact Us For Availability
65
WPL 3801F21851 WPL 3801F21851 Contact Us For Availability
65
WPL 7101P28960 WPL 7101P28960 Contact Us For Availability
66
WPL 7101P01360 WPL 7101P01360 Contact Us For Availability
× ![]()
