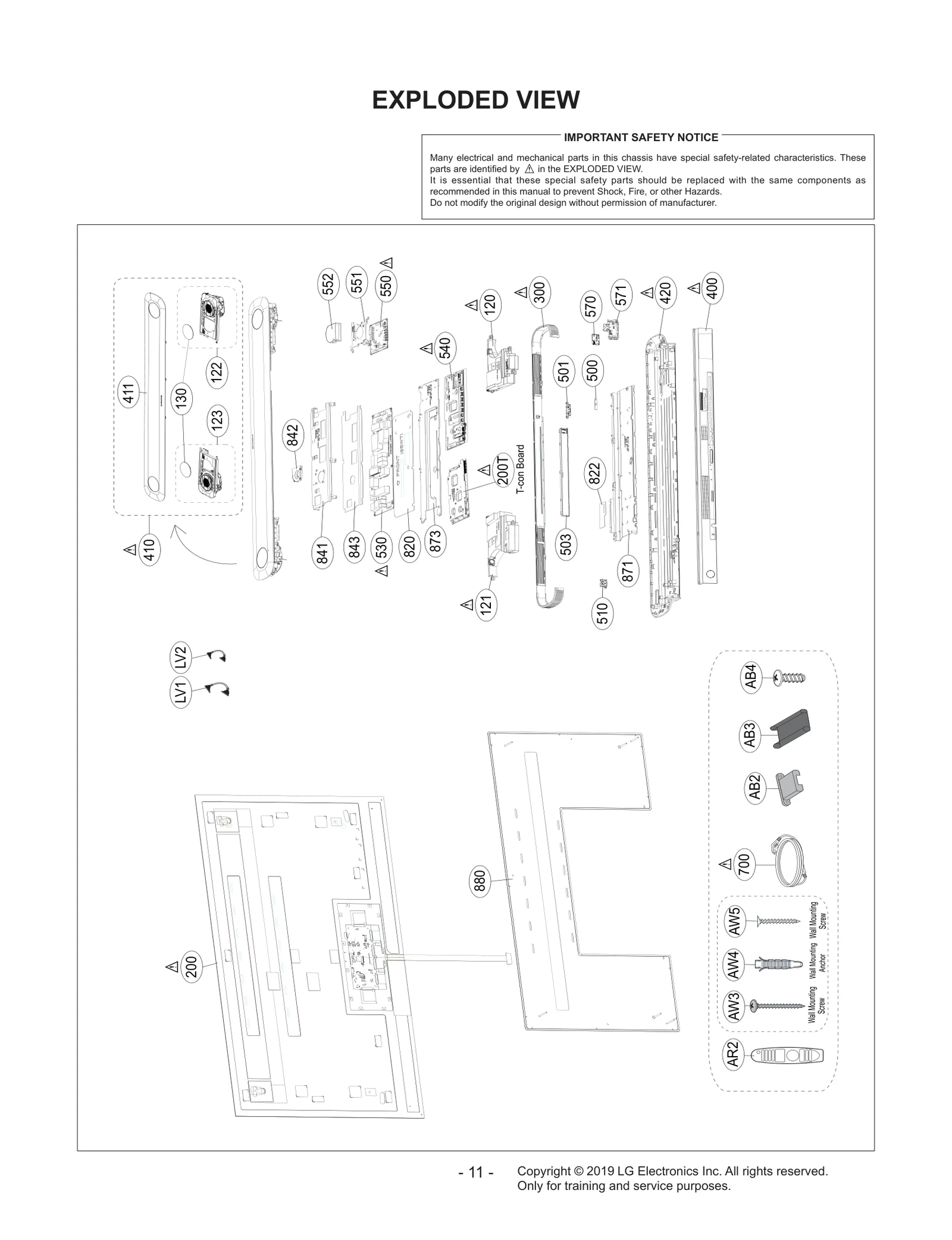

Model LG 65WU960H – Common Parts & Diagrams

121
Speaker Assembly
Speaker Assembly LGE EAB64370403 Contact Us For Availability
View on Model
123
Chassis Assembly
Chassis Assembly LGE EBT64494002 Contact Us For Availability
View on Model
130
Cover
Cover LGE MCK69312501 Contact Us For Availability
View on Model
200
OLED,Module-AM
OLED,Module-AM LGE EAJ64350601 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ75547103 Contact Us For Availability
View on Model
400
Cover Assembly
Cover Assembly LGE ACQ89321831 Contact Us For Availability
View on Model
410
Cover Assembly
Cover Assembly LGE ACQ89352807 Contact Us For Availability
View on Model
411
Cover
Cover LGE MCK69312404 Contact Us For Availability
View on Model
500
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR83590501 Contact Us For Availability
View on Model
501
Indicator
Indicator LGE MES63898601 Contact Us For Availability
View on Model
503
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR83842801 Contact Us For Availability
View on Model
510
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR83590701 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU66217701 Contact Us For Availability
View on Model
541
Plate,Shield
Plate,Shield LGE MGJ65218304 Contact Us For Availability
View on Model
571
Bracket
Bracket LGE MAZ65405102 Contact Us For Availability
View on Model
700
Power Cord,Attach
Power Cord,Attach LGE EAD64007302 Contact Us For Availability
View on Model
822
Insulator
Insulator LGE MEV66091201 Contact Us For Availability
View on Model
841
Plate,Shield
Plate,Shield LGE MGJ65218503 Contact Us For Availability
View on Model
842
Fan Module
Fan Module LGE EAL61800806 Contact Us For Availability
View on Model
871
Base
Base LGE MAM64387603 Contact Us For Availability
View on Model
880
Bracket Assembly
Bracket Assembly LGE ABA76070703 Contact Us For Availability
View on Model
AB2
Bracket
Bracket LGE MAZ65446603 Contact Us For Availability
View on Model
AB3
Bracket
Bracket LGE MAZ65424501 Contact Us For Availability
View on Model
AB4
Screw,Taptite
Screw,Taptite LGE FAB32938601 Contact Us For Availability
View on Model
AR2
Remote Controller Assembly
Remote Controller Assembly LGE AKB75615302 Contact Us For Availability
View on Model
AW3
Screw,Tapping
Screw,Tapping LGE FAB31878702 Contact Us For Availability
View on Model
AW4
Bracket
Bracket LGE MAZ63843201 Contact Us For Availability
View on Model
AW5
Screw,Tapping
Screw,Tapping LGE FAB31878706 Contact Us For Availability
View on Model
HP1
Harness,Multi
Harness,Multi LGE EAD64551302 Contact Us For Availability
View on Model
HR1
Harness,Multi
Harness,Multi LGE EAD64065201 Contact Us For Availability
View on Model
HR3
Harness,Single
Harness,Single LGE EAD63970902 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD63727413 Contact Us For Availability
View on Model
HS2
Harness,Multi
Harness,Multi LGE EAD63970701 Contact Us For Availability
View on Model
HS3
Harness,Multi
Harness,Multi LGE EAD63970702 Contact Us For Availability
View on Model
HW1
Harness,Single
Harness,Single LGE EAD64065001 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63285710 Contact Us For Availability
View on Model
LV2
Cable,FFC
Cable,FFC LGE EAD63285609 Contact Us For Availability
View on Model
