Model LG 65UK777H0UD – Common Parts & Diagrams

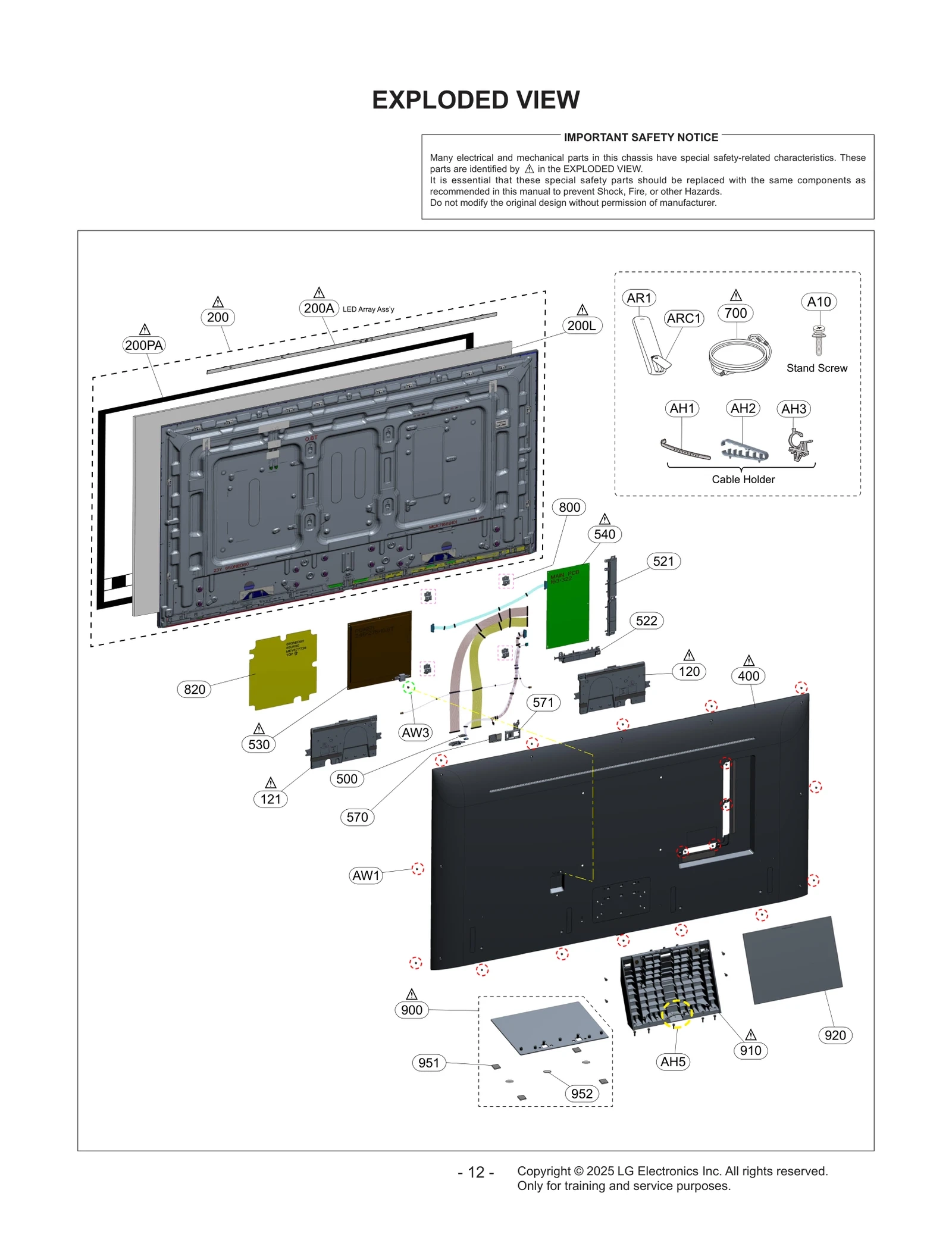

Diagram 0
Diagram 1
Common parts from model LG 65UK777H0UD
200
LCD,Module-TFT LGE EAJ65945503 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30388813 Contact Us For Availability
200L
Plate Assembly,Light Guide LGE AGU30115301 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ65835517 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30742282 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR38734204 Contact Us For Availability
521
Bracket LGE MAZ67718314 Contact Us For Availability
522
Bracket LGE MAZ67718508 Contact Us For Availability
530
Power Supply Assembly LGE EAY65920721 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU30383701 Contact Us For Availability
571
Bracket LGE MAZ67664408 Contact Us For Availability
820
Plate Assembly LGE AGU30078906 Contact Us For Availability
900
Base Assembly LGE AAN30090905 Contact Us For Availability
910
Bracket Assembly,Stand LGE ABA30081608 Contact Us For Availability
920
Cover,Accessory LGE MCK71685210 Contact Us For Availability
AH5
Holder LGE MEG66708201 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB76045808 Contact Us For Availability
ARC1
Cover,Rear LGE MCK62976101 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727371 Contact Us For Availability
HW1
Cable,FFC LGE EAD65825862 Contact Us For Availability
LV1
Cable,FFC LGE EAD66038303 Contact Us For Availability
LV2
Cable,FFC LGE EAD66038304 Contact Us For Availability
× ![]()
