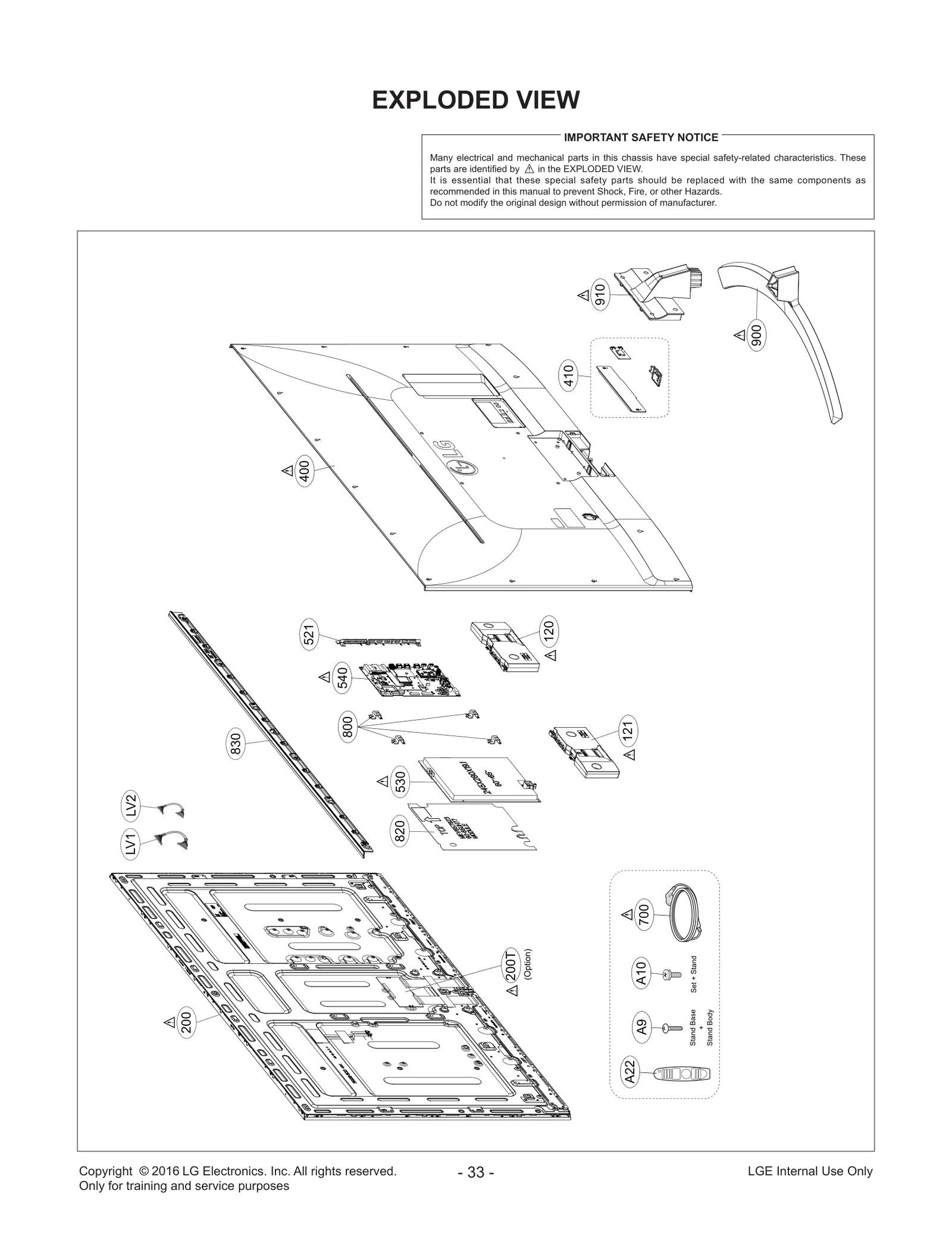

Model LG 65UH7700 – Common Parts & Diagrams

200A
Package Assembly,LED Array
Package Assembly,LED Array LGE AGF79081601 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88454104 Contact Us For Availability
View on Model
410
Cover Assembly
Cover Assembly LGE ACQ88454404 Contact Us For Availability
View on Model
521
Bracket
Bracket LGE MAZ65130209 Contact Us For Availability
View on Model
800
Supporter,VESA
Supporter,VESA LGE MJH64334001 Contact Us For Availability
View on Model
820
Insulator
Insulator LGE MEV65792301 Contact Us For Availability
View on Model
830
Decor
Decor LGE MCR66387704 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN75630502 Contact Us For Availability
View on Model
A22S
Remote Controller Assembly
Remote Controller Assembly LGE AKB74855402 Contact Us For Availability
View on Model
B1
Box
Box LGE MAY67440401 Contact Us For Availability
View on Model
B2
Box
Box LGE MAY67272003 Contact Us For Availability
View on Model
CA2
Harness,Multi
Harness,Multi LGE EAD63727302 Contact Us For Availability
View on Model
CAB1
Cable,Assembly
Cable,Assembly LGE EAD61273133 Contact Us For Availability
View on Model
CAB2
Cable,Assembly
Cable,Assembly LGE EAD61273123 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63767513 Contact Us For Availability
View on Model
Q3302
TR,Bipolar
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
View on Model
R2335
Resistor,Chip
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
View on Model
R3309
Resistor,Chip
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
View on Model
R8117
Resistor,Chip
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
View on Model
