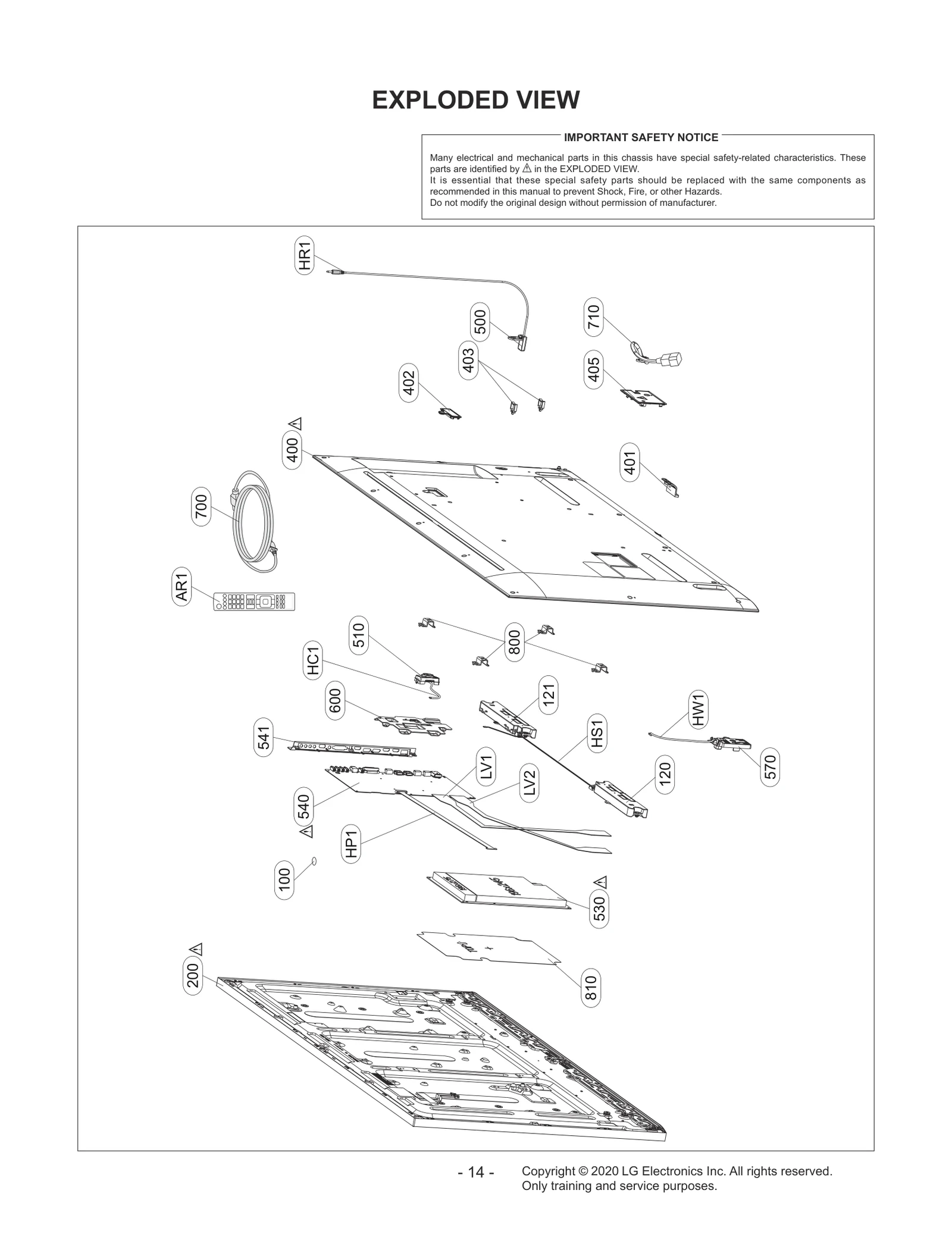

Model LG 65UH5F-H – Common Parts & Diagrams

100
Primary Cell Battery,Lithium
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
View on Model
120
Speaker Assembly
Speaker Assembly LGE EAB63628203 Contact Us For Availability
View on Model
121
Speaker Assembly
Speaker Assembly LGE EAB63628204 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ91465724 Contact Us For Availability
View on Model
401
Bracket
Bracket LGE MAZ67107402 Contact Us For Availability
View on Model
402
Cover
Cover LGE MCK71069902 Contact Us For Availability
View on Model
403
Holder
Holder LGE 4930V00218C Contact Us For Availability
View on Model
405
Cover
Cover LGE MCK71090402 Contact Us For Availability
View on Model
500
Chassis Assembly
Chassis Assembly LGE EBT63756604 Contact Us For Availability
View on Model
510
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR89093001 Contact Us For Availability
View on Model
540
Main Board,BPR Total Assembly
Main Board,BPR Total Assembly LGE EBU66415302 Contact Us For Availability
View on Model
541
Bracket
Bracket LGE MAZ67087602 Contact Us For Availability
View on Model
571
Bracket
Bracket LGE MAZ67105803 Contact Us For Availability
View on Model
600
Heat Sink
Heat Sink LGE MED64870902 Contact Us For Availability
View on Model
800
Supporter,VESA
Supporter,VESA LGE MJH64334001 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB75095395 Contact Us For Availability
View on Model
HP1
Harness,Single
Harness,Single LGE EAD64586106 Contact Us For Availability
View on Model
HR1
Cable,Assembly
Cable,Assembly LGE EAD63406601 Contact Us For Availability
View on Model
HW1
Harness,Single
Harness,Single LGE EAD64126102 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD64666213 Contact Us For Availability
View on Model
LV2
Cable,FFC
Cable,FFC LGE EAD64666214 Contact Us For Availability
View on Model
