Model LG 65NANO99UPA – Common Parts & Diagrams

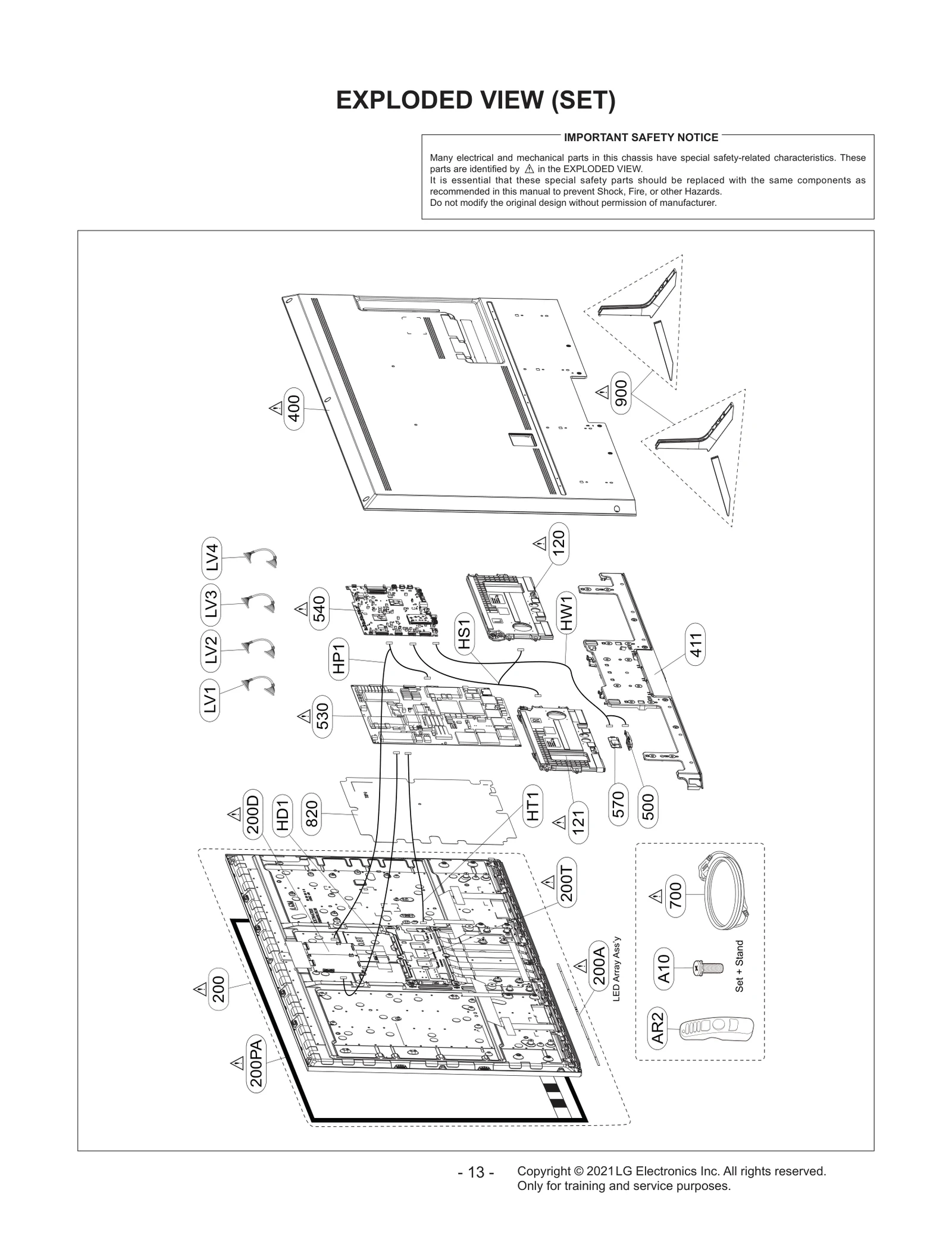

Diagram 0
Common parts from model LG 65NANO99UPA
120
Speaker Assembly LGE EAB65819001 Contact Us For Availability
121
Speaker Assembly LGE EAB65819002 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65689301 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30128203 Contact Us For Availability
200D
PCB Assembly LGE EBR32283801 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ65760501 Contact Us For Availability
200T
Time Control LGE EAT65160601 Contact Us For Availability
400
Cover Assembly LGE ACQ30224166 Contact Us For Availability
411
Cover Assembly LGE ACQ30224009 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR31871301 Contact Us For Availability
530
Power Supply Assembly LGE EAY65894601 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU66274810 Contact Us For Availability
820
Plate Assembly LGE AGU30008401 Contact Us For Availability
900
Base Assembly LGE AAN30013125 Contact Us For Availability
HD1
Harness,Single LGE EAD63026120 Contact Us For Availability
HP1
Harness,Multi LGE EAD64687808 Contact Us For Availability
HS1
Harness,Multi LGE EAD65894903 Contact Us For Availability
HT1
Harness,Single LGE EAD63725103 Contact Us For Availability
LV1
Cable,FFC LGE EAD63285762 Contact Us For Availability
LV2
Cable,FFC LGE EAD63285763 Contact Us For Availability
LV3
Cable,FFC LGE EAD63285764 Contact Us For Availability
LV4
Cable,FFC LGE EAD63285765 Contact Us For Availability
× ![]()
