Model Whirlpool 65HN-1 ELECTRIC RANGE – Common Parts & Diagrams

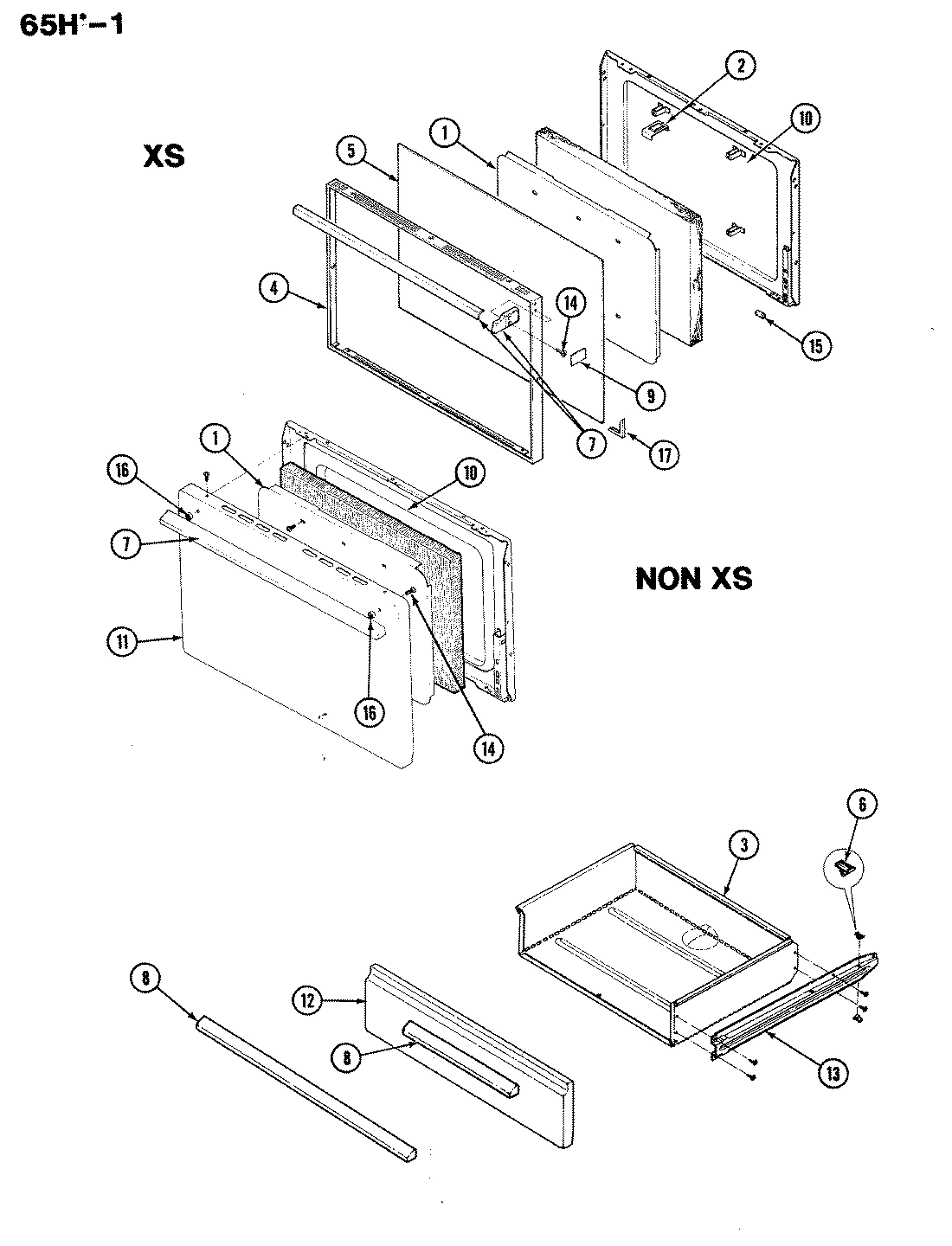

02 - DOOR/DRAWER

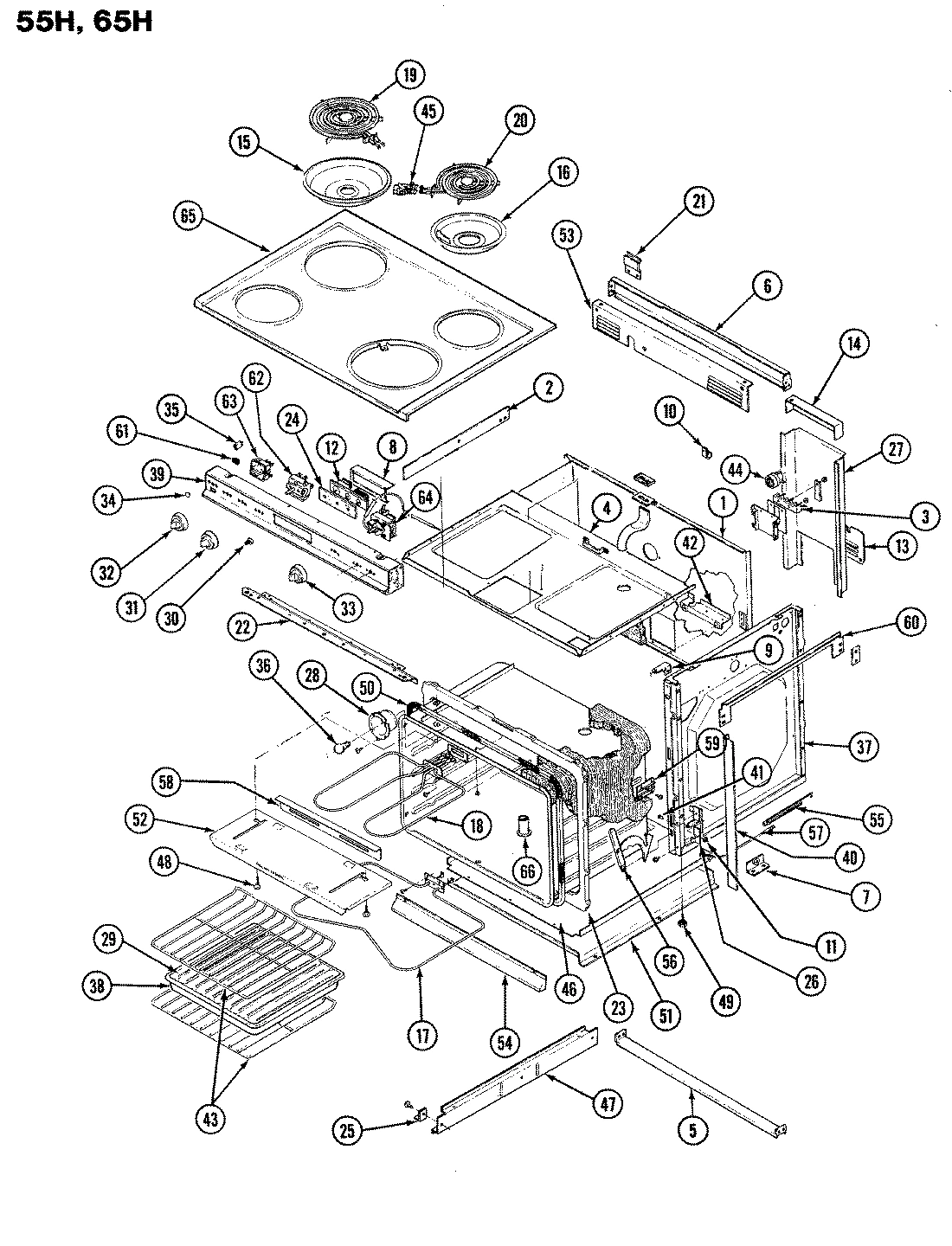

01 - BODY
Common parts from model Whirlpool 65HN-1 ELECTRIC RANGE
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
KIT, BACKGUARD WPL 1430276 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
BOX, BURNER WPL 4011F08223 Contact Us For Availability
5
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
5
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
6
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P00260 Contact Us For Availability
9
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
9
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
9
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
9
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
9
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
9
CHANNEL, WIRE REAR WPL 3818F02151 Contact Us For Availability
9
CHANNEL, WIRE SIDE WPL 3818F02251 Contact Us For Availability
9
SCREW WPL 7101P06160 Contact Us For Availability
9
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
10
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
10
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
12
PANEL SVC DR BLK WPL 2416F01770 Contact Us For Availability
13
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
13
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
13
COVER, BKGD WIRE WPL 4005F02880 Contact Us For Availability
13
COVER ACCESS WPL 4005F30251 Contact Us For Availability
14
SCREW WPL 7101P12360 Contact Us For Availability
14
COVER WPL 4005F00545 Contact Us For Availability
14
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
16
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
17
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
17
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
17
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
18
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
18
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
19
ELEMENT, GIANT SURFACE WPL 7406P01460 Contact Us For Availability
20
ELEMENT, STD. SURFACE WPL 7406P01760 Contact Us For Availability
21
KS-60 FILLER STRIP WPL 1430241 Contact Us For Availability
21
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
22
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
23
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
25
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
25
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
25
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
26
HINGE WPL 7106P04060 Contact Us For Availability
27
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
29
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
29
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
31
KNOB, SELECTOR SWITCH WPL 7711P22060 Contact Us For Availability
32
KNOB, SURFACE SWITCH WPL 7711P21960 Contact Us For Availability
33
KNOB, THERMOSTAT WPL 7711P21860 Contact Us For Availability
35
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
37
LINING, INNER SIDE WPL 04000019 Contact Us For Availability
37
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
38
PAN, BROIL WPL 3401F00423 Contact Us For Availability
38
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
40
WPL 2618F04571 WPL 2618F04571 Contact Us For Availability
41
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
42
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
42
WPL 3605F15651 WPL 3605F15651 Contact Us For Availability
42
WPL 7718P00360 WPL 7718P00360 Contact Us For Availability
43
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
46
WPL 3804F09380 WPL 3804F09380 Contact Us For Availability
48
WPL 7101P00560 WPL 7101P00560 Contact Us For Availability
48
WPL 7101P11260 WPL 7101P11260 Contact Us For Availability
49
WPL 7101P25560 WPL 7101P25560 Contact Us For Availability
50
WPL 7212P00260 WPL 7212P00260 Contact Us For Availability
52
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
53
WPL 3604F05680 WPL 3604F05680 Contact Us For Availability
54
WPL 3604F06651 WPL 3604F06651 Contact Us For Availability
54
WPL 3604F06751 WPL 3604F06751 Contact Us For Availability
54
WPL 3604F09134 WPL 3604F09134 Contact Us For Availability
55
WPL 7803P01360 WPL 7803P01360 Contact Us For Availability
56
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
58
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
59
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
61
WPL W10124350 WPL W10124350 Contact Us For Availability
62
WPL 7403P03160 WPL 7403P03160 Contact Us For Availability
63
WPL 7403P16860 WPL 7403P16860 Contact Us For Availability
64
WPL 7404P02960 WPL 7404P02960 Contact Us For Availability
65
WPL 2002W04991 WPL 2002W04991 Contact Us For Availability
66
WPL 8026P00160 WPL 8026P00160 Contact Us For Availability
× ![]()
