Model LG 65EV5C-3 – Common Parts & Diagrams

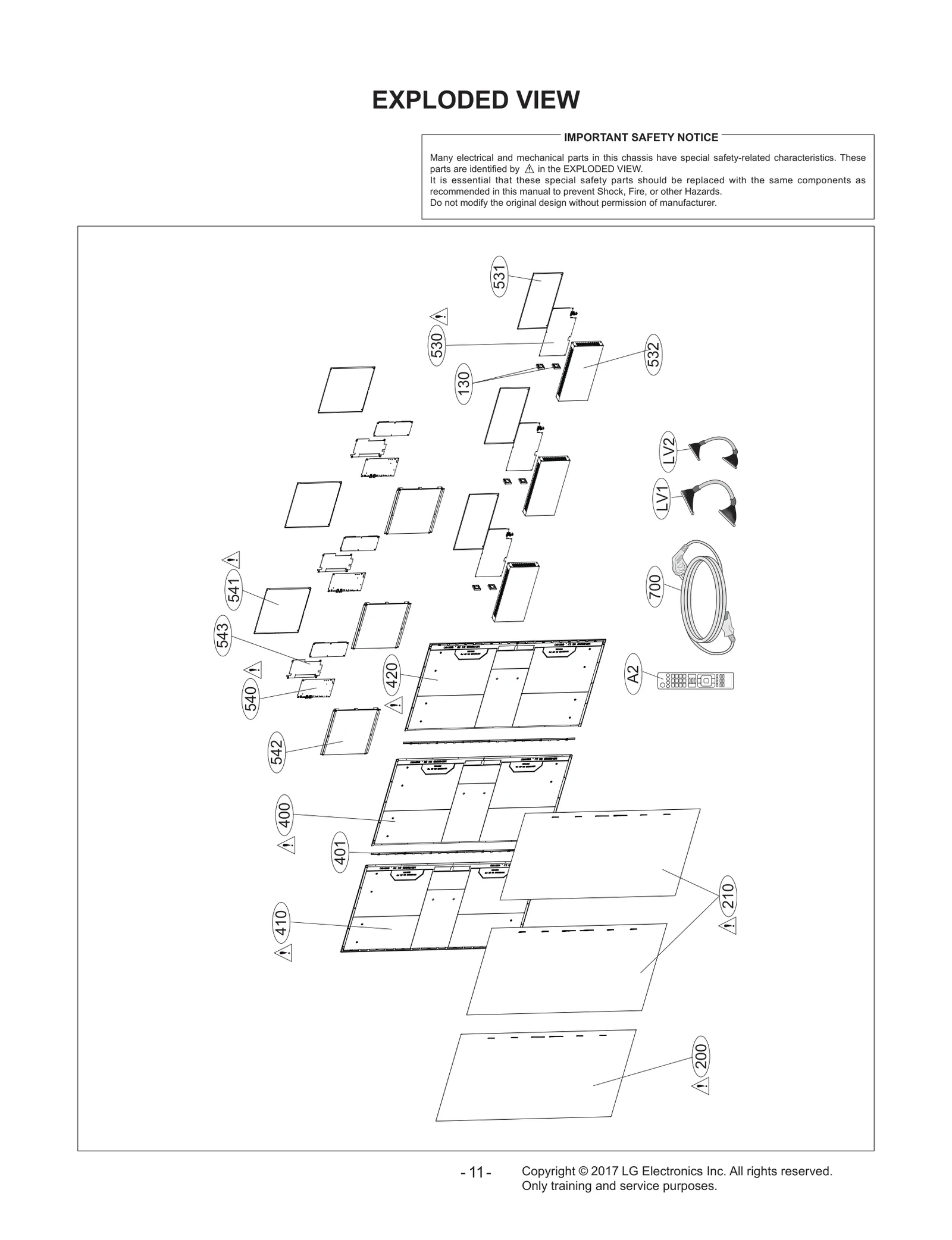

Diagram 0
Diagram 1
Common parts from model LG 65EV5C-3
200
OLED,Panel-AM LGE EAJ63892102 Contact Us For Availability
210
OLED,Panel-AM LGE EAJ63892103 Contact Us For Availability
400
Cover Assembly LGE ACQ89397901 Contact Us For Availability
401
Package Assembly LGE AGF78678501 Contact Us For Availability
410
Cover Assembly LGE ACQ89397902 Contact Us For Availability
420
Cover Assembly LGE ACQ89397903 Contact Us For Availability
530
Power Supply Assembly LGE EAY64509301 Contact Us For Availability
531
Plate LGE MGJ65310801 Contact Us For Availability
532
Plate LGE MGJ65332101 Contact Us For Availability
540
BPR Total Assembly LGE EBU64023701 Contact Us For Availability
541
Plate LGE MGJ65331901 Contact Us For Availability
543
Plate,Shield LGE MGJ65188601 Contact Us For Availability
A4
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
A6
Cable,Assembly LGE EAD62707902 Contact Us For Availability
A8
Cable,Assembly LGE EAD63647503 Contact Us For Availability
A11
Screw,Machine LGE FAB30008921 Contact Us For Availability
A12
Screw,Machine LGE FAB30006101 Contact Us For Availability
A13
Insulator LGE MEV61857020 Contact Us For Availability
A14
Bracket LGE MAZ63843201 Contact Us For Availability
A15
Harness,Multi LGE EAD64145902 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
LV1
Cable,FFC LGE EAD63787817 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787909 Contact Us For Availability
× ![]()
