Model Whirlpool 655AH-CVW ELECTRIC RANGE – Common Parts & Diagrams

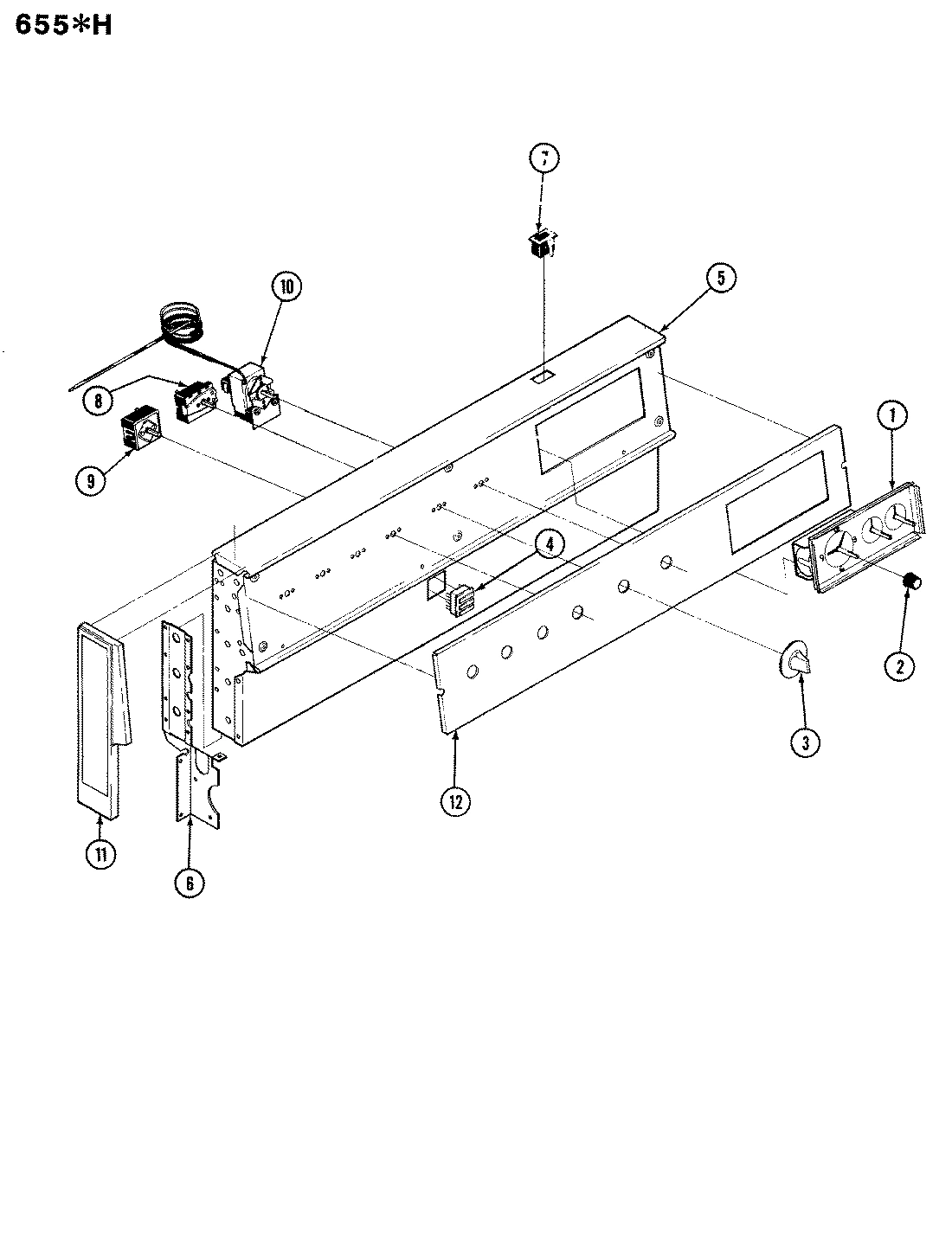

02 - CONTROL PANEL

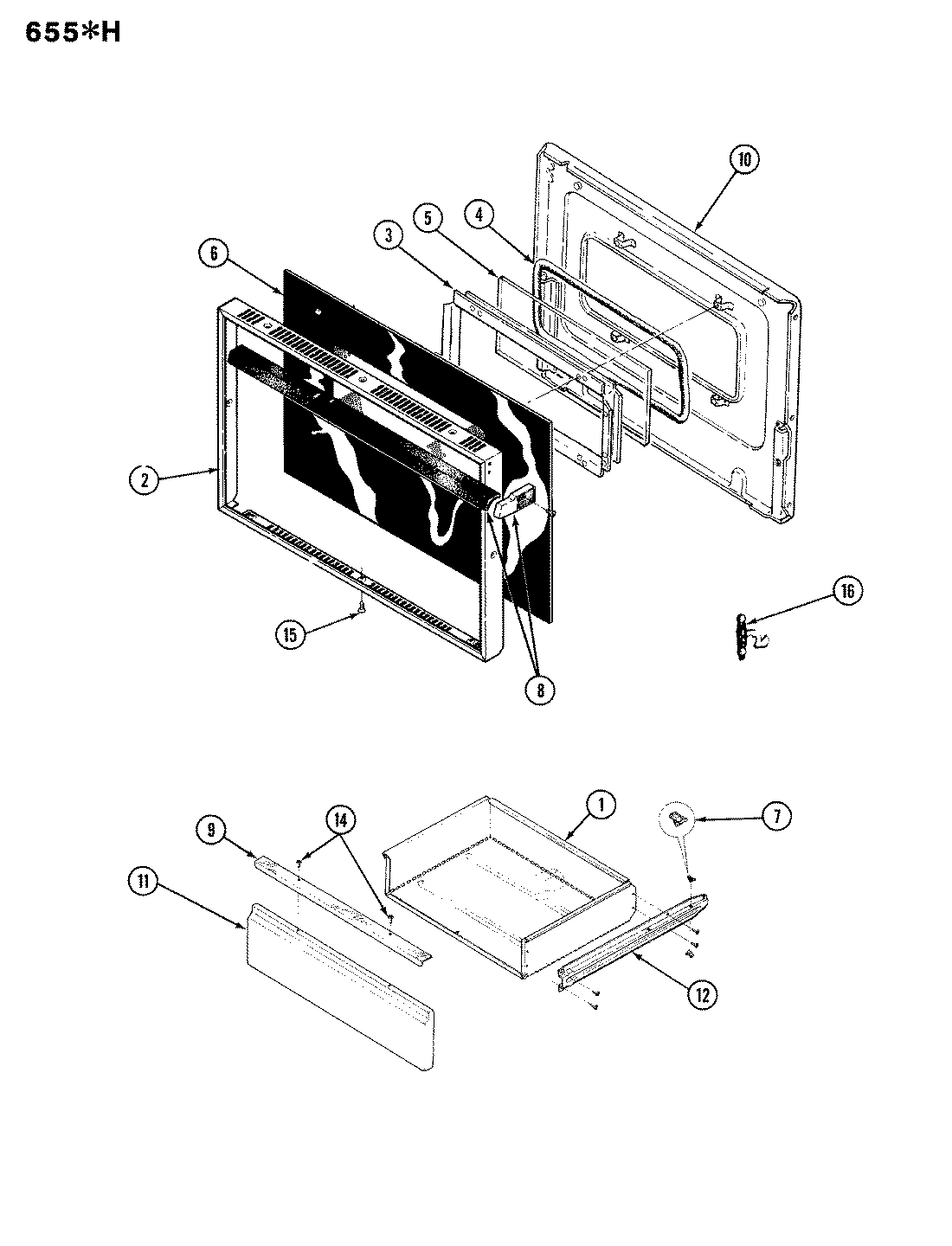

03 - DOOR

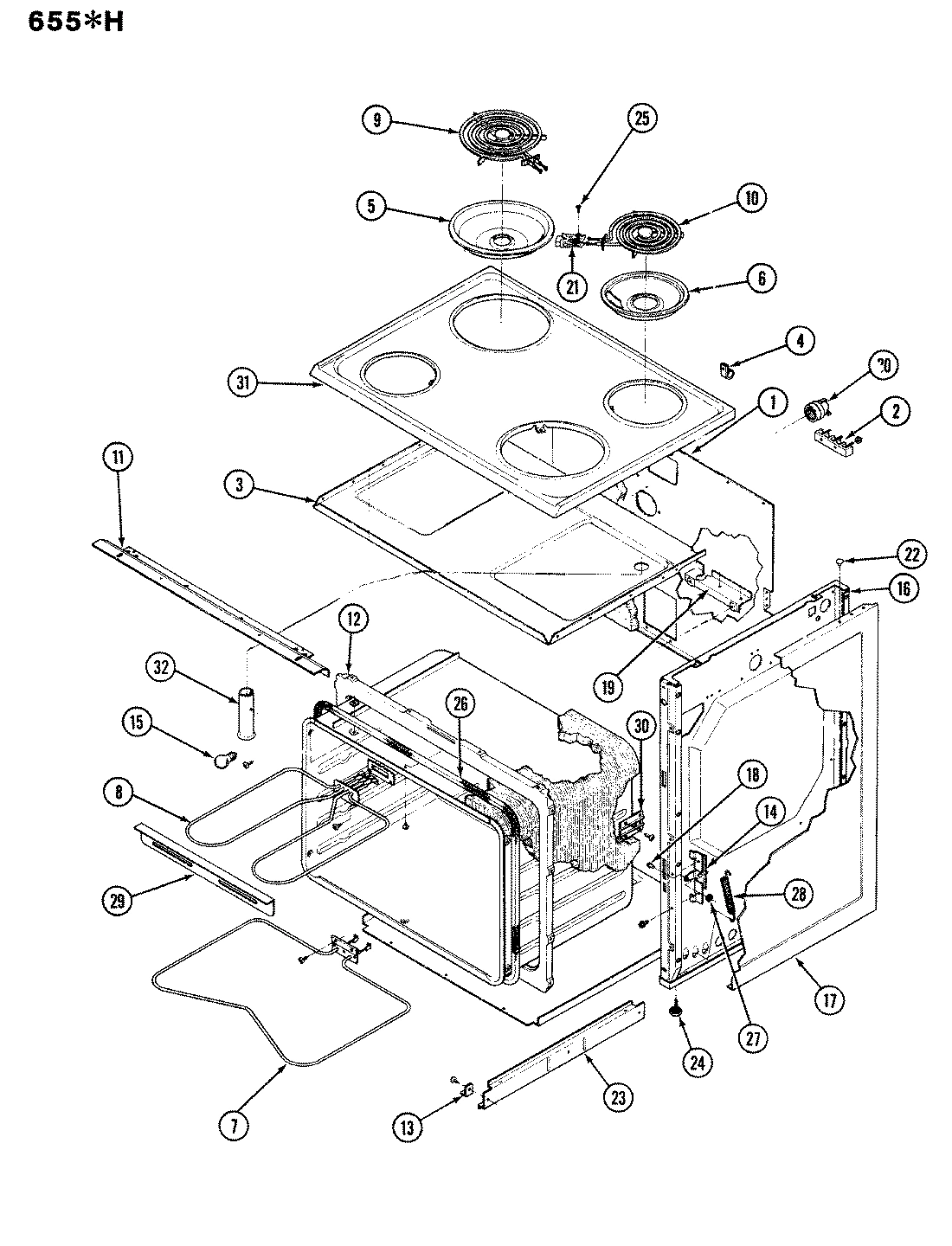

01 - BODY
Common parts from model Whirlpool 655AH-CVW ELECTRIC RANGE
1
CLOCK WPL 7601P09460 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
1
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
1
BACK, MAIN WPL 4002F09280 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
KNOB, THERMOSTAT WPL 7711P38660 Contact Us For Availability
2
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
KNOB, SWITCH WPL 7711P38460 Contact Us For Availability
3
KNOB, SWITCH SELECT. WPL 7711P39260 Contact Us For Availability
3
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
3
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
3
BRACE WPL 3802F00380 Contact Us For Availability
3
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
4
LIGHT, INDICATOR WPL 7407P01160 Contact Us For Availability
4
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
4
SHIELD WPL 4005F01380 Contact Us For Availability
4
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
4
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
5
PANEL, BKGD ALMOND WPL 2601W18084 Contact Us For Availability
5
COVER, BACKGUARD WIRE WPL 4005F19680 Contact Us For Availability
5
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
5
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
5
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
6
SUPPORT WPL 3807F01080 Contact Us For Availability
6
SUPPORT WPL 3807F01280 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
6
BOWL, DRIP (6``) WPL 7725P00260 Contact Us For Availability
6
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
7
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
7
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P17360 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
8
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P17060 Contact Us For Availability
9
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
9
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
9
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
10
THERMOSTAT WPL 7404P03060 Contact Us For Availability
10
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
10
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
11
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
11
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
11
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
11
FRAME, BURNER BOX WPL 4012F00780 Contact Us For Availability
12
TRIM, BACKGUARD WPL 7703P15860 Contact Us For Availability
12
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
12
RUNNER, OUTER WPL 3406J077 Contact Us For Availability
12
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
13
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
13
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
13
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
14
SCREW WPL 7101P12360 Contact Us For Availability
14
INSERT WPL 3413F00211 Contact Us For Availability
14
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
14
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
14
HOUSING WPL 4001F01611 Contact Us For Availability
15
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
15
BULB, OVEN WPL 7407P02660 Contact Us For Availability
16
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
16
STRAP WPL 8019P00260 Contact Us For Availability
16
PAN, BROIL WPL 3401F00411 Contact Us For Availability
16
LINING, INNER SIDE WPL 4009W02920 Contact Us For Availability
17
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
18
PIN, HINGE WPL 7113P00260 Contact Us For Availability
19
PLATE, CONDUIT WPL 3605F03180 Contact Us For Availability
19
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
19
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
19
RACK, OVEN WPL 7801P03060 Contact Us For Availability
20
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
21
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
22
RIVET WPL 7107P01760 Contact Us For Availability
23
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
23
RUNNER, OUTER WPL 3406J007 Contact Us For Availability
23
SCREW WPL 7101P05760 Contact Us For Availability
24
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
24
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
25
SCREW WPL 7101P04260 Contact Us For Availability
26
SHIELD WPL 3604F01745 Contact Us For Availability
26
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
27
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
28
SPRING WPL 7803P00260 Contact Us For Availability
29
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
30
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
31
TOP ASSY, MAIN A WPL 2002W02804 Contact Us For Availability
32
TUBE, OVEN VENT WPL 8026P00360 Contact Us For Availability
× ![]()
