  • Whirlpool 653WH-V Parts List

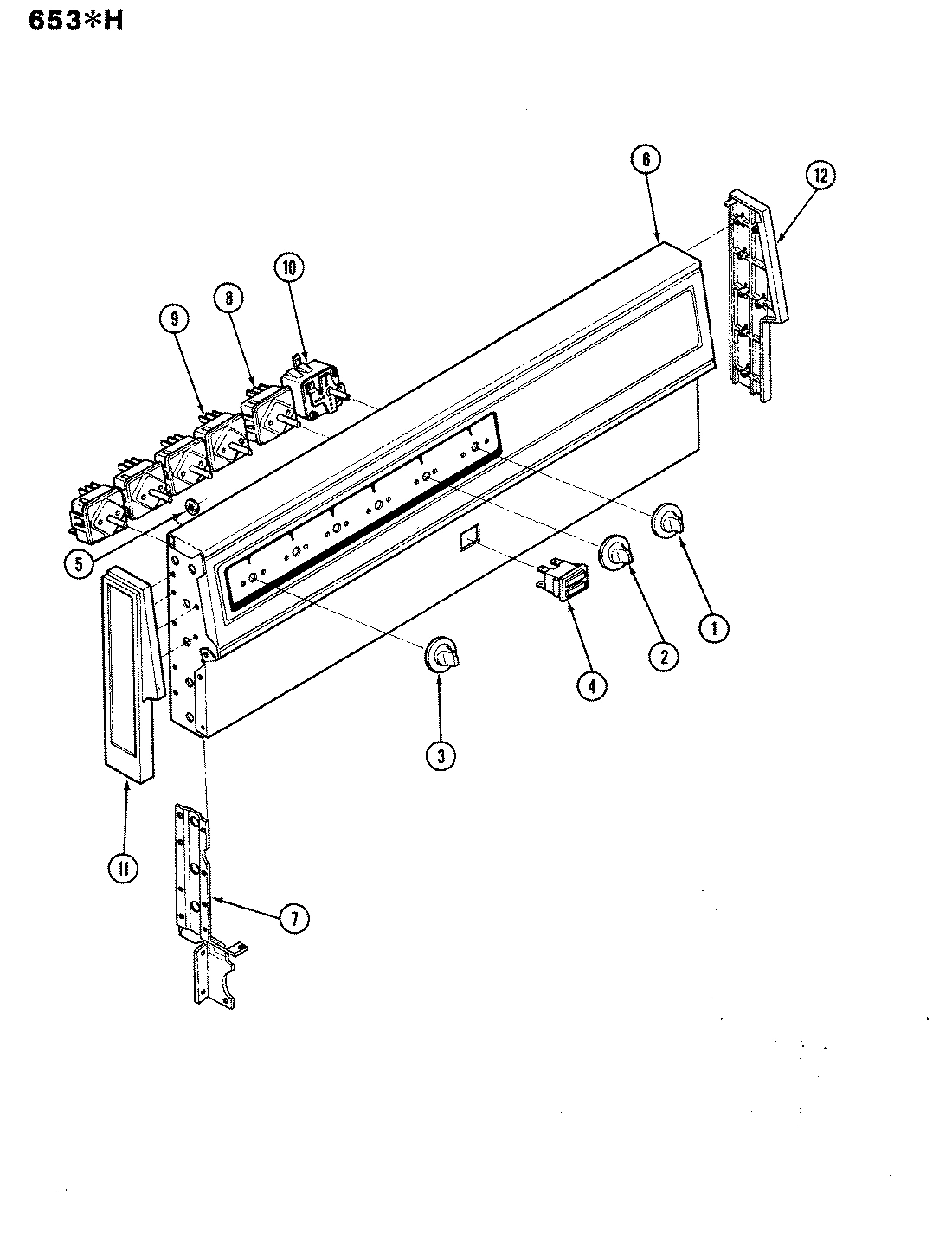

Model Whirlpool 653WH-V ELECTRIC RANGE – Common Parts & Diagrams

1
KNOB, THERMOSTAT
KNOB, THERMOSTAT WPL 7711P38660 Contact Us For Availability
View on Model
1
BRACKET
BRACKET WPL 3801F03151 Contact Us For Availability
View on Model
1
BRACE, DRAWER
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
View on Model
1
CLIP, DOOR
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
View on Model
2
KNOB, SELECTOR
KNOB, SELECTOR WPL 7711P38560 Contact Us For Availability
View on Model
2
DRAWER ASSY.
DRAWER ASSY. WPL 3405F00820 Contact Us For Availability
View on Model
3
KNOB, SWITCH
KNOB, SWITCH WPL 7711P38460 Contact Us For Availability
View on Model
3
FRAME, DOOR
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
View on Model
4
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 7407P01160 Contact Us For Availability
View on Model
4
GLASS, DOOR
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
View on Model
5
NUT, PUSH-ON END CAP
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
View on Model
5
GLIDE, DRAWER
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
View on Model
5
GLIDE, FRONT
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
View on Model
6
PANEL, BACKGUARD (WHT)
PANEL, BACKGUARD (WHT) WPL 2601W18481 Contact Us For Availability
View on Model
6
HANDLE, DOOR
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
View on Model
7
SUPPORT
SUPPORT WPL 3807F01080 Contact Us For Availability
View on Model
7
SUPPORT
SUPPORT WPL 3807F01280 Contact Us For Availability
View on Model
7
HINGE, OVEN DOOR (LT)
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
View on Model
7
HANDLE, DOOR WHITE
HANDLE, DOOR WHITE WPL 7701P01471 Contact Us For Availability
View on Model
8
SWITCH, SELECTOR
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
View on Model
8
INSERT, OVEN DOOR HANDLE
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
View on Model
9
SWITCH, INF. CONTROL
SWITCH, INF. CONTROL WPL 7403P16860 Contact Us For Availability
View on Model
9
LINING ASSY, OV DR
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
View on Model
10
THERMOSTAT
THERMOSTAT WPL 7404P02960 Contact Us For Availability
View on Model
10
TRIM, BACKGUARD
TRIM, BACKGUARD WPL 7703P16060 Contact Us For Availability
View on Model
10
PANEL, SVC DOOR
PANEL, SVC DOOR WPL 2416F01371 Contact Us For Availability
View on Model
11
END CAP, BACKGUARD (LT-CHR)
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
View on Model
11
RUNNER, INNER
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
View on Model
11
RUNNER, OUTER
RUNNER, OUTER WPL 3406J077 Contact Us For Availability
View on Model
12
GASKET, COVER
GASKET, COVER WPL 4005F29651 Contact Us For Availability
View on Model
12
END CAP, BACKGUARD (RT-CHR)
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
View on Model
12
SCREW, DOOR HANDLE
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
View on Model
12
SEAL, SILASTIC
SEAL, SILASTIC WPL 7208P00760 Contact Us For Availability
View on Model
13
SPRING
SPRING WPL 7803P00260 Contact Us For Availability
View on Model
13
SPACER, GLASS CORNER
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
View on Model
14
STOP, OVEN DOOR
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
View on Model
