Model Whirlpool 653WH-HV ELECTRIC RANGE – Common Parts & Diagrams

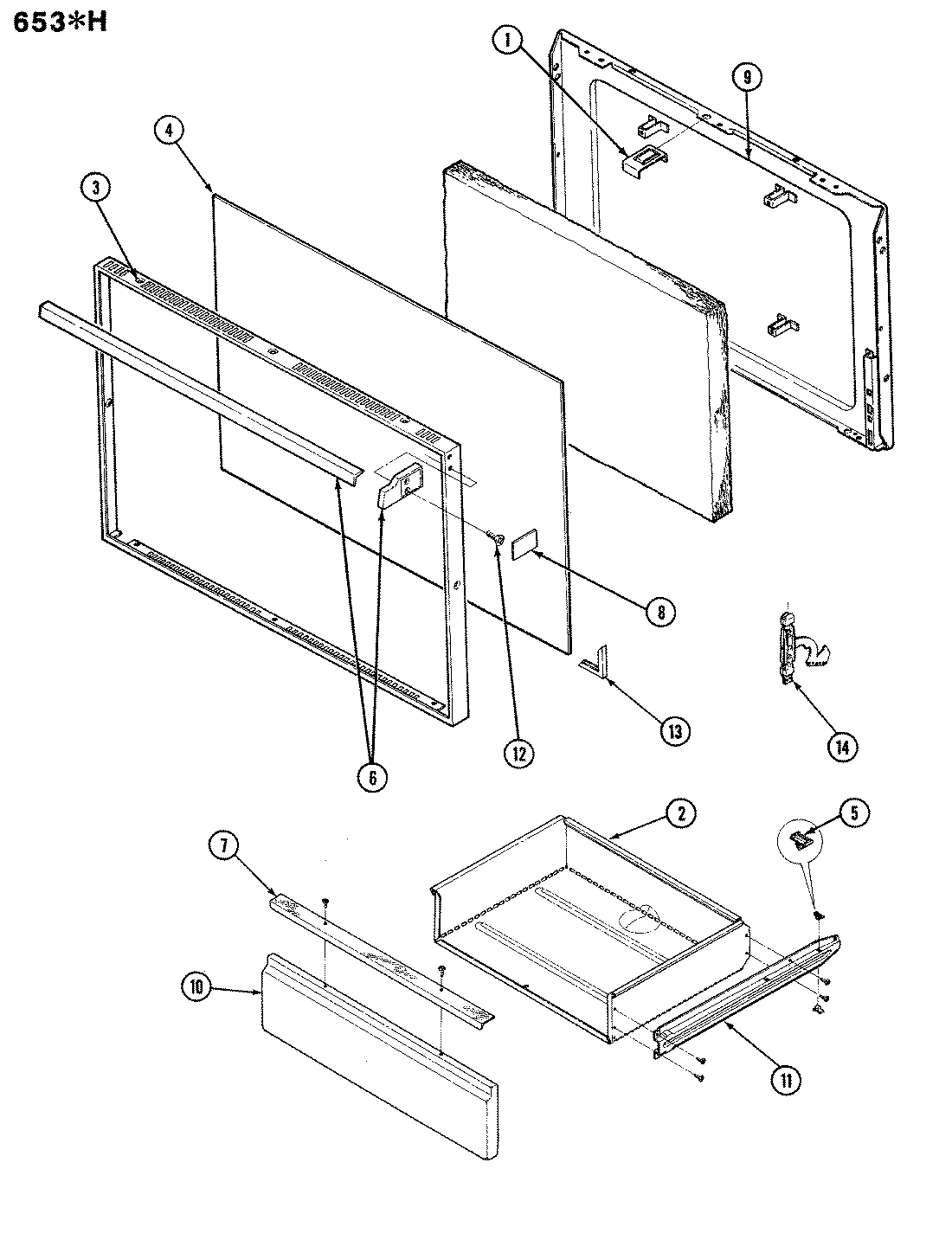

03 - DOOR

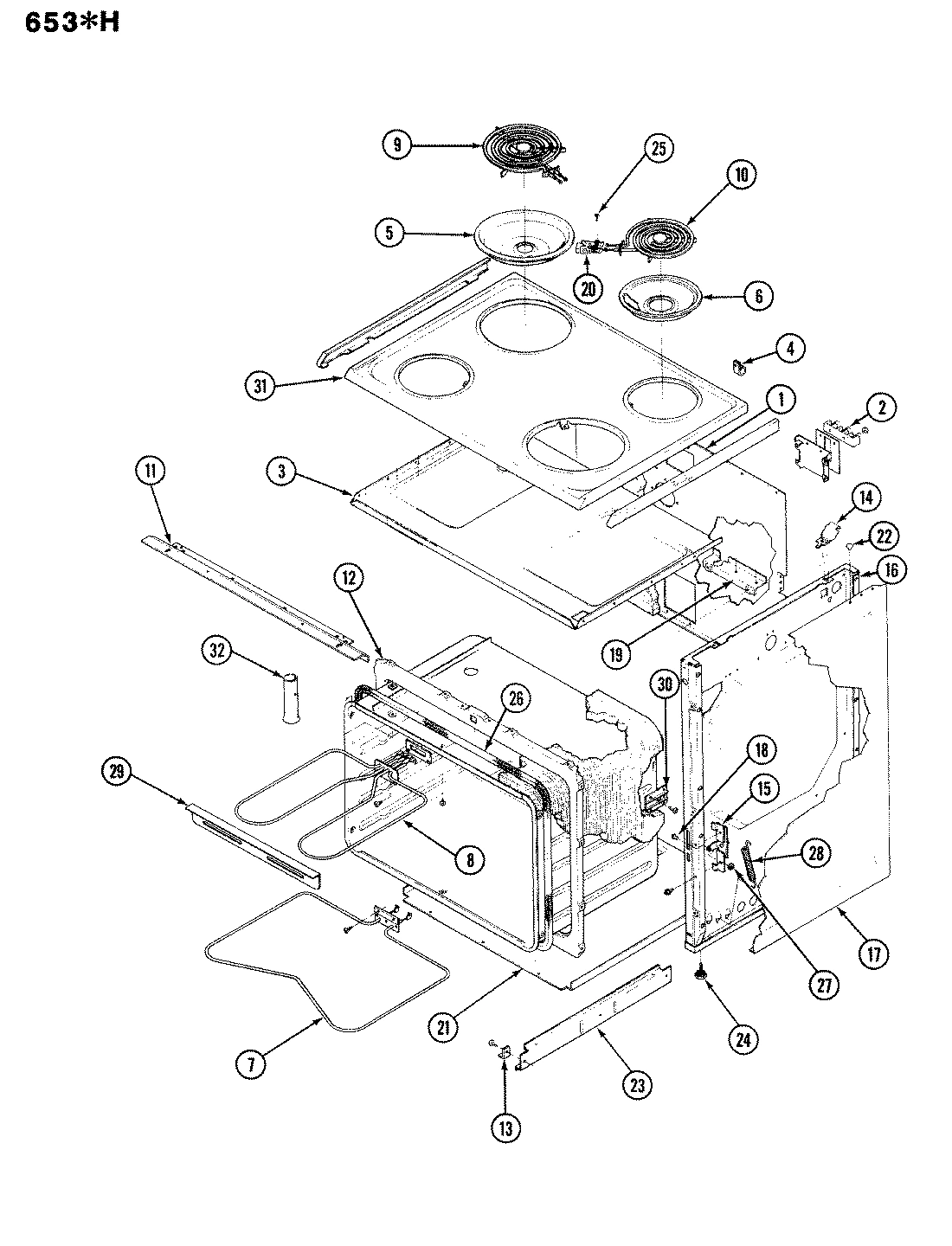

01 - BODY

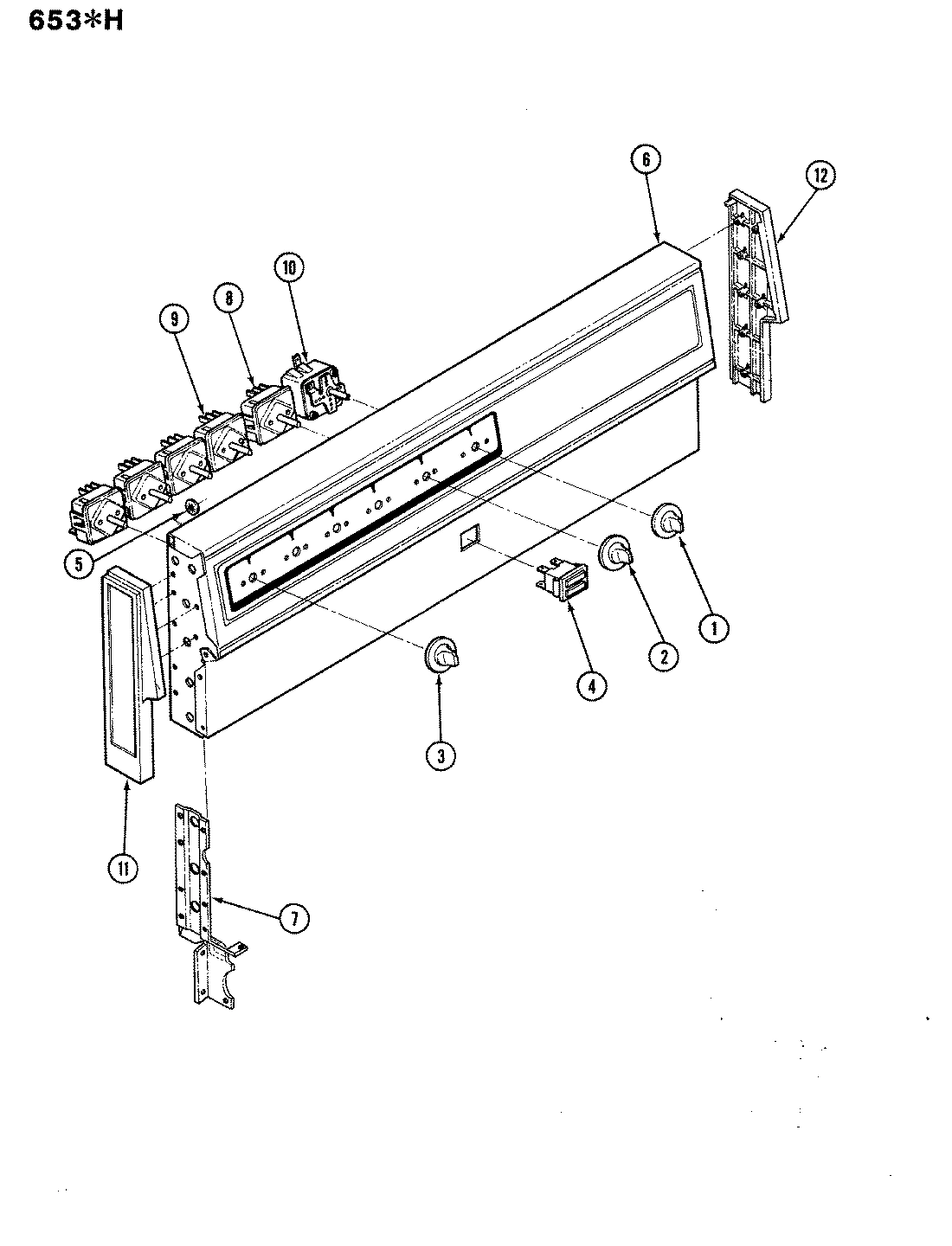

02 - CONTROL PANEL
Common parts from model Whirlpool 653WH-HV ELECTRIC RANGE
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
1
BACK, MAIN WPL 4002F08620 Contact Us For Availability
1
KNOB, THERMOSTAT WPL 7711P38660 Contact Us For Availability
2
DRAWER ASSY. WPL 3405F00820 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
KNOB, SELECTOR WPL 7711P38560 Contact Us For Availability
3
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
3
BRACE, MAIN TOP WPL 3802F04620 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12880 Contact Us For Availability
3
KNOB, SWITCH WPL 7711P38460 Contact Us For Availability
4
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
4
SHIELD WPL 4005F01380 Contact Us For Availability
4
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
4
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
4
LIGHT, INDICATOR WPL 7407P01160 Contact Us For Availability
5
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
6
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
6
PANEL, BKGD WHITE WPL 2601W20081 Contact Us For Availability
6
SEAL, COVER WPL 7212P03260 Contact Us For Availability
7
HANDLE, DOOR WHITE WPL 7701P01471 Contact Us For Availability
7
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
7
SUPPORT WPL 3807F01080 Contact Us For Availability
7
SUPPORT WPL 3807F01280 Contact Us For Availability
8
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
8
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P16860 Contact Us For Availability
10
PANEL, SVC DOOR WPL 2416F01371 Contact Us For Availability
10
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
10
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
10
THERMOSTAT WPL 7404P02960 Contact Us For Availability
10
TRIM, BACKGUARD WPL 7703P16060 Contact Us For Availability
11
RUNNER, OUTER WPL 3406J077 Contact Us For Availability
11
FRAME, BURNER BOX WPL 4012F00780 Contact Us For Availability
11
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
12
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
12
SEAL, SILASTIC WPL 7208P00760 Contact Us For Availability
12
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
12
GASKET, COVER WPL 4005F29651 Contact Us For Availability
12
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
13
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
13
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
13
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
14
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
14
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
15
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
15
INSERT WPL 3413F00211 Contact Us For Availability
15
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
16
PAN, BROIL WPL 3401F00411 Contact Us For Availability
16
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
17
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
18
PIN, HINGE WPL 7113P00260 Contact Us For Availability
19
PLATE, CONDUIT WPL 3605F03180 Contact Us For Availability
19
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
19
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
19
RACK, OVEN WPL 7801P03060 Contact Us For Availability
21
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
22
RIVET WPL 7107P01760 Contact Us For Availability
23
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
23
RUNNER, OUTER WPL 3406J007 Contact Us For Availability
23
SCREW WPL 7101P05760 Contact Us For Availability
24
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
24
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
26
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
27
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
28
SPRING WPL 7803P00260 Contact Us For Availability
29
SUPPORT WPL 3807F17613 Contact Us For Availability
30
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
31
TOP ASSY, MAIN WPL 2002W03201 Contact Us For Availability
32
GLIDE WPL 8016P01560 Contact Us For Availability
× ![]()
