Model Whirlpool 653AJ-V-CX ELECTRIC RANGE – Common Parts & Diagrams

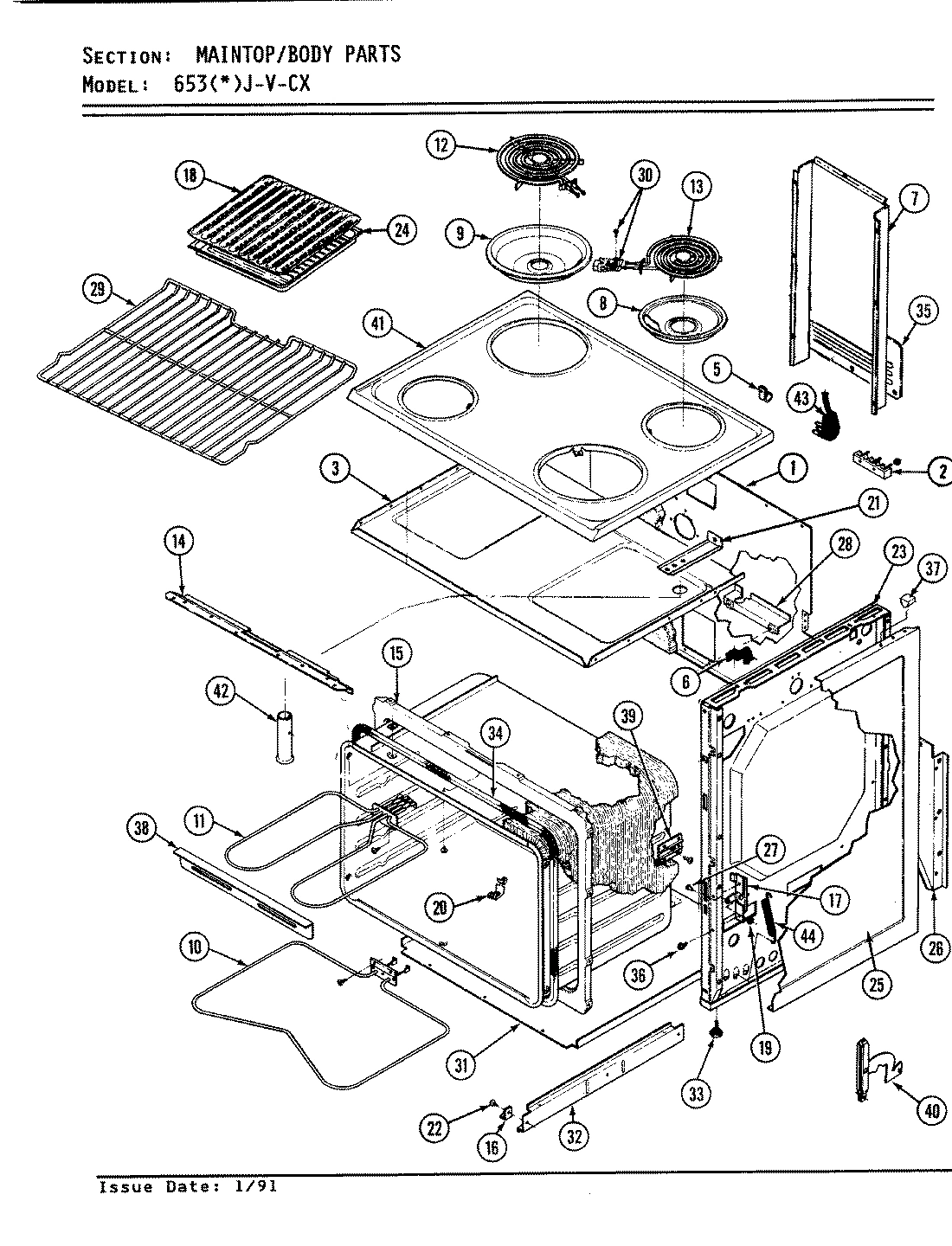

03 - TOP ASSEMBLY

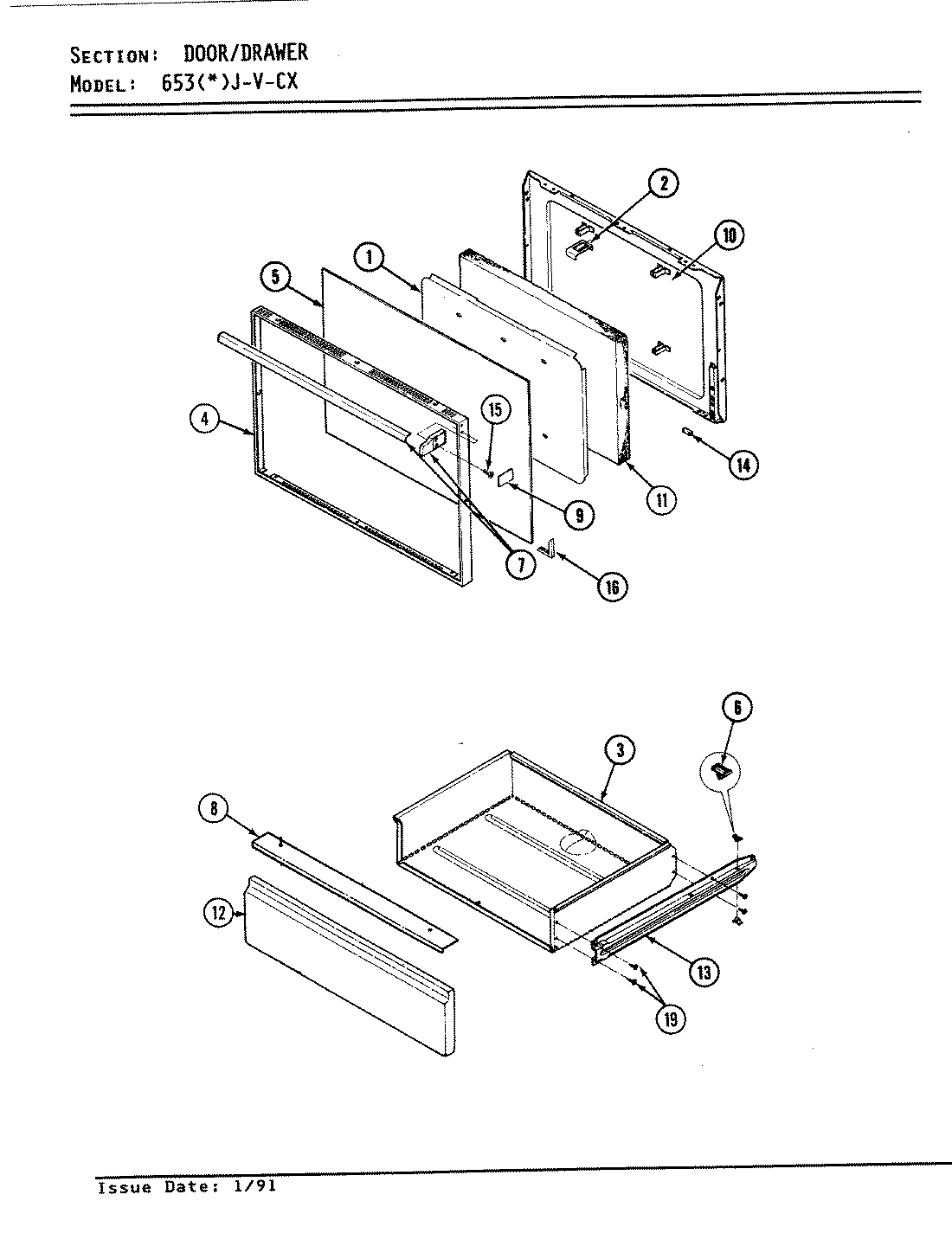

02 - DOOR/DRAWER

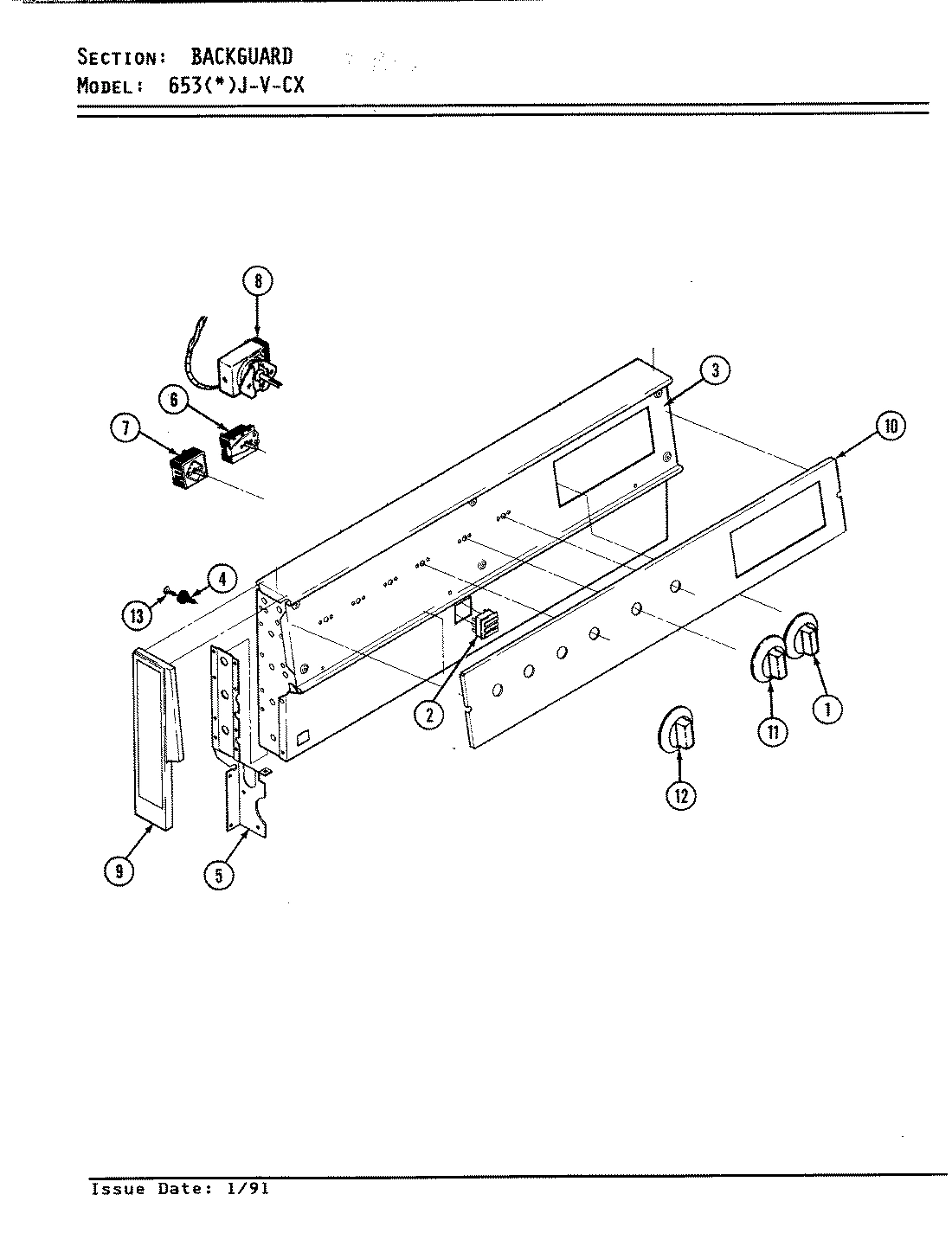

01 - CONTROL PANEL
Common parts from model Whirlpool 653AJ-V-CX ELECTRIC RANGE
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
KNOB, THERMOSTAT WPL 7711P38660 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
PANEL, BACKGUARD WPL 2601W28484 Contact Us For Availability
3
COVER, BKGD WIRE WPL 4005F00480 Contact Us For Availability
4
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
4
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
5
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
5
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
7
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
7
COVER WPL 4005F00545 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
7
SWITCH, INF. 250V WPL 7403P18160 Contact Us For Availability
8
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
8
HANDLE DOOR ALM WPL 2411F00174 Contact Us For Availability
8
THERMOSTAT WPL 7404P02960 Contact Us For Availability
9
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
9
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
9
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
9
END CAP, BACKGUARD (LT-BLK) WPL 7726P00960 Contact Us For Availability
9
END CAP, BACKGUARD (RT-BLK) WPL 7726P02060 Contact Us For Availability
10
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
10
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
10
LINING ASSY, OVEN DOOR WPL 2402W15523 Contact Us For Availability
10
TRIM, BKGD WPL 7703P26160 Contact Us For Availability
11
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
11
INSULATION WPL 7002P01360 Contact Us For Availability
11
KNOB, SELECTOR WPL 7711P38560 Contact Us For Availability
12
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
12
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
12
KNOB, SWITCH WPL 7711P38460 Contact Us For Availability
13
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
13
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
13
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
14
FRONT, BURNER BOX BOTTOM WPL 4012F02280 Contact Us For Availability
15
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
15
SCREW WPL 7101P12360 Contact Us For Availability
16
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
17
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
17
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
17
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
17
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
18
BRACKET WPL 3801F03151 Contact Us For Availability
19
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
19
SCREW WPL 7101P06160 Contact Us For Availability
20
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
21
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
23
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
24
PAN, BROIL WPL 3401F00423 Contact Us For Availability
25
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
26
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
26
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
27
PIN, HINGE WPL 7113P00260 Contact Us For Availability
28
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
28
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
29
RACK, OVEN WPL 7801P03060 Contact Us For Availability
31
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
32
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
33
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
34
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
35
COVER ACCESS WPL 4005F30251 Contact Us For Availability
36
SCREW WPL 7101P11260 Contact Us For Availability
37
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
38
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
39
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
40
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
41
TOP ASSY, MAIN WPL 2002W02884 Contact Us For Availability
41
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
42
TUBE, OVEN VENT WPL 8026P00360 Contact Us For Availability
43
CORD, POWER WPL 7402P02860 Contact Us For Availability
44
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
× ![]()
