Model Whirlpool 6500SRS ELECTRIC RANGE – Common Parts & Diagrams
02 - DOOR/DRAWER (6500SRx)
03 - MAIN TOP

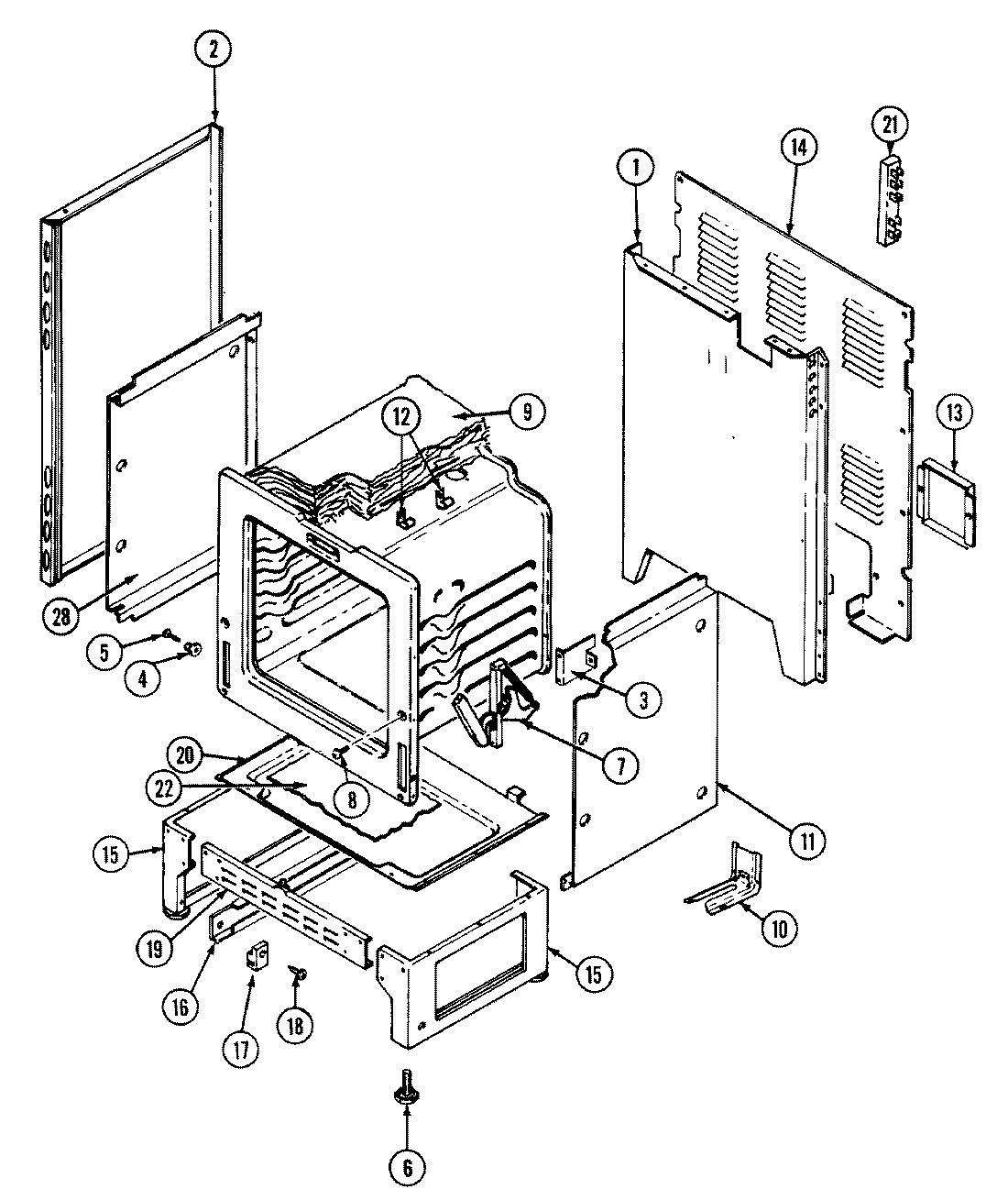

01 - BODY

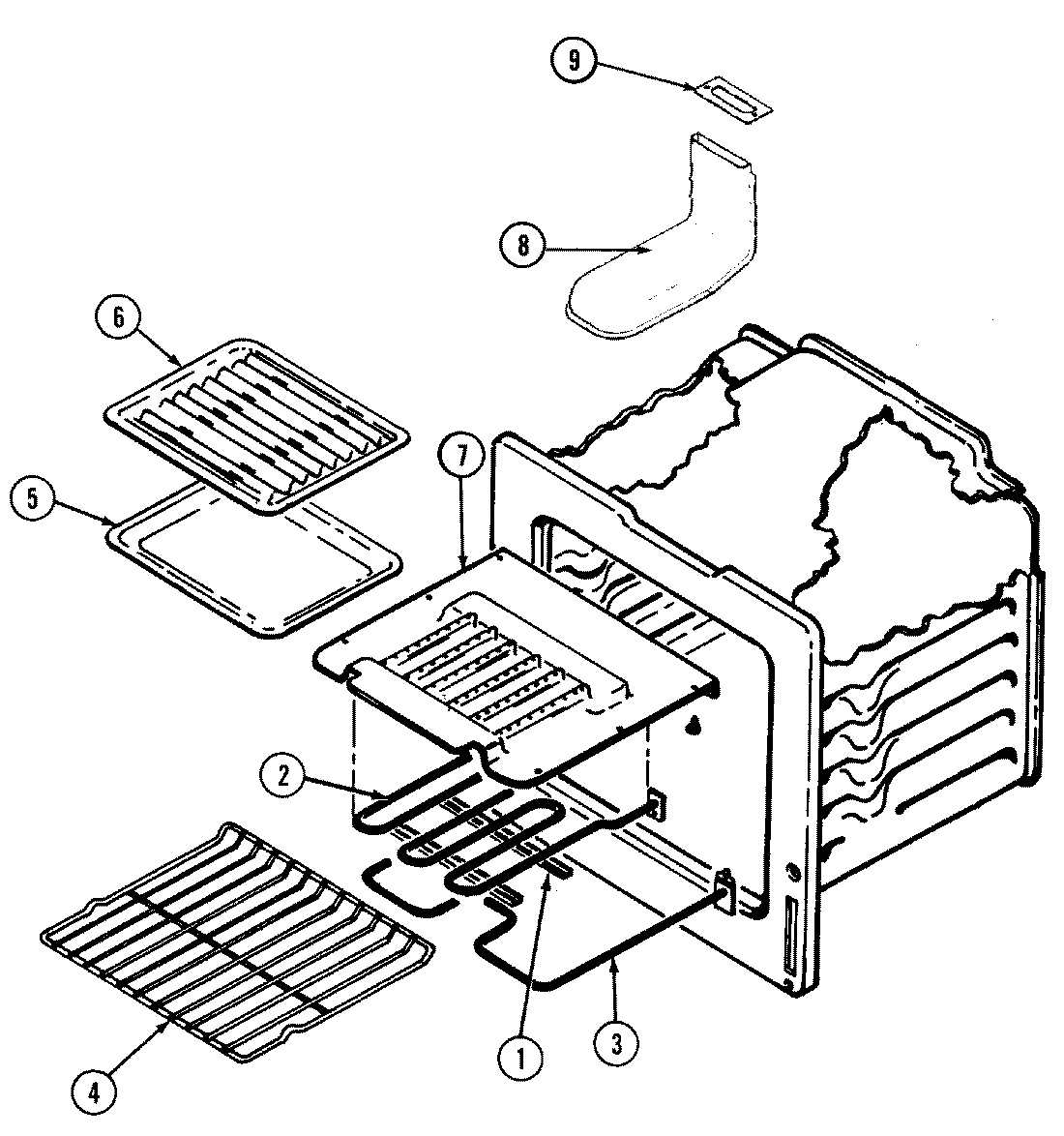

04 - OVEN
Common parts from model Whirlpool 6500SRS ELECTRIC RANGE
1
SCREW WPL 7101P29060 Contact Us For Availability
1
BACK, MAIN WPL 4002F19180 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
2
BOX, BURNER WPL 4011F22480 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F07870 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F07970 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F09570 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F09670 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
TOP, MAIN (STAIN) WPL 2002W08430 Contact Us For Availability
3
EXTRUSION, FILLER WPL 7706P30160 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
RACK WPL 7801P04660 Contact Us For Availability
5
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
5
SCREW WPL 7101P33460 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
7
HINGE WPL 7106P05560 Contact Us For Availability
7
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21847 Contact Us For Availability
8
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
8
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
8
BOX, VENT WPL 4006W11245 Contact Us For Availability
9
KNOB, SWITCH WPL 7737P03060 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
GASKET, VENT WPL 7201P05560 Contact Us For Availability
10
INSULATION, DOOR WPL 7002P15660 Contact Us For Availability
10
KNOB SELECTOR WPL 7739P03760 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
11
KNOB, THERMOSTAT WPL 7735P03160 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
12
LINING, DOOR WPL 2402W20119 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
12
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
13
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
13
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
13
LIGHT, INDICATOR WPL W10127320 Contact Us For Availability
13
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
14
COVER, MAIN BACK WPL 4005F35651 Contact Us For Availability
15
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
15
SCREW WPL 7101P07260 Contact Us For Availability
15
SCREW WPL 7101P30960 Contact Us For Availability
15
THERMOSTAT WPL 7404P07260 Contact Us For Availability
15
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
15
PEDESTAL WPL 4020W00980 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
16
SCREW WPL 7101P11560 Contact Us For Availability
16
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
17
SCREW WPL 7101P32960 Contact Us For Availability
17
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
17
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
NUT LOCK WPL 7103P07260 Contact Us For Availability
18
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
18
PANEL, MANIFOLD WPL 7722P11360 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
19
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
19
BRACKET, PANEL WPL 3801F25651 Contact Us For Availability
19
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
20
END CAP, HANDLE (RT-BLK) WPL 74002539 Contact Us For Availability
20
END CAP, HANDLE (LT-BLK) WPL 74002540 Contact Us For Availability
20
END CAP (RT) WPL 7744P07560 Contact Us For Availability
20
END CAP (LT) WPL 7744P07660 Contact Us For Availability
20
HARNESS, BURNER BOX WPL 5195D09560 Contact Us For Availability
20
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
21
HARNESS, TO COOKTOP WPL 5175D06460 Contact Us For Availability
21
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
22
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
22
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
22
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
× ![]()
