Model Whirlpool 6458XTS GAS RANGE – Common Parts & Diagrams
01 - BODY

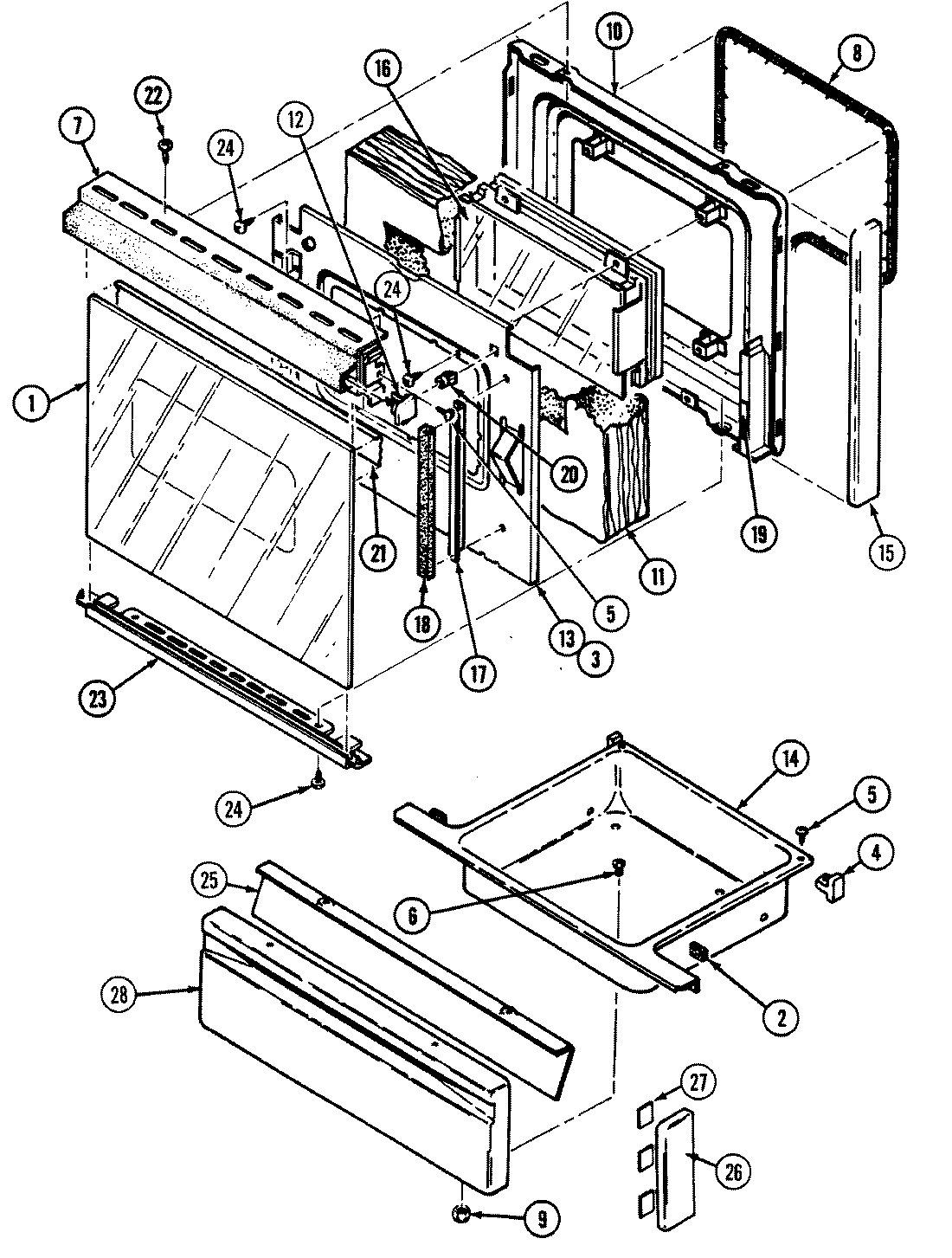

02 - DOOR/DRAWER

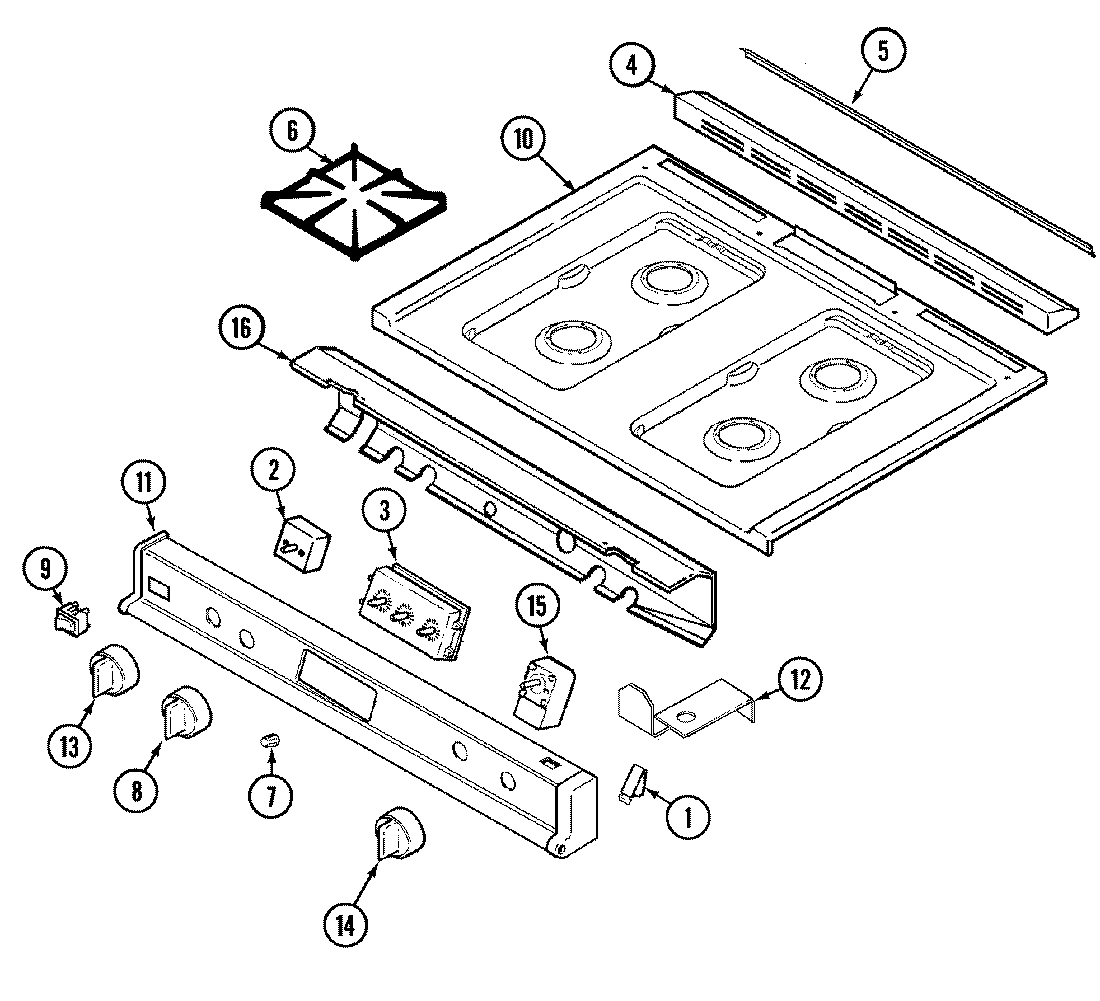

05 - TOP ASSEMBLY

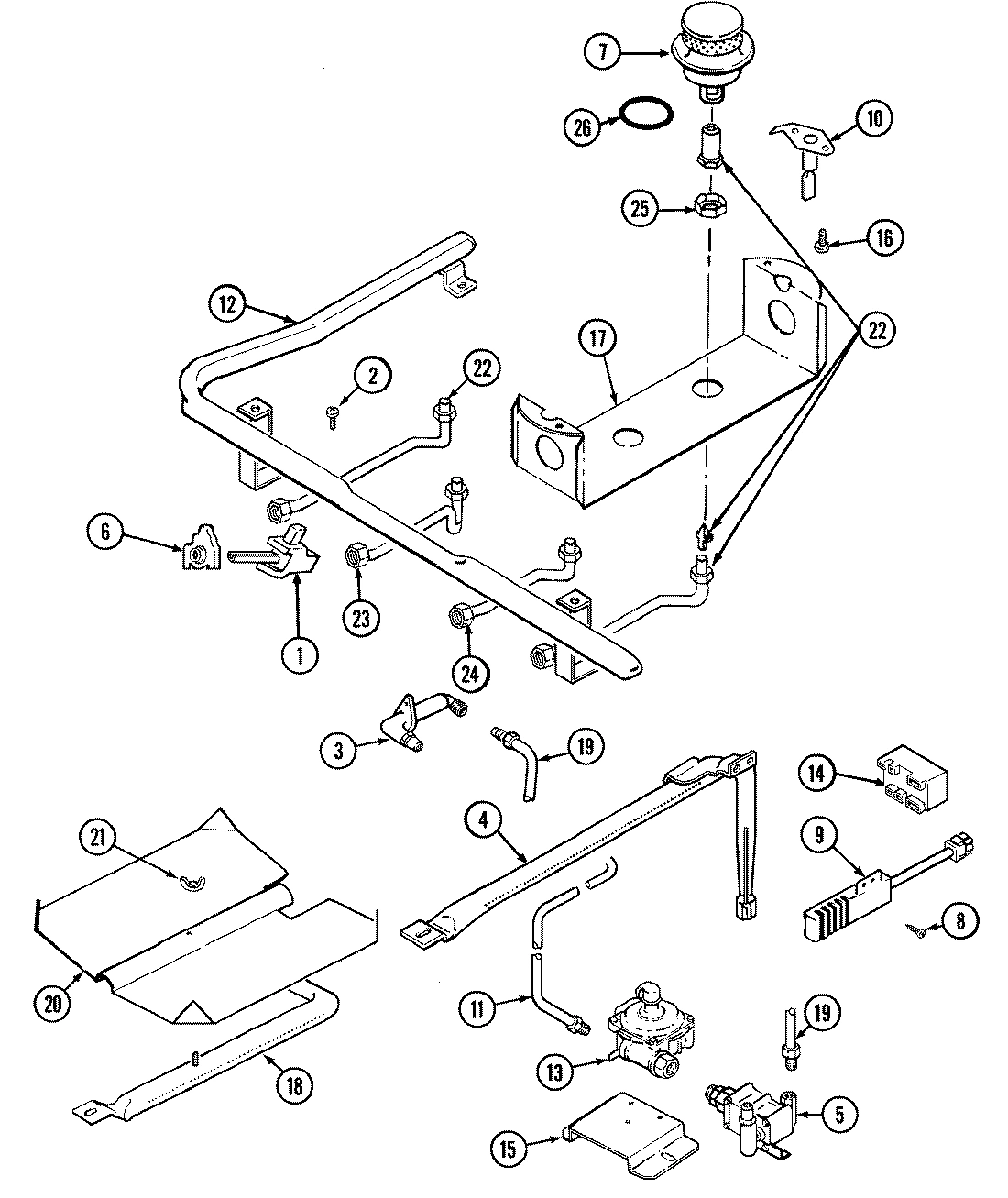

03 - GAS CONTROLS

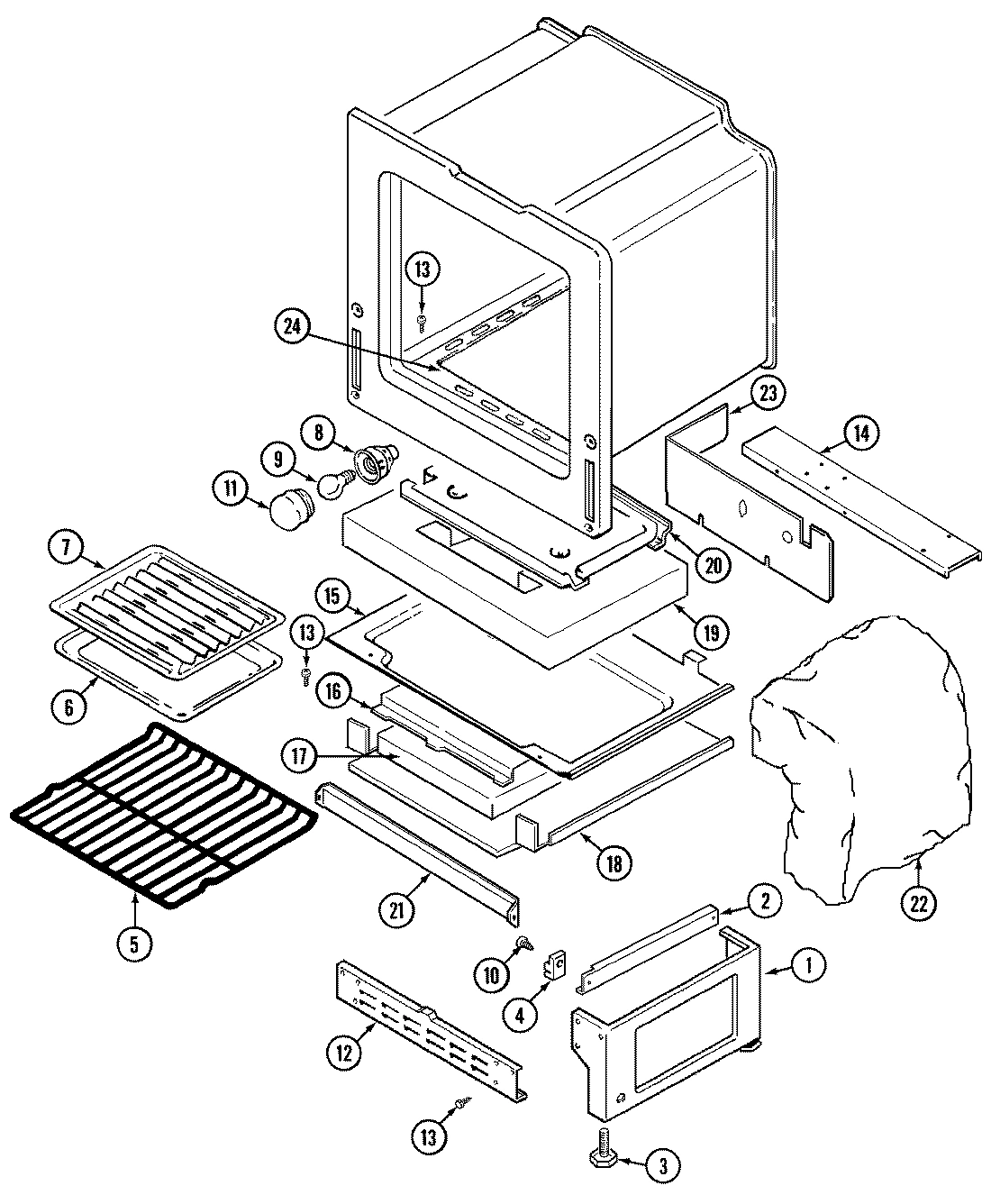

04 - OVEN/BASE
Common parts from model Whirlpool 6458XTS GAS RANGE
1
BACK, MAIN WPL 4002F18880 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
CLIP, SPEED WPL 7112P10260 Contact Us For Availability
1
VALVE, BURNER WPL 7502P25060 Contact Us For Availability
1
PEDESTAL WPL 4020W00980 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F09570 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F09670 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
SWITCH, SELECTOR WPL 7403P23660 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
3
BOX, BURNER WPL 4011F22380 Contact Us For Availability
3
BOX, BURNER WPL 4011F23180 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
BRACKET, CLOCK WPL 3801F29145 Contact Us For Availability
3
CLOCK WPL 7601P20260 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
COVER, VENT TRIM WPL 7724P05160 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
GASKET, VENT WPL 7201P04060 Contact Us For Availability
5
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
5
RACK WPL 7801P04060 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
6
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
COVER, MAIN WIRE WPL 4005F35551 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
7
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
7
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
WASHER WPL 7109P01560 Contact Us For Availability
8
LEVER LOCK WPL 8009P01560 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
KNOB, VALVE WPL 7733P06560 Contact Us For Availability
8
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
BULB, OVEN WPL 7407P09560 Contact Us For Availability
10
HANDLE, LATCH (WHT) WPL 7701P08960 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
TOP, MAIN (STLS) WPL 2001F08930 Contact Us For Availability
10
EXTRUSION, FILLER WPL 7706P30160 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
11
NUT, SPEED WPL 7103P12060 Contact Us For Availability
11
PANEL, MANIFOLD WPL 7712P14960 Contact Us For Availability
11
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
11
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
BRACKET, TOP WPL 3801F31851 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12560 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P16060 Contact Us For Availability
12
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
SCREW WPL 7101P29060 Contact Us For Availability
13
SCREW WPL 7101P30060 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
KNOB, SELECTOR WPL 7739P05060 Contact Us For Availability
13
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
14
EXTENSION, VENT BOX WPL 4022W00445 Contact Us For Availability
14
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7731P08860 Contact Us For Availability
14
BRACKET, SPARK MODULE WPL 3801F27045 Contact Us For Availability
14
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
14
SUPPORT, VALVE & REGULATOR WPL 3807F44751 Contact Us For Availability
15
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
15
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
15
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
15
HARNESS, B.B.B. WPL 5195D10660 Contact Us For Availability
15
THERMOSTAT WPL 7404P09760 Contact Us For Availability
15
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
15
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
16
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
16
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
16
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
16
MANUAL, USE & CARE WPL 8113P01860 Contact Us For Availability
16
SCREW WPL 7101P31560 Contact Us For Availability
16
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
17
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
17
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
HINGE WPL 7106P05660 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
18
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
18
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
19
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
SCREW WPL 7101P03160 Contact Us For Availability
20
SPACER WPL 8010P07560 Contact Us For Availability
20
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
20
PAN, BAKE BURNER WPL 3401F02445 Contact Us For Availability
21
BOX, VENT WPL 4006W11345 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
21
NUT, WING WPL 7103P03060 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
22
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
22
FITTING, ORIFICE WPL 7507P08760 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
22
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
23
FAN ASSY. WPL 7427P01360 Contact Us For Availability
23
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
23
FITTING, ORIFICE WPL 7507P08660 Contact Us For Availability
23
COVER, VALVE WPL 4005F42951 Contact Us For Availability
24
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
24
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
24
FITTING, ORIFICE WPL 7507P08960 Contact Us For Availability
24
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
24
RETAINER WPL 3804F01050 Contact Us For Availability
24
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
24
HARNESS, PEDESTAL WPL 5185D27560 Contact Us For Availability
24
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
25
BRACKET WPL 3801F29251 Contact Us For Availability
25
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
25
PALNUT WPL 7103P11960 Contact Us For Availability
26
BOX, AIR TUBE WPL 4006F13451 Contact Us For Availability
26
END CAP (BLK) WPL 7744P06860 Contact Us For Availability
26
SHUTTER AIR WPL 3411F00734 Contact Us For Availability
26
HARNESS WPL 5185D27460 Contact Us For Availability
26
HARNESS WPL 5195D11160 Contact Us For Availability
26
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
27
BOTTOM, AIR BOX TUBE WPL 4011F15651 Contact Us For Availability
27
TAPE WPL 8270P09860 Contact Us For Availability
28
TUBE, AIR WPL 7506P12460 Contact Us For Availability
28
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
29
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
30
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
30
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
31
SCREW WPL 7101P07660 Contact Us For Availability
31
SWITCH, THERM LOCK WPL 7403P00460 Contact Us For Availability
32
SUPPORT, THERMAL DISC WPL 3807F42051 Contact Us For Availability
33
SWITCH, HIGH LIMIT WPL 7403P27560 Contact Us For Availability
33
SUPPORT, TUBE WPL 8004P00760 Contact Us For Availability
34
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
35
TUBE, AIR DUCT WPL 8026P02160 Contact Us For Availability
× ![]()
