Model LG 63993 MWO-DUAL – Common Parts & Diagrams
Diagram 0

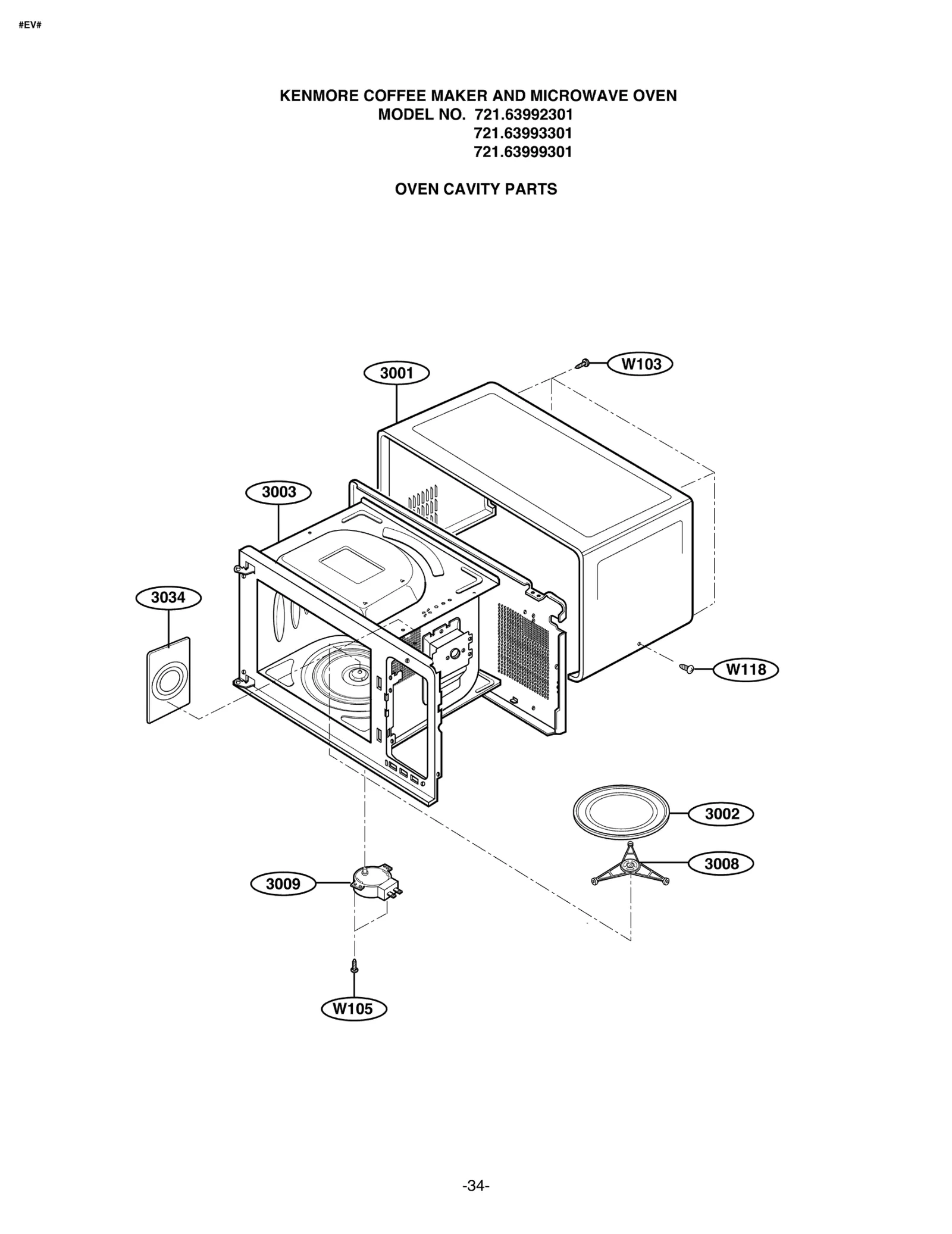

Diagram 1

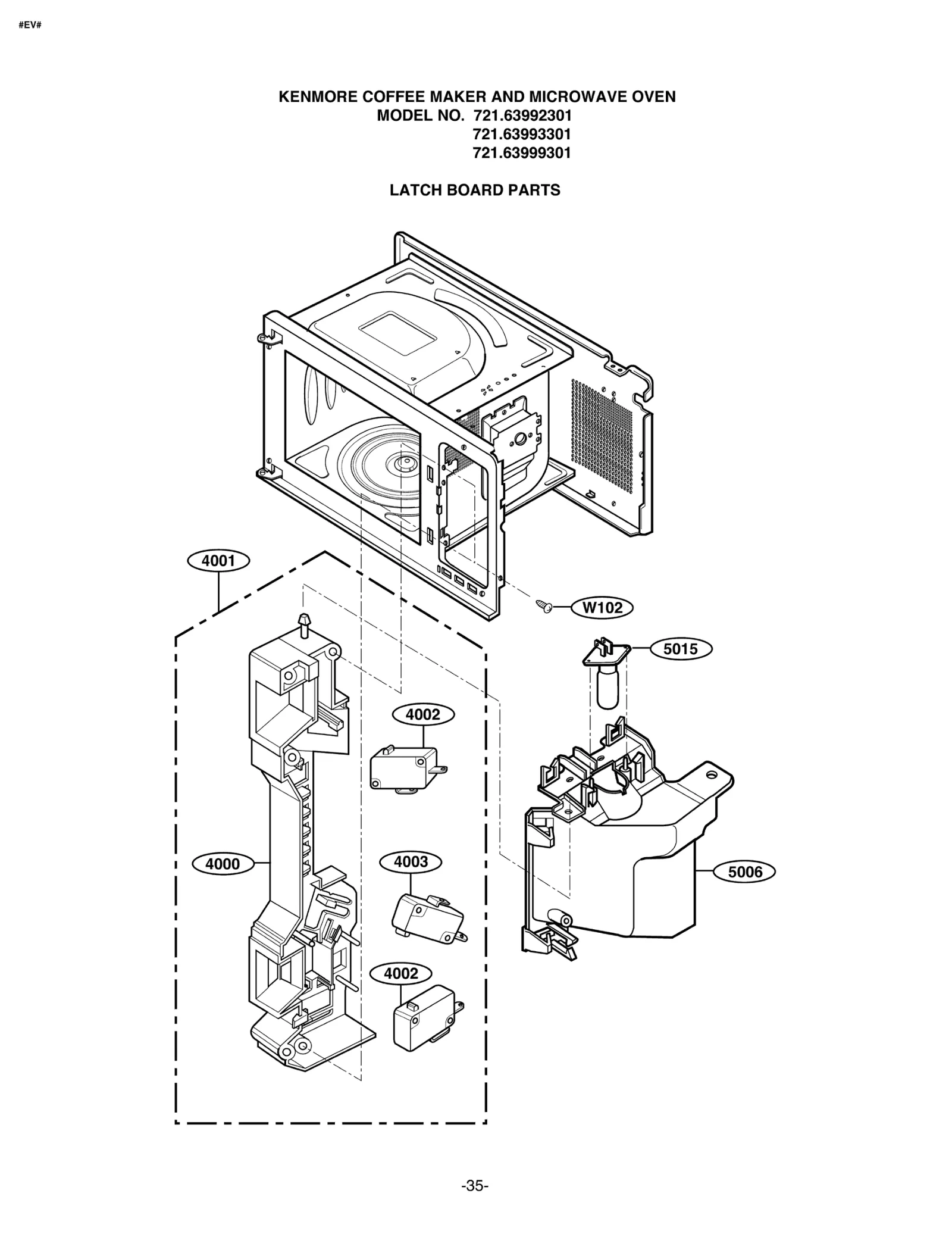

Diagram 2

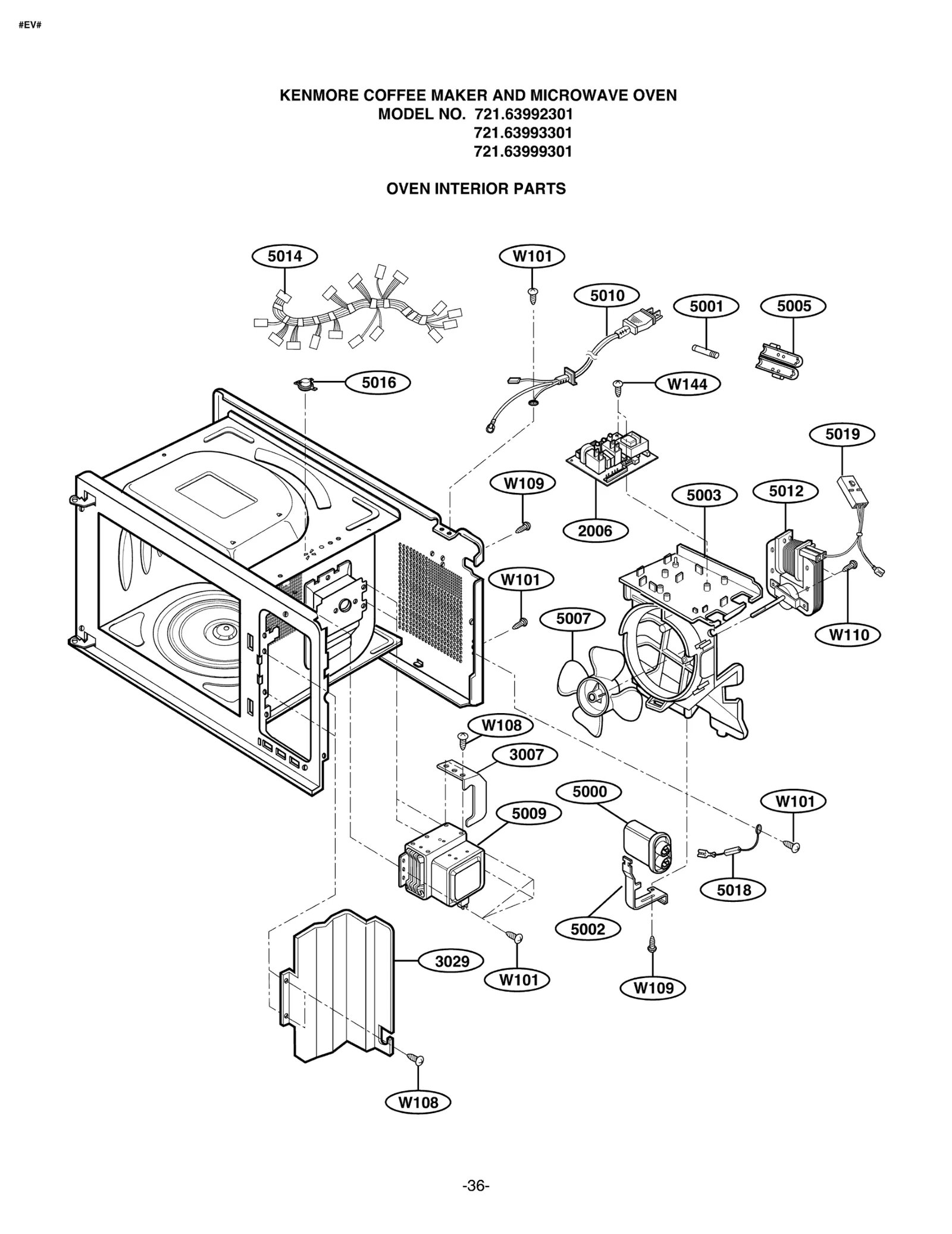

Diagram 3

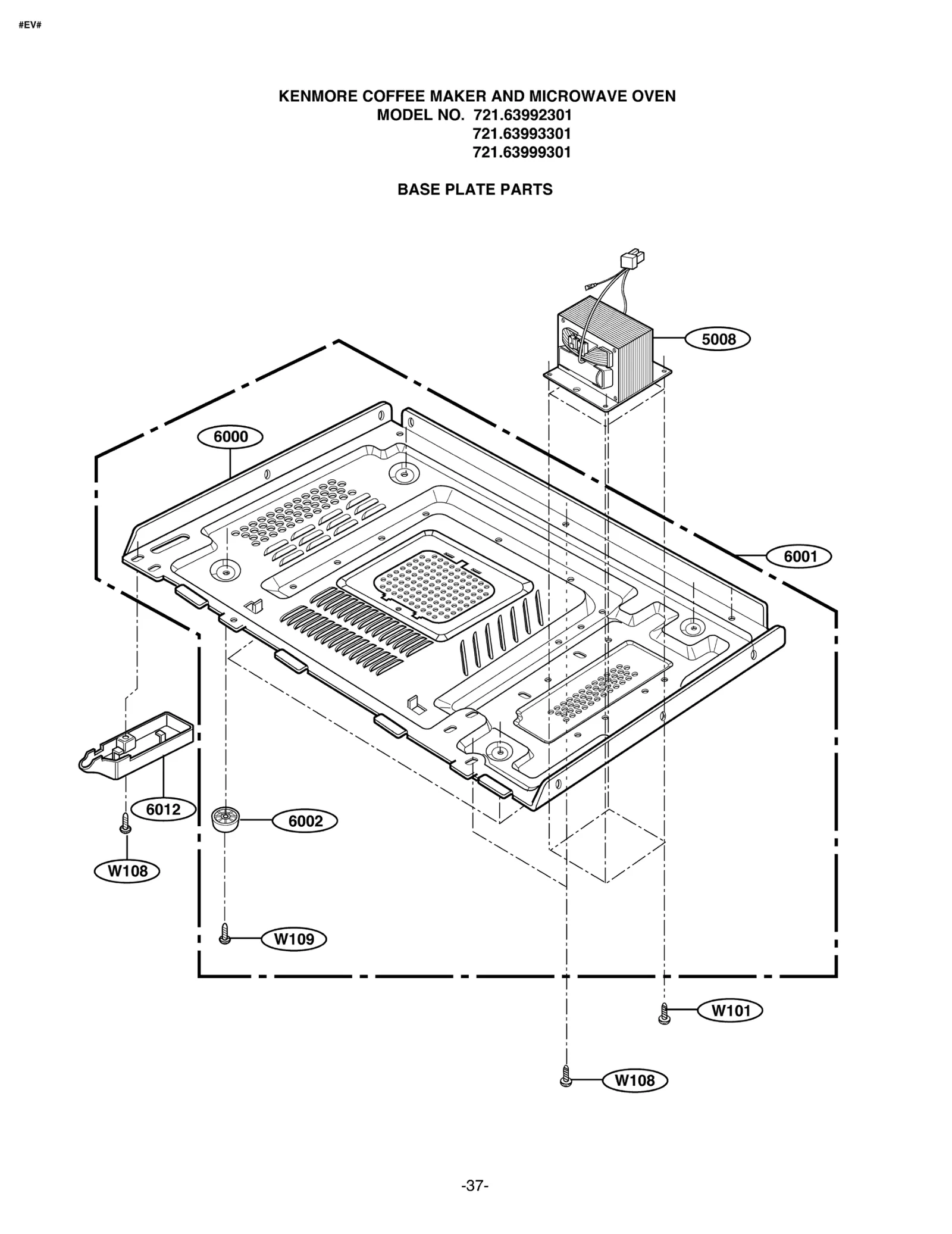

Diagram 4

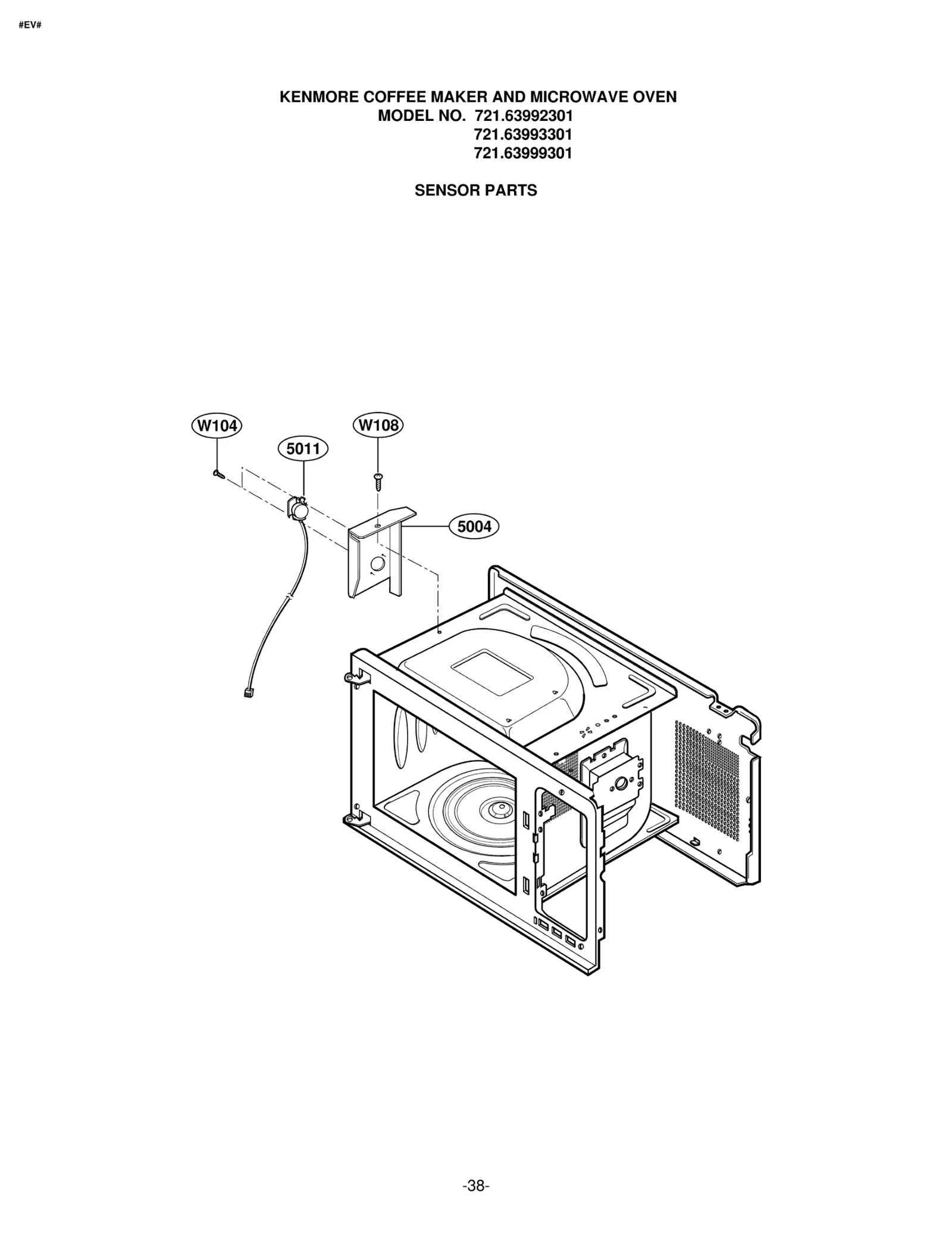

Diagram 5

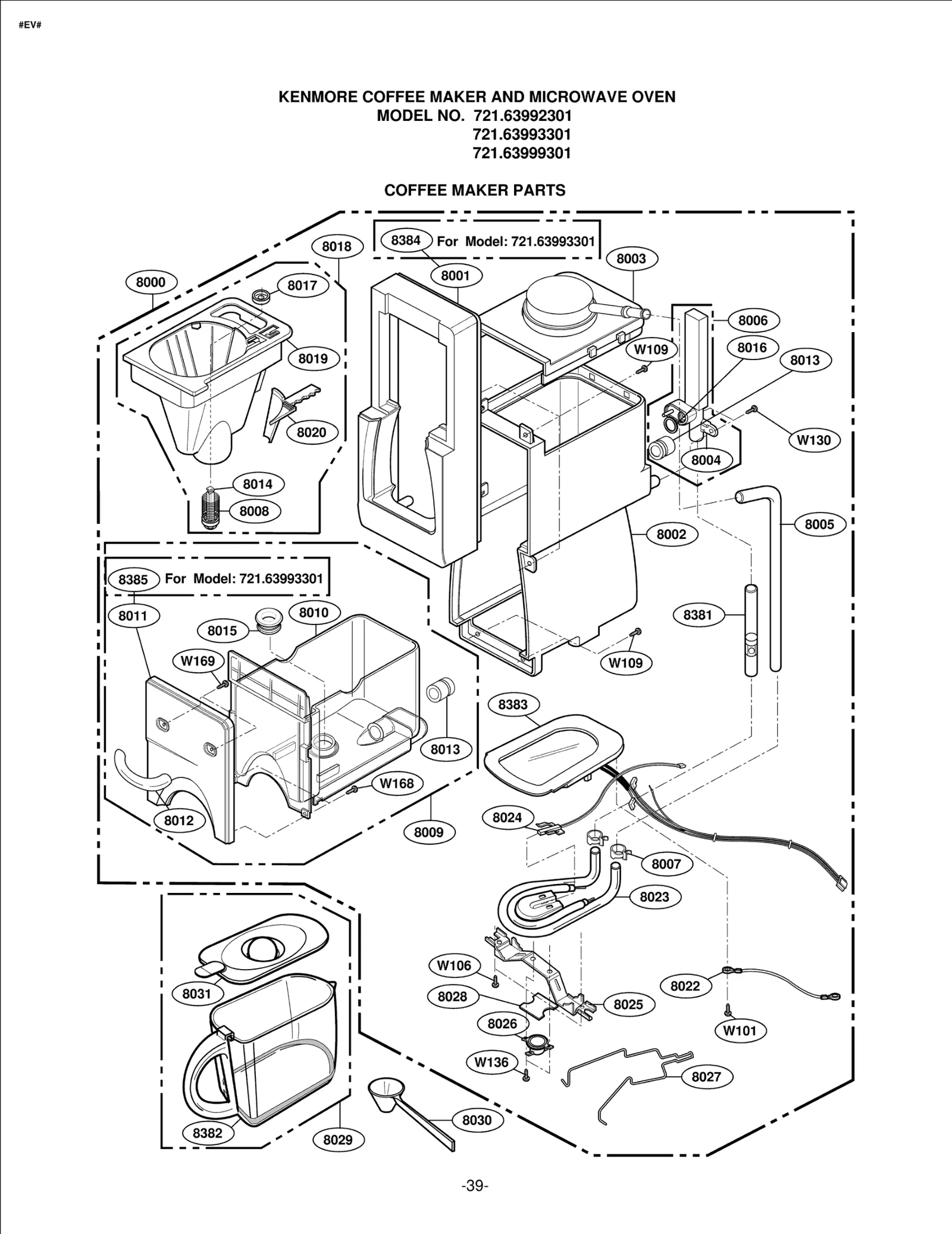

Diagram 6
Diagram 7
Common parts from model LG 63993 MWO-DUAL
2006
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S259B Contact Us For Availability
3002
TRAY,GLASS LGE 3390W1A012B Contact Us For Availability
3003
CAVITY ASSEMBLY LGE 3461W1A084F Contact Us For Availability
3007
INSULATOR LGE 5012W3A020A Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W1A003A Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W1A003C Contact Us For Availability
3009
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011C Contact Us For Availability
3029
BRACKET,MOUNT LGE 4810W1A212B Contact Us For Availability
3034
CANOPY,RESIN LGE 3052W1A005A Contact Us For Availability
4000
BOARD,LATCH LGE 3500W0A005A Contact Us For Availability
4001
BOARD ASSEMBLY,LATCH LGE 3501W1A016R Contact Us For Availability
5000
CAPACITOR,[HIGH VOLTAGE] LGE 6120W3H003J Contact Us For Availability
5002
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
5003
GUIDE,SUCTION LGE 4974W0A011A Contact Us For Availability
5004
DUCT LGE 5208W1A026A Contact Us For Availability
5005
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
5006
DUCT LGE 5208W1A027A Contact Us For Availability
5007
PROPELLER LGE 2B72125A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023U Contact Us For Availability
5010
Power Cord Assembly LGE 2B72325H Contact Us For Availability
5012
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
5014
HARNESS LGE 6877W1A494A Contact Us For Availability
5015
Lamp,Incandescent LGE 6912W3B002J Contact Us For Availability
5015
LAMP,DRAWING LGE 6912W3B002Q Contact Us For Availability
5019
HARNESS LGE 6877W1A494B Contact Us For Availability
6000
BASE PLATE LGE 3302W0A049B Contact Us For Availability
6001
BASE PLATE ASSEMBLY LGE 3303W0A027B Contact Us For Availability
6002
LEG LGE 4B73900A Contact Us For Availability
6012
CAP,PROTECTOR LGE 5006W1A003B Contact Us For Availability
8000
COFFEE MAKER ASSEMBLY LGE 3496W0A001D Contact Us For Availability
8002
CASE,LOWER LGE 3110W0A012A Contact Us For Availability
8003
CASE ASSEMBLY LGE 3111W1A027A Contact Us For Availability
8005
PIPE LGE 5200W1A005A Contact Us For Availability
8007
SPRING LGE 4970W1A016A Contact Us For Availability
8009
TANK ASSEMBLY,WATER LGE 4839W1A001C Contact Us For Availability
8010
TANK,WATER LGE 4838W1A001A Contact Us For Availability
8011
Panel LGE 3720W1E035C Contact Us For Availability
8012
HANDLE,DOOR LGE 3650W1A128C Contact Us For Availability
8013
VALVE LGE 5220W1A003A Contact Us For Availability
8015
PACKING,SEAL LGE 3920W1A012A Contact Us For Availability
8016
PACKING,SEAL LGE 3920W1A011A Contact Us For Availability
8018
COVER ASSEMBLY,TOP COVER LGE 3551W1A029A Contact Us For Availability
8019
COVER,INNER LGE 3550W0A100A Contact Us For Availability
8019
Cover,Inner LGE 3550W1A232A Contact Us For Availability
8020
LEVER LGE 4510W1A014A Contact Us For Availability
8023
HEATER,SHEATH LGE 5300W1S018B Contact Us For Availability
8024
THERMISTOR,NTC LGE 6322A00010A Contact Us For Availability
8025
BRACKET,MOUNT LGE 4810W1A211A Contact Us For Availability
8026
THERMOSTAT LGE 6930W1A001N Contact Us For Availability
8027
SUPPORTER LGE 4980W1A082A Contact Us For Availability
8028
CANOPY,MICA LGE 3052W1M010A Contact Us For Availability
8029
CARAFE ASSEMBLY LGE 3495W1A001B Contact Us For Availability
8031
COVER,TOP LGE 3550W1A231B Contact Us For Availability
8381
PIPE ASSY LGE 383EW5A160A Contact Us For Availability
8382
CARAFE ASSEMBLY LGE 383EW5A162C Contact Us For Availability
8383
WARMING PLATE ASSY LGE 383EW5A161A Contact Us For Availability
8384
CONTROL PANEL STS COVER LGE 383EW5A165A Contact Us For Availability
8385
PANEL,EXTRA STS COVER LGE 383EW5A166A Contact Us For Availability
W168
SCREW TAPPING,PAN HEAD LGE 1TPL0402432 Contact Us For Availability
W205
Nut,Customized LGE 1NZZW1A004A Contact Us For Availability
× ![]()
