Model Whirlpool 6257XUS GAS RANGE – Common Parts & Diagrams

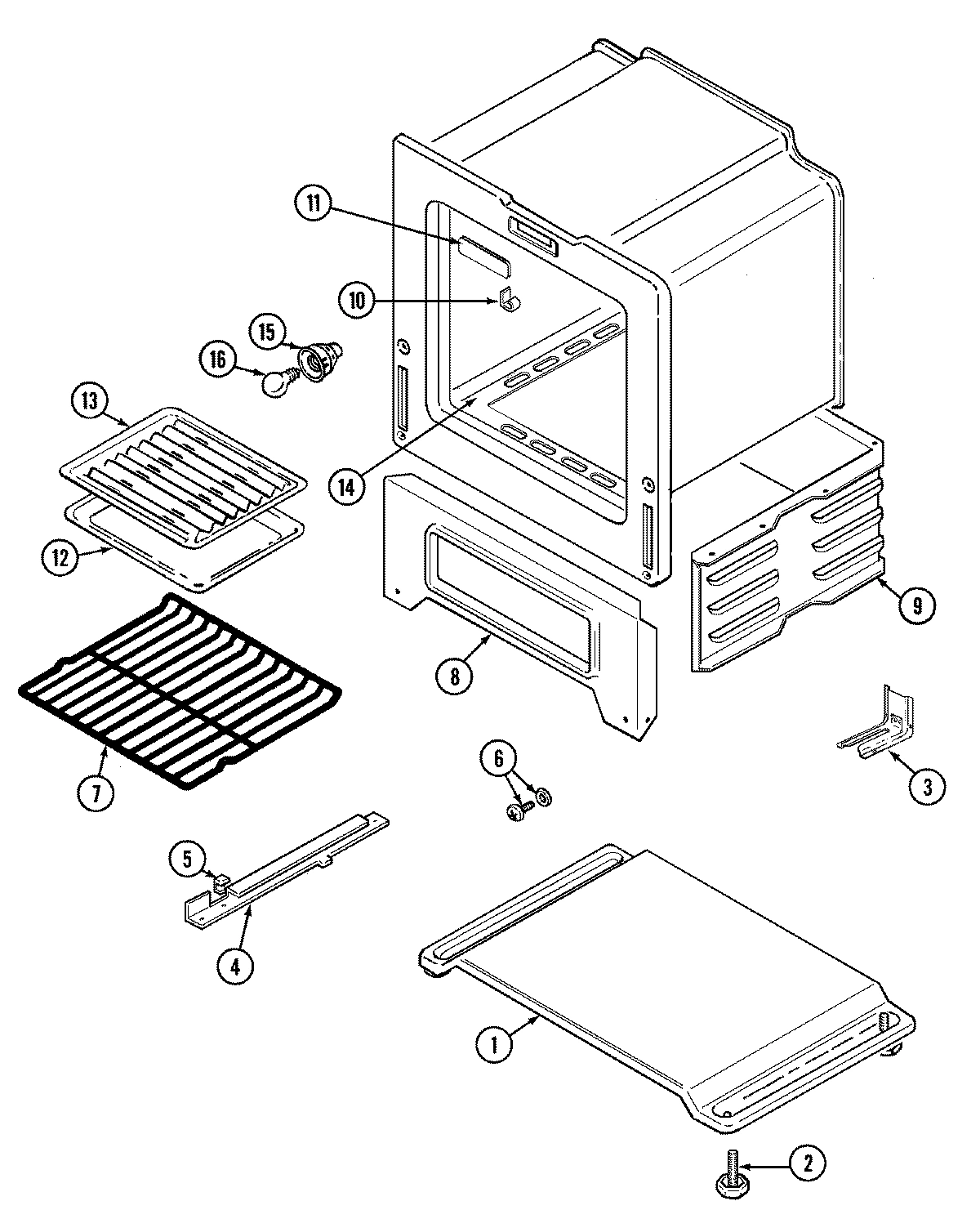

04 - OVEN/BASE

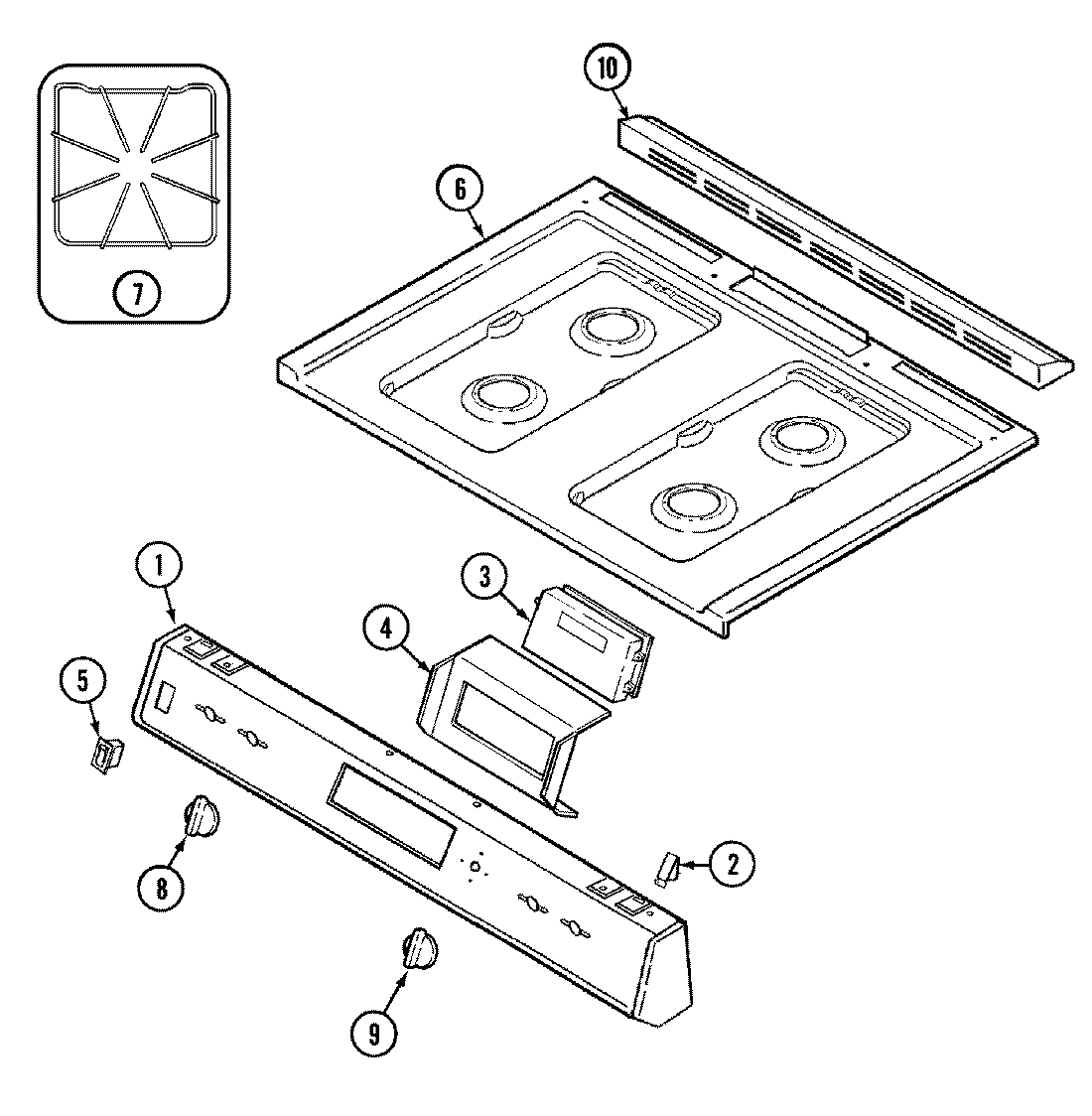

05 - TOP ASSEMBLY

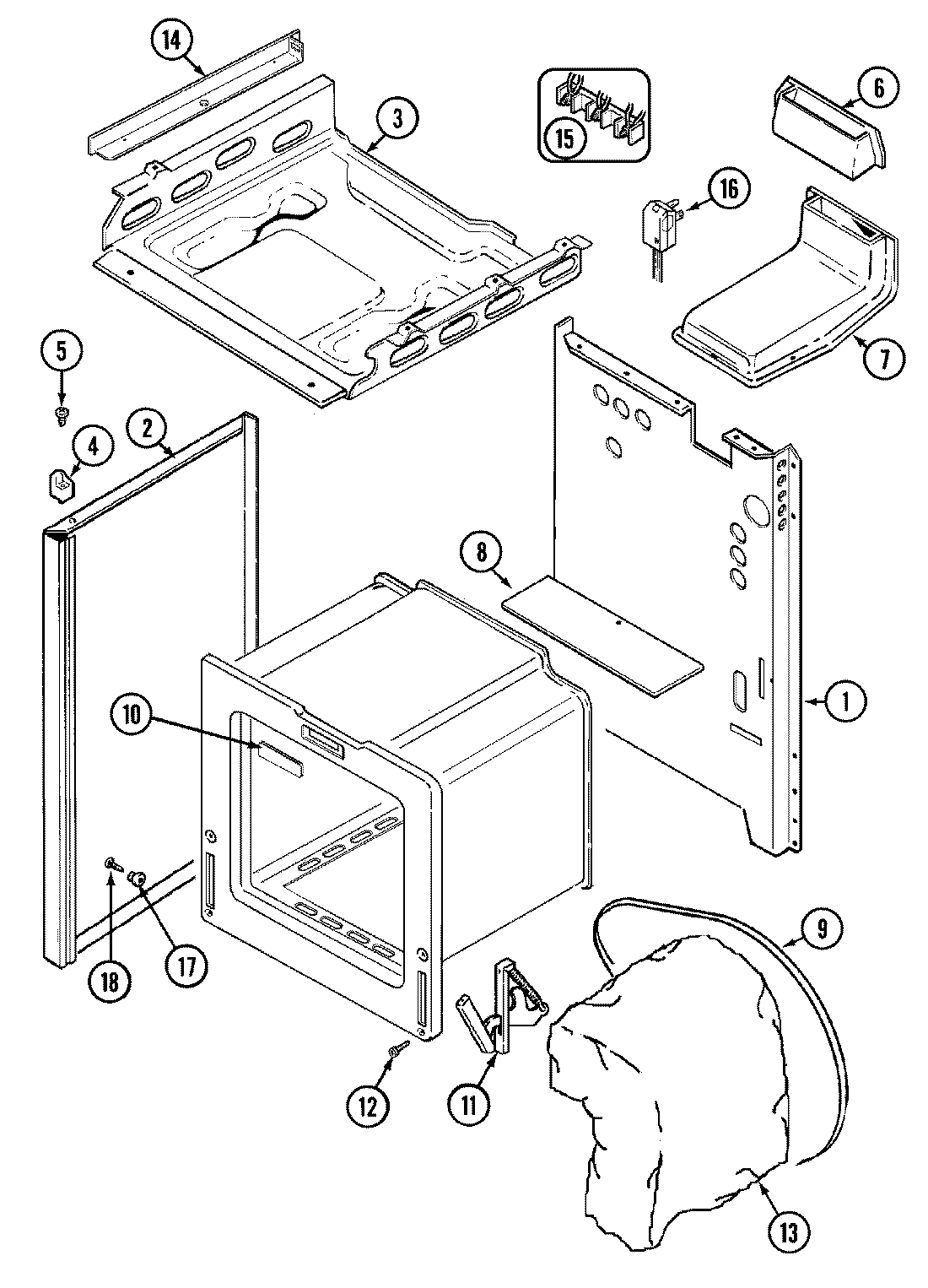

01 - BODY

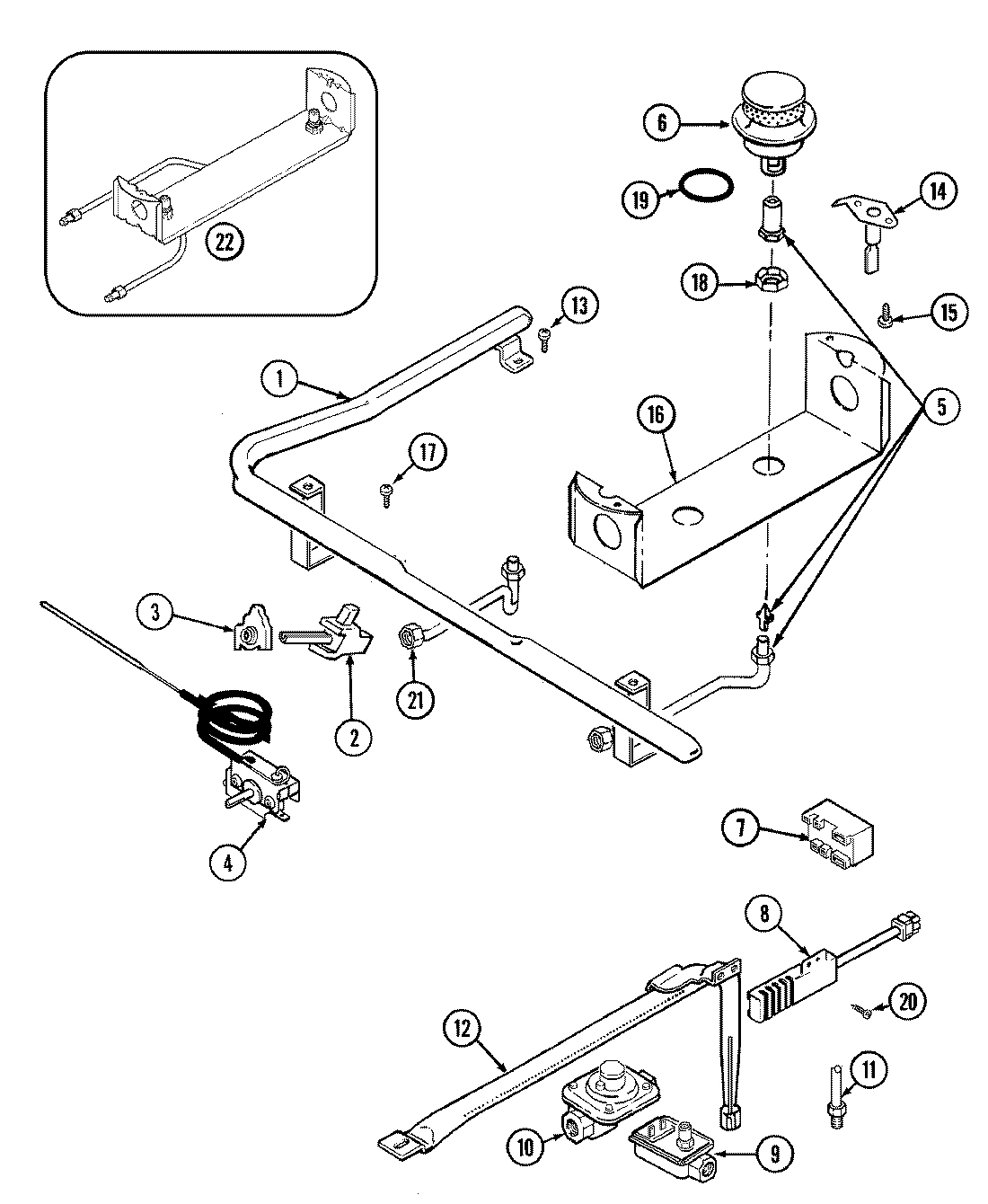

03 - GAS CONTROLS

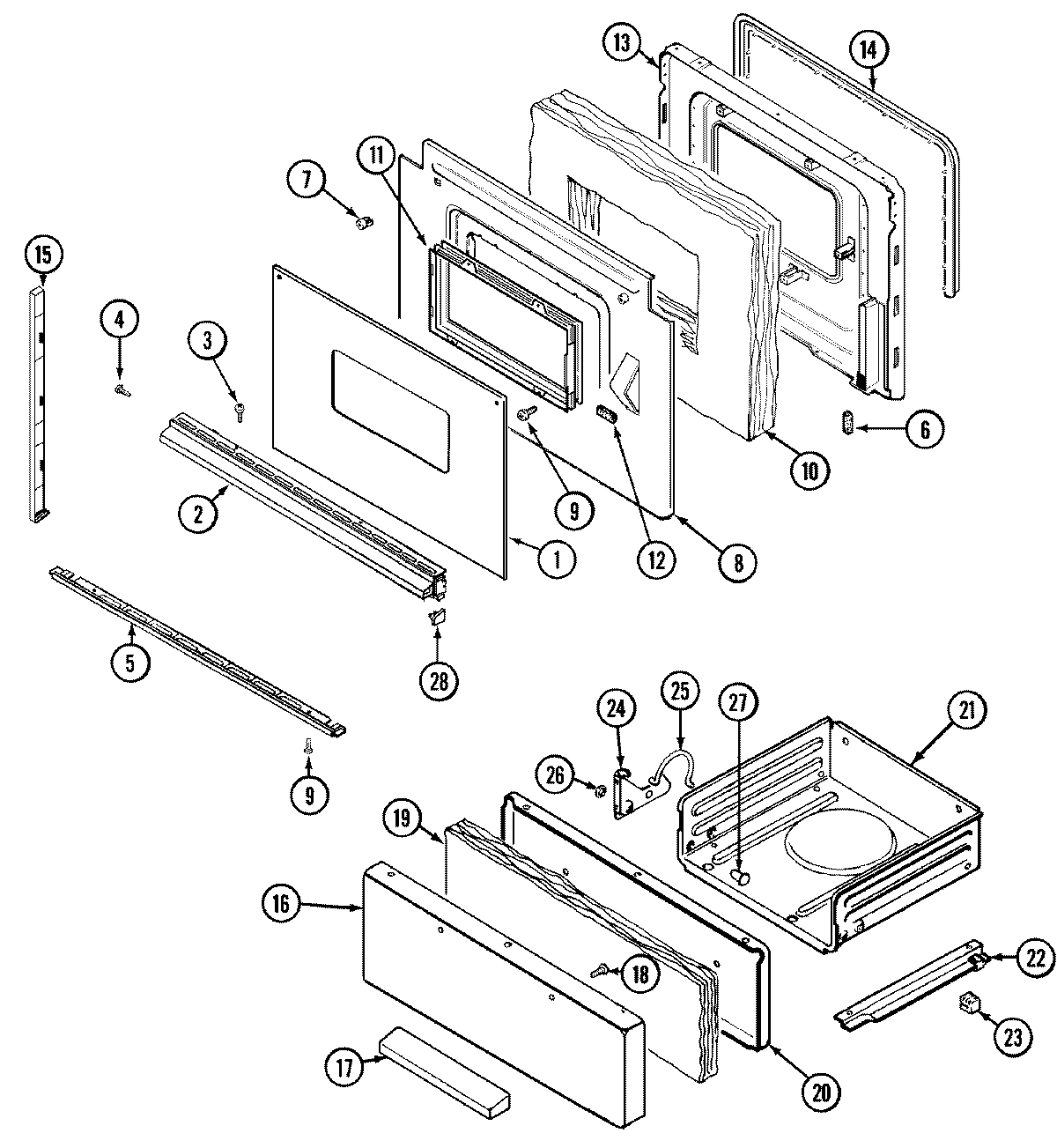

02 - DOOR/DRAWER (SERIES 01)
Common parts from model Whirlpool 6257XUS GAS RANGE
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
PANEL, MANIFOLD (BLK) WPL 7712P18660 Contact Us For Availability
1
BACK, MAIN WPL 4002F18880 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P16060 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
2
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
2
CLIP, SPEED WPL 7112P10260 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F09570 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F09670 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P21760 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
CLOCK (BLK) WPL 7602P11960 Contact Us For Availability
3
BOX, BURNER WPL 4011F22480 Contact Us For Availability
3
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
BRACKET WPL 3801F33245 Contact Us For Availability
4
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7404P08760 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
COVER, MAINFOLD (REAR) WPL 4005F41551 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
6
SCREW WPL 7101P33460 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
6
TOP, MAIN (STLS) WPL 2001F08930 Contact Us For Availability
6
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
6
EXTRUSION, FILLER WPL 7706P30160 Contact Us For Availability
6
EXTENSION, VENT BOX WPL 4022W00445 Contact Us For Availability
6
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
7
RACK WPL 7801P04060 Contact Us For Availability
7
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
7
BOX, VENT WPL 4006W11345 Contact Us For Availability
7
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
7
NUT, NYLON WPL 7103P04560 Contact Us For Availability
8
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
8
KNOB, VALVE WPL 7733P06560 Contact Us For Availability
8
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
9
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
BRACKET, MAIN TOP WPL 3801F32551 Contact Us For Availability
9
KNOB, THERMOSTAT (BLK) WPL 7731P07160 Contact Us For Availability
9
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
9
VALVE, OVEN WPL 7501P09960 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
10
COVER, VENT TRIM WPL 7724P05160 Contact Us For Availability
10
PIPE, NIPPLE WPL 7507P12360 Contact Us For Availability
10
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
11
MANUAL, USE & CARE-INSERT WPL 8112P10660 Contact Us For Availability
11
MANUAL, USE & CARE WPL 8113P01260 Contact Us For Availability
11
HINGE WPL 7106P05560 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
11
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
12
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
12
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
12
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
INSULATION, OVEN BACK WPL 4804F03160 Contact Us For Availability
13
INSULATION, OVEN WRAPPER WPL 4804F03260 Contact Us For Availability
13
LINING, DOOR WPL 2402W19316 Contact Us For Availability
14
BAFFLE, OVEN BOTTOM WPL 3601F23445 Contact Us For Availability
14
RETAINER WPL 3804F01050 Contact Us For Availability
14
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
14
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
14
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
14
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
15
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
15
SCREW WPL 7101P31560 Contact Us For Availability
15
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
16
BULB, OVEN WPL 7407P09560 Contact Us For Availability
16
CORD, POWER WPL 7402P04360 Contact Us For Availability
16
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
16
SCREW WPL 7101P34360 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 2403F02870 Contact Us For Availability
17
SCREW WPL 7101P29660 Contact Us For Availability
17
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
18
PALNUT WPL 7103P11960 Contact Us For Availability
18
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
19
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
19
INSULATION WPL 4804F02560 Contact Us For Availability
20
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
FITTING, ORIFICE WPL 7507P08760 Contact Us For Availability
21
FITTING, ORIFICE WPL 7507P08660 Contact Us For Availability
21
FITTING, ORIFICE WPL 7507P08960 Contact Us For Availability
22
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
22
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
22
ORIFICE FITTING ASSEMBLY WPL 5187D03660 Contact Us For Availability
22
ORIFICE FITTING ASSEMBLY WPL 5187D03760 Contact Us For Availability
22
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
22
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
22
SCREW WPL 7101P06160 Contact Us For Availability
23
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
23
GLIDE WPL 8016P01360 Contact Us For Availability
24
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
24
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
25
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
25
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
26
NUT, GRIP WPL 7103P02260 Contact Us For Availability
27
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
28
END CAP (RT) WPL 7744P07560 Contact Us For Availability
28
END CAP (LT) WPL 7744P07660 Contact Us For Availability
× ![]()
