LG 62469 MWO-JUMBO Parts List

*01

MANUAL,OWNERS LGE 3828W5A3847 Contact Us For Availability

View on Model

*02

MANUAL,SERVICE LGE 3828W5S3490 Contact Us For Availability

View on Model

*05

LABEL,COOKING GUIDE LGE 3850W1D063N Contact Us For Availability

View on Model

*07

CARD,TECHNICAL LGE 3840W1T0062 Contact Us For Availability

View on Model

*10

BOX,YELLOW LGE 3890W3Y763B Contact Us For Availability

View on Model

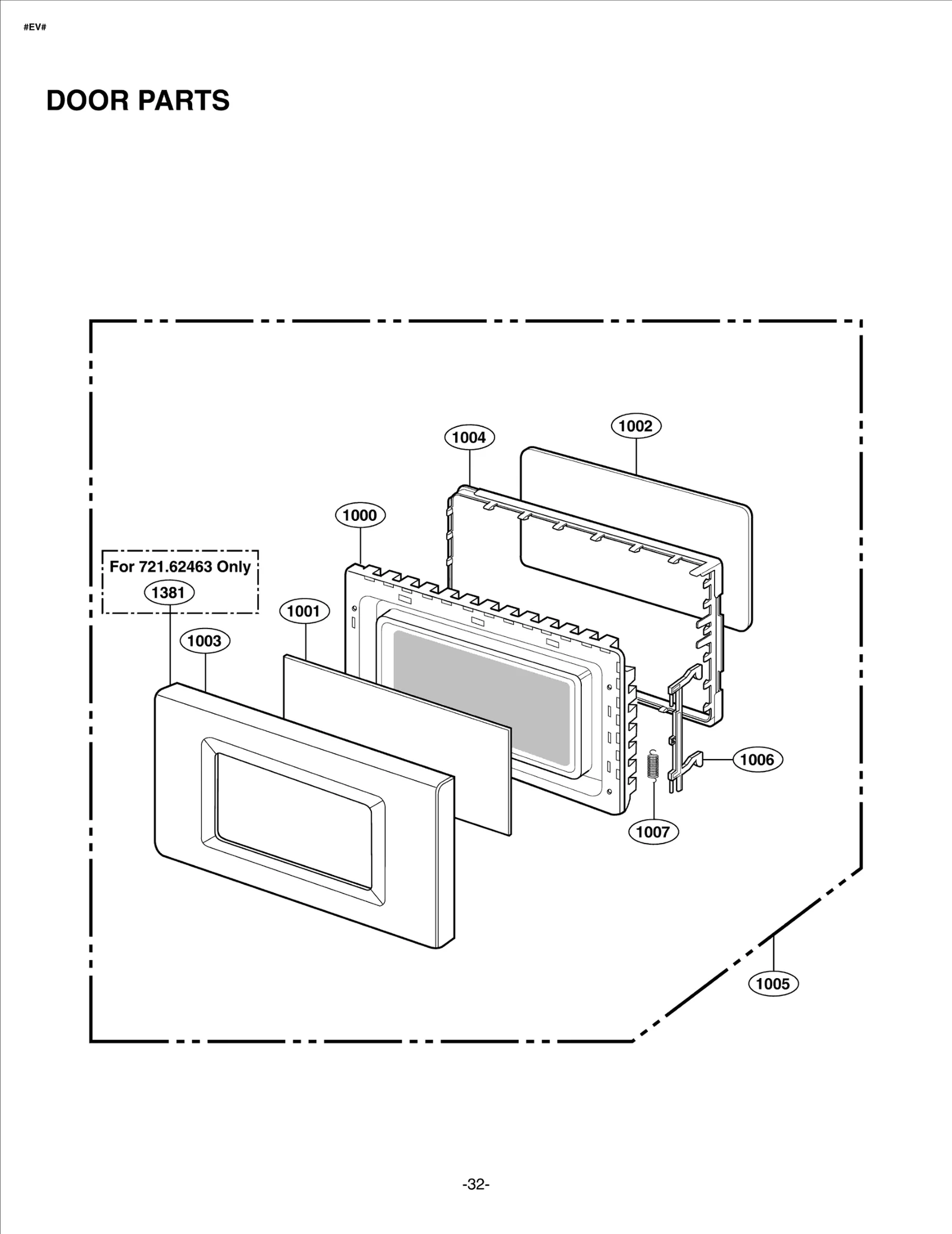

1002

3536W1A009A LG Sealing Tape Backorder LGE 3536W1A009A $10.38

View on Model

1006

4026W2A019A LG Microwave Door Latch Hook - Bl In Stock LGE 4026W2A019A $6.96

View on Model

1007

4970WRA001B LG Spring Backorder LGE 4970WRA001B $6.53

View on Model

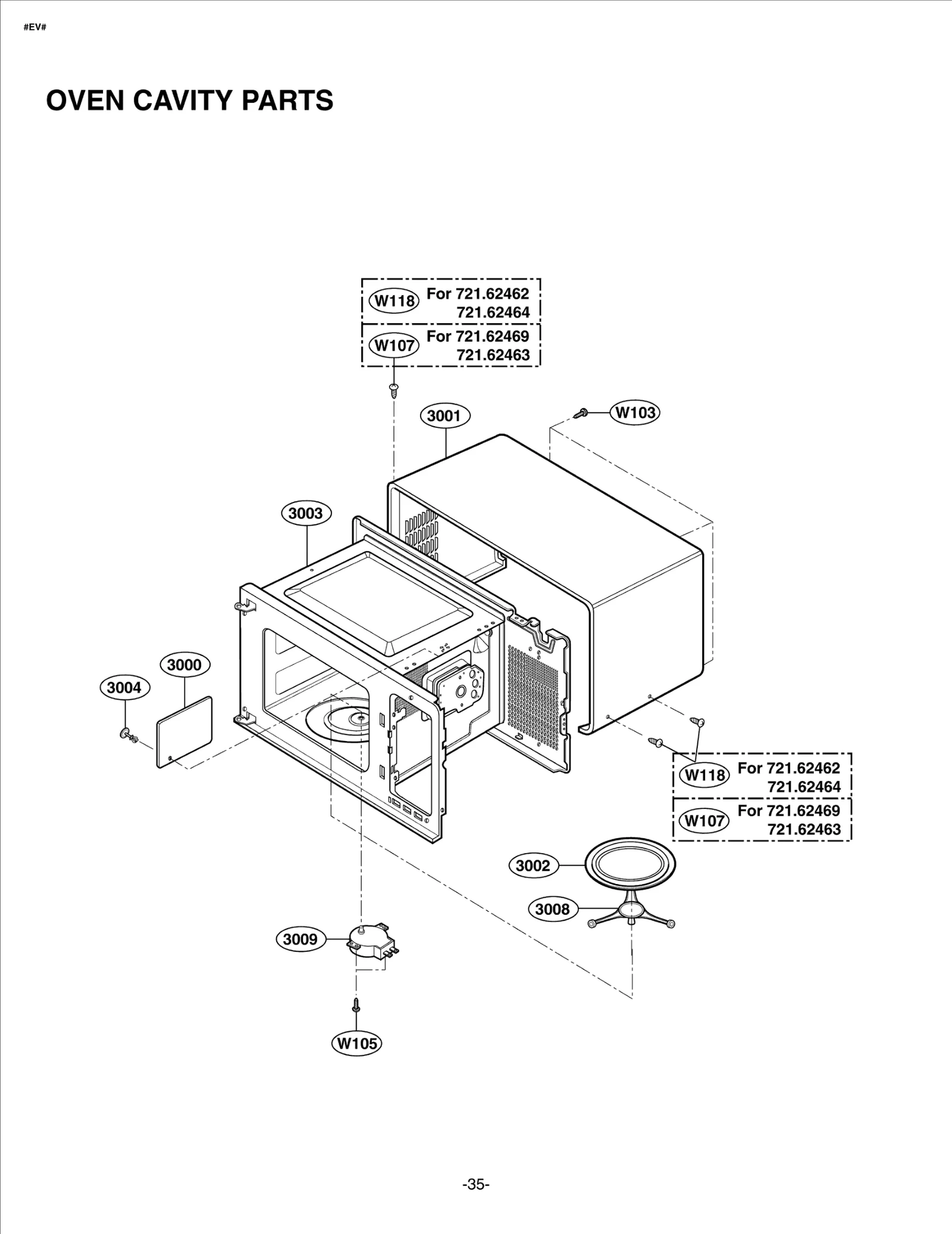

3002

TRAY,GLASS LGE 3390W1G009D Contact Us For Availability

View on Model

3004

4051W3A001A LG Connector Assembly Backorder LGE 4051W3A001A $2.17

View on Model

3006

4B72944B LG Wire Holder Backorder LGE 4B72944B $6.53

View on Model

3007

5012W3A020C LG Insulator Backorder LGE 5012W3A020C $6.53

View on Model

3008

ROTATING RING ASSY M LGE 5889W2A014A Contact Us For Availability

View on Model

3009

6549W1S011B LG Microwave Oven Synchronous Tur In Stock LGE 6549W1S011B $21.47

View on Model

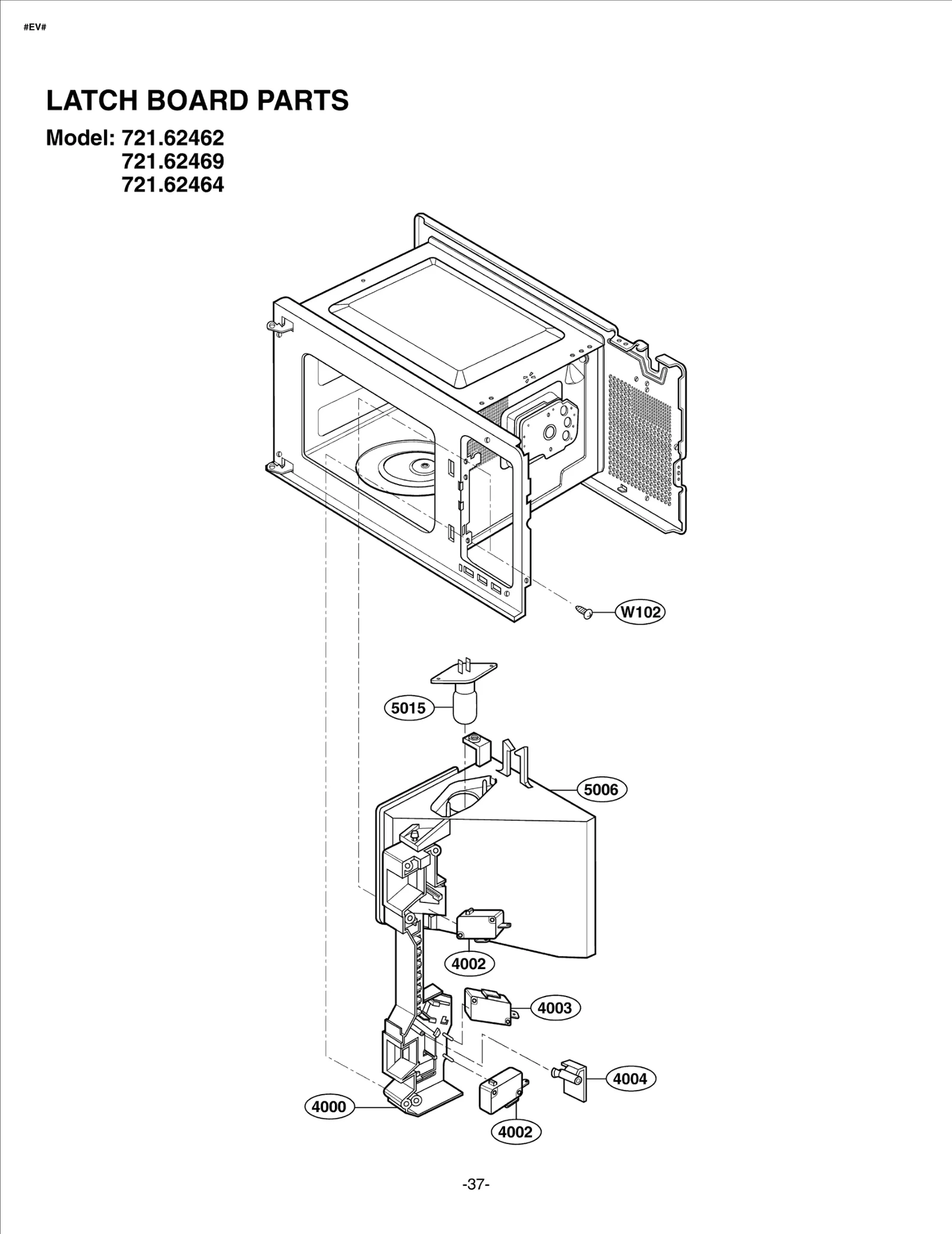

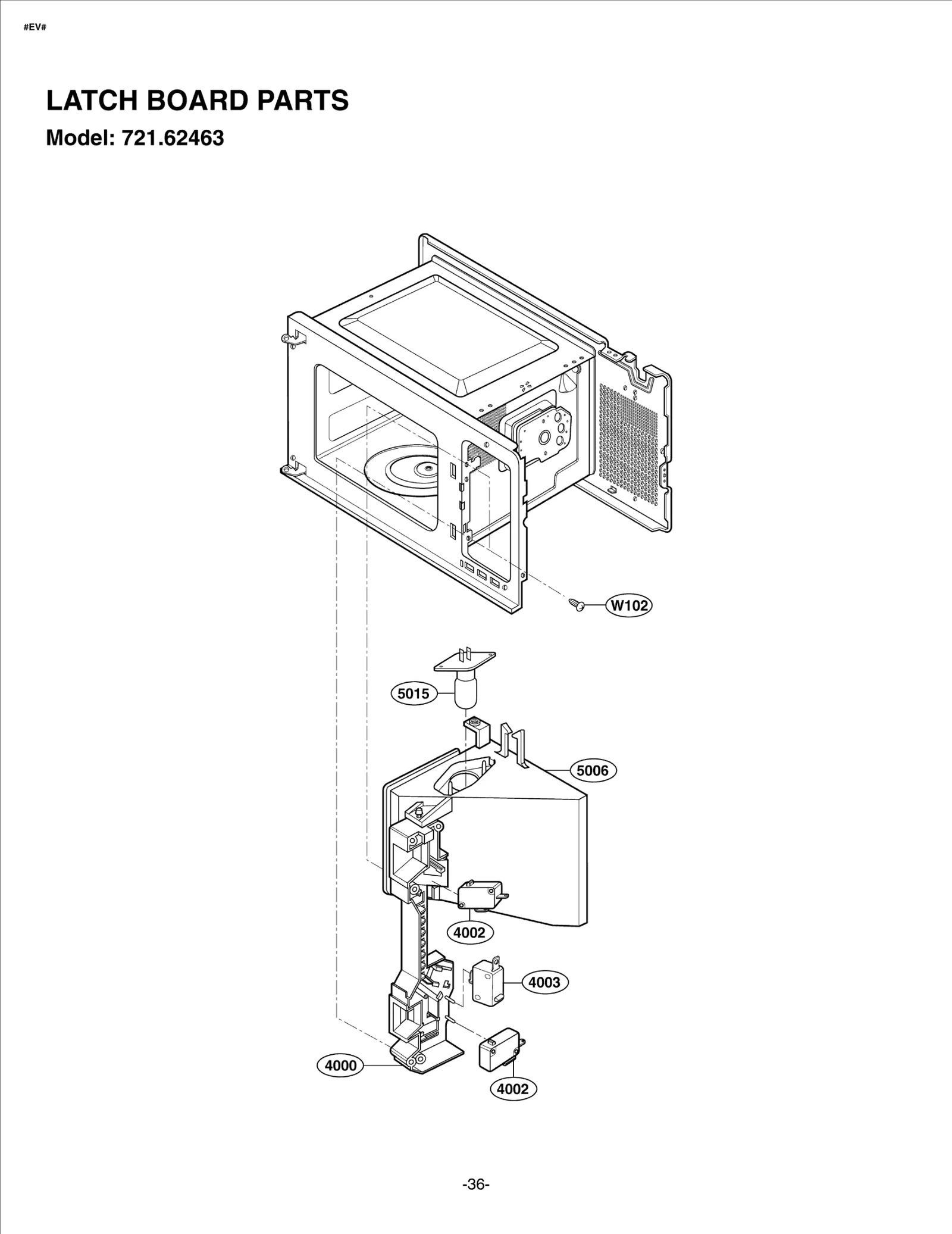

4000

3500W1A013R LG Locker Holder Backorder LGE 3500W1A013R $15.56

View on Model

4002

6600W1K001D LG Microwave Oven Door Micro Swit Backorder LGE 6600W1K001D $11.42

View on Model

4003

6600W1K001C LG Microwave Oven Micro Door Swit Backorder LGE 6600W1K001C $10.38

View on Model

4004

4510W3A012B LG Microwave Lever Backorder LGE 4510W3A012B $6.53

View on Model

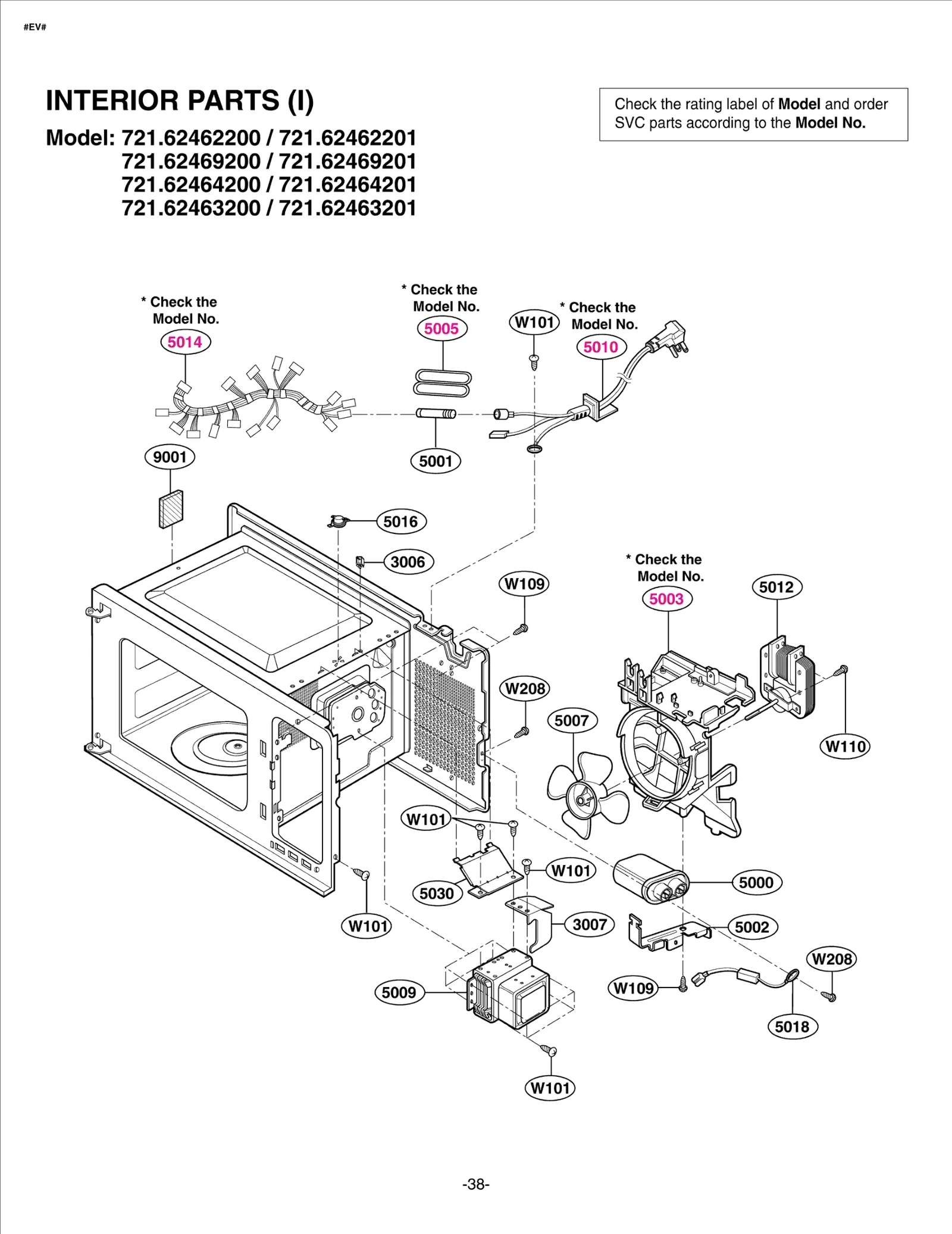

5000

0CZZW1H004P LG High Voltage Capacitor Backorder LGE 0CZZW1H004P $47.84

View on Model

5001

3B74133Q LG Microwave Oven Main Inline Time D In Stock LGE 3B74133Q $5.57

View on Model

5002

4810W4C003B LG Capacitor Bracket Backorder LGE 4810W4C003B $6.53

View on Model

5003

GUIDE,SUCTION LGE 4974W1S048B Contact Us For Availability

View on Model

5004

BRACKET,SENSOR Backorder LGE 4810W1A254A $10.38

View on Model

5007

5900W1A025A LG Fan Propeller Backorder LGE 5900W1A025A $6.53

View on Model

5008

TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023P Contact Us For Availability

View on Model

5009

6324W1A001L LG Microwave Oven Magnetron In Stock LGE 6324W1A001L $109.79

View on Model

5010

POWER CORD ASSEMBLY LGE 6411W1A019V Contact Us For Availability

View on Model

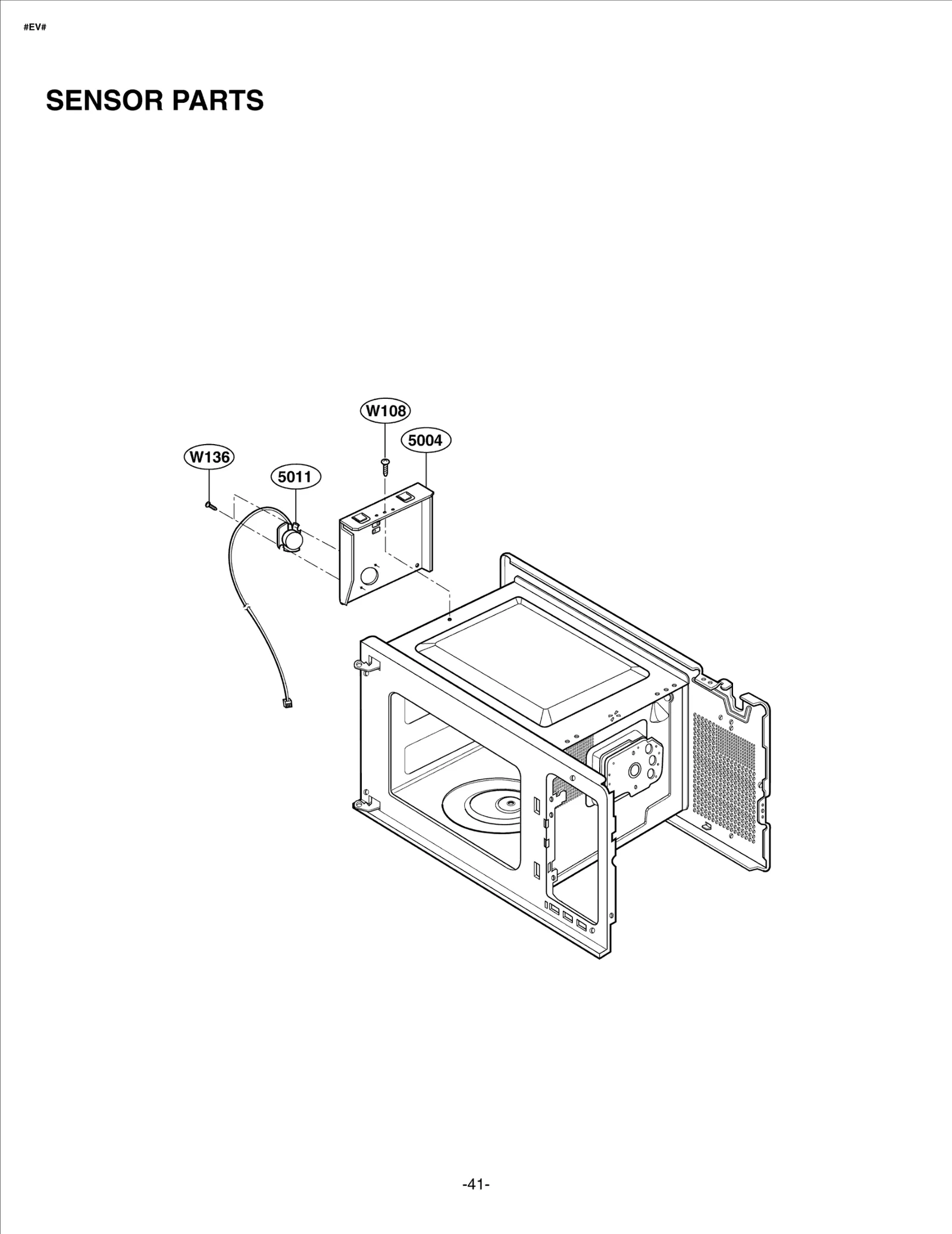

5011

6501W1A006A LG Sensor Assembly Backorder LGE 6501W1A006A $60.00

View on Model

5012

MOTOR(CIRC),FAN LGE 6549W1F005P Contact Us For Availability

View on Model

5014

HARNESS LGE 6877W1A538F Contact Us For Availability

View on Model

5015

6912W3B002L LG Microwave Oven Incandescent Li Backorder LGE 6912W3B002L $10.38

View on Model

5016

6930W1A003A LG Microwave Thermostat Backorder LGE 6930W1A003A $10.38

View on Model

5018

6021W3B001V LG Microwave Oven High Voltage Di In Stock LGE 6021W3B001V $8.88

View on Model

5030

BRACKET,MISC LGE 4810W2G052B Contact Us For Availability

View on Model

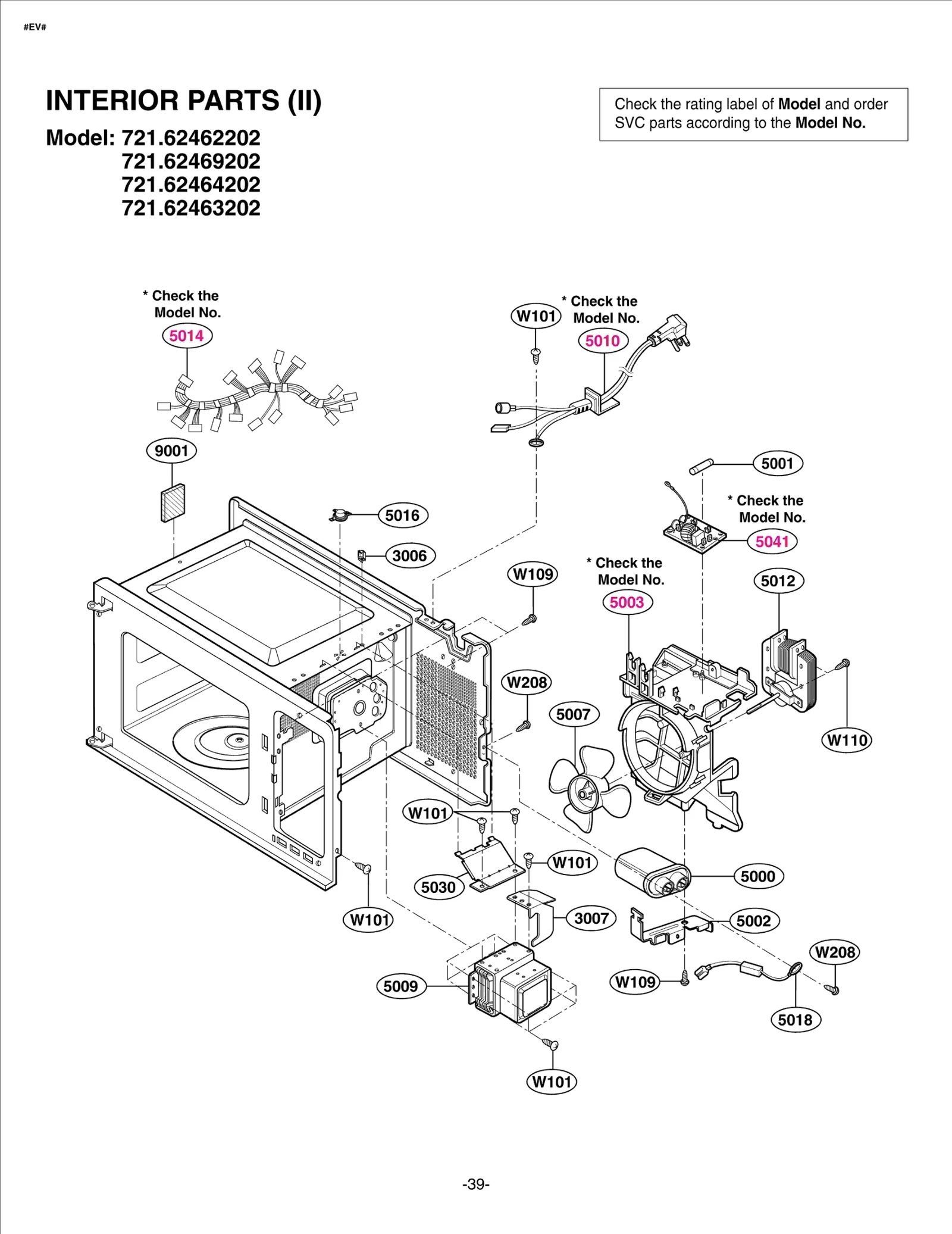

5041

6201W1A014A LG Noise Filter Assembly Backorder LGE 6201W1A014A $9.54

View on Model

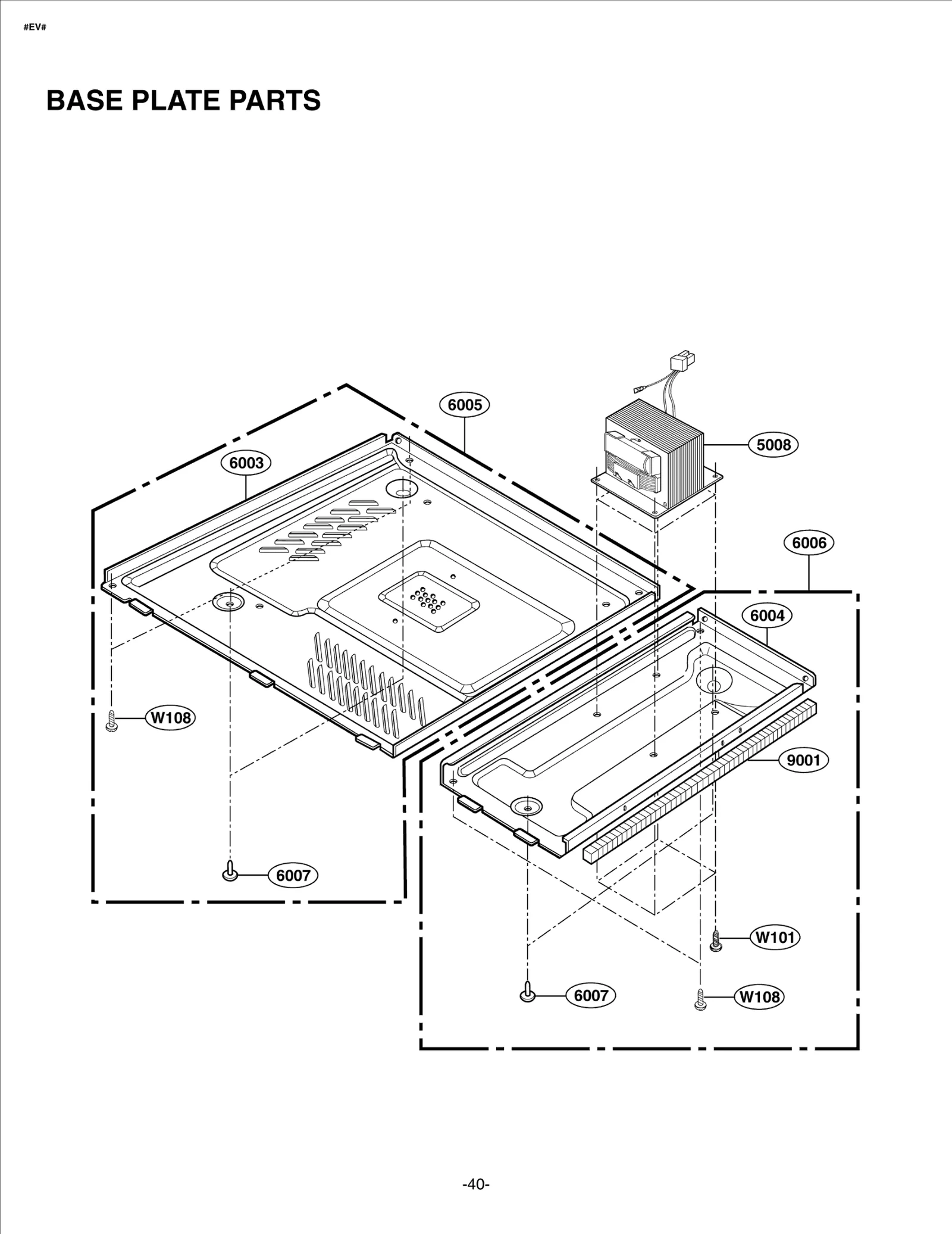

6003

BASE PLATE LGE 3302W0A014B Contact Us For Availability

View on Model

6004

BASE PLATE LGE 3302W1A046F Contact Us For Availability

View on Model

6005

BASE PLATE ASSEMBLY LGE 3303W0A010C Contact Us For Availability

View on Model

6006

BASE PLATE ASSEMBLY LGE 3303W1A040F Contact Us For Availability

View on Model

6007

5006W3A019A LG Cap-Base Plate Backorder LGE 5006W3A019A $6.53

View on Model

9001

3B72244C LG Damper Backorder LGE 3B72244C $6.53

View on Model

BZ1

BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability

View on Model

C02

CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability

View on Model

C07

CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability

View on Model

C11

CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability

View on Model

C13

CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability

View on Model

C14

CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability

View on Model

C62

CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability

View on Model

D02

DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability

View on Model

D90

DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability

View on Model

D96

DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability

View on Model

DP1(G1)

VFD Backorder LGE 6302W5A023B $40.06

View on Model

PT1

6010W2P043P LG Power Transformer Backorder LGE 6010W2P043P $5.75

View on Model

Q01

TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability

View on Model

Q02

TRANSISTOR LGE 0TR150509AC Contact Us For Availability

View on Model

Q20

TR,BIPOLAR Backorder LGE 0TR107009AG $6.53

View on Model

Q32

TRANSISTOR CHIP KTC3875S-Y-T1( LGE 0TR387509AB Contact Us For Availability

View on Model

Q56

TRANSISTOR LGE 0TR107009AC Contact Us For Availability

View on Model

R01

0RH1501L622 LG Resistor,Chip Backorder LGE 0RH1501L622 $6.53

View on Model

R02

RESISTOR,METAL GLAZED(CHIP) LGE 0RH4701L622 Contact Us For Availability

View on Model

R10

RESISTOR,METAL GLAZED(CHIP) LGE 0RH1000L622 Contact Us For Availability

View on Model

R12

RESISTOR,METAL GLAZED(CHIP) LGE 0RJ0102E672 Contact Us For Availability

View on Model

R13

RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability

View on Model

R20

Resistor,Chip Backorder LGE 0RH1001L622 $6.53

View on Model

R25

RESISTOR FIXED CARBON FILM LGE 0RD3901G609 Contact Us For Availability

View on Model

R32

RESISTOR,CHIP Backorder LGE 0RH1002L622 $6.53

View on Model

R33

RESISTOR,CHIP LGE 0RH5601L622 Contact Us For Availability

View on Model

R55

Resistor,Carbon Film Backorder LGE 0RD1004F609 $2.23

View on Model

R57

Resistor,Chip Backorder LGE 0RH4702L622 $6.53

View on Model

R61

RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability

View on Model

R62

0RN2003F409 LG Resistor,Metal Film Backorder LGE 0RN2003F409 $6.53

View on Model

R63

R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability

View on Model

R67

RESISTOR,FIXED METAL FILM LGE 0RN1072F409 Contact Us For Availability

View on Model

R68

Resistor,Metal Film Backorder LGE 0RN1002F409 $2.23

View on Model

R70

RESISTOR,CARBON FILM Backorder LGE 0RD6600H609 $6.53

View on Model

R74

Resistor,Chip Backorder LGE 0RJ2004E672 $6.53

View on Model

R75

Resistor,Chip Backorder LGE 0RH1004L622 $6.53

View on Model

R76

RESISTOR,METAL GLAZED(CHIP) LGE 0RH5103L622 Contact Us For Availability

View on Model

R77

RESISTOR,METAL GLAZED(CHIP) LGE 0RH2703L622 Contact Us For Availability

View on Model

R78

RESISTOR,METAL GLAZED(CHIP) LGE 0RH1503L622 Contact Us For Availability

View on Model

R94

0RH2202L622 LG Resistor,Chip Backorder LGE 0RH2202L622 $6.53

View on Model

RY2

RELAY LGE 6920W5A009A Contact Us For Availability

View on Model

RY4

RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability

View on Model

VR1

VARISTOR LGE 6102W5V002B Contact Us For Availability

View on Model

W101

1SBF0402418 LG Laptop Screw Backorder LGE 1SBF0402418 $6.53

View on Model

W108

1TTL0402418 LG Microwave Tapping Screw Backorder LGE 1TTL0402418 $5.06

View on Model

W109

1TTL0402818 LG Oven Microwave Tapping Screw Backorder LGE 1TTL0402818 $6.53

View on Model

W110

1TTL0403818 LG Tapping Screw Backorder LGE 1TTL0403818 $6.53

View on Model

W136

1TPL0302418 LG Tapping Screw Backorder LGE 1TPL0302418 $6.53

View on Model

W208

1EBF0402494 LG TAPTITE Screw Backorder LGE 1EBF0402494 $6.53

View on Model

ZD1

DIODE,ZENERS LGE 0DZSB00053B Contact Us For Availability

View on Model

ZD2

DIODE,ZENERS LGE 0DZSB00073B Contact Us For Availability

View on Model
