Model LG 62342 MWO-L – Common Parts & Diagrams

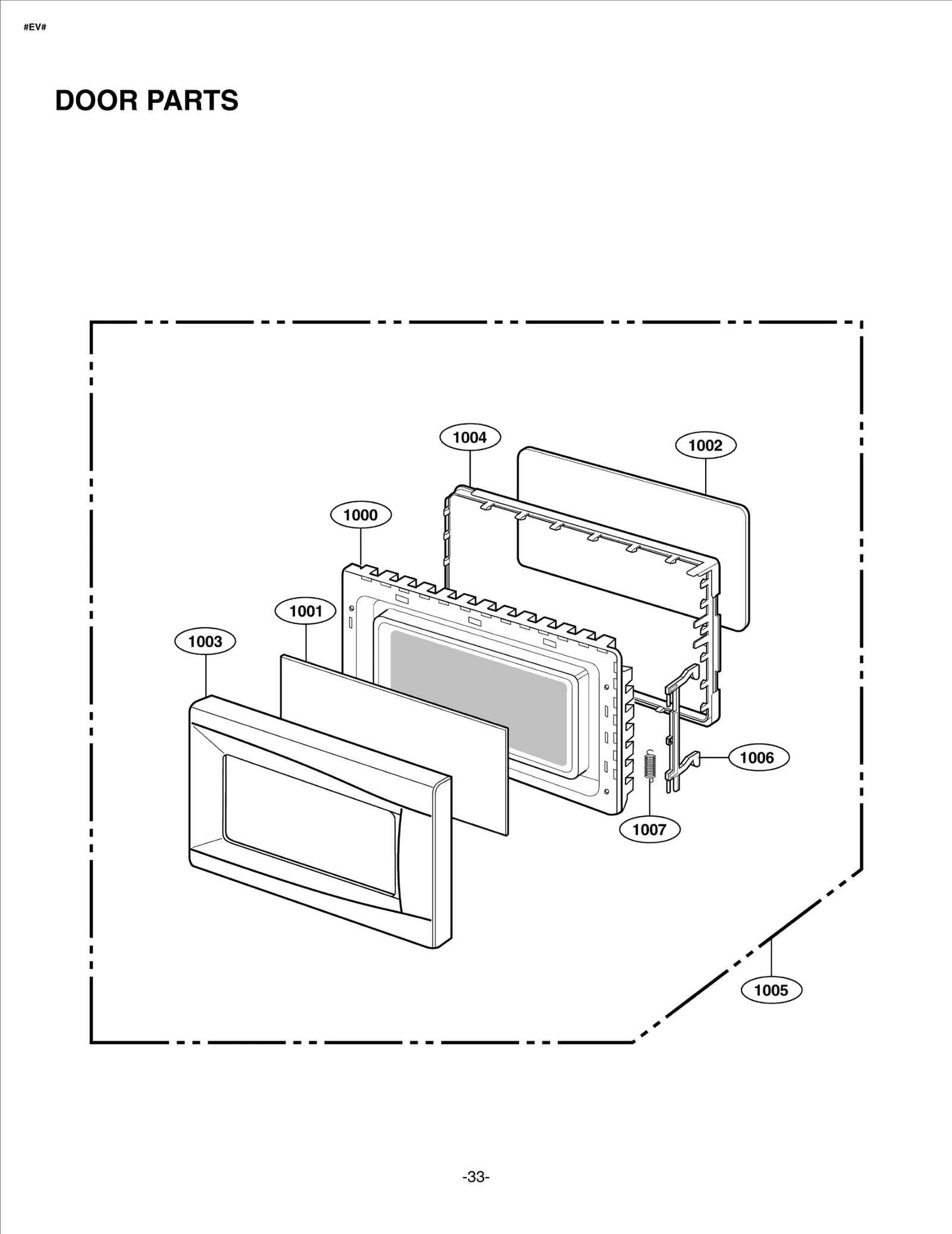

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Diagram 8
Common parts from model LG 62342 MWO-L
3003
Cavity Assembly,Coating LGE 3461W0A043D Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W1A003A Contact Us For Availability
3009
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S015A Contact Us For Availability
4000
BOARD,LATCH LGE 3500W0A001A Contact Us For Availability
4001
Holder Assembly,Locker LGE 3501W1A027A Contact Us For Availability
5000
CAPACITOR,[HIGH VOLTAGE] LGE 6120W3H003J Contact Us For Availability
5002
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
5003
Guide,Suction LGE 4974W0A003A Contact Us For Availability
5004
DUCT LGE 5208W1A014A Contact Us For Availability
5005
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
5007
FAN LGE 5900W1A007A Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D077A Contact Us For Availability
5009
MAGNETRON LGE 6324W1A001A Contact Us For Availability
5010
Power Cord Assembly LGE 2B72325H Contact Us For Availability
5012
Confirmed NLA with no LTB option 5/9/14 NB LGE 6549W1F009A Contact Us For Availability
5014
Single Harness LGE 6877W1A187Q Contact Us For Availability
5015
LAMP,DRAWING LGE 6912W3B002Q Contact Us For Availability
5016
THERMOSTAT HORIZONTAL 90/75,PA LGE 6930WRT001C Contact Us For Availability
5016
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
6000
Plate,Base LGE 3302W0A035A Contact Us For Availability
6001
Plate Assembly,Base LGE 3303W0A017B Contact Us For Availability
MEZ1
LABEL,COOKING GUIDE LGE 3850W1D064A Contact Us For Availability
W129
SCREW, LGE 1SZZW2A002B Contact Us For Availability
× ![]()
