Model Whirlpool 61S14WAW GAS RANGE – Common Parts & Diagrams

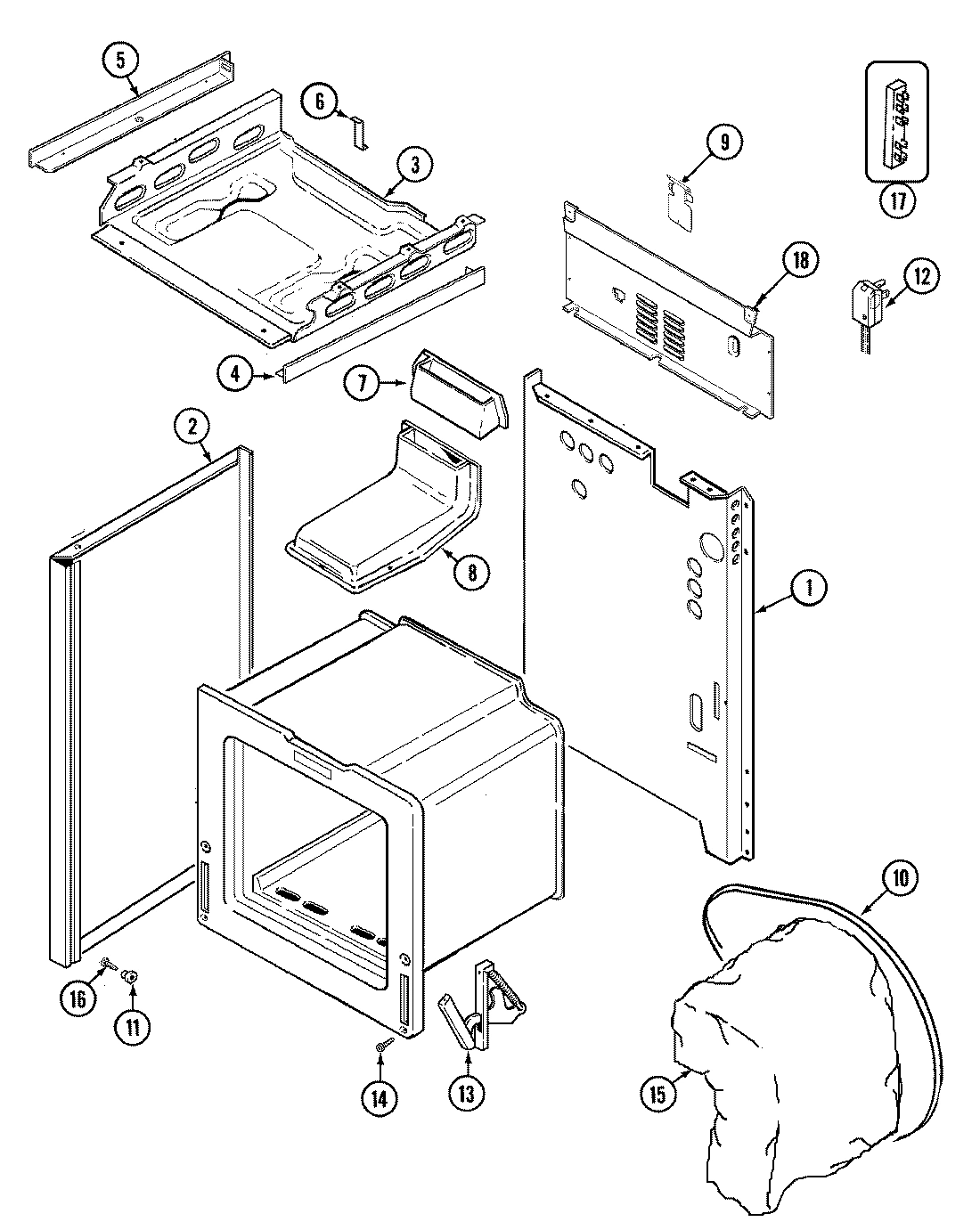

01 - BODY

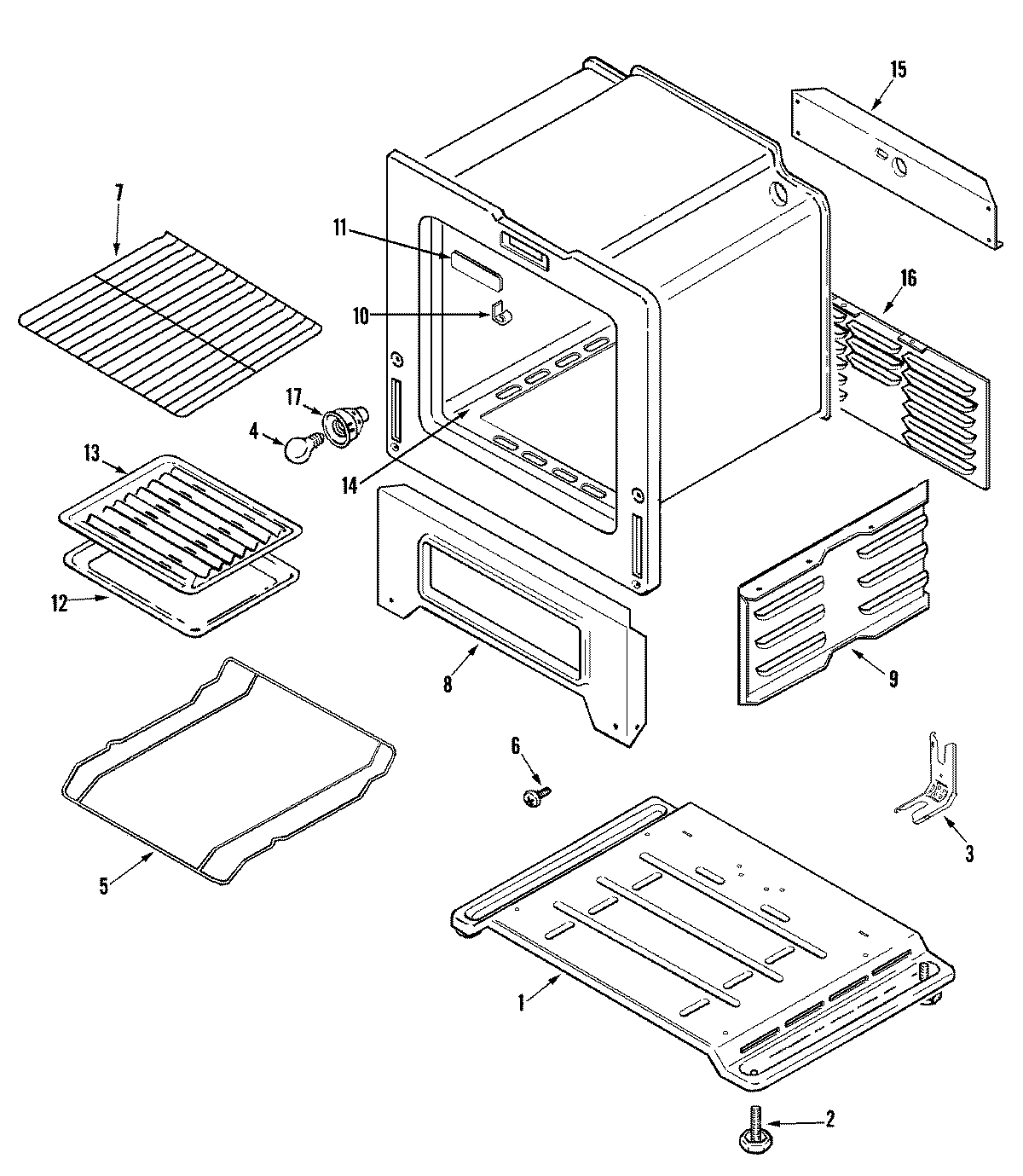

04 - OVEN/BASE

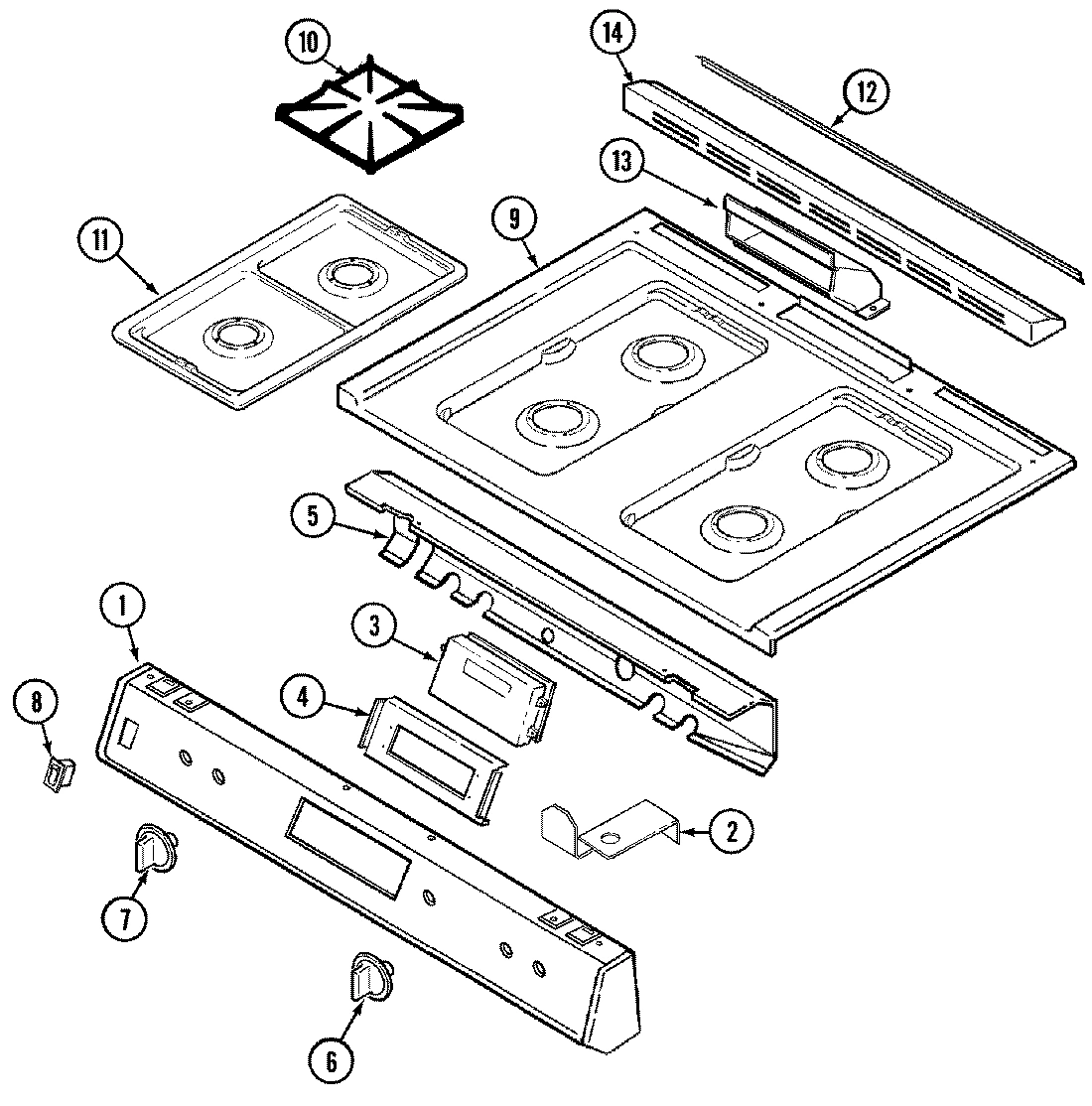

05 - TOP ASSEMBLY

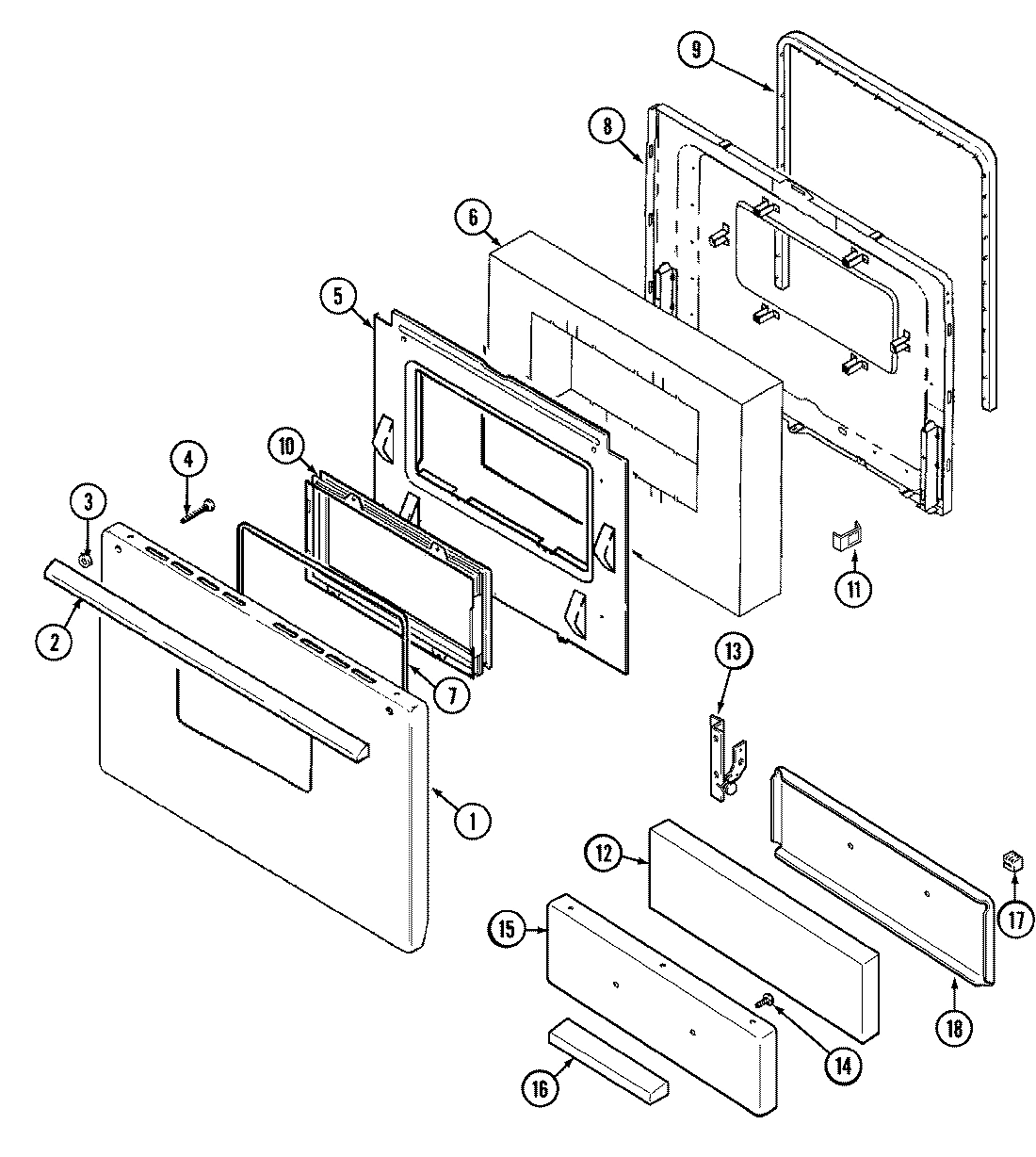

02 - DOOR/DRAWER (61S14WAx)

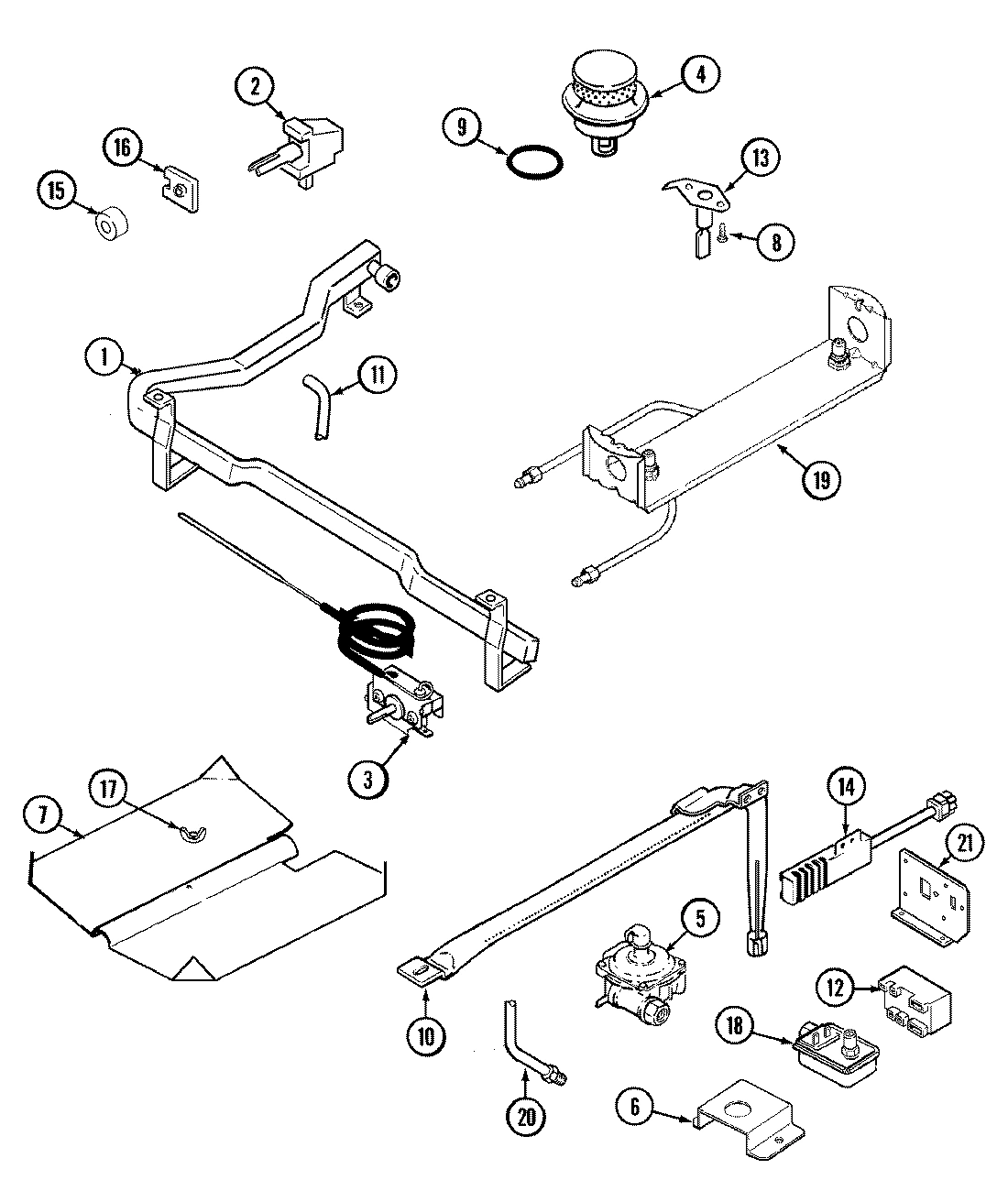

03 - GAS CONTROLS

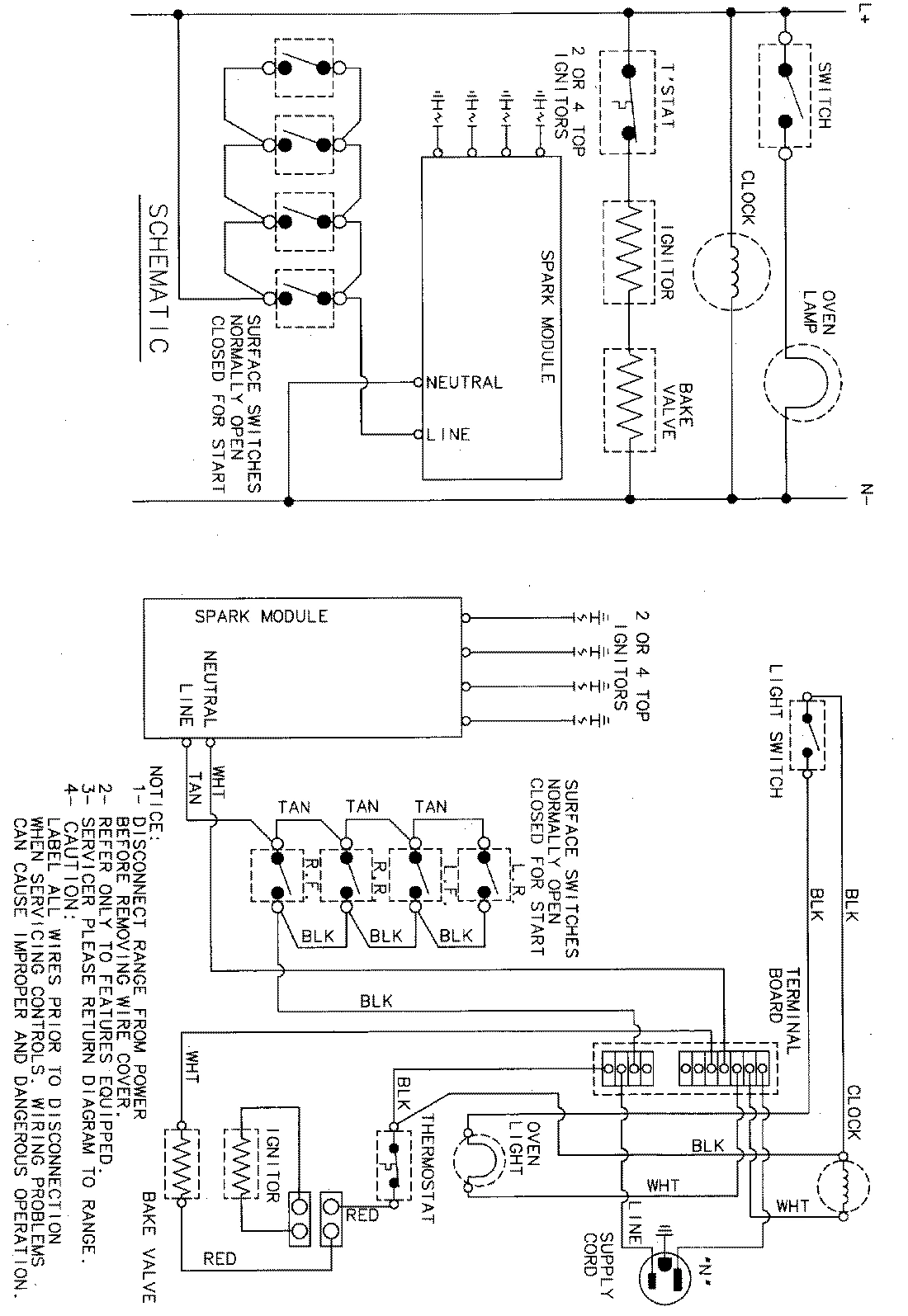

06 - WIRING INFORMATION
Common parts from model Whirlpool 61S14WAW GAS RANGE
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
BASE, MAIN WPL 74002372 Contact Us For Availability
1
PANEL, MANIFOLD (BLK) WPL 7712P18660 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F12171 Contact Us For Availability
1
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P16060 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F10671 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F10771 Contact Us For Availability
2
BRACKET, TOP WPL 3801F31851 Contact Us For Availability
2
SCREW WPL 7101P07460 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, BURNER WPL 7502P25060 Contact Us For Availability
3
BOX, BURNER WPL 74002357 Contact Us For Availability
3
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
3
SCREW WPL 7101P34460 Contact Us For Availability
3
CLOCK (BLK) WPL 7602P11960 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
3
THERMOSTAT WPL 7404P08760 Contact Us For Availability
4
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
4
BULB-OVEN WPL 7407P10360 Contact Us For Availability
4
BRACKET WPL 3801F33245 Contact Us For Availability
4
BRACKET, CLOCK WPL 74003890 Contact Us For Availability
4
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
4
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
5
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
5
COVER, MANIFOLD (REAR) WPL 74002547 Contact Us For Availability
5
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 74002552 Contact Us For Availability
6
BRACKET, MAIN TOP WPL 3801F32551 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
KNOB, THERMOSTAT (BLK) WPL 7731P07160 Contact Us For Availability
6
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
6
BRACKET, OVEN VALVE WPL 74002394 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002333 Contact Us For Availability
7
KNOB, VALVE WPL 7733P06560 Contact Us For Availability
7
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
7
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
8
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
8
LINING, DOOR WPL 2402W21219 Contact Us For Availability
8
LINING, DOOR WPL 74003247 Contact Us For Availability
9
COVER, WIRE WPL 4005F44845 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
TOP, MAIN (WHT) WPL 74001558 Contact Us For Availability
9
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
9
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01560 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
11
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING, REGULATOR/PIPE (3/8``) WPL 74002553 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
GASKET WPL 7201P06160 Contact Us For Availability
12
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
12
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
13
HINGE WPL 7106P05660 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
13
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
13
HINGE, DRAWER WPL 74002398 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
14
COVER, VENT TRIM WPL 4825D00159 Contact Us For Availability
14
SCREW WPL 7101P32860 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
MANUAL, USE & CARE WPL 74002355 Contact Us For Availability
15
PANEL, DRAWER (WHT) WPL 74001729 Contact Us For Availability
15
GASKET, IGNITER SWITCH WPL 74002555 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
16
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
17
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
17
GLIDE WPL 8016P01560 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
18
COVER, MAIN WIRE WPL 4005F37851 Contact Us For Availability
18
LINING, DRAWER WPL 74002397 Contact Us For Availability
18
VALVE, OVEN WPL 74002387 Contact Us For Availability
19
ORIFICE FITTING ASSEMBLY WPL 5187D03660 Contact Us For Availability
19
ORIFICE FITTING ASSEMBLY WPL 5187D03760 Contact Us For Availability
20
TUBING, REGULATOR/VALVE (3/8``) WPL 74002554 Contact Us For Availability
21
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
22
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
22
WIRES, MODULE/SWITCHES WPL 74002556 Contact Us For Availability
22
WIRES, IGNITER (4-OR) WPL 74004960 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001812 Contact Us For Availability
× ![]()
