Model Whirlpool 61HY-3KX GAS RANGE – Common Parts & Diagrams
02 - CONTROL SYSTEM

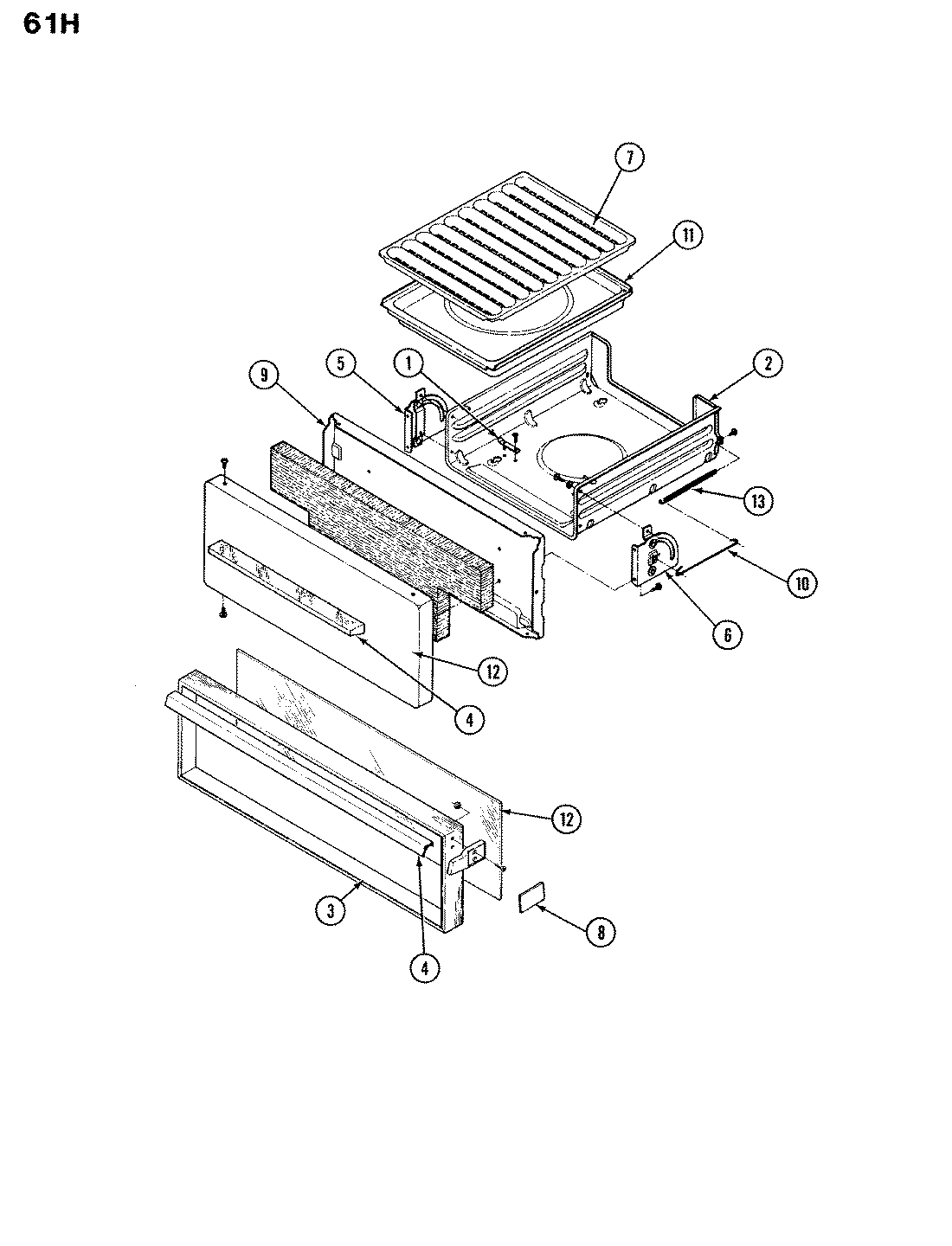

04 - DRAWER

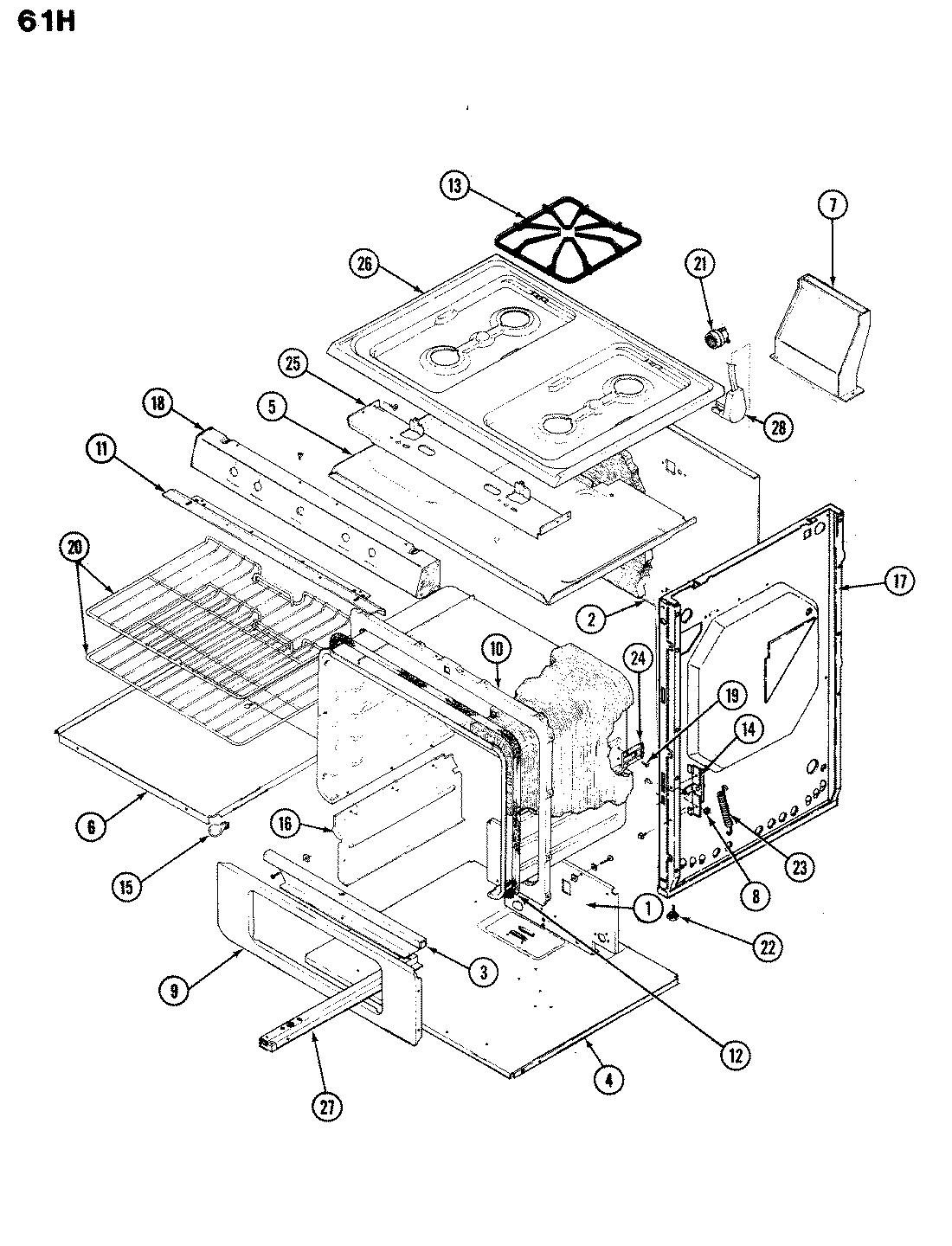

01 - BODY

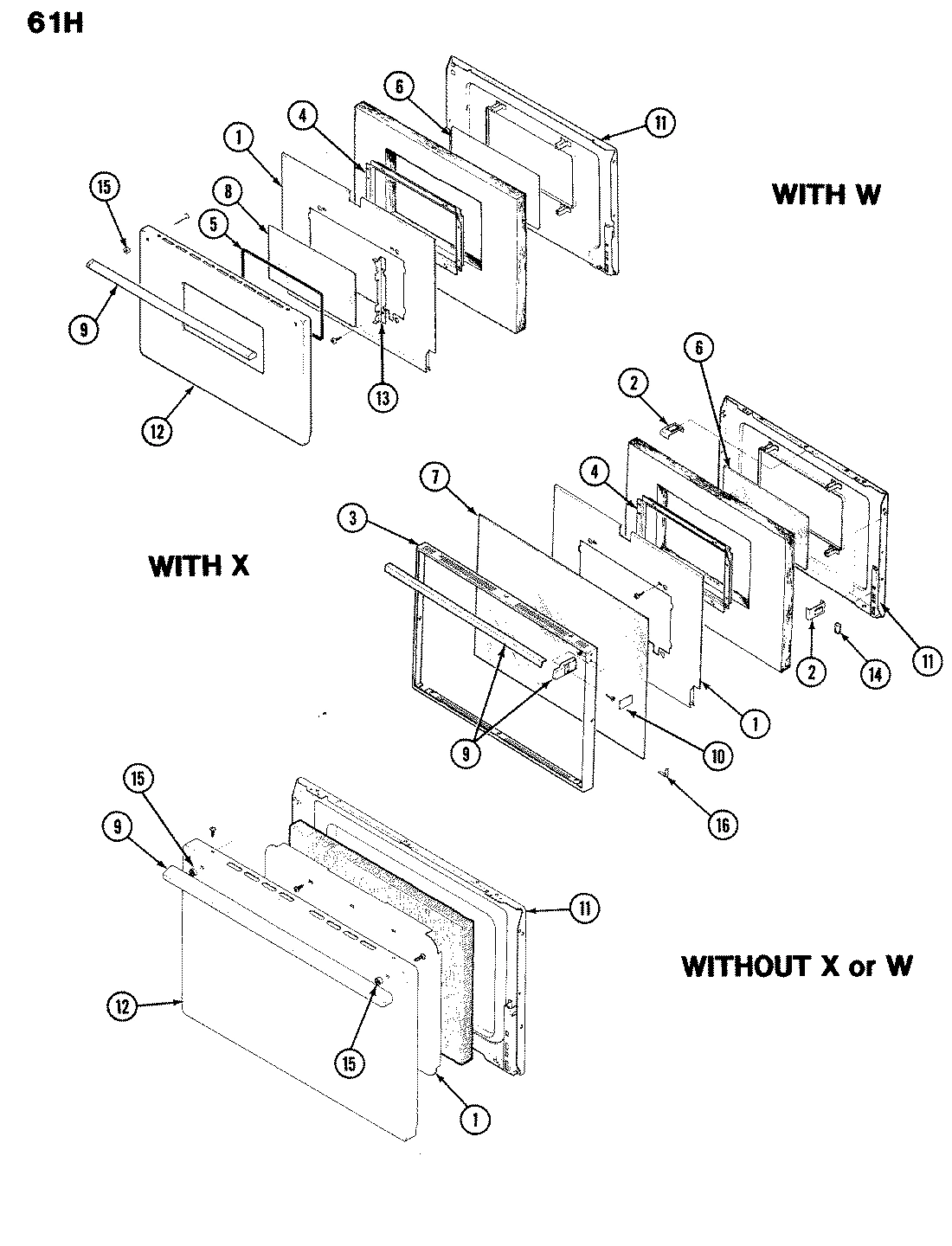

03 - DOOR
Common parts from model Whirlpool 61HY-3KX GAS RANGE
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BUMPER WPL 8003P00160 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BACK, BROILER WPL 4002F16645 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
2
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F16580 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BURNER, REAR WPL 7505P17760 Contact Us For Availability
3
BURNER, FRONT WPL 7505P17860 Contact Us For Availability
3
BAFFLE, FLUE BOX WPL 3601F11445 Contact Us For Availability
3
BAFFLE, OVEN FRONT WPL 3601W12419 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P01360 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
COVER, IGNITOR WPL 4005F00680 Contact Us For Availability
4
COVER, MODULE WPL 4005F16780 Contact Us For Availability
4
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
4
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
4
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
5
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
IGNITER, TOP BURNER (RT) WPL 7432P02860 Contact Us For Availability
6
IGNITER, TOP BURNER (LT) WPL 7432P02960 Contact Us For Availability
6
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
7
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
SCREW WPL 7101P06160 Contact Us For Availability
7
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
7
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
7
BRACKET, SPACER RT WPL 3801F08480 Contact Us For Availability
7
BRACKET, SPACER LT WPL 3801F08680 Contact Us For Availability
7
BRACKET, CLOCK MTG WPL 3801F19351 Contact Us For Availability
7
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
7
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
7
BOX, FLUE WPL 4006W02680 Contact Us For Availability
7
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
7
CLAMP WPL 7111P00160 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
3/8`` NUT & FERRULE WPL 1555258 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
COVER WPL 4005F08880 Contact Us For Availability
8
COVER, DELUXE DISC WPL 4005F18080 Contact Us For Availability
8
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
8
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
8
CLOCK WPL 7602P09760 Contact Us For Availability
8
FILLER, STRIP WPL 7706P00960 Contact Us For Availability
8
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
8
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
9
LINING, BROILER WPL 2404F02123 Contact Us For Availability
9
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P09160 Contact Us For Availability
10
LINK, BROILER WPL 7807P00160 Contact Us For Availability
10
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
11
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
11
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
12
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
12
MIXER, AIR WPL 3411F00635 Contact Us For Availability
12
SHIELD WIRE WPL 3604F04251 Contact Us For Availability
12
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
12
SLEEVE WPL 7214P00360 Contact Us For Availability
12
SEAL WPL 7212P00160 Contact Us For Availability
12
GLASS, CLOCK WPL 7902P29560 Contact Us For Availability
13
SUPPORT WPL 3807F12034 Contact Us For Availability
13
SPRING WPL 7803P01460 Contact Us For Availability
13
GRATE WPL 2003W00100 Contact Us For Availability
13
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
13
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
14
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
14
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
14
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
14
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
14
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
14
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
14
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE SPACER, HANDLE WPL W10124350 Contact Us For Availability
15
BULB, OVEN WPL 7407P02660 Contact Us For Availability
16
THERMOSTAT WPL 7404P06360 Contact Us For Availability
16
THERMOSTAT WPL 7515P00860 Contact Us For Availability
16
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
16
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
17
PAN, BROIL WPL 3401F00423 Contact Us For Availability
17
LINING, INNER SIDE WPL 04000019 Contact Us For Availability
17
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
17
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
18
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
18
PANEL MANIFOLD BLK WPL 2616F06590 Contact Us For Availability
19
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
19
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
19
PIN, HINGE WPL 7113P00260 Contact Us For Availability
20
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
20
RACK, OVEN WPL 7801P03060 Contact Us For Availability
21
VALVE, TOP BURNER WPL 7502P11660 Contact Us For Availability
21
RETAINER WPL 3804F01050 Contact Us For Availability
21
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
22
SHIELD, SWITCH WPL 3604F09134 Contact Us For Availability
22
SHIELD, MANIFOLD COVER WPL 3604F14351 Contact Us For Availability
22
WPL 7003P04060 WPL 7003P04060 Contact Us For Availability
22
WPL 7101P25560 WPL 7101P25560 Contact Us For Availability
23
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
23
WPL 7803P05560 WPL 7803P05560 Contact Us For Availability
24
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
25
WPL 3807F34751 WPL 3807F34751 Contact Us For Availability
25
WPL 7403P10260 WPL 7403P10260 Contact Us For Availability
27
WPL 3404A01351 WPL 3404A01351 Contact Us For Availability
27
WPL 3404A01451 WPL 3404A01451 Contact Us For Availability
27
WPL 7201P02360 WPL 7201P02360 Contact Us For Availability
27
WPL 7201P04060 WPL 7201P04060 Contact Us For Availability
27
WPL 7506P02260 WPL 7506P02260 Contact Us For Availability
27
WPL 7724P01360 WPL 7724P01360 Contact Us For Availability
27
WPL 7724P02660 WPL 7724P02660 Contact Us For Availability
27
WPL 7724P05560 WPL 7724P05560 Contact Us For Availability
28
WPL 7402P01460 WPL 7402P01460 Contact Us For Availability
× ![]()
