Model Maytag 5MS224NEWY02 REFRIGERATOR – Common Parts & Diagrams

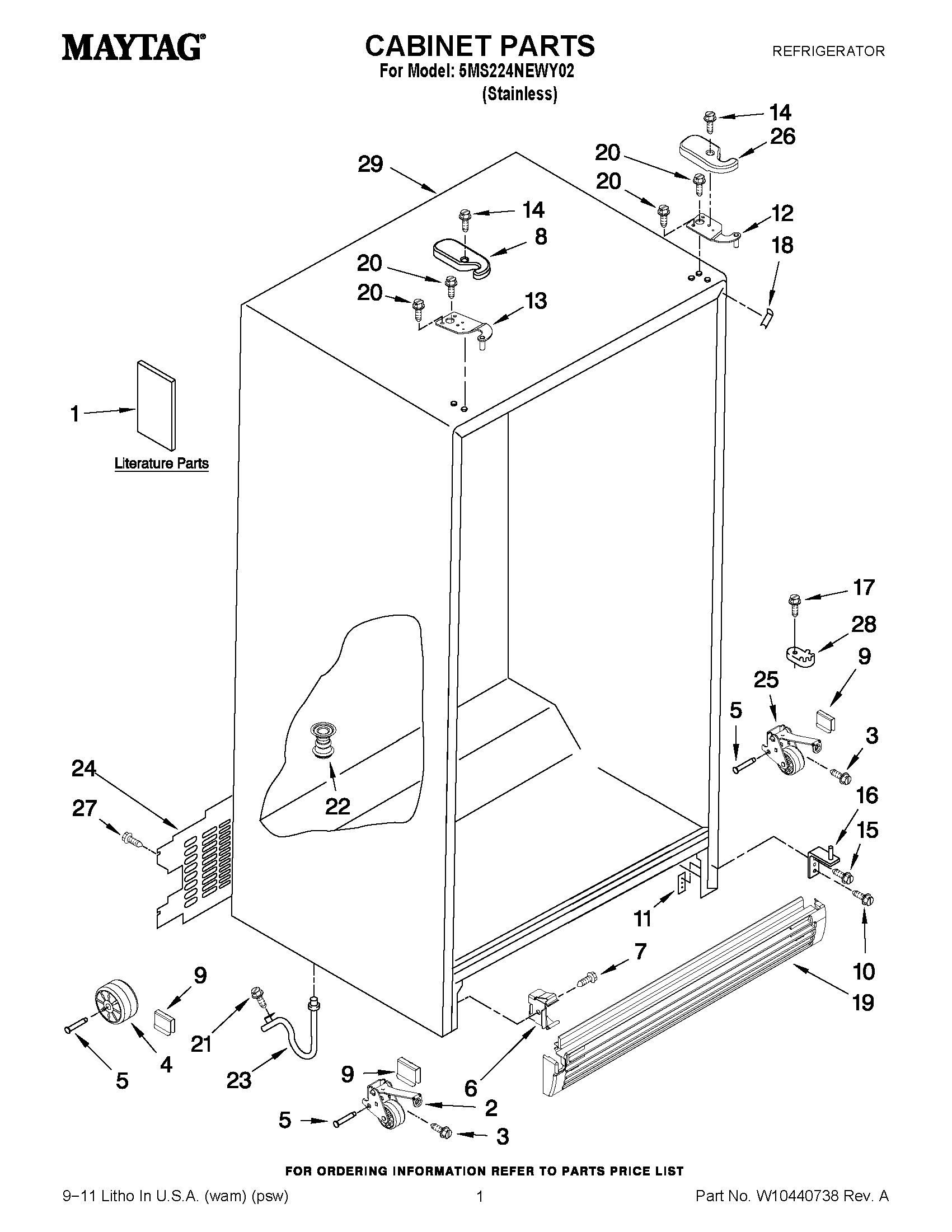

01 - CABINET PARTS

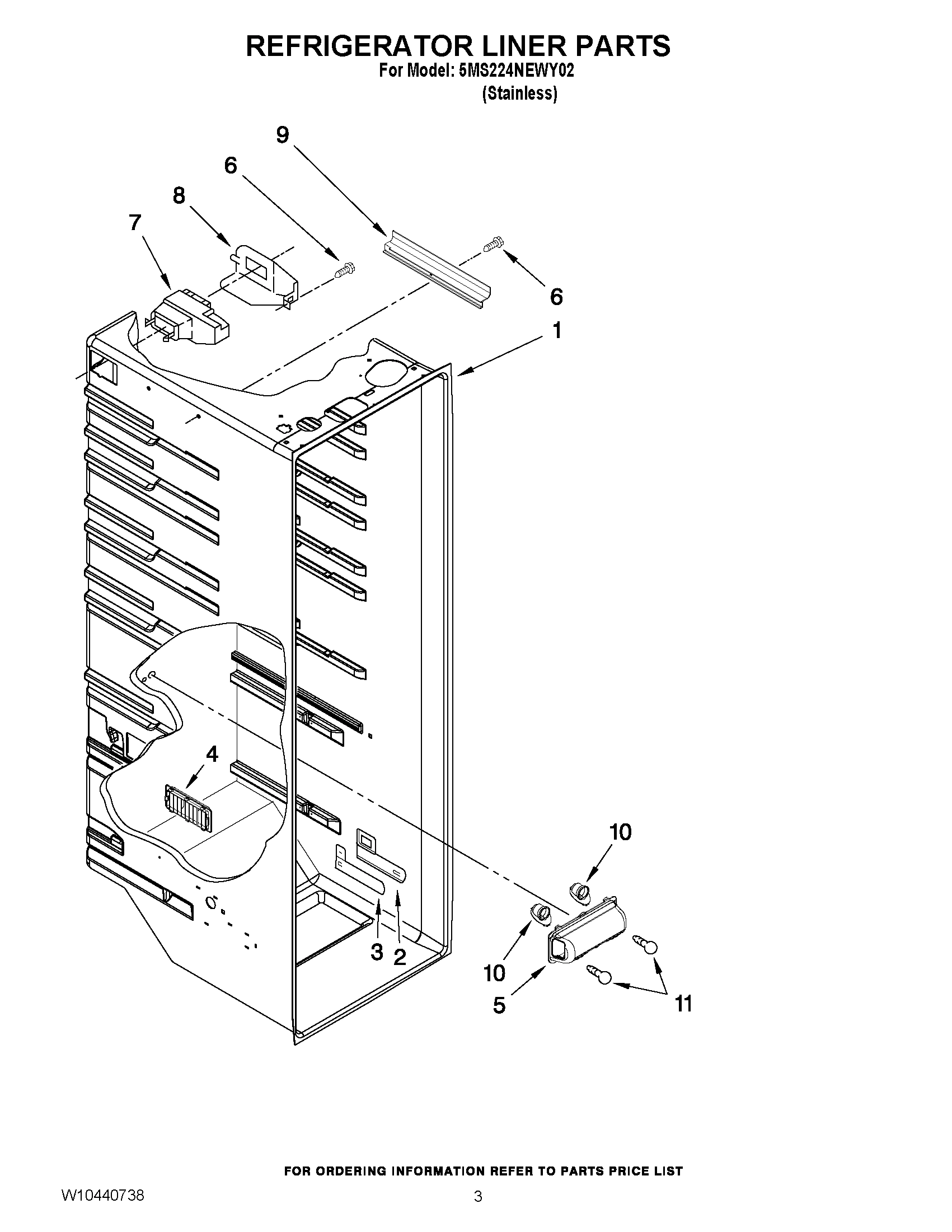

02 - REFRIGERATOR LINER PARTS

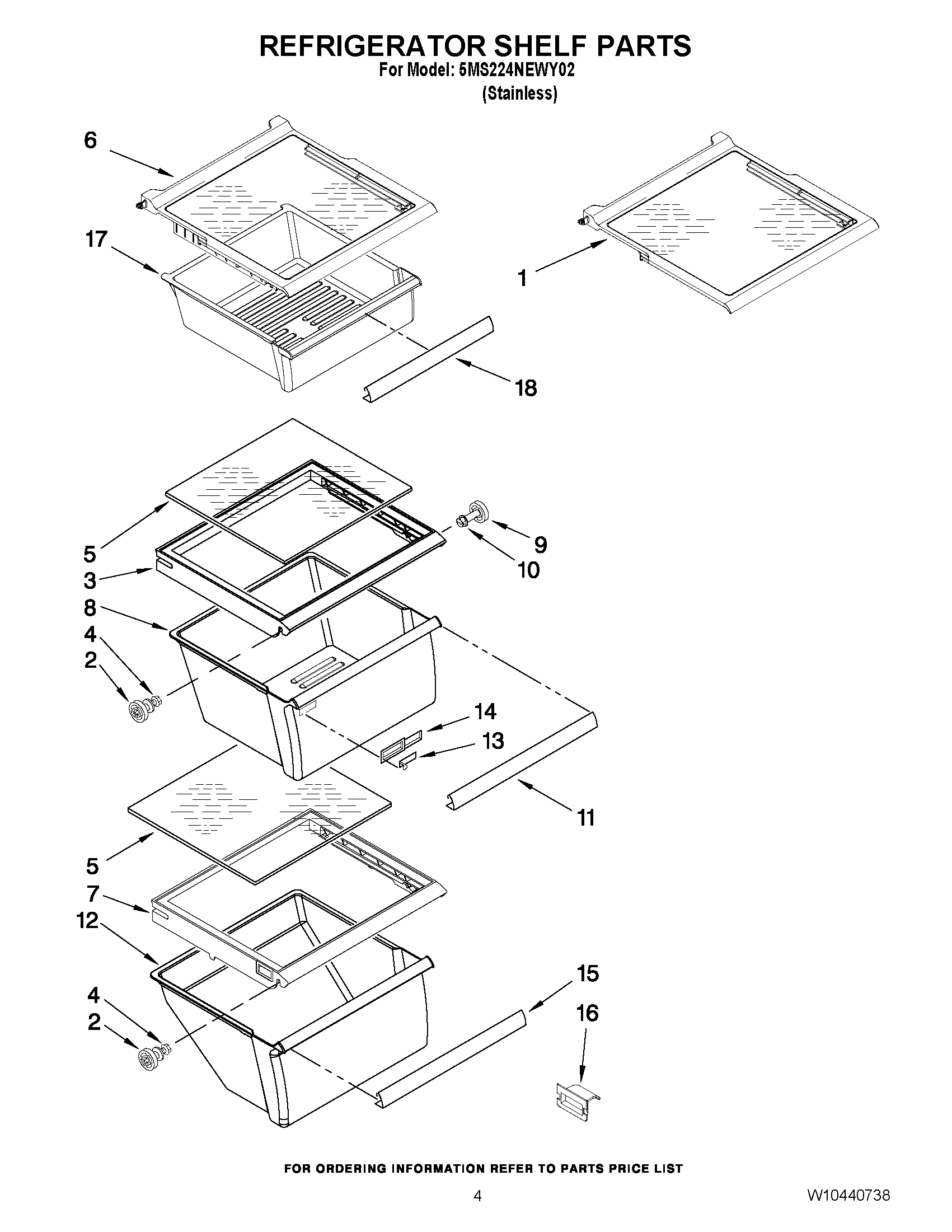

03 - REFRIGERATOR SHELF PARTS

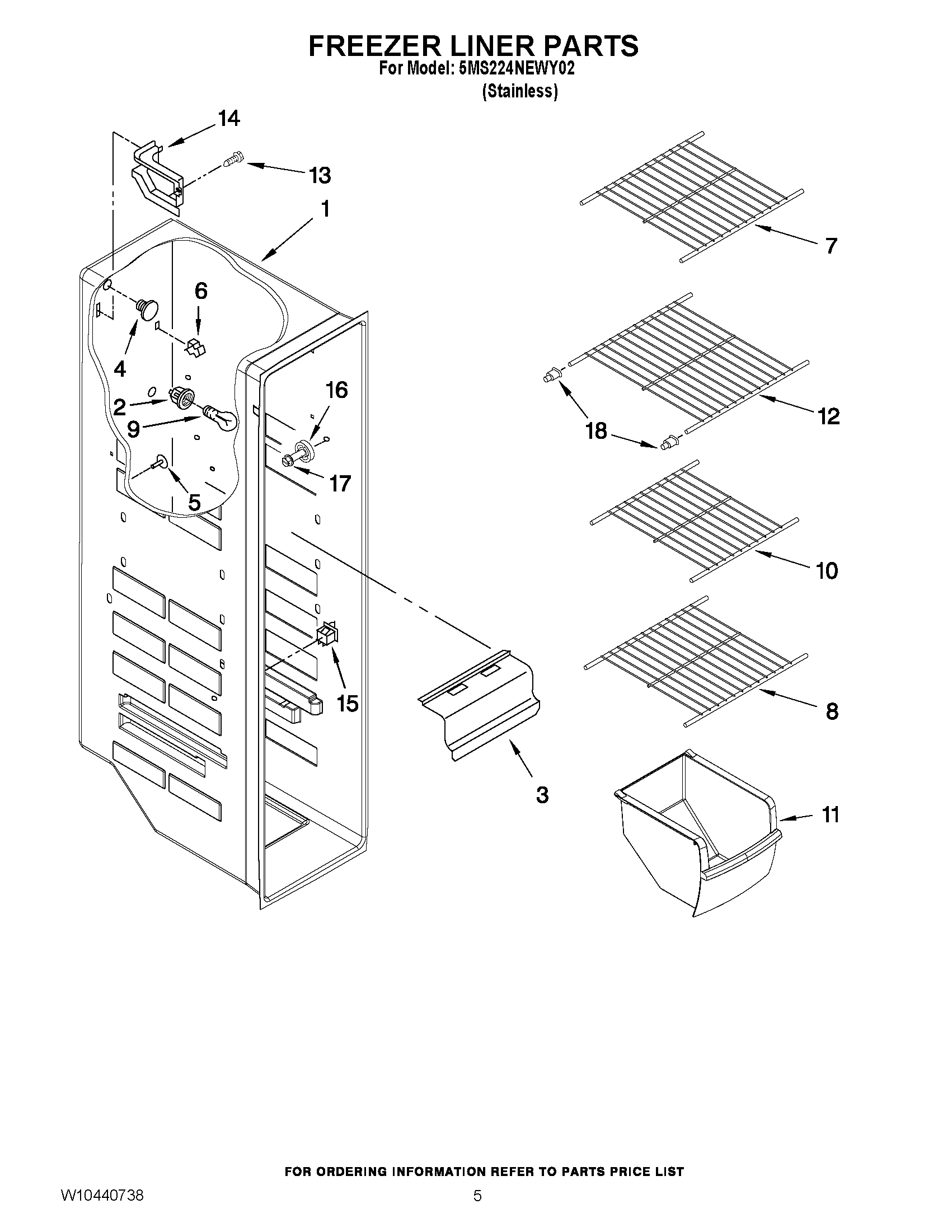

04 - FREEZER LINER PARTS

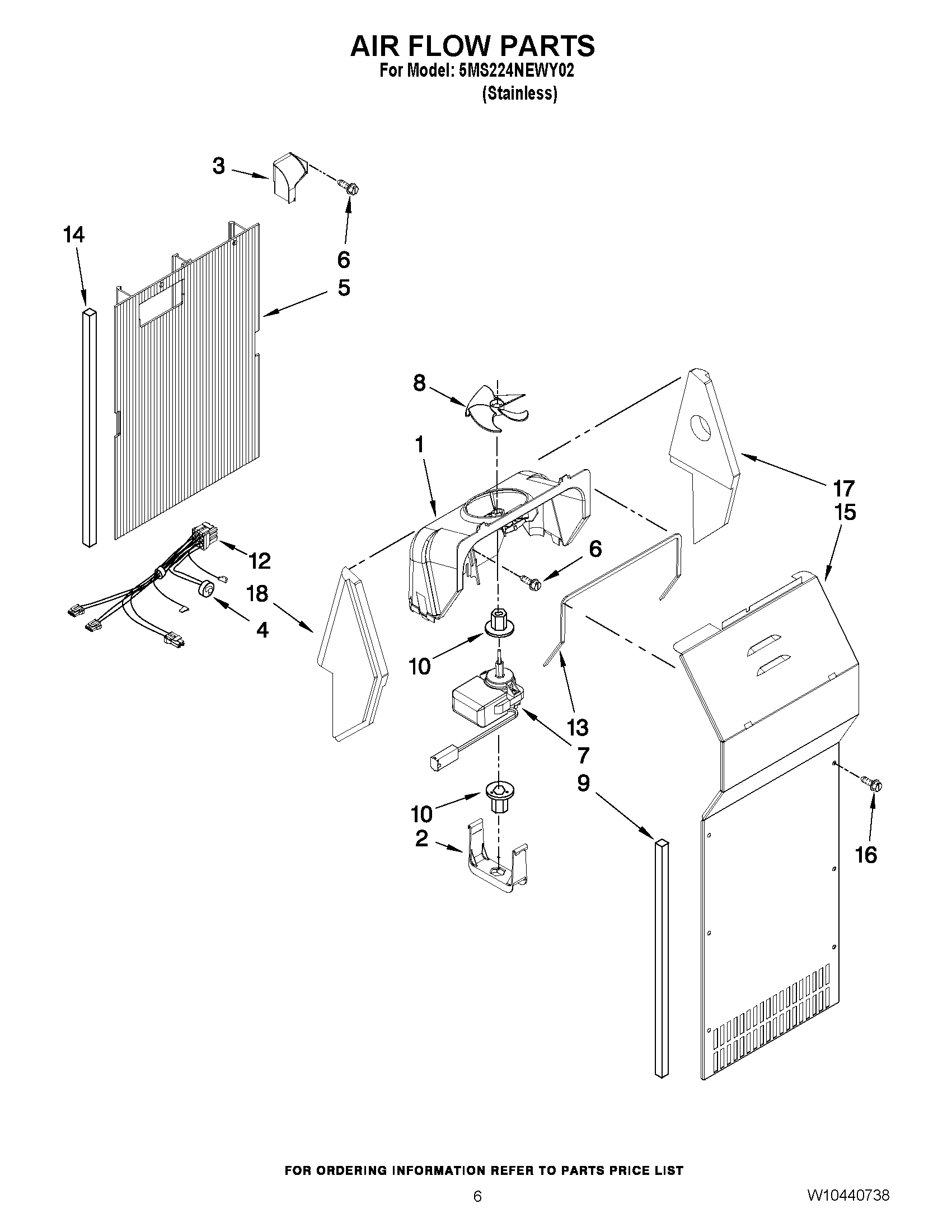

05 - AIR FLOW PARTS

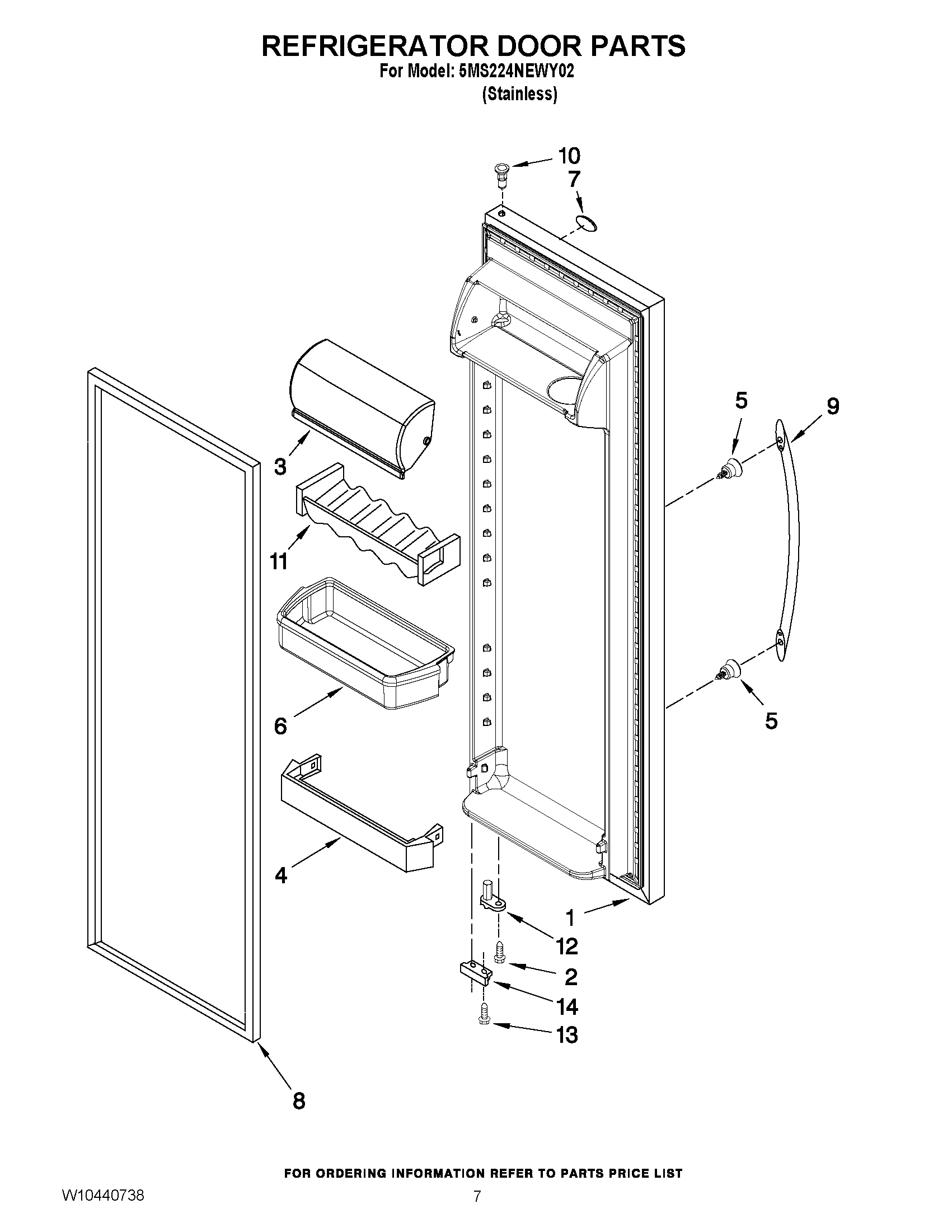

06 - REFRIGERATOR DOOR PARTS

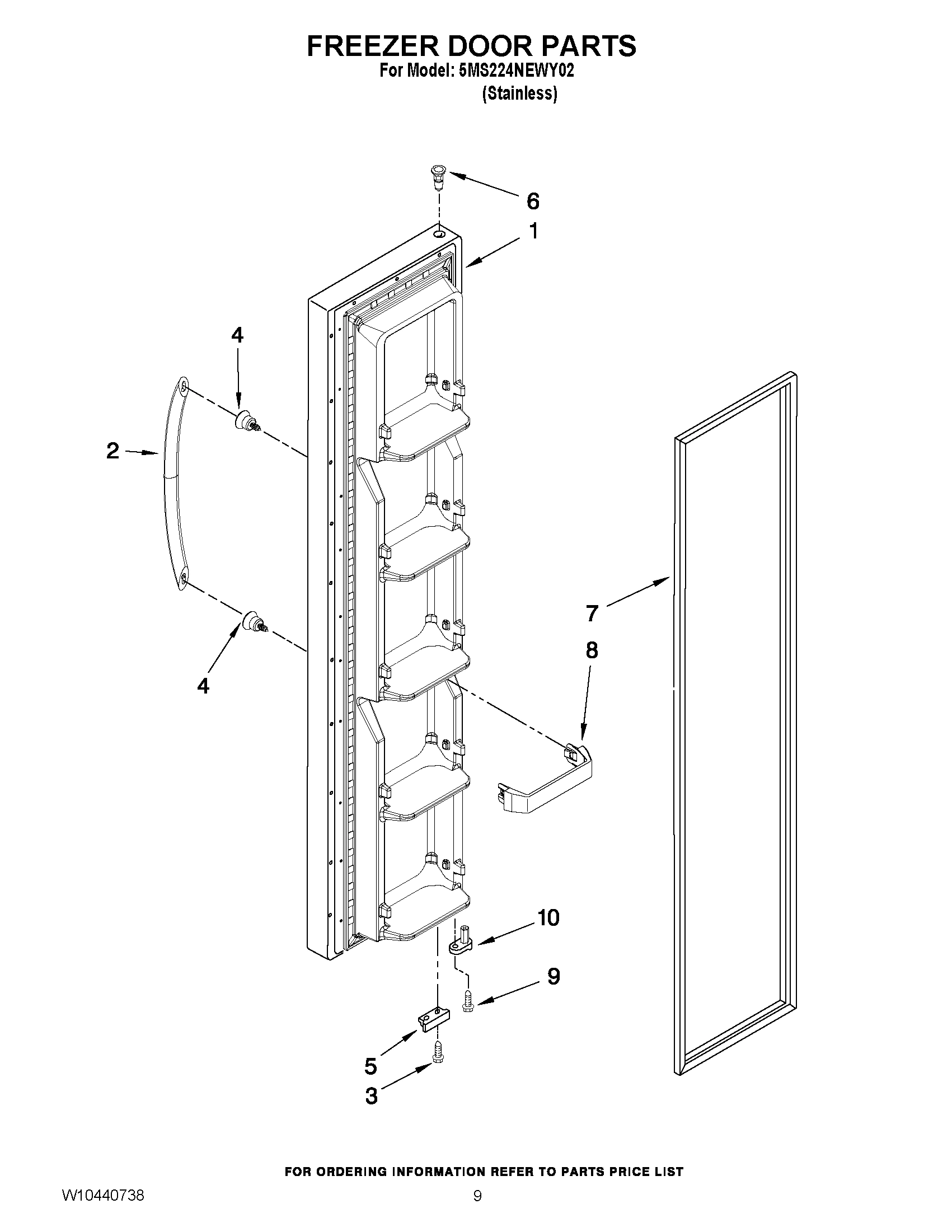

07 - FREEZER DOOR PARTS

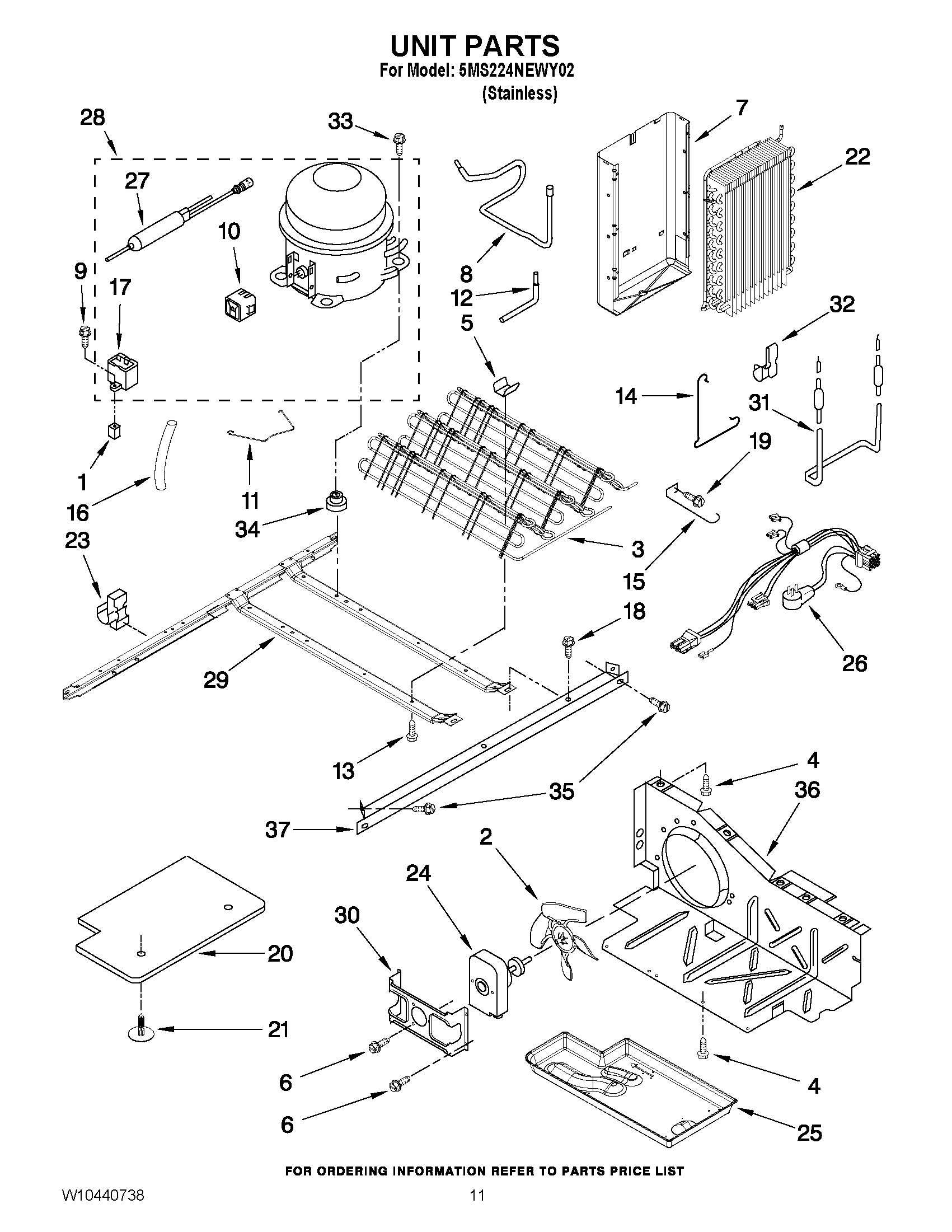

08 - UNIT PARTS

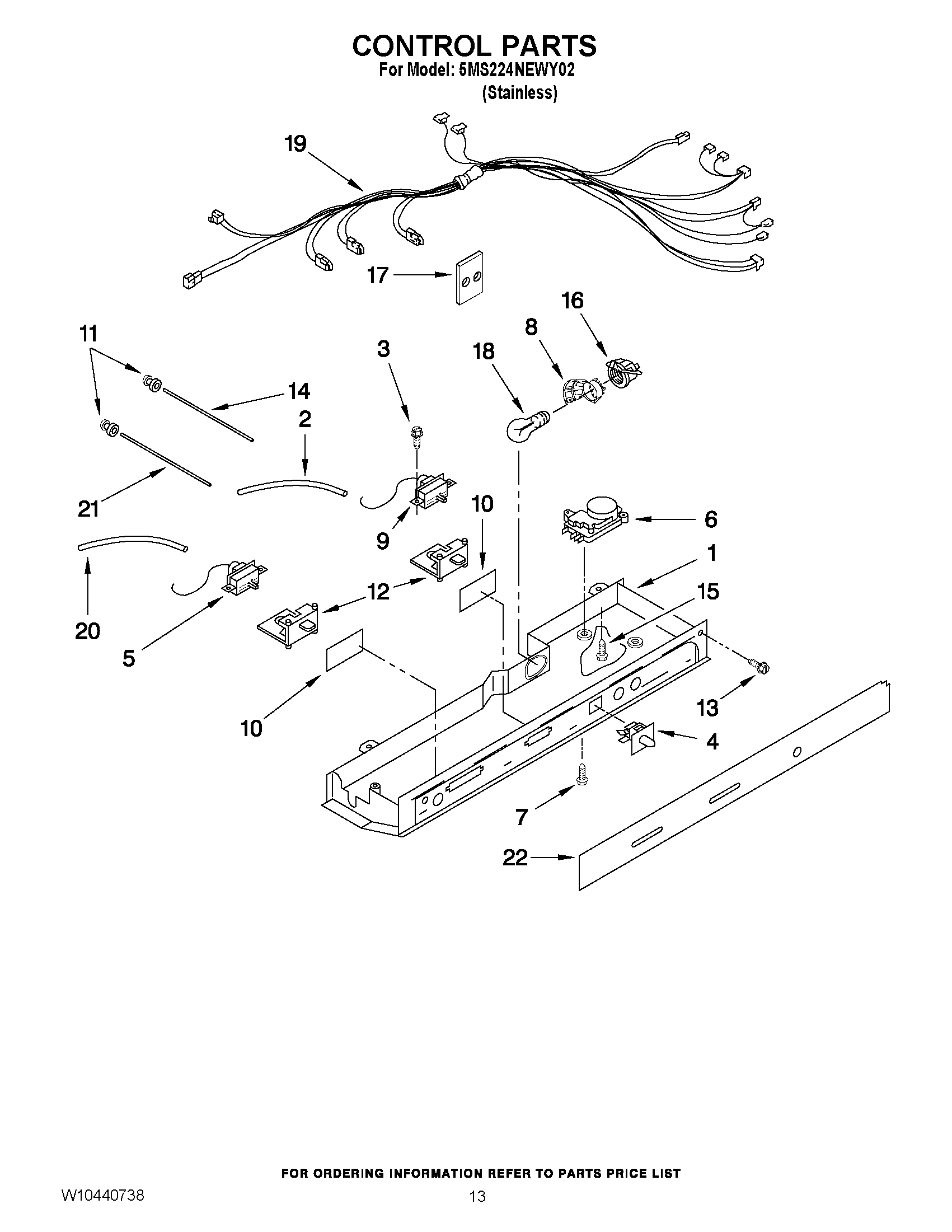

09 - CONTROL PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 5MS224NEWY02 REFRIGERATOR
1
MAY W10142192 MAY W10142192 Contact Us For Availability
1
MAY W10266784 MAY W10266784 Contact Us For Availability
1
SHELF ASSEMBLY, SPILLGUARD (3) MAY W10276348 Contact Us For Availability
1
MAY 2182119 MAY 2182119 Contact Us For Availability
1
MAY W10365648 MAY W10365648 Contact Us For Availability
1
MAY W10365630 MAY W10365630 Contact Us For Availability
1
GROMMET, SCREW MAY 509812 Contact Us For Availability
1
MAY 2200135 MAY 2200135 Contact Us For Availability
2
FRONT ROLLER, LEFT MAY W10304660 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
MAY W10173126 MAY W10173126 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
MAY 2225834 MAY 2225834 Contact Us For Availability
2
TUBE, BARRIER THERMOSTAT (RC) MAY 2182150 Contact Us For Availability
3
MAY 2152958 MAY 2152958 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
MAY 2155595 MAY 2155595 Contact Us For Availability
3
MAY 2161229 MAY 2161229 Contact Us For Availability
3
Door, Compartment MAY 2256101 Contact Us For Availability
3
MAY 489420 MAY 489420 Contact Us For Availability
3
MAY W10222348 MAY W10222348 Contact Us For Availability
3
Screw MAY 489214 Contact Us For Availability
4
ROLLER, REAR MAY 2150304 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
MAY W10191954 MAY W10191954 Contact Us For Availability
4
MAY 2223173 MAY 2223173 Contact Us For Availability
4
MAY W10129958 MAY W10129958 Contact Us For Availability
4
MAY 2309941 MAY 2309941 Contact Us For Availability
4
SCREW, MOUNTING MAY W10170540 Contact Us For Availability
4
MAY 2321287 MAY 2321287 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
MAY W10166019 MAY W10166019 Contact Us For Availability
5
Glass, Meat Cover MAY 2179259 Contact Us For Availability
5
MAY 941839 MAY 941839 Contact Us For Availability
5
MAY 2203592 MAY 2203592 Contact Us For Availability
5
BRACKET, DOOR STOP MAY W10185566 Contact Us For Availability
5
MAY 2311725 MAY 2311725 Contact Us For Availability
5
MAY 2321289 MAY 2321289 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
MAY W10004810 MAY W10004810 Contact Us For Availability
6
MAY W10276341 MAY W10276341 Contact Us For Availability
6
MAY 2315163 MAY 2315163 Contact Us For Availability
6
SHELF BIN MAY W10158506 Contact Us For Availability
6
MAY 2308091 MAY 2308091 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
MAY 2321261 MAY 2321261 Contact Us For Availability
7
MAY 488500 MAY 488500 Contact Us For Availability
7
MAY W10151378 MAY W10151378 Contact Us For Availability
7
COVER, MEAT PAN (INCLUDES No.16) MAY 2311726 Contact Us For Availability
7
SHELF-WIRE MAY W10318949 Contact Us For Availability
7
MAY 2321275 MAY 2321275 Contact Us For Availability
7
Nameplate MAY W10170766 Contact Us For Availability
7
DOOR GASKET, MAGNETIC (SERVICE) MAY 2327162 Contact Us For Availability
7
MAY W10194474 MAY W10194474 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
8
HINGE COVER FC MAY W10138584 Contact Us For Availability
8
MAY 2212240 MAY 2212240 Contact Us For Availability
8
MAY 2188652 MAY 2188652 Contact Us For Availability
8
MAY W10318952 MAY W10318952 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (SERVICE) MAY 2327161 Contact Us For Availability
8
Trivet MAY 2309717 Contact Us For Availability
8
Tube Suction MAY 2205764 Contact Us For Availability
8
SHROUD-LIGHT MAY W10119914 Contact Us For Availability
9
CLIP, AXLE MAY 2174706 Contact Us For Availability
9
Cover, Conduit MAY 2150331 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
MAY 3400012 MAY 3400012 Contact Us For Availability
9
MAY 488687 MAY 488687 Contact Us For Availability
9
MAY 2321305 MAY 2321305 Contact Us For Availability
10
Screw (2) MAY 3400103 Contact Us For Availability
10
SHELF MAY W10318953 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
10
MAY 2312007 MAY 2312007 Contact Us For Availability
10
MAY 2172940 MAY 2172940 Contact Us For Availability
11
PLATE, SCREW (2) MAY 2304249 Contact Us For Availability
11
Trim, Handle MAY 2255593 Contact Us For Availability
11
MAY 2309758 MAY 2309758 Contact Us For Availability
11
BEVERAGE HOLDER MAY 2223883 Contact Us For Availability
11
STRAP, BALE MAY 2302129 Contact Us For Availability
11
MAY 2172906 MAY 2172906 Contact Us For Availability
12
HINGE, TOP RC MAY W10287684 Contact Us For Availability
12
MAY 2188654 MAY 2188654 Contact Us For Availability
12
MAY W10318951 MAY W10318951 Contact Us For Availability
12
MAY W10242395 MAY W10242395 Contact Us For Availability
12
MAY 2325479 MAY 2325479 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
13
HINGE TOP FC MAY W10287685 Contact Us For Availability
13
MAY 489084 MAY 489084 Contact Us For Availability
13
MAY 2179342 MAY 2179342 Contact Us For Availability
13
MAY 2155788 MAY 2155788 Contact Us For Availability
13
MAY 8281232 MAY 8281232 Contact Us For Availability
14
MAY 8281227 MAY 8281227 Contact Us For Availability
14
Body, Humidity Control MAY 2179343 Contact Us For Availability
14
WIRING COVER MAY 2160912 Contact Us For Availability
14
MAY 2203875 MAY 2203875 Contact Us For Availability
14
MAY W10185570 MAY W10185570 Contact Us For Availability
14
MAY 2179920 MAY 2179920 Contact Us For Availability
15
Screw (4) MAY 3400113 Contact Us For Availability
15
Trim, Handle MAY 2255592 Contact Us For Availability
15
MAY 2321286 MAY 2321286 Contact Us For Availability
15
COVER, EVAPORATOR (INCLUDES No.9) MAY 2203840 Contact Us For Availability
15
GUARD-FAN MAY 1105612 Contact Us For Availability
15
Screw MAY 489290 Contact Us For Availability
16
HINGE BOTTOM (2) MAY W10251408 Contact Us For Availability
16
Light Socket MAY W10134764 Contact Us For Availability
16
MAY W10173127 MAY W10173127 Contact Us For Availability
16
MAY 2179350 MAY 2179350 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
16
MAY 2161302 MAY 2161302 Contact Us For Availability
17
MAY 489483 MAY 489483 Contact Us For Availability
17
MAY W10191952 MAY W10191952 Contact Us For Availability
17
MAY 2309518 MAY 2309518 Contact Us For Availability
17
MAY 2203595 MAY 2203595 Contact Us For Availability
17
CAPACITOR (SERVICE) MAY 2254217 Contact Us For Availability
17
MAY 2321245 MAY 2321245 Contact Us For Availability
17
MAY W10173095 MAY W10173095 Contact Us For Availability
18
FILLER, WRAPPER MAY W10283961 Contact Us For Availability
18
Light Bulb MAY 851682 Contact Us For Availability
18
MAY 2309519 MAY 2309519 Contact Us For Availability
18
MAY W10130299 MAY W10130299 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
18
MAY 489427 MAY 489427 Contact Us For Availability
19
GRILLE MAY W10191411 Contact Us For Availability
19
MAY 489478 MAY 489478 Contact Us For Availability
19
MAY W10129766 MAY W10129766 Contact Us For Availability
20
SCREW (6) MAY 489497 Contact Us For Availability
20
UNIT COVER BOTTOM MAY 2304898 Contact Us For Availability
20
TUBE, BARRIER THERMOSTAT (FC) MAY 2196003 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
21
LIGHT BAR FC MAY 2179921 Contact Us For Availability
22
MAY 2304888 MAY 2304888 Contact Us For Availability
22
MAY 2188822 MAY 2188822 Contact Us For Availability
22
MAY W10239827 MAY W10239827 Contact Us For Availability
23
MAY W10153550 MAY W10153550 Contact Us For Availability
23
MAY 2208280 MAY 2208280 Contact Us For Availability
24
COVER-UNIT MAY 2214572 Contact Us For Availability
24
MAY 2321271 MAY 2321271 Contact Us For Availability
25
FRONT ROLLER, RIGHT MAY W10304659 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
26
HINGE COVER (RC) MAY W10138579 Contact Us For Availability
26
MAY W10129772 MAY W10129772 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
MAY W10177049 MAY W10177049 Contact Us For Availability
28
MAY 2155311 MAY 2155311 Contact Us For Availability
28
MAY W10120455 MAY W10120455 Contact Us For Availability
29
MAY 2304903 MAY 2304903 Contact Us For Availability
30
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
31
MAY W10123612 MAY W10123612 Contact Us For Availability
32
Clip MAY 2161324 Contact Us For Availability
33
MAY 489373 MAY 489373 Contact Us For Availability
34
MAY 1100826 MAY 1100826 Contact Us For Availability
35
MAY 489340 MAY 489340 Contact Us For Availability
36
AIR BAFFLE MAY W10332806 Contact Us For Availability
37
MAY W10207512 MAY W10207512 Contact Us For Availability
NI
REFRIGERANT CHARGE 5.0 OZ. (R-134) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE MAY 2155469 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 2217192 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
