Model Maytag 59GN-5TVW ELECTRIC WALL OVEN – Common Parts & Diagrams

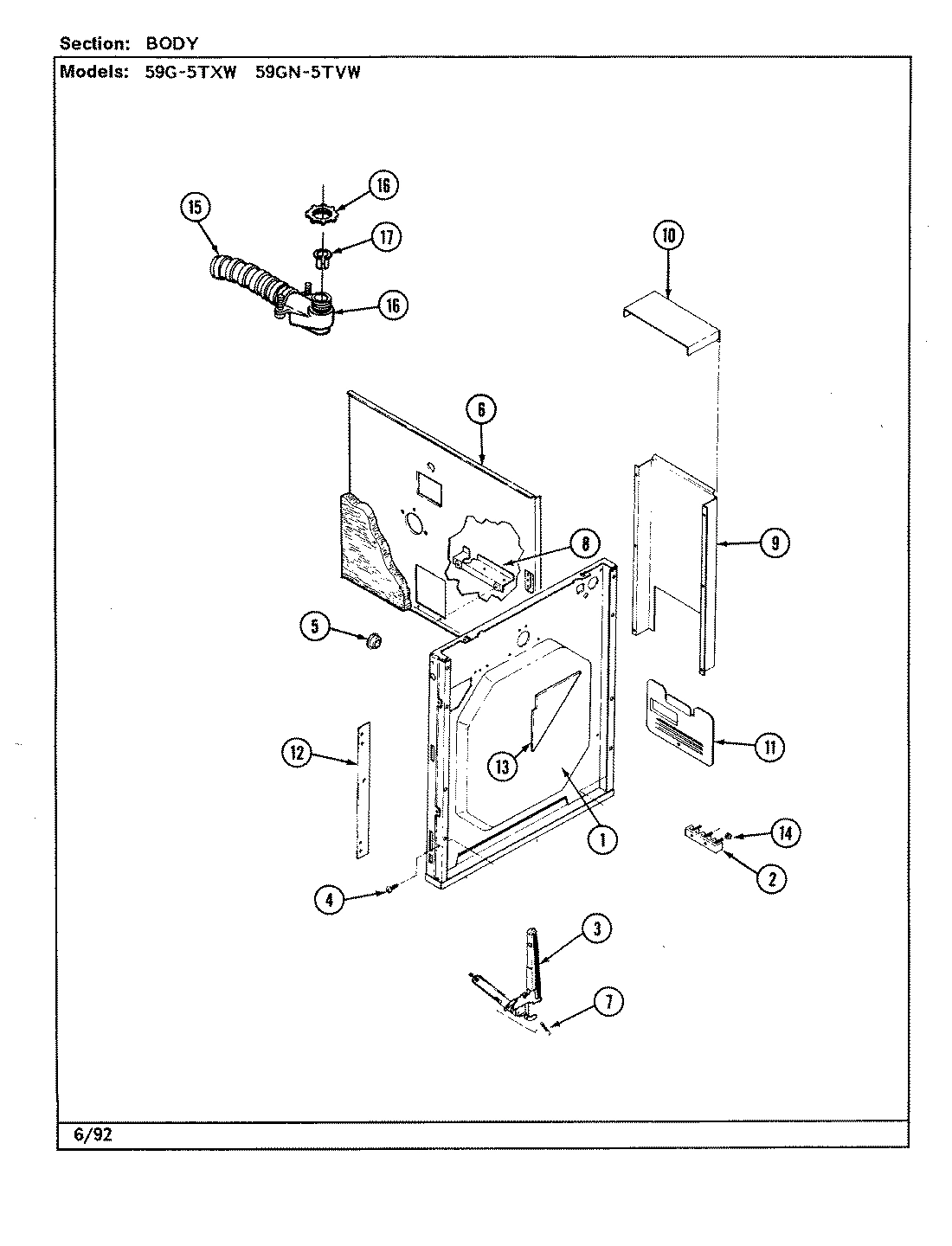

01 - BODY
02 - CONTROL PANEL (WITH TV)

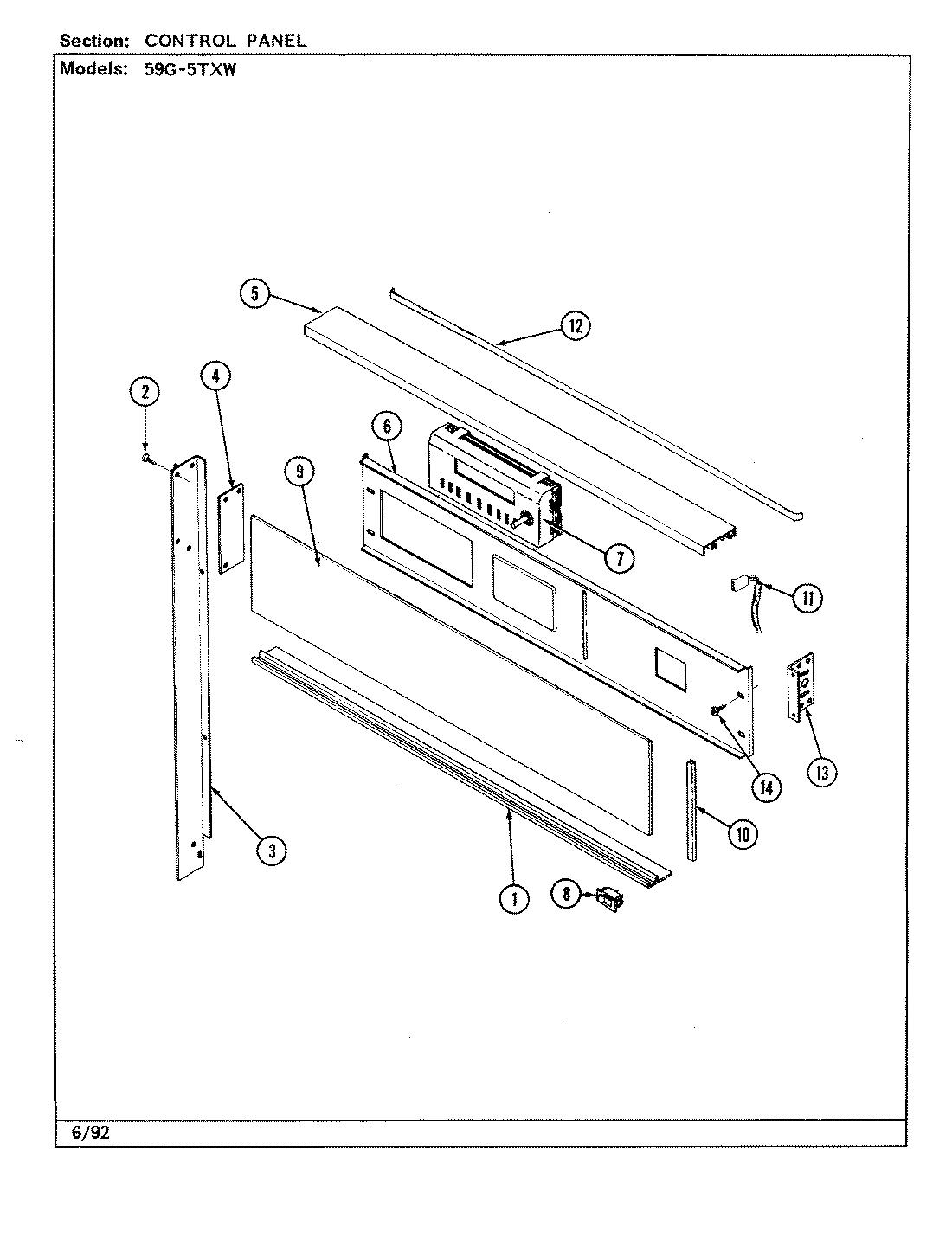

03 - CONTROL PANEL (WITH TX)

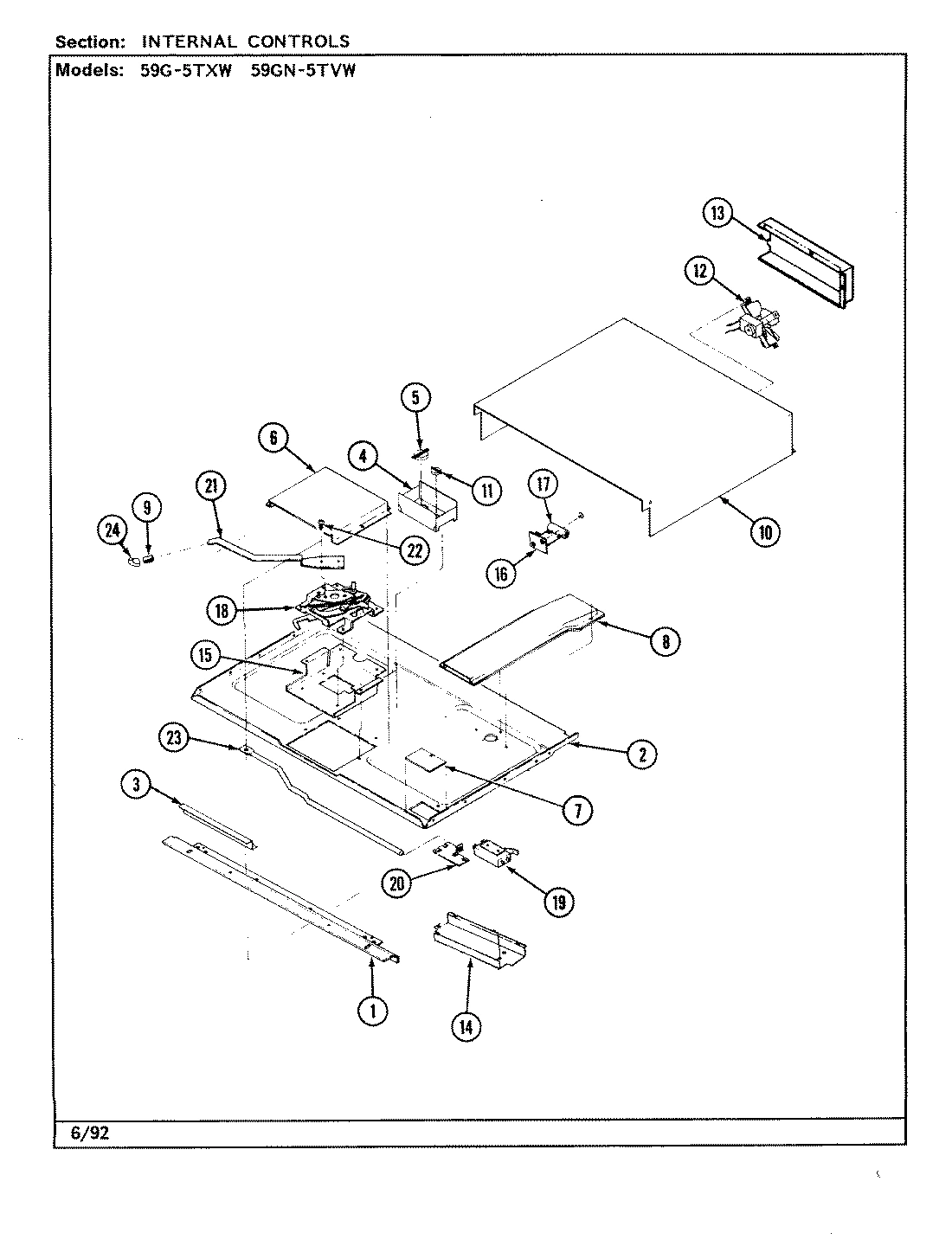

04 - INTERNAL CONTROLS

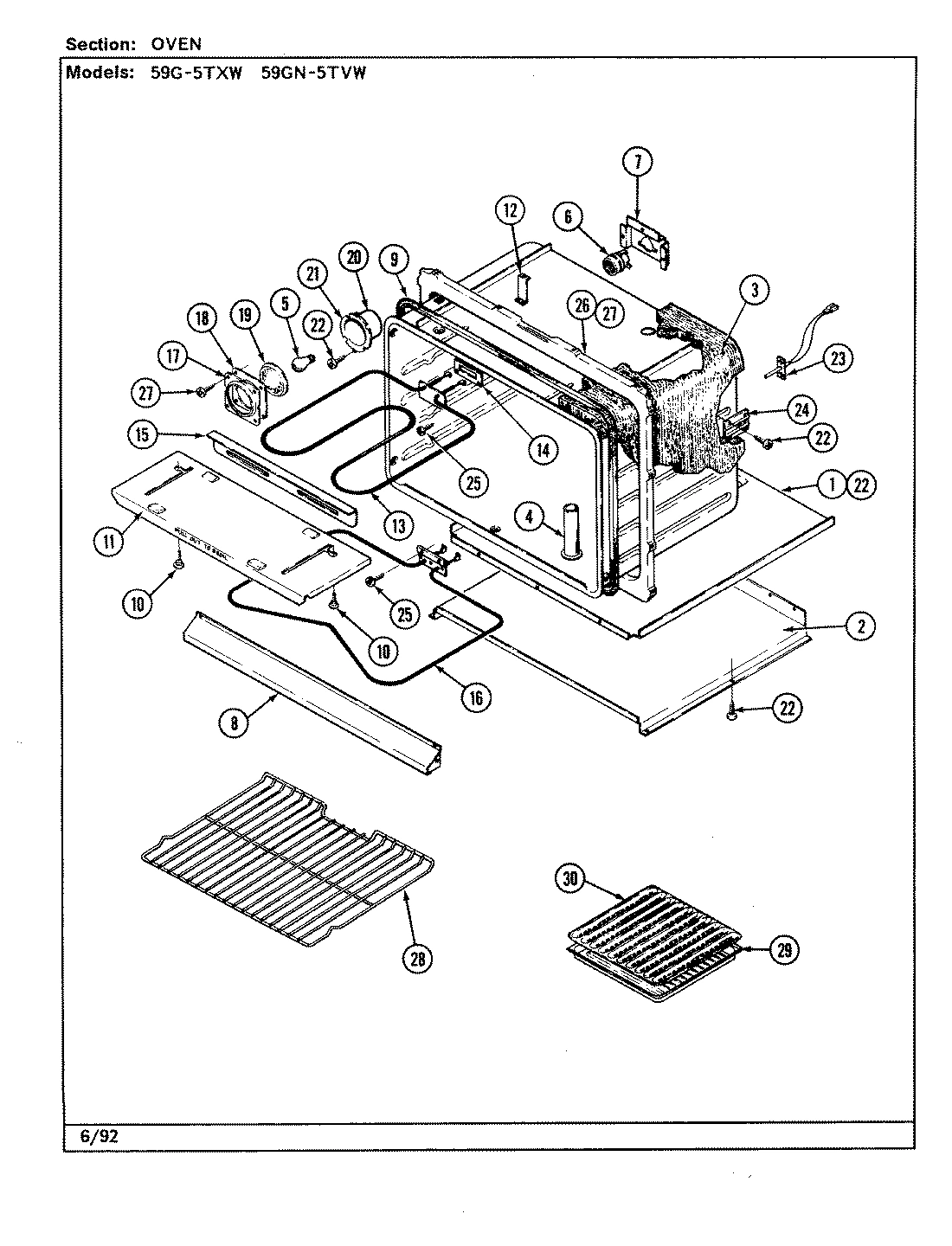

05 - OVEN
Common parts from model Maytag 59GN-5TVW ELECTRIC WALL OVEN
1
MAY 7756P042-60 MAY 7756P042-60 Contact Us For Availability
1
MAY 4012F018-80 MAY 4012F018-80 Contact Us For Availability
1
MAY 3804F102-80 MAY 3804F102-80 Contact Us For Availability
2
MAY 4011F198-80 MAY 4011F198-80 Contact Us For Availability
2
MAY 3604F184-80 MAY 3604F184-80 Contact Us For Availability
3
MAY 7106P041-60 MAY 7106P041-60 Contact Us For Availability
3
MAY 7750P073-60 MAY 7750P073-60 Contact Us For Availability
3
MAY 7750P074-60 MAY 7750P074-60 Contact Us For Availability
3
MAY 7750P071-60 MAY 7750P071-60 Contact Us For Availability
3
MAY 7750P072-60 MAY 7750P072-60 Contact Us For Availability
3
MAY 3604F149-80 MAY 3604F149-80 Contact Us For Availability
3
MAY 4804F008-60 MAY 4804F008-60 Contact Us For Availability
3
MAY 4804F024-60 MAY 4804F024-60 Contact Us For Availability
4
MAY 7726P028-60 MAY 7726P028-60 Contact Us For Availability
4
MAY 7726P023-60 MAY 7726P023-60 Contact Us For Availability
4
MAY 3807F219-51 MAY 3807F219-51 Contact Us For Availability
4
MAY 7505P041-60 MAY 7505P041-60 Contact Us For Availability
4
MAY 8026A009-60 MAY 8026A009-60 Contact Us For Availability
5
MAY 8008P002-60 MAY 8008P002-60 Contact Us For Availability
5
MAY 7752P003-60 MAY 7752P003-60 Contact Us For Availability
5
MAY 7403P199-60 MAY 7403P199-60 Contact Us For Availability
5
MAY 7407P026-60 MAY 7407P026-60 Contact Us For Availability
6
MAY 4002F174-80 MAY 4002F174-80 Contact Us For Availability
6
MAY 3605F176-80 MAY 3605F176-80 Contact Us For Availability
6
MAY 4005F137-80 MAY 4005F137-80 Contact Us For Availability
6
MAY 7408P002-60 MAY 7408P002-60 Contact Us For Availability
7
MAY 04000040 MAY 04000040 Contact Us For Availability
7
MAY 7003P034-60 MAY 7003P034-60 Contact Us For Availability
7
MAY 7601P203-60 MAY 7601P203-60 Contact Us For Availability
7
MAY 4005F139-51 MAY 4005F139-51 Contact Us For Availability
7
MAY 3801F024-51 MAY 3801F024-51 Contact Us For Availability
8
MAY 3605F163-80 MAY 3605F163-80 Contact Us For Availability
8
MAY 7403P271-60 MAY 7403P271-60 Contact Us For Availability
8
MAY 4006W052-45 MAY 4006W052-45 Contact Us For Availability
8
MAY 3604W152-71 MAY 3604W152-71 Contact Us For Availability
9
MAY 7201P036-60 MAY 7201P036-60 Contact Us For Availability
9
MAY 4001F051-80 MAY 4001F051-80 Contact Us For Availability
9
MAY 7721P009-60 MAY 7721P009-60 Contact Us For Availability
9
MAY 7721P010-60 MAY 7721P010-60 Contact Us For Availability
9
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
10
MAY 4005F157-80 MAY 4005F157-80 Contact Us For Availability
10
MAY 7720P150-60 MAY 7720P150-60 Contact Us For Availability
10
MAY 7720P149-60 MAY 7720P149-60 Contact Us For Availability
10
MAY 4001F059-51 MAY 4001F059-51 Contact Us For Availability
11
MAY 4005F361-51 MAY 4005F361-51 Contact Us For Availability
11
MAY 5170P094-60 MAY 5170P094-60 Contact Us For Availability
11
MAY 7403P089-60 MAY 7403P089-60 Contact Us For Availability
11
MAY 3604F092-45 MAY 3604F092-45 Contact Us For Availability
12
MAY 3601F214-51 MAY 3601F214-51 Contact Us For Availability
12
MAY 7752P004-60 MAY 7752P004-60 Contact Us For Availability
12
MAY 7706P167-60 MAY 7706P167-60 Contact Us For Availability
12
MAY 7417P002-60 MAY 7417P002-60 Contact Us For Availability
12
MAY 7427P010-60 MAY 7427P010-60 Contact Us For Availability
12
MAY 8008P014-60 MAY 8008P014-60 Contact Us For Availability
12
MAY 3801F093-45 MAY 3801F093-45 Contact Us For Availability
13
MAY 4005F364-51 MAY 4005F364-51 Contact Us For Availability
13
MAY 3801F170-45 MAY 3801F170-45 Contact Us For Availability
13
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
13
MAY 7406P068-60 MAY 7406P068-60 Contact Us For Availability
14
MAY 7201P003-60 MAY 7201P003-60 Contact Us For Availability
14
MAY 3818F027-45 MAY 3818F027-45 Contact Us For Availability
15
MAY 3414F066-51 MAY 3414F066-51 Contact Us For Availability
15
MAY 5140A026-60 MAY 5140A026-60 Contact Us For Availability
15
MAY 7109P002-60 MAY 7109P002-60 Contact Us For Availability
15
MAY 5125A332-60 MAY 5125A332-60 Contact Us For Availability
15
MAY 5170D140-60 MAY 5170D140-60 Contact Us For Availability
15
MAY 7711P432-60 MAY 7711P432-60 Contact Us For Availability
15
MAY 7711P431-60 MAY 7711P431-60 Contact Us For Availability
15
MAY 3807F408-45 MAY 3807F408-45 Contact Us For Availability
15
MAY 3807F176-19 MAY 3807F176-19 Contact Us For Availability
16
MAY 7417P005-60 MAY 7417P005-60 Contact Us For Availability
16
MAY 7401P016-60 MAY 7401P016-60 Contact Us For Availability
16
MAY 7406P067-60 MAY 7406P067-60 Contact Us For Availability
17
MAY 8018P002-60 MAY 8018P002-60 Contact Us For Availability
17
MAY 7413A002-60 MAY 7413A002-60 Contact Us For Availability
17
MAY 3804F012-45 MAY 3804F012-45 Contact Us For Availability
18
MAY 4804F020-60 MAY 4804F020-60 Contact Us For Availability
18
MAY 3604F159-45 MAY 3604F159-45 Contact Us For Availability
18
MAY 8002P020-60 MAY 8002P020-60 Contact Us For Availability
18
MAY 7201P015-60 MAY 7201P015-60 Contact Us For Availability
19
MAY 7003P019-60 MAY 7003P019-60 Contact Us For Availability
19
MAY 7003P039-60 MAY 7003P039-60 Contact Us For Availability
19
MAY 7403P099-60 MAY 7403P099-60 Contact Us For Availability
19
MAY 7902P057-60 MAY 7902P057-60 Contact Us For Availability
20
MAY 3807F434-45 MAY 3807F434-45 Contact Us For Availability
20
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
20
MAY 4001F020-19 MAY 4001F020-19 Contact Us For Availability
21
MAY 8009P018-60 MAY 8009P018-60 Contact Us For Availability
21
MAY 7201P014-60 MAY 7201P014-60 Contact Us For Availability
22
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
22
MAY 7116P003-60 MAY 7116P003-60 Contact Us For Availability
23
MAY 7807P012-60 MAY 7807P012-60 Contact Us For Availability
23
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
24
MAY 7701P089-60 MAY 7701P089-60 Contact Us For Availability
24
MAY 3807F205-45 MAY 3807F205-45 Contact Us For Availability
26
MAY 2201F061-19 MAY 2201F061-19 Contact Us For Availability
28
MAY 7801P030-60 MAY 7801P030-60 Contact Us For Availability
29
MAY 3401F004-19 MAY 3401F004-19 Contact Us For Availability
29
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
30
MAY 3413F002-19 MAY 3413F002-19 Contact Us For Availability
30
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
× ![]()
