Model Whirlpool 596.78186890 18000-BTU Room Air Conditioner (Kenmore 59678186890) – Common Parts & Diagrams
All Parts

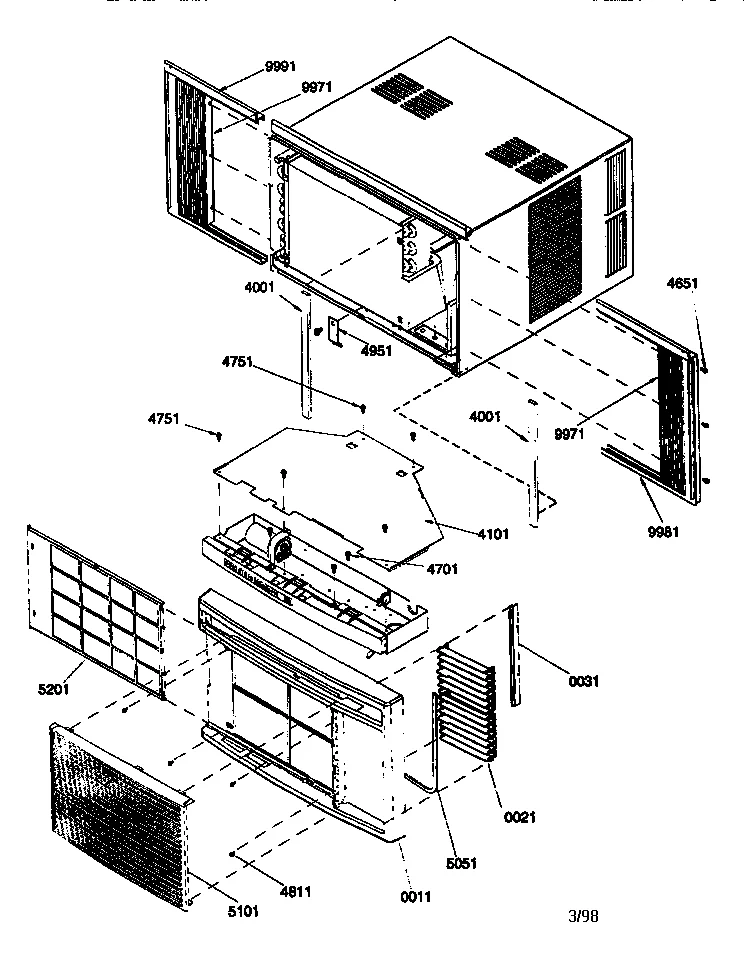

FRONT ASSEMBLY

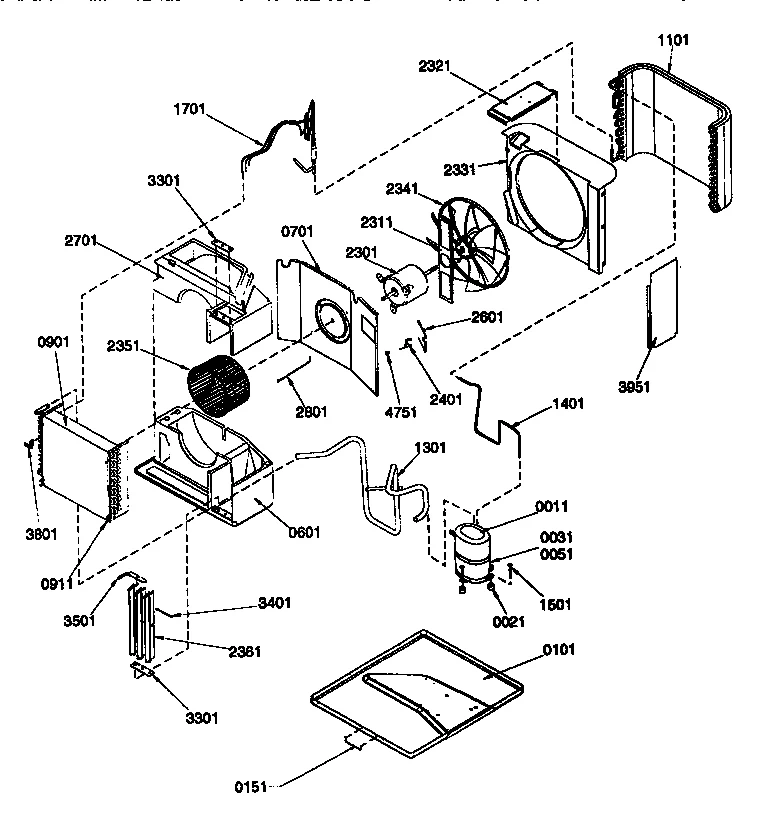

CHASSIS ASSEMBLY

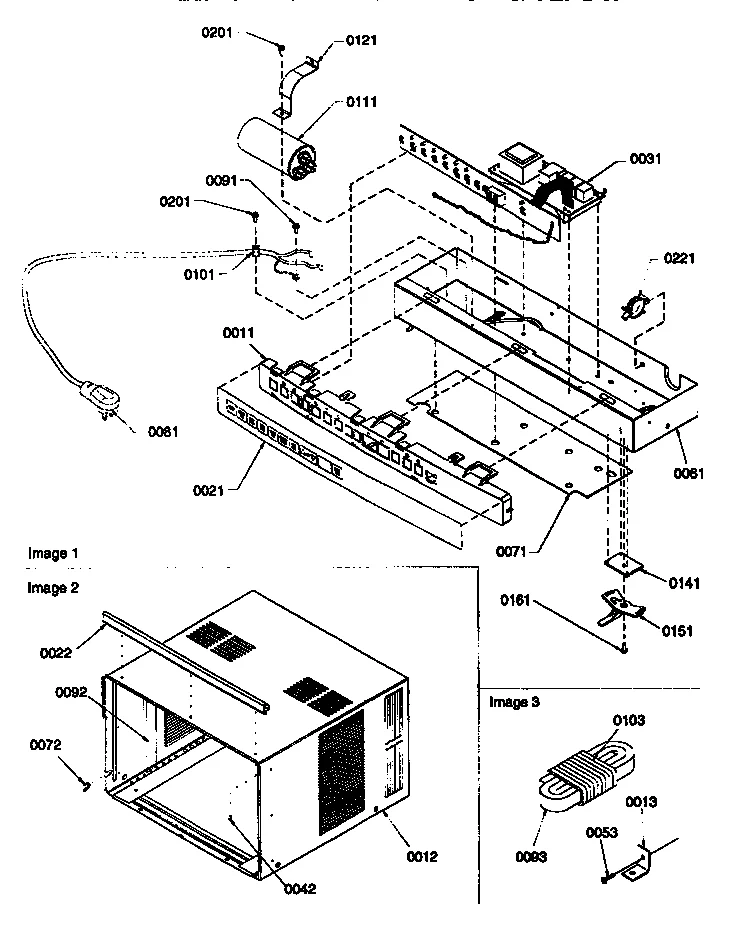

CONTROL ASSEMBLY
Common parts from model Whirlpool 596.78186890 18000-BTU Room Air Conditioner (Kenmore 59678186890)
11
Front WPL 20051901 Contact Us For Availability
11
Compressor WPL 20091801 Contact Us For Availability
11
Control Housing WPL 20052902 Contact Us For Availability
12
OUTERCASE TOX WPL 2006031 Contact Us For Availability
13
Bracket WPL 10661401 Contact Us For Availability
21
Louver WPL 20062301 Contact Us For Availability
21
Grommet WPL B1315401 Contact Us For Availability
21
Overly-200 WPL 20100401 Contact Us For Availability
22
Rail WPL 20055103 Contact Us For Availability
31
Louver WPL 20063501 Contact Us For Availability
31
Terminal Cover WPL 10720801 Contact Us For Availability
31
Board WPL 20082402 Contact Us For Availability
51
Gasket WPL 10720601 Contact Us For Availability
53
Screw WPL M0211020 Contact Us For Availability
61
Control Box WPL 20063605 Contact Us For Availability
71
Insulation WPL 20080401 Contact Us For Availability
72
Grommet WPL 20075701 Contact Us For Availability
81
Power Cord WPL 20057502 Contact Us For Availability
91
Screw WPL M0227803 Contact Us For Availability
92
Gasket WPL 10839707 Contact Us For Availability
93
Gasket WPL 10839702 Contact Us For Availability
101
Basepan WPL 20067202 Contact Us For Availability
101
Speed Clamp WPL M0103902 Contact Us For Availability
103
Gasket WPL 10839720 Contact Us For Availability
111
Capacitor WPL D6879853 Contact Us For Availability
121
Strap WPL C6300511 Contact Us For Availability
141
Block WPL 20050701 Contact Us For Availability
151
Handle WPL 20088701 Contact Us For Availability
151
Lever WPL 20050801 Contact Us For Availability
161
Screw WPL M0245104 Contact Us For Availability
221
Clip WPL M0118702 Contact Us For Availability
601
Scroll Button WPL 20067302 Contact Us For Availability
701
Panel WPL 20067601 Contact Us For Availability
901
Evaporator WPL 20074801 Contact Us For Availability
911
Grommet WPL M0586001 Contact Us For Availability
1101
Condenser WPL 20074101 Contact Us For Availability
1301
Tube WPL 20092301 Contact Us For Availability
1401
Tube WPL 20079201 Contact Us For Availability
1501
Screw WPL M0253610 Contact Us For Availability
1701
Capillary Tube WPL 20079501 Contact Us For Availability
2301
Fan Motor WPL 20080207 Contact Us For Availability
2311
Bracket WPL 20072901 Contact Us For Availability
2321
Brace WPL 20073101 Contact Us For Availability
2331
Shroud WPL 20073001 Contact Us For Availability
2341
Condenser Fan WPL 20071102 Contact Us For Availability
2351
Air Conditioner Blower Wheel WPL 20071801 Contact Us For Availability
2361
Louver WPL 20074701 Contact Us For Availability
2401
Spring WPL 20055502 Contact Us For Availability
2601
Door WPL 20051302 Contact Us For Availability
2701
Scroll WPL 20067404 Contact Us For Availability
2801
Actuator WPL 20064702 Contact Us For Availability
3301
Base WPL 20051502 Contact Us For Availability
3401
Bar WPL 20075501 Contact Us For Availability
3501
Bar WPL 20051403 Contact Us For Availability
3801
Clip WPL 20075601 Contact Us For Availability
3951
Panel WPL 20072801 Contact Us For Availability
4001
Gasket WPL 10839705 Contact Us For Availability
4101
Top WPL 20063701 Contact Us For Availability
4651
Screw WPL M0211314 Contact Us For Availability
4811
Screw WPL M0241118 Contact Us For Availability
4951
Clip WPL 20065101 Contact Us For Availability
5051
Gasket WPL 10839724 Contact Us For Availability
5101
Insert WPL 20052001 Contact Us For Availability
5201
Filter WPL 20075301 Contact Us For Availability
9971
Curtain WPL 20054903 Contact Us For Availability
9981
Frame WPL 20050404 Contact Us For Availability
9991
Frame WPL 20050403 Contact Us For Availability
NI
Gasket WPL 10839706 Contact Us For Availability
NI
Gasket WPL 10839807 Contact Us For Availability
NI
Strip WPL 20065009 Contact Us For Availability
NI
Technical Sheet WPL 20100901 Contact Us For Availability
NI
Owner's Manual WPL 20101101 Contact Us For Availability
NI
Parts List WPL 20101501 Contact Us For Availability
× ![]()
