Model Whirlpool 596.78098891 Air Conditioner (Kenmore 59678098891) – Common Parts & Diagrams

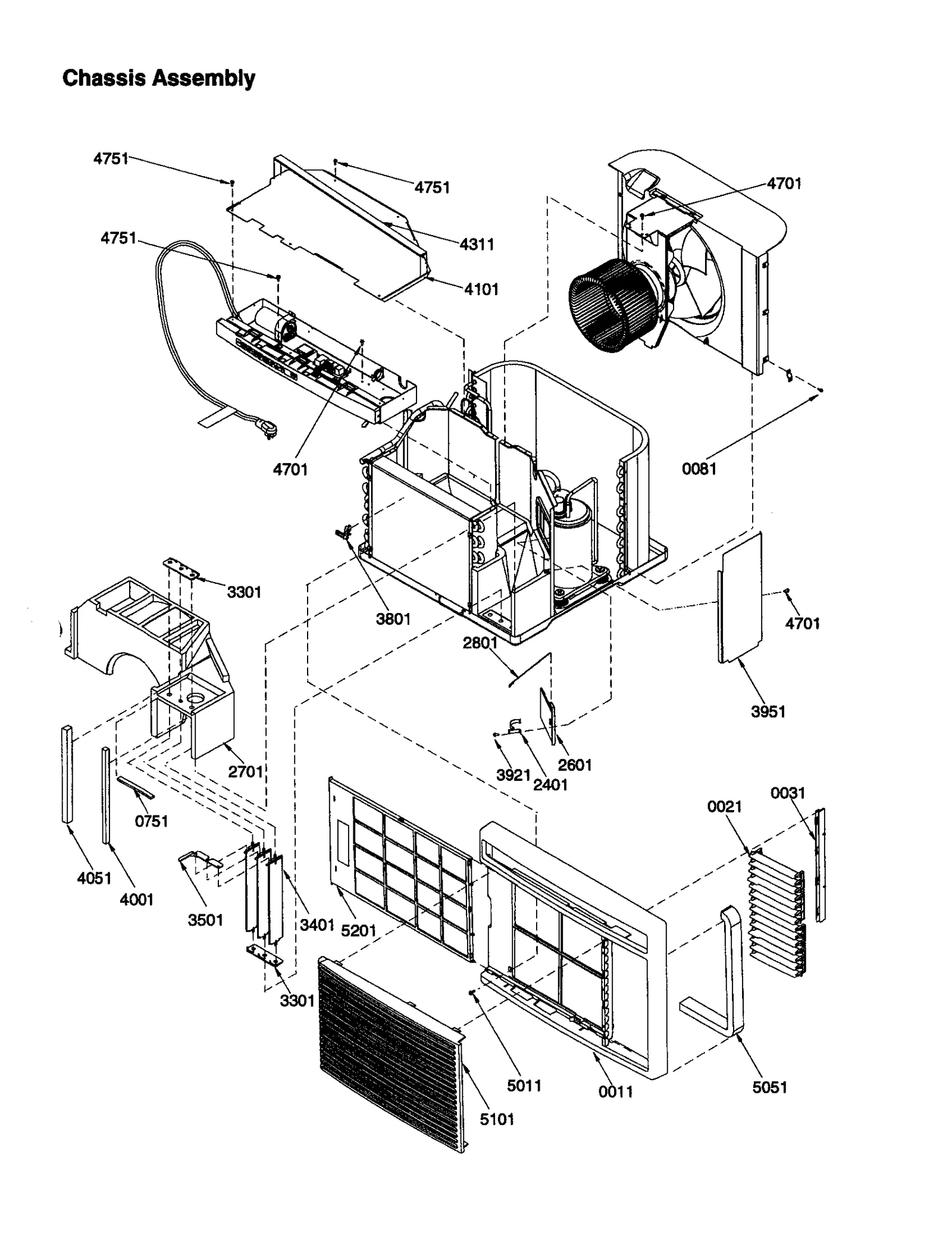

CHASSIS ASSEMBLY
All Parts

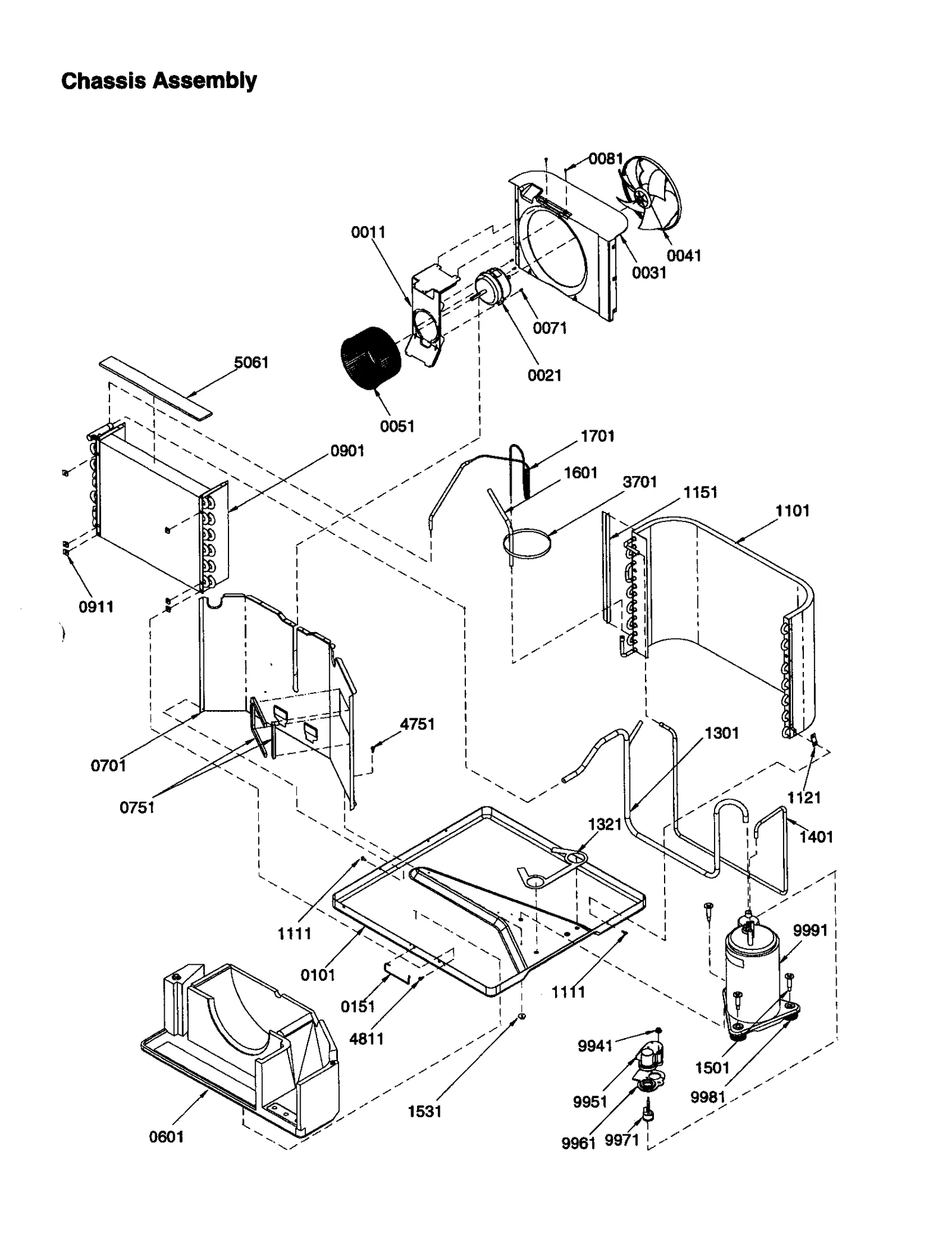

CHASSIS ASSEMBLY

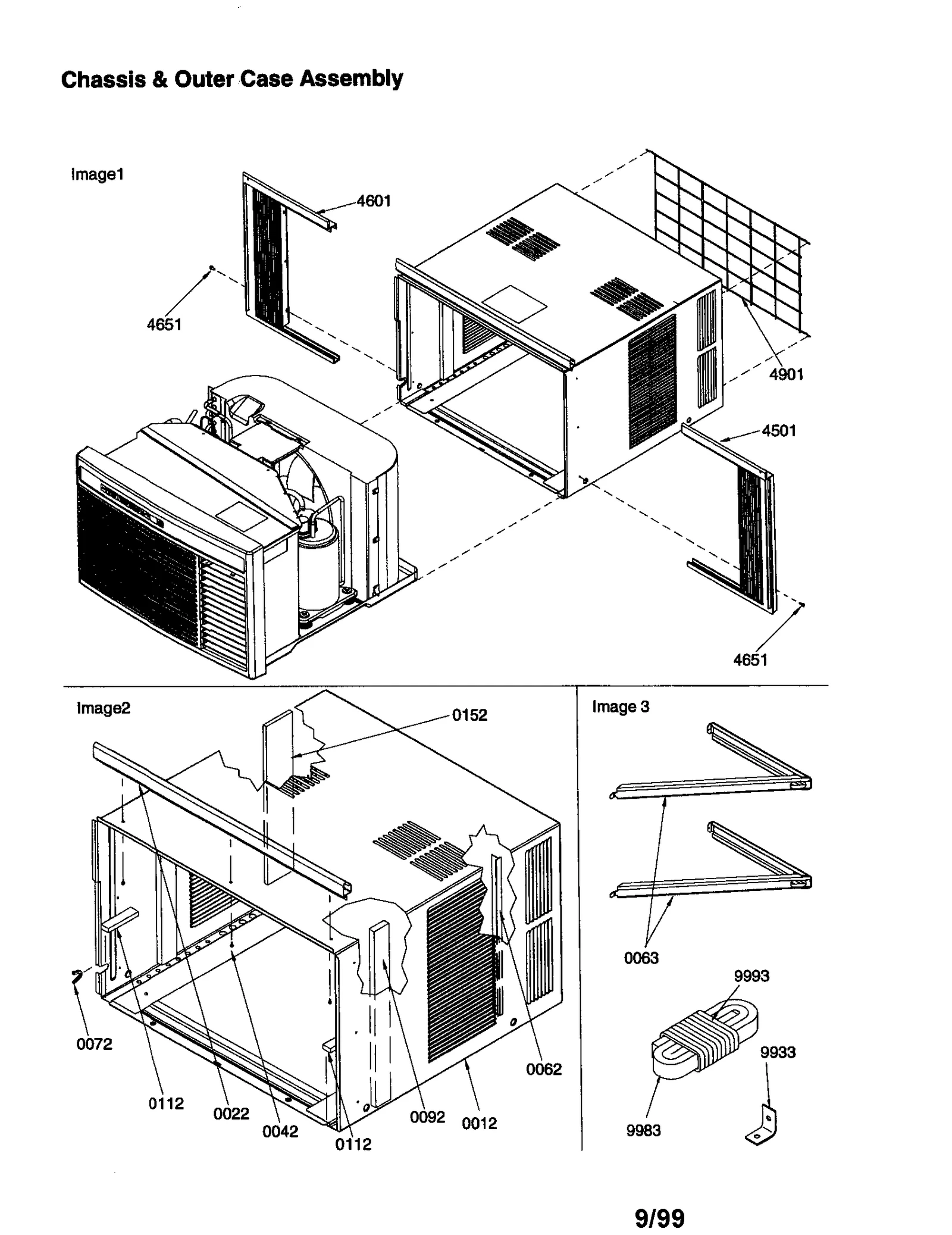

CHASSIS AND OUTER CASE ASSEMBLY

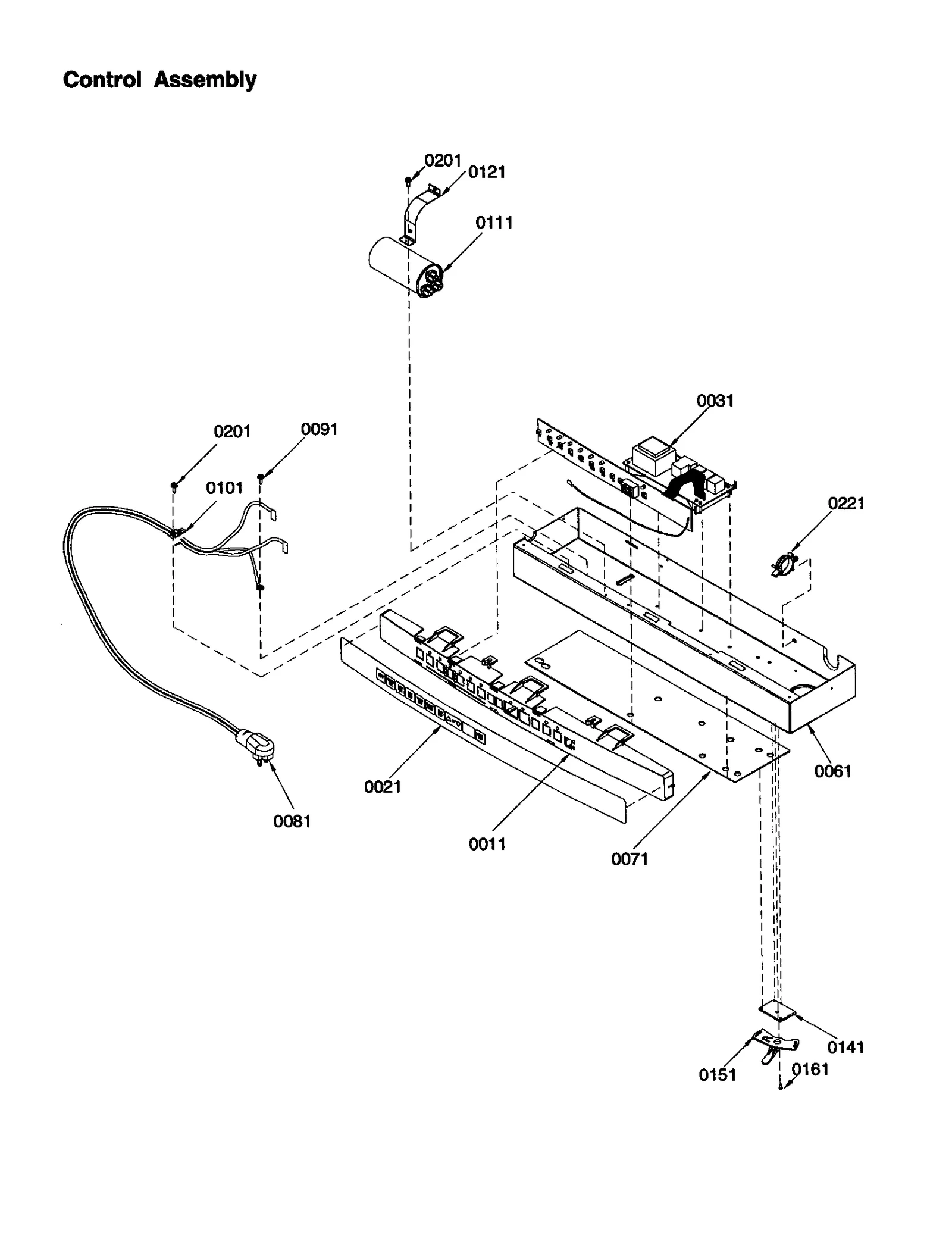

CONTROL ASSEMBLY
Common parts from model Whirlpool 596.78098891 Air Conditioner (Kenmore 59678098891)
11
Front WPL 20051701 Contact Us For Availability
11
Bracket WPL 20053905 Contact Us For Availability
11
Control Housing WPL 20052901 Contact Us For Availability
12
Outer Case WPL 20060201 Contact Us For Availability
21
Horizontal Louver WPL 20052601 Contact Us For Availability
21
Fan Motor WPL 20059705 Contact Us For Availability
21
Overlay WPL 20100201 Contact Us For Availability
22
Rail WPL 20055102 Contact Us For Availability
31
Retainer WPL 20052701 Contact Us For Availability
31
Shroud WPL 20063401 Contact Us For Availability
31
Board Pc Qz WPL 20082401 Contact Us For Availability
41
Fan WPL 20046501 Contact Us For Availability
51
Wheel WPL 20061202 Contact Us For Availability
61
Control Box WPL 20063601 Contact Us For Availability
62
Seal WPL 20065008 Contact Us For Availability
63
Bracket WPL 20061801 Contact Us For Availability
71
Insulation Control WPL 20231801 Contact Us For Availability
72
Grommet WPL 20075701 Contact Us For Availability
81
Power Cord WPL 20057501 Contact Us For Availability
91
Screw WPL M0227803 Contact Us For Availability
92
Gasket WPL 10839707 Contact Us For Availability
101
Basepan WPL 20070805 Contact Us For Availability
101
Speed Clamp WPL M0103902 Contact Us For Availability
111
Capacitor-po WPL D6789049 Contact Us For Availability
112
Gasket WPL 10839807 Contact Us For Availability
121
Strap WPL C6300511 Contact Us For Availability
141
Block WPL 20050701 Contact Us For Availability
151
Handle WPL 20088701 Contact Us For Availability
151
Lever WPL 20050801 Contact Us For Availability
152
Gasket WPL 10839818 Contact Us For Availability
161
Screw WPL M0245104 Contact Us For Availability
221
Clip WPL M0118702 Contact Us For Availability
601
Scroll WPL 20062601 Contact Us For Availability
701
Panel WPL 20062507 Contact Us For Availability
751
Gasket WPL 10839705 Contact Us For Availability
901
Evaporator WPL 20111601 Contact Us For Availability
911
Grommet WPL M0586001 Contact Us For Availability
1101
Condenser WPL 20073502 Contact Us For Availability
1121
CLIP-CONDENSER WPL 20091501 Contact Us For Availability
1301
Suction Weld WPL 20111401 Contact Us For Availability
1321
Protector, B WPL 20099502 Contact Us For Availability
1401
Discharge Tube WPL 20076703 Contact Us For Availability
1501
Bolt WPL 20109101 Contact Us For Availability
1531
Nut WPL 20112901 Contact Us For Availability
1601
Strainer WPL B1394401 Contact Us For Availability
1701
Capillary Tube WPL 20111801 Contact Us For Availability
2401
Spring WPL 20055502 Contact Us For Availability
2601
Door WPL 20051302 Contact Us For Availability
2701
Scroll WPL 20062701 Contact Us For Availability
2801
Actuator WPL 20055606 Contact Us For Availability
3301
Base WPL 20051502 Contact Us For Availability
3401
Louver WPL 20111201 Contact Us For Availability
3501
Bar WPL 20051404 Contact Us For Availability
3801
Clip WPL 20075601 Contact Us For Availability
3951
Panel WPL 20068701 Contact Us For Availability
4001
Gasket WPL 10839706 Contact Us For Availability
4051
Gasket WPL 10839712 Contact Us For Availability
4101
Box WPL 20090601 Contact Us For Availability
4311
Gasket WPL 10839710 Contact Us For Availability
4501
CURT FRAME ASSEMBLY - LH (ALSO AVAILABLE IN B WPL 20055003 Contact Us For Availability
4601
CURT FRAME ASSEMBLY -RH (ALSO AVAILABLE IN BA WPL 20055004 Contact Us For Availability
4651
Screw WPL M0211314 Contact Us For Availability
4901
Rear Compone WPL 20063301 Contact Us For Availability
5011
Screw WPL M0219730 Contact Us For Availability
5051
Gasket WPL 10839701 Contact Us For Availability
5061
Gasket WPL 10839816 Contact Us For Availability
5101
Insert WPL 20051801 Contact Us For Availability
5201
Filter WPL 20064301 Contact Us For Availability
9933
Bracket WPL 10661401 Contact Us For Availability
9941
Nut WPL A9036601 Contact Us For Availability
9951
Terminal Cover WPL C6470701 Contact Us For Availability
9961
Gasket WPL B1434901 Contact Us For Availability
9971
Overload WPL D6961667 Contact Us For Availability
9981
Grommet WPL C6466001 Contact Us For Availability
9983
Gasket WPL 10839702 Contact Us For Availability
9991
Compressor WPL 11101506 Contact Us For Availability
9993
Gasket WPL 10839720 Contact Us For Availability
NI
Gasket Foot WPL 10839803 Contact Us For Availability
NI
Gasket WPL 10839820 Contact Us For Availability
NI
Adjustment Foot WPL 20054801 Contact Us For Availability
NI
Drain WPL 20064101 Contact Us For Availability
NI
Base Pan Cli WPL 20065102 Contact Us For Availability
NI
Owner's Manual WPL 20101101 Contact Us For Availability
NI
TECH SHEET-78098 WPL 20109201 Contact Us For Availability
NI
REPAIR PTS LT 78098 WPL 20111001 Contact Us For Availability
NI
Screw WPL M0211020 Contact Us For Availability
NI
Screw WPL M0213032 Contact Us For Availability
NI
Screw WPL M0213531 Contact Us For Availability
× ![]()
