Model Whirlpool 596.78079891 Room Air Conditioner (Kenmore 59678079891) – Common Parts & Diagrams

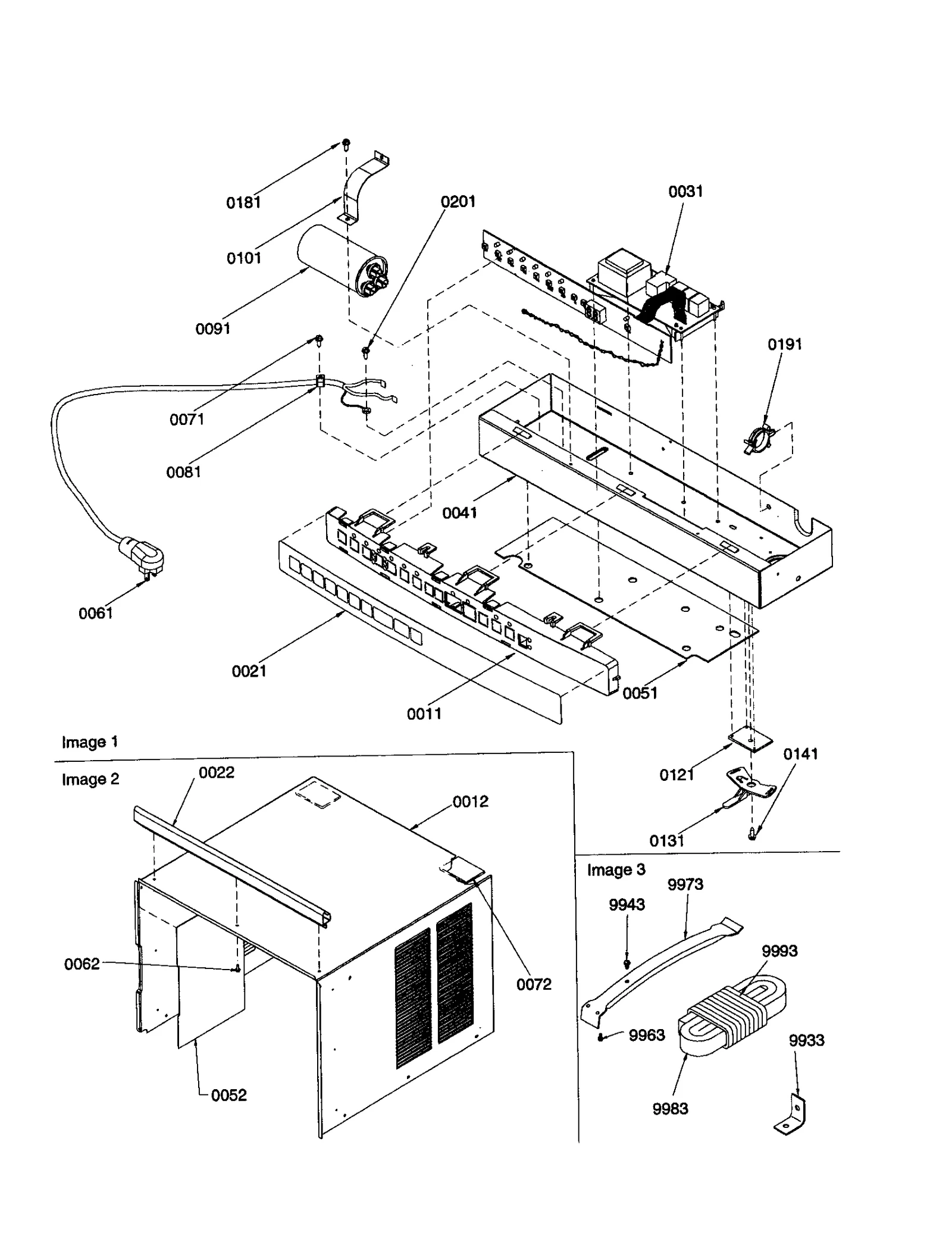

CONTROL AND OUTER CASE ASSEMBLY

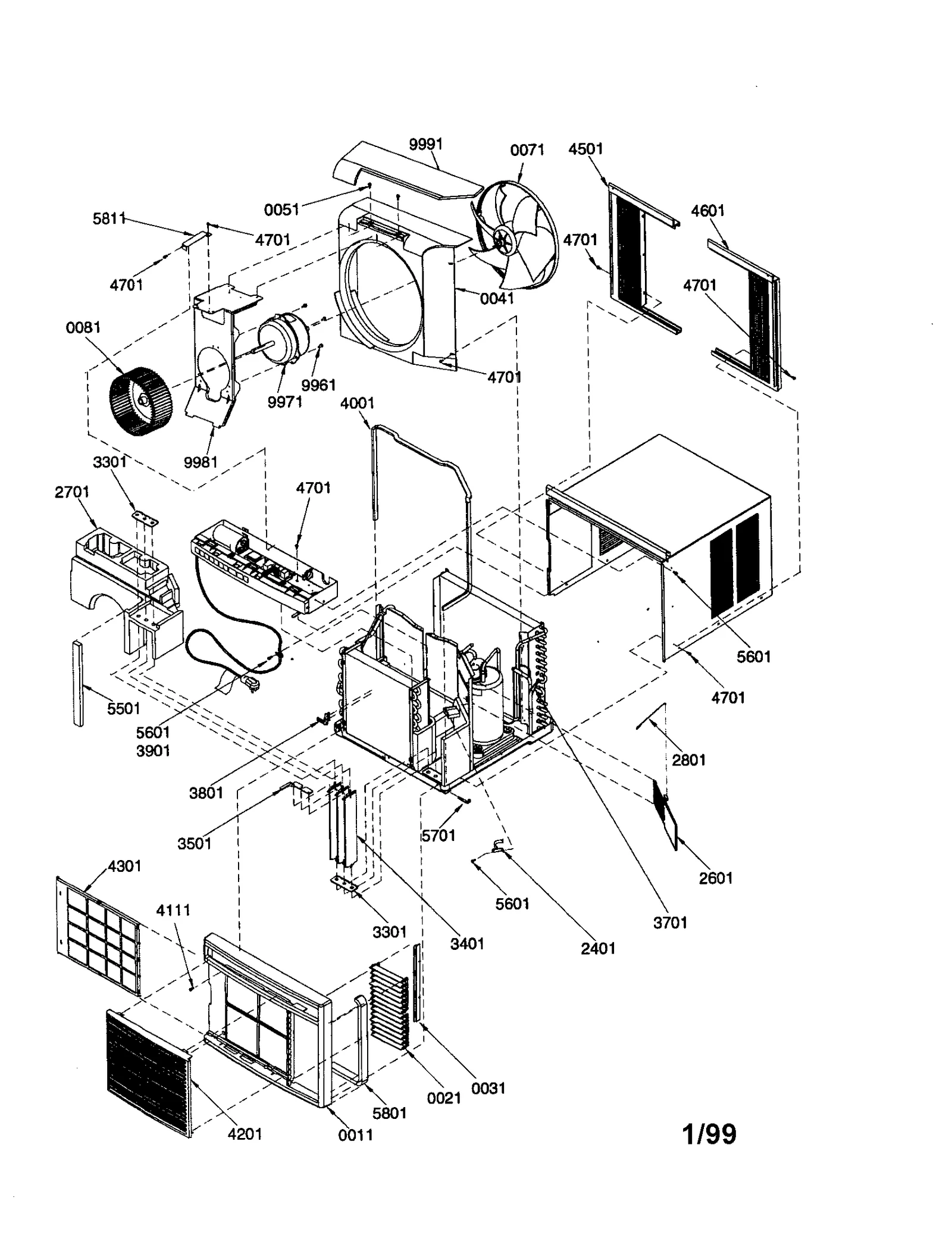

CHASSIS ASSEMBLY
All Parts

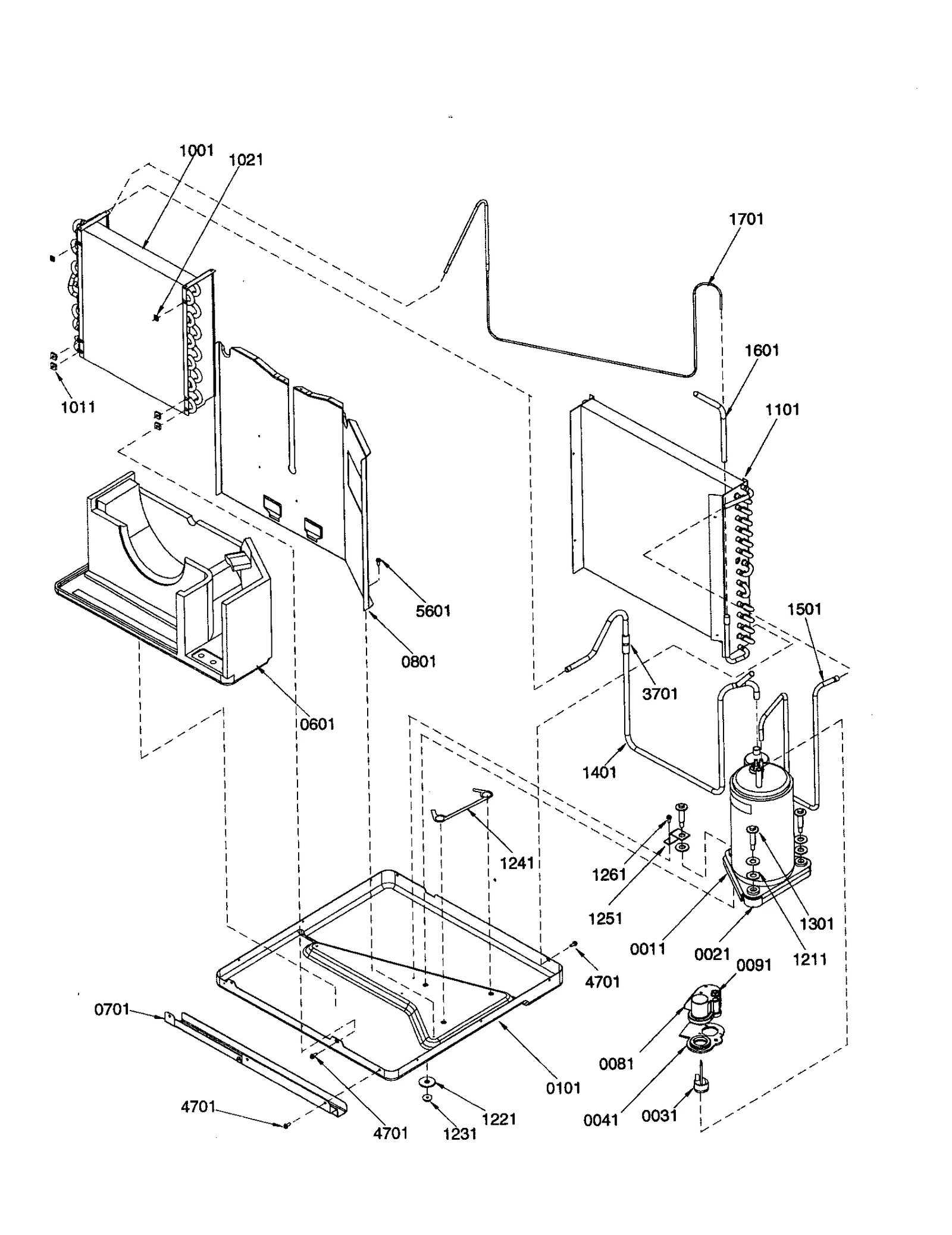

BASE PAN ASSEMBLY
Common parts from model Whirlpool 596.78079891 Room Air Conditioner (Kenmore 59678079891)
0
Screw WPL M0213032 Contact Us For Availability
11
Housing WPL 20052801 Contact Us For Availability
11
Frame WPL 20050202 Contact Us For Availability
11
Compressor WPL 11101504 Contact Us For Availability
12
Outer Case WPL 20050002 Contact Us For Availability
21
Overlay WPL 20100001 Contact Us For Availability
21
Louver WPL 20051001 Contact Us For Availability
21
Grommet WPL C6466001 Contact Us For Availability
22
Rail WPL 20055101 Contact Us For Availability
31
Board Pc Qz WPL 20082401 Contact Us For Availability
31
Retainer WPL 20051102 Contact Us For Availability
31
Overload WPL D6961654 Contact Us For Availability
41
Box WPL 20054601 Contact Us For Availability
41
Shroud WPL 20051203 Contact Us For Availability
41
Gasket WPL B1434901 Contact Us For Availability
51
Insert WPL 20069801 Contact Us For Availability
51
SCREW-SM (QTY AR) WPL M021107 Contact Us For Availability
52
Insert WPL 20059601 Contact Us For Availability
61
Power Cord WPL 20057501 Contact Us For Availability
62
Screw WPL M0254917 Contact Us For Availability
71
Fan WPL 20109601 Contact Us For Availability
81
Air Conditioner Blower Wheel WPL 20109701 Contact Us For Availability
81
Terminal Cover WPL C6470701 Contact Us For Availability
91
Capacitor WPL D6879845 Contact Us For Availability
91
Nut WPL A9036601 Contact Us For Availability
101
Strap WPL C6300511 Contact Us For Availability
101
Basepan WPL 20053702 Contact Us For Availability
121
Block WPL 20050701 Contact Us For Availability
131
Lever WPL 20050801 Contact Us For Availability
141
Screw WPL M0245104 Contact Us For Availability
191
Clip WPL M0118702 Contact Us For Availability
201
Screw WPL M0227803 Contact Us For Availability
601
Scroll WPL 20055303 Contact Us For Availability
701
Rail WPL 20055201 Contact Us For Availability
801
Panel WPL 20053806 Contact Us For Availability
1001
Coil Evaporator WPL 20053303 Contact Us For Availability
1011
Grommet WPL M0586001 Contact Us For Availability
1021
Grommet WPL A3315701 Contact Us For Availability
1101
Condenser WPL 20053205 Contact Us For Availability
1211
Washer WPL M0274008 Contact Us For Availability
1221
Washer WPL 20103201 Contact Us For Availability
1231
Nut WPL 20103301 Contact Us For Availability
1241
Protector WPL 20099501 Contact Us For Availability
1251
Bracket WPL 20093301 Contact Us For Availability
1301
Screw WPL M0253610 Contact Us For Availability
1401
Tube WPL 20059802 Contact Us For Availability
1501
Tube WPL 20091101 Contact Us For Availability
1601
Strainer WPL B1394401 Contact Us For Availability
1701
Capillary WPL 20058703 Contact Us For Availability
2401
Spring WPL 20055502 Contact Us For Availability
2601
Door WPL 20051302 Contact Us For Availability
2701
Scroll WPL 20055403 Contact Us For Availability
2801
Actuator WPL 20055605 Contact Us For Availability
3301
Base WPL 20051501 Contact Us For Availability
3401
Louver WPL 20111201 Contact Us For Availability
3501
Bar WPL 20051401 Contact Us For Availability
3801
Clip WPL 20075601 Contact Us For Availability
3901
Speed Clamp WPL M0103902 Contact Us For Availability
4001
Gasket WPL 10839801 Contact Us For Availability
4111
Screw WPL M0219730 Contact Us For Availability
4201
Insert WPL 20050301 Contact Us For Availability
4301
Filter WPL 20055901 Contact Us For Availability
4501
Frame WPL 20055001 Contact Us For Availability
4601
Frame WPL 20055002 Contact Us For Availability
5501
Gasket WPL 10839706 Contact Us For Availability
5701
Gasket WPL 10839713 Contact Us For Availability
5801
Gasket WPL 10839724 Contact Us For Availability
5811
Tie WPL 20082201 Contact Us For Availability
9933
Bracket WPL 10661401 Contact Us For Availability
9943
Screw WPL M0200001 Contact Us For Availability
9963
Screw WPL M0211020 Contact Us For Availability
9971
Fan Motor WPL 20109901 Contact Us For Availability
9973
Bracket Support WPL 11075307 Contact Us For Availability
9981
Bracket WPL 20053906 Contact Us For Availability
9983
Gasket WPL 10839702 Contact Us For Availability
9991
Insulation WPL 20076902 Contact Us For Availability
9993
Gasket WPL 10839720 Contact Us For Availability
NI
Owner's Manual WPL 20101101 Contact Us For Availability
NI
Parts List WPL 20110801 Contact Us For Availability
NI
Technical Sheet WPL 20110901 Contact Us For Availability
NI
Screw WPL M0219918 Contact Us For Availability
× ![]()
